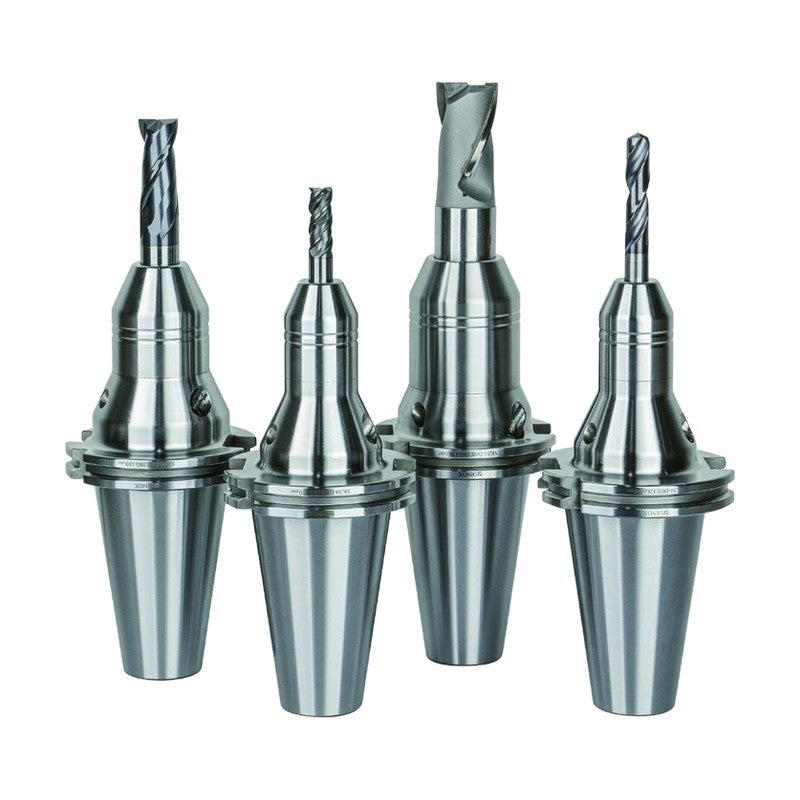

TAUMAX SK50 Hydraulic Expansion Chuck for Tool Grinding DHE/G

TAUMAX SK50 Hydraulic Expansion Chuck for Tool Grinding DHE/G

Hydraulic expansion chuck used as a jig to hold end tools on tool grinding machines, with a 25-degree nose to minimize wheel interference.

Key features

  • 25-degree nose angle minimizes grinding wheel interference
  • Run-out within 3 um at 3 x D
  • Stable 2-point clamping (upper and lower)
  • Used as a fixture for end tools during tool grinding

Specifications

Shank SK50 (DIN 69871-1 A/B)
Balance Grade G6.3
SK50-DHE6G-110 Tool Dia. ØD (mm): 6 | Length L (mm): 110 | ØD1 (mm): 15 | ØD2 (mm): 32 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 33-43 | Adjust Screw: M5 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.2 | Stock: Non-stock item
SK50-DHE8G-110 Tool Dia. ØD (mm): 8 | Length L (mm): 110 | ØD1 (mm): 17 | ØD2 (mm): 33.5 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 33-43 | Adjust Screw: M5 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.4 | Stock: Non-stock item
SK50-DHE10G-110 Tool Dia. ØD (mm): 10 | Length L (mm): 110 | ØD1 (mm): 19 | ØD2 (mm): 35 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 33-43 | Adjust Screw: M5 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.4 | Stock: Non-stock item
SK50-DHE12G-110 Tool Dia. ØD (mm): 12 | Length L (mm): 110 | ØD1 (mm): 21.5 | ØD2 (mm): 36.5 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 40-50 | Adjust Screw: M10 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.6 | Stock: Yes
SK50-DHE14G-110 Tool Dia. ØD (mm): 14 | Length L (mm): 110 | ØD1 (mm): 23.5 | ØD2 (mm): 38 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 40-50 | Adjust Screw: M10 | L1 (mm): 60 | L2 (mm): 90.9 | Weight (kg): 3.6 | Stock: Non-stock item
SK50-DHE16G-110 Tool Dia. ØD (mm): 16 | Length L (mm): 110 | ØD1 (mm): 25.5 | ØD2 (mm): 39.5 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | L1 (mm): 60 | L2 (mm): 90.9 | Weight (kg): 3.7 | Stock: Non-stock item
SK50-DHE18G-110 Tool Dia. ØD (mm): 18 | Length L (mm): 110 | ØD1 (mm): 27.5 | ØD2 (mm): 41 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 44-53 | Adjust Screw: M10 | L1 (mm): 60 | L2 (mm): 90.9 | Weight (kg): 3.8 | Stock: Non-stock item
SK50-DHE20G-110 Tool Dia. ØD (mm): 20 | Length L (mm): 110 | ØD1 (mm): 28 | ØD2 (mm): 42 | ØD3 (mm): 70 | Tool Insertion Depth H (mm): 50-60 | Adjust Screw: M10 | L1 (mm): 47 | L2 (mm): 90.9 | Weight (kg): 3.8 | Stock: Yes
SK50-DHE25G-110 Tool Dia. ØD (mm): 25 | Length L (mm): 110 | ØD1 (mm): 33 | ØD2 (mm): 47 | ØD3 (mm): 70 | Tool Insertion Depth H (mm): 85-95 | Adjust Screw: M16 | L1 (mm): 49 | L2 (mm): 90.9 | Weight (kg): 4 | Stock: Non-stock item
SK50-DHE32G-110 Tool Dia. ØD (mm): 32 | Length L (mm): 110 | ØD1 (mm): 40 | ØD2 (mm): 54 | ØD3 (mm): 70 | Tool Insertion Depth H (mm): 85-95 | Adjust Screw: M16 | L1 (mm): 62.5 | L2 (mm): 90.9 | Weight (kg): 4.2 | Stock: Yes
Hydraulic ChucksTAUMAX
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX SK50 Hydraulic Expansion Chuck for Tool Grinding DHE/G

Brand TAUMAX·Hydraulic Chucks

Available part numbers (10)

SK50-DHE6G-110, SK50-DHE8G-110, SK50-DHE10G-110, SK50-DHE12G-110, SK50-DHE14G-110, SK50-DHE16G-110, SK50-DHE18G-110, SK50-DHE20G-110, SK50-DHE25G-110, SK50-DHE32G-110

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SK50-DHE6G-110Tool Dia. ØD (mm): 6 | Length L (mm): 110 | ØD1 (mm): 15 | ØD2 (mm): 32 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 33-43 | Adjust Screw: M5 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.2 | Stock: Non-stock item
SK50-DHE8G-110Tool Dia. ØD (mm): 8 | Length L (mm): 110 | ØD1 (mm): 17 | ØD2 (mm): 33.5 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 33-43 | Adjust Screw: M5 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.4 | Stock: Non-stock item
SK50-DHE10G-110Tool Dia. ØD (mm): 10 | Length L (mm): 110 | ØD1 (mm): 19 | ØD2 (mm): 35 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 33-43 | Adjust Screw: M5 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.4 | Stock: Non-stock item
SK50-DHE12G-110Tool Dia. ØD (mm): 12 | Length L (mm): 110 | ØD1 (mm): 21.5 | ØD2 (mm): 36.5 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 40-50 | Adjust Screw: M10 | L1 (mm): 55 | L2 (mm): 90.9 | Weight (kg): 3.6 | Stock: Yes
SK50-DHE14G-110Tool Dia. ØD (mm): 14 | Length L (mm): 110 | ØD1 (mm): 23.5 | ØD2 (mm): 38 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 40-50 | Adjust Screw: M10 | L1 (mm): 60 | L2 (mm): 90.9 | Weight (kg): 3.6 | Stock: Non-stock item
SK50-DHE16G-110Tool Dia. ØD (mm): 16 | Length L (mm): 110 | ØD1 (mm): 25.5 | ØD2 (mm): 39.5 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 43-53 | Adjust Screw: M10 | L1 (mm): 60 | L2 (mm): 90.9 | Weight (kg): 3.7 | Stock: Non-stock item
SK50-DHE18G-110Tool Dia. ØD (mm): 18 | Length L (mm): 110 | ØD1 (mm): 27.5 | ØD2 (mm): 41 | ØD3 (mm): 60 | Tool Insertion Depth H (mm): 44-53 | Adjust Screw: M10 | L1 (mm): 60 | L2 (mm): 90.9 | Weight (kg): 3.8 | Stock: Non-stock item
SK50-DHE20G-110Tool Dia. ØD (mm): 20 | Length L (mm): 110 | ØD1 (mm): 28 | ØD2 (mm): 42 | ØD3 (mm): 70 | Tool Insertion Depth H (mm): 50-60 | Adjust Screw: M10 | L1 (mm): 47 | L2 (mm): 90.9 | Weight (kg): 3.8 | Stock: Yes
SK50-DHE25G-110Tool Dia. ØD (mm): 25 | Length L (mm): 110 | ØD1 (mm): 33 | ØD2 (mm): 47 | ØD3 (mm): 70 | Tool Insertion Depth H (mm): 85-95 | Adjust Screw: M16 | L1 (mm): 49 | L2 (mm): 90.9 | Weight (kg): 4 | Stock: Non-stock item
SK50-DHE32G-110Tool Dia. ØD (mm): 32 | Length L (mm): 110 | ØD1 (mm): 40 | ØD2 (mm): 54 | ØD3 (mm): 70 | Tool Insertion Depth H (mm): 85-95 | Adjust Screw: M16 | L1 (mm): 62.5 | L2 (mm): 90.9 | Weight (kg): 4.2 | Stock: Yes
