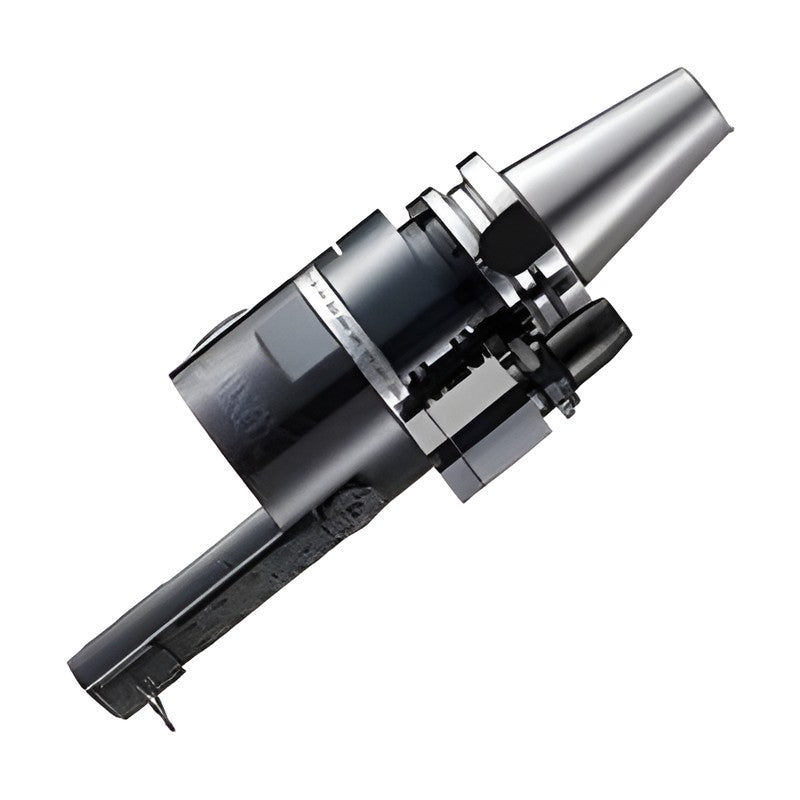

TAUMAX Slim Angular Head SAH

TAUMAX Slim Angular Head SAH

Slim angular head for narrow inside machining, minimum workpiece inner diameter 40 mm and minimum machining width 32 mm.

Key features

  • Min. inner diameter 40 mm, min. width 32 mm
  • Spindle ratio 1:1.37
  • Cutting range 3, 4, 6 mm with exclusive collets
  • MAS 403-BT shank (BT50)
SAH6-277 Shank: BT50 | L (mm): 277 | Gear ratio (IN:OUT): 1:1.37 | Rotation: CW:CW | Max RPM: 3,500 | Weight (kg): 15.2 | Stock: Yes
SAH6-C3 Part: Exclusive SAH collet | Clamping dia. (mm): 3 | Recommended clamp torque: 3.5 N-m | Stock: Yes
SAH6-C4 Part: Exclusive SAH collet | Clamping dia. (mm): 4 | Recommended clamp torque: 3.5 N-m | Stock: Yes
SAH6-C6 Part: Exclusive SAH collet | Clamping dia. (mm): 6 | Recommended clamp torque: 3.5 N-m | Stock: Yes
Angular HeadsTAUMAX
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Slim Angular Head SAH

Brand TAUMAX·Angular Heads

Available part numbers (4)

SAH6-277, SAH6-C3, SAH6-C4, SAH6-C6

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAH6-277Shank: BT50 | L (mm): 277 | Gear ratio (IN:OUT): 1:1.37 | Rotation: CW:CW | Max RPM: 3,500 | Weight (kg): 15.2 | Stock: Yes
SAH6-C3Part: Exclusive SAH collet | Clamping dia. (mm): 3 | Recommended clamp torque: 3.5 N-m | Stock: Yes
SAH6-C4Part: Exclusive SAH collet | Clamping dia. (mm): 4 | Recommended clamp torque: 3.5 N-m | Stock: Yes
SAH6-C6Part: Exclusive SAH collet | Clamping dia. (mm): 6 | Recommended clamp torque: 3.5 N-m | Stock: Yes
