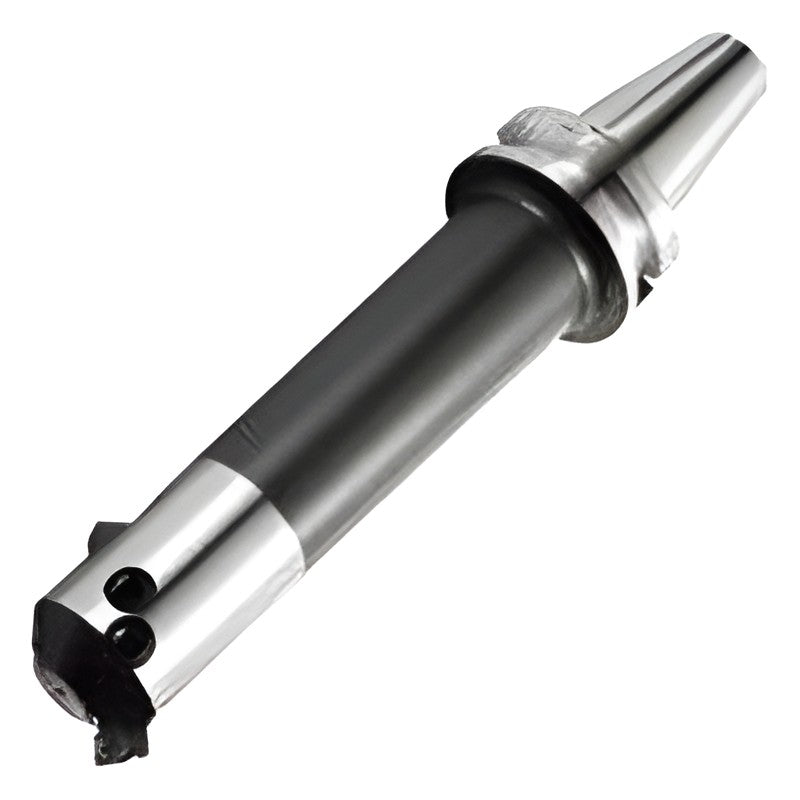

TAUMAX Square Boring Bar BT-BSA

TAUMAX Square Boring Bar BT-BSA

BT50 square-bite boring bar for rough and fine boring from Ø25 to Ø160 mm using BH square boring bites.

BT50-BSA25-135 Boring range min (mm): 25 | Boring range max (mm): 38 | L (mm): 135 | ØD1 (mm): 20 | L1 (mm): 91 | L2 (mm): 35 | L3 (mm): 1 | ØD2 (mm): 22 | Bite size W (mm): 8 | G (thread): M6 | Weight (kg): 4.2 | Stock: Yes
BT50-BSA30-165 Boring range min (mm): 30 | Boring range max (mm): 42 | L (mm): 165 | ØD1 (mm): 24 | L1 (mm): 120 | L2 (mm): 40 | L3 (mm): 1.6 | ØD2 (mm): 26 | Bite size W (mm): 8 | G (thread): M6 | Weight (kg): 4.5 | Stock: Yes
BT50-BSA38-180 Boring range min (mm): 38 | Boring range max (mm): 52 | L (mm): 180 | ØD1 (mm): 30 | L1 (mm): 134 | L2 (mm): 50 | L3 (mm): 2.6 | ØD2 (mm): 33 | Bite size W (mm): 10 | G (thread): M8 | Weight (kg): 4.9 | Stock: Yes
BT50-BSA42-210 Boring range min (mm): 42 | Boring range max (mm): 56 | L (mm): 210 | ØD1 (mm): 34 | L1 (mm): 167 | L2 (mm): 50 | L3 (mm): 2.6 | ØD2 (mm): 37 | Bite size W (mm): 10 | G (thread): M8 | Weight (kg): 5.3 | Stock: Yes
BT50-BSA50-180 Boring range min (mm): 50 | Boring range max (mm): 65 | L (mm): 180 | ØD1 (mm): 40 | L1 (mm): 134 | L2 (mm): 65 | L3 (mm): 3 | ØD2 (mm): 46 | Bite size W (mm): 13 | G (thread): M10 | Weight (kg): 5.5 | Stock: Yes
BT50-BSA50-240 Boring range min (mm): 50 | Boring range max (mm): 65 | L (mm): 240 | ØD1 (mm): 40 | L1 (mm): 197 | L2 (mm): 65 | L3 (mm): 3 | ØD2 (mm): 44 | Bite size W (mm): 13 | G (thread): M10 | Weight (kg): 6.2 | Stock: Yes
BT50-BSA62-195 Boring range min (mm): 62 | Boring range max (mm): 90 | L (mm): 195 | ØD1 (mm): 50 | L1 (mm): 150 | L2 (mm): 80 | L3 (mm): 2 | ØD2 (mm): 56 | Bite size W (mm): 16 | G (thread): M10 | Weight (kg): 6.3 | Stock: Yes
BT50-BSA62-270 Boring range min (mm): 62 | Boring range max (mm): 90 | L (mm): 270 | ØD1 (mm): 50 | L1 (mm): 225 | L2 (mm): 80 | L3 (mm): 2 | ØD2 (mm): 56 | Bite size W (mm): 16 | G (thread): M10 | Weight (kg): 7.8 | Stock: Yes
BT50-BSA72-195 Boring range min (mm): 72 | Boring range max (mm): 110 | L (mm): 195 | ØD1 (mm): 60 | L1 (mm): 149 | L2 (mm): 95 | L3 (mm): 2.4 | ØD2 (mm): 66 | Bite size W (mm): 19 | G (thread): M12 | Weight (kg): 7.2 | Stock: Yes
BT50-BSA72-285 Boring range min (mm): 72 | Boring range max (mm): 110 | L (mm): 285 | ØD1 (mm): 60 | L1 (mm): 239 | L2 (mm): 95 | L3 (mm): 2.4 | ØD2 (mm): 66 | Bite size W (mm): 19 | G (thread): M12 | Weight (kg): 9.5 | Stock: Yes
BT50-BSA90-210 Boring range min (mm): 90 | Boring range max (mm): 125 | L (mm): 210 | ØD1 (mm): 75 | L1 (mm): 167 | L2 (mm): 110 | L3 (mm): 4 | ØD2 (mm): 80 | Bite size W (mm): 19 | G (thread): M12 | Weight (kg): 9.5 | Stock: Yes
BT50-BSA105-195 Boring range min (mm): 105 | Boring range max (mm): 160 | L (mm): 195 | ØD1 (mm): 90 | L1 (mm): 154 | L2 (mm): 130 | L3 (mm): 3 | Bite size W (mm): 25 | G (thread): M12 | Weight (kg): 10.7 | Stock: Yes (switching to non-stock after depletion)
Boring BarsTAUMAX
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Square Boring Bar BT-BSA

Brand TAUMAX·Boring Bars

Available part numbers (12)

BT50-BSA25-135, BT50-BSA30-165, BT50-BSA38-180, BT50-BSA42-210, BT50-BSA50-180, BT50-BSA50-240, BT50-BSA62-195, BT50-BSA62-270, BT50-BSA72-195, BT50-BSA72-285 + 2 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT50-BSA25-135Boring range min (mm): 25 | Boring range max (mm): 38 | L (mm): 135 | ØD1 (mm): 20 | L1 (mm): 91 | L2 (mm): 35 | L3 (mm): 1 | ØD2 (mm): 22 | Bite size W (mm): 8 | G (thread): M6 | Weight (kg): 4.2 | Stock: Yes
BT50-BSA30-165Boring range min (mm): 30 | Boring range max (mm): 42 | L (mm): 165 | ØD1 (mm): 24 | L1 (mm): 120 | L2 (mm): 40 | L3 (mm): 1.6 | ØD2 (mm): 26 | Bite size W (mm): 8 | G (thread): M6 | Weight (kg): 4.5 | Stock: Yes
BT50-BSA38-180Boring range min (mm): 38 | Boring range max (mm): 52 | L (mm): 180 | ØD1 (mm): 30 | L1 (mm): 134 | L2 (mm): 50 | L3 (mm): 2.6 | ØD2 (mm): 33 | Bite size W (mm): 10 | G (thread): M8 | Weight (kg): 4.9 | Stock: Yes
BT50-BSA42-210Boring range min (mm): 42 | Boring range max (mm): 56 | L (mm): 210 | ØD1 (mm): 34 | L1 (mm): 167 | L2 (mm): 50 | L3 (mm): 2.6 | ØD2 (mm): 37 | Bite size W (mm): 10 | G (thread): M8 | Weight (kg): 5.3 | Stock: Yes
BT50-BSA50-180Boring range min (mm): 50 | Boring range max (mm): 65 | L (mm): 180 | ØD1 (mm): 40 | L1 (mm): 134 | L2 (mm): 65 | L3 (mm): 3 | ØD2 (mm): 46 | Bite size W (mm): 13 | G (thread): M10 | Weight (kg): 5.5 | Stock: Yes
BT50-BSA50-240Boring range min (mm): 50 | Boring range max (mm): 65 | L (mm): 240 | ØD1 (mm): 40 | L1 (mm): 197 | L2 (mm): 65 | L3 (mm): 3 | ØD2 (mm): 44 | Bite size W (mm): 13 | G (thread): M10 | Weight (kg): 6.2 | Stock: Yes
BT50-BSA62-195Boring range min (mm): 62 | Boring range max (mm): 90 | L (mm): 195 | ØD1 (mm): 50 | L1 (mm): 150 | L2 (mm): 80 | L3 (mm): 2 | ØD2 (mm): 56 | Bite size W (mm): 16 | G (thread): M10 | Weight (kg): 6.3 | Stock: Yes
BT50-BSA62-270Boring range min (mm): 62 | Boring range max (mm): 90 | L (mm): 270 | ØD1 (mm): 50 | L1 (mm): 225 | L2 (mm): 80 | L3 (mm): 2 | ØD2 (mm): 56 | Bite size W (mm): 16 | G (thread): M10 | Weight (kg): 7.8 | Stock: Yes
BT50-BSA72-195Boring range min (mm): 72 | Boring range max (mm): 110 | L (mm): 195 | ØD1 (mm): 60 | L1 (mm): 149 | L2 (mm): 95 | L3 (mm): 2.4 | ØD2 (mm): 66 | Bite size W (mm): 19 | G (thread): M12 | Weight (kg): 7.2 | Stock: Yes
BT50-BSA72-285Boring range min (mm): 72 | Boring range max (mm): 110 | L (mm): 285 | ØD1 (mm): 60 | L1 (mm): 239 | L2 (mm): 95 | L3 (mm): 2.4 | ØD2 (mm): 66 | Bite size W (mm): 19 | G (thread): M12 | Weight (kg): 9.5 | Stock: Yes
BT50-BSA90-210Boring range min (mm): 90 | Boring range max (mm): 125 | L (mm): 210 | ØD1 (mm): 75 | L1 (mm): 167 | L2 (mm): 110 | L3 (mm): 4 | ØD2 (mm): 80 | Bite size W (mm): 19 | G (thread): M12 | Weight (kg): 9.5 | Stock: Yes
BT50-BSA105-195Boring range min (mm): 105 | Boring range max (mm): 160 | L (mm): 195 | ØD1 (mm): 90 | L1 (mm): 154 | L2 (mm): 130 | L3 (mm): 3 | Bite size W (mm): 25 | G (thread): M12 | Weight (kg): 10.7 | Stock: Yes (switching to non-stock after depletion)
