Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| BH408 | Bite size W=H (mm): 8 | h (mm): 7.8 | L (mm): 40 | L1 (mm): 9 | f (mm): 3.2 | Insert: TPGT0802..L | Insert screw: BFTX0204A | Insert wrench: TRX06 | Stock: Yes | ||

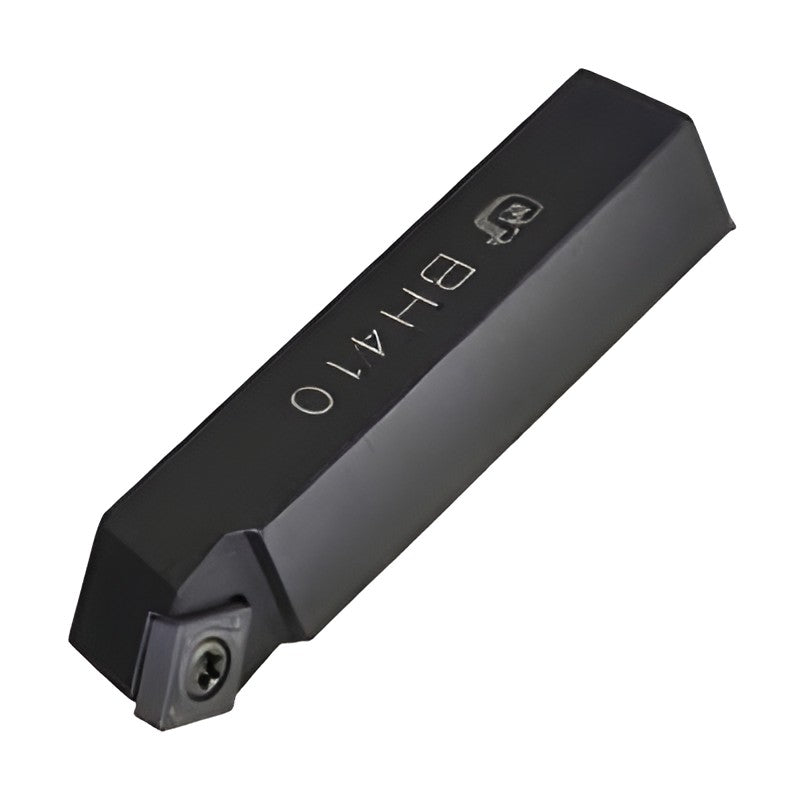

| BH410 | Bite size W=H (mm): 10 | h (mm): 9.8 | L (mm): 50 | L1 (mm): 10 | f (mm): 4.2 | Insert: CPMT0602.. | Insert screw: BFTX02506N | Insert wrench: TRX08 | Stock: Yes | ||
| BH413 | Bite size W=H (mm): 13 | h (mm): 12.8 | L (mm): 60 | L1 (mm): 14 | f (mm): 6.2 | Insert: CPMT0803.. | Insert screw: BFTX0307N | Insert wrench: TRX10 | Stock: Yes | ||
| BH416 | Bite size W=H (mm): 16 | h (mm): 15.8 | L (mm): 80 | L1 (mm): 18 | f (mm): 7.3 | Insert: CPMT0903.. | Insert screw: BFTX0407A | Insert wrench: TRX15 | Stock: Yes | ||
| BH419 | Bite size W=H (mm): 19 | h (mm): 18.8 | L (mm): 95 | L1 (mm): 22 | f (mm): 10.3 | Insert: CPMH1204.. | Insert screw: BFN0511T | Insert wrench: TRX20 | Stock: Yes | ||
| BH425 | Bite size W=H (mm): 25 | h (mm): 24.8 | L (mm): 125 | L1 (mm): 26 | f (mm): 14.2 | Insert: CPMH1604.. | Insert screw: BFX0611R | Insert wrench: LW-3.0 | Stock: Yes |
Need a different model, or a part not listed here? Send us your parts list →
