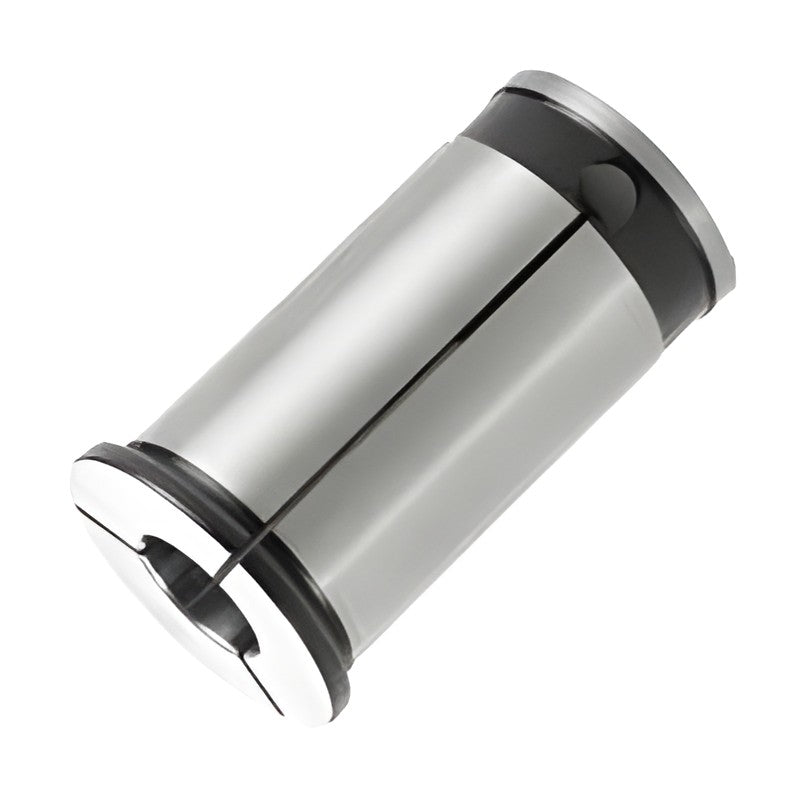

TAUMAX Straight Collet DC

TAUMAX Straight Collet DC

Straight collet for NPM and DMC milling chucks, bore sizes Ø6 to Ø32 mm.

DC20-6 Collet size: DC20 | ØD (mm): 6 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-8 Collet size: DC20 | ØD (mm): 8 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-10 Collet size: DC20 | ØD (mm): 10 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-12 Collet size: DC20 | ØD (mm): 12 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-14 Collet size: DC20 | ØD (mm): 14 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-16 Collet size: DC20 | ØD (mm): 16 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC25-6 Collet size: DC25 | ØD (mm): 6 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-8 Collet size: DC25 | ØD (mm): 8 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-10 Collet size: DC25 | ØD (mm): 10 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-12 Collet size: DC25 | ØD (mm): 12 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-16 Collet size: DC25 | ØD (mm): 16 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-20 Collet size: DC25 | ØD (mm): 20 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC32-6 Collet size: DC32 | ØD (mm): 6 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-8 Collet size: DC32 | ØD (mm): 8 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-10 Collet size: DC32 | ØD (mm): 10 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-12 Collet size: DC32 | ØD (mm): 12 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-14 Collet size: DC32 | ØD (mm): 14 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-16 Collet size: DC32 | ØD (mm): 16 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-19 Collet size: DC32 | ØD (mm): 19 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-20 Collet size: DC32 | ØD (mm): 20 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-25 Collet size: DC32 | ØD (mm): 25 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC42-6 Collet size: DC42 | ØD (mm): 6 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-8 Collet size: DC42 | ØD (mm): 8 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-10 Collet size: DC42 | ØD (mm): 10 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-12 Collet size: DC42 | ØD (mm): 12 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-16 Collet size: DC42 | ØD (mm): 16 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-20 Collet size: DC42 | ØD (mm): 20 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-25 Collet size: DC42 | ØD (mm): 25 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-32 Collet size: DC42 | ØD (mm): 32 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
ColletsTAUMAX
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Straight Collet DC

Brand TAUMAX·Collets

Available part numbers (29)

DC20-6, DC20-8, DC20-10, DC20-12, DC20-14, DC20-16, DC25-6, DC25-8, DC25-10, DC25-12 + 19 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DC20-6Collet size: DC20 | ØD (mm): 6 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-8Collet size: DC20 | ØD (mm): 8 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-10Collet size: DC20 | ØD (mm): 10 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-12Collet size: DC20 | ØD (mm): 12 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-14Collet size: DC20 | ØD (mm): 14 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC20-16Collet size: DC20 | ØD (mm): 16 | L (mm): 53 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DC25-6Collet size: DC25 | ØD (mm): 6 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-8Collet size: DC25 | ØD (mm): 8 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-10Collet size: DC25 | ØD (mm): 10 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-12Collet size: DC25 | ØD (mm): 12 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-16Collet size: DC25 | ØD (mm): 16 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC25-20Collet size: DC25 | ØD (mm): 20 | L (mm): 62 | ØD1 (mm): 25 | ØD2 (mm): 29 | Weight (kg): 0.2 | Stock: Yes
DC32-6Collet size: DC32 | ØD (mm): 6 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-8Collet size: DC32 | ØD (mm): 8 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-10Collet size: DC32 | ØD (mm): 10 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-12Collet size: DC32 | ØD (mm): 12 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-14Collet size: DC32 | ØD (mm): 14 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-16Collet size: DC32 | ØD (mm): 16 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-19Collet size: DC32 | ØD (mm): 19 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-20Collet size: DC32 | ØD (mm): 20 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC32-25Collet size: DC32 | ØD (mm): 25 | L (mm): 65 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DC42-6Collet size: DC42 | ØD (mm): 6 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-8Collet size: DC42 | ØD (mm): 8 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-10Collet size: DC42 | ØD (mm): 10 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-12Collet size: DC42 | ØD (mm): 12 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-16Collet size: DC42 | ØD (mm): 16 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-20Collet size: DC42 | ØD (mm): 20 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-25Collet size: DC42 | ØD (mm): 25 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DC42-32Collet size: DC42 | ØD (mm): 32 | L (mm): 73 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
