• TAUMAX Straight Collet DCS
1 1

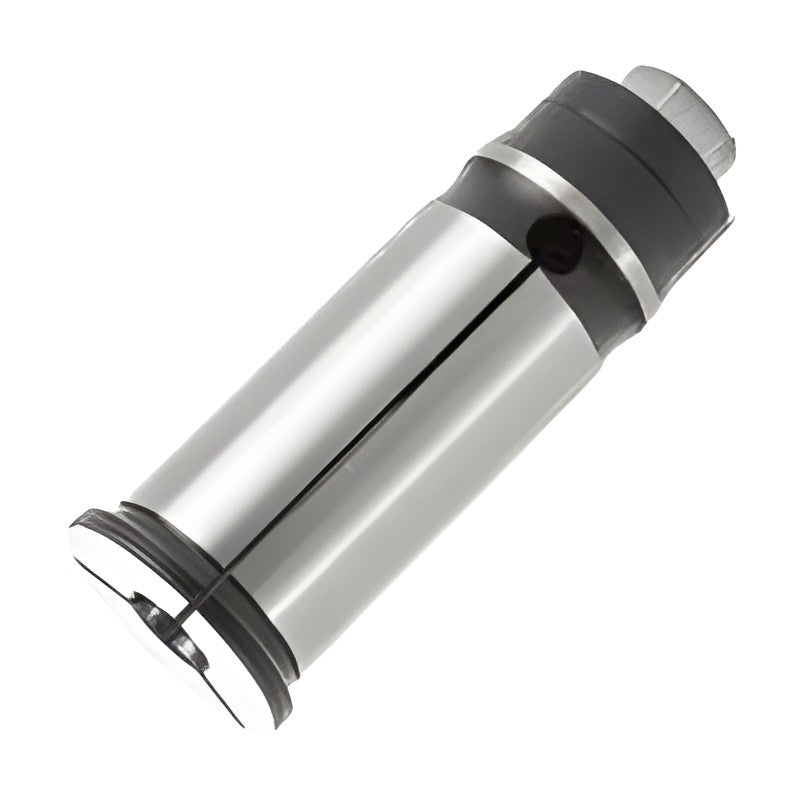

TAUMAX Straight Collet DCS

TAUMAX Straight Collet DCS

Straight collet for milling chucks with length adjustment by collet adjustment screw.

Key features

  • Length adjustable with a collet adjustment screw
DCS20-6 Collet size: DCS20 | ØD (mm): 6 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-8 Collet size: DCS20 | ØD (mm): 8 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-10 Collet size: DCS20 | ØD (mm): 10 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-12 Collet size: DCS20 | ØD (mm): 12 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-16 Collet size: DCS20 | ØD (mm): 16 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS32-6 Collet size: DCS32 | ØD (mm): 6 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-8 Collet size: DCS32 | ØD (mm): 8 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-10 Collet size: DCS32 | ØD (mm): 10 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-12 Collet size: DCS32 | ØD (mm): 12 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-14 Collet size: DCS32 | ØD (mm): 14 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-16 Collet size: DCS32 | ØD (mm): 16 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-19 Collet size: DCS32 | ØD (mm): 19 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-20 Collet size: DCS32 | ØD (mm): 20 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-25 Collet size: DCS32 | ØD (mm): 25 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS42-6 Collet size: DCS42 | ØD (mm): 6 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-8 Collet size: DCS42 | ØD (mm): 8 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-10 Collet size: DCS42 | ØD (mm): 10 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-12 Collet size: DCS42 | ØD (mm): 12 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-16 Collet size: DCS42 | ØD (mm): 16 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-20 Collet size: DCS42 | ØD (mm): 20 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-25 Collet size: DCS42 | ØD (mm): 25 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-32 Collet size: DCS42 | ØD (mm): 32 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
ColletsTAUMAX
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Straight Collet DCS

Brand TAUMAX·Collets

Available part numbers (22)

DCS20-6, DCS20-8, DCS20-10, DCS20-12, DCS20-16, DCS32-6, DCS32-8, DCS32-10, DCS32-12, DCS32-14 + 12 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DCS20-6Collet size: DCS20 | ØD (mm): 6 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-8Collet size: DCS20 | ØD (mm): 8 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-10Collet size: DCS20 | ØD (mm): 10 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-12Collet size: DCS20 | ØD (mm): 12 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS20-16Collet size: DCS20 | ØD (mm): 16 | L (mm): 57 | ØD1 (mm): 20 | ØD2 (mm): 25 | Weight (kg): 0.1 | Stock: Yes
DCS32-6Collet size: DCS32 | ØD (mm): 6 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-8Collet size: DCS32 | ØD (mm): 8 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-10Collet size: DCS32 | ØD (mm): 10 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-12Collet size: DCS32 | ØD (mm): 12 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-14Collet size: DCS32 | ØD (mm): 14 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-16Collet size: DCS32 | ØD (mm): 16 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-19Collet size: DCS32 | ØD (mm): 19 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-20Collet size: DCS32 | ØD (mm): 20 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS32-25Collet size: DCS32 | ØD (mm): 25 | L (mm): 70.5 | ØD1 (mm): 32 | ØD2 (mm): 37 | Weight (kg): 0.2 | Stock: Yes
DCS42-6Collet size: DCS42 | ØD (mm): 6 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-8Collet size: DCS42 | ØD (mm): 8 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-10Collet size: DCS42 | ØD (mm): 10 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-12Collet size: DCS42 | ØD (mm): 12 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-16Collet size: DCS42 | ØD (mm): 16 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-20Collet size: DCS42 | ØD (mm): 20 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-25Collet size: DCS42 | ØD (mm): 25 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
DCS42-32Collet size: DCS42 | ØD (mm): 32 | L (mm): 80 | ØD1 (mm): 42 | ØD2 (mm): 47 | Weight (kg): 0.5 | Stock: Yes
