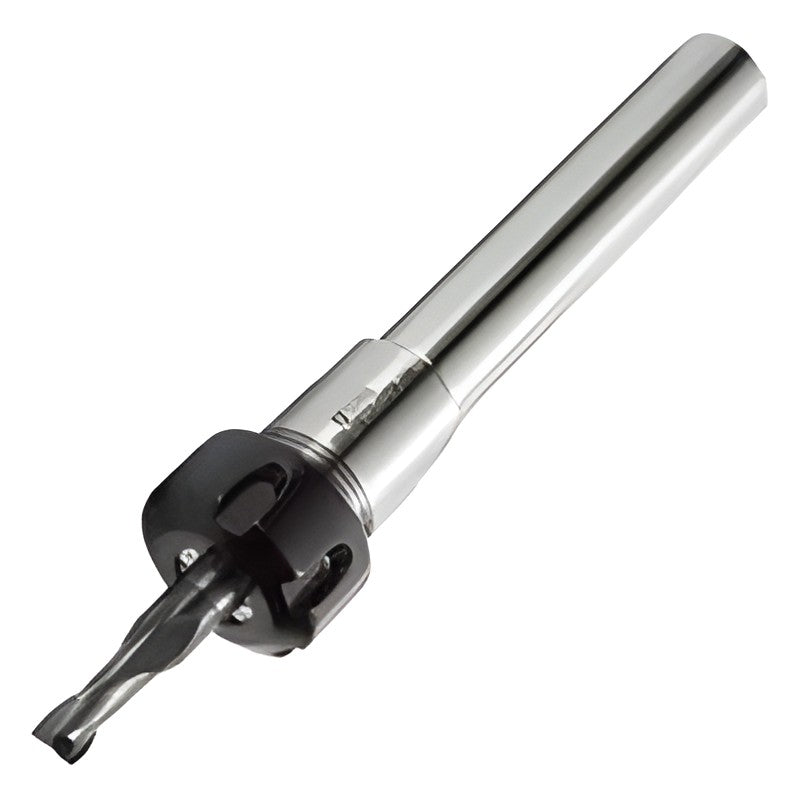

TAUMAX Straight Shank Collet Chuck S-SDC

TAUMAX Straight Shank Collet Chuck S-SDC

Straight-shank ER collet chuck in milling (M) and turning (T) versions, usable in combination with a milling chuck.

Key features

  • M type for milling, T type for turning
  • Max. clamping dia. Ø20 mm with GERC/ER collets
  • Internal coolant optional
S16-SDC7-120M Shank: S16 | ØD (mm): 1.0~7.0 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 16 | ØC1 (mm): 16 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC7-120T Shank: S16 | ØD (mm): 1.0~7.0 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 16 | P (mm): 15 | ØC1 (mm): 16 | L2 (mm): 73 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC10-150T Shank: S16 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 16 | P (mm): 15 | ØC1 (mm): 22 | L1 (mm): 46.5 | L2 (mm): 83 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Stock: Yes
S20-SDC10-150M Shank: S20 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 20 | ØC1 (mm): 22 | L1 (mm): 26.5 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.3 | Stock: Yes
S20-SDC10-150T Shank: S20 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 20 | P (mm): 19 | ØC1 (mm): 22 | L1 (mm): 26.5 | L2 (mm): 83 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Stock: Yes
S20-SDC13-150M Shank: S20 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 20 | ØC1 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.3 | Stock: Yes
S20-SDC13-150T Shank: S20 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 20 | P (mm): 19 | ØC1 (mm): 25 | L1 (mm): 50 | L2 (mm): 83 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Stock: Yes
S25-SDC10-150M Shank: S25 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 25 | ØC1 (mm): 22 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.4 | Stock: Yes
S25-SDC10-150T Shank: S25 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 25 | P (mm): 24 | ØC1 (mm): 22 | L2 (mm): 83 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.4 | Stock: Yes
S25-SDC13-150M Shank: S25 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 25 | ØC1 (mm): 25 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S25-SDC13-150T Shank: S25 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 25 | P (mm): 24 | ØC1 (mm): 25 | L2 (mm): 83 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S32-SDC13-150M Shank: S32 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 32 | ØC1 (mm): 25 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.7 | Stock: Yes
S32-SDC13-150T Shank: S32 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 32 | P (mm): 31 | ØC1 (mm): 25 | L2 (mm): 83 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.7 | Stock: Yes
S32-SDC20-165M Shank: S32 | ØD (mm): 2.0~20.0 | L (mm): 165 | ØD1 (mm): 50 | ØD2 (mm): 32 | ØC1 (mm): 40 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 0.9 | Stock: Yes
S32-SDC20-165T Shank: S32 | ØD (mm): 2.0~20.0 | L (mm): 165 | ØD1 (mm): 50 | ØD2 (mm): 32 | P (mm): 31 | ØC1 (mm): 40 | L1 (mm): 55 | L2 (mm): 83 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Stock: Yes
Collet ChucksTAUMAX
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Straight Shank Collet Chuck S-SDC

Brand TAUMAX·Collet Chucks

Available part numbers (15)

S16-SDC7-120M, S16-SDC7-120T, S16-SDC10-150T, S20-SDC10-150M, S20-SDC10-150T, S20-SDC13-150M, S20-SDC13-150T, S25-SDC10-150M, S25-SDC10-150T, S25-SDC13-150M + 5 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S16-SDC7-120MShank: S16 | ØD (mm): 1.0~7.0 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 16 | ØC1 (mm): 16 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC7-120TShank: S16 | ØD (mm): 1.0~7.0 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 16 | P (mm): 15 | ØC1 (mm): 16 | L2 (mm): 73 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC10-150TShank: S16 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 16 | P (mm): 15 | ØC1 (mm): 22 | L1 (mm): 46.5 | L2 (mm): 83 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Stock: Yes
S20-SDC10-150MShank: S20 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 20 | ØC1 (mm): 22 | L1 (mm): 26.5 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.3 | Stock: Yes
S20-SDC10-150TShank: S20 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 20 | P (mm): 19 | ØC1 (mm): 22 | L1 (mm): 26.5 | L2 (mm): 83 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Stock: Yes
S20-SDC13-150MShank: S20 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 20 | ØC1 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.3 | Stock: Yes
S20-SDC13-150TShank: S20 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 20 | P (mm): 19 | ØC1 (mm): 25 | L1 (mm): 50 | L2 (mm): 83 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Stock: Yes
S25-SDC10-150MShank: S25 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 25 | ØC1 (mm): 22 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.4 | Stock: Yes
S25-SDC10-150TShank: S25 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 25 | P (mm): 24 | ØC1 (mm): 22 | L2 (mm): 83 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.4 | Stock: Yes
S25-SDC13-150MShank: S25 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 25 | ØC1 (mm): 25 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S25-SDC13-150TShank: S25 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 25 | P (mm): 24 | ØC1 (mm): 25 | L2 (mm): 83 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S32-SDC13-150MShank: S32 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 32 | ØC1 (mm): 25 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.7 | Stock: Yes
S32-SDC13-150TShank: S32 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 32 | P (mm): 31 | ØC1 (mm): 25 | L2 (mm): 83 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.7 | Stock: Yes
S32-SDC20-165MShank: S32 | ØD (mm): 2.0~20.0 | L (mm): 165 | ØD1 (mm): 50 | ØD2 (mm): 32 | ØC1 (mm): 40 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Weight (kg): 0.9 | Stock: Yes
S32-SDC20-165TShank: S32 | ØD (mm): 2.0~20.0 | L (mm): 165 | ØD1 (mm): 50 | ØD2 (mm): 32 | P (mm): 31 | ØC1 (mm): 40 | L1 (mm): 55 | L2 (mm): 83 | H insertion depth (mm): 60 | Collet/step (mm): GERC32/1.0 | G thread: M22 | Stock: Yes
