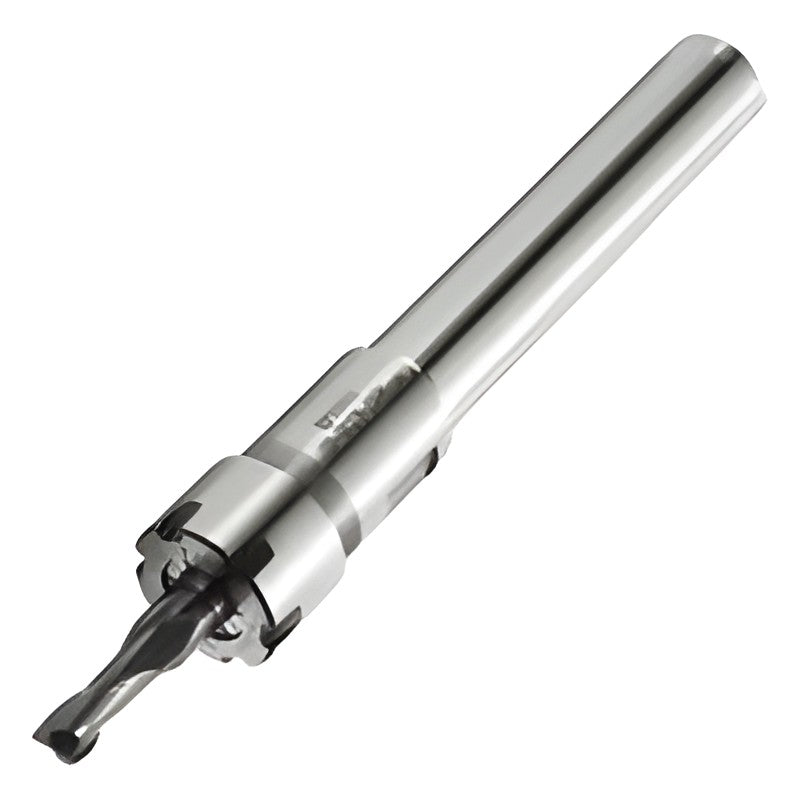

TAUMAX Straight Shank Collet Chuck Slim Type S-SDC/S

TAUMAX Straight Shank Collet Chuck Slim Type S-SDC/S

Slim straight-shank ER collet chuck, max. clamping diameter Ø16 mm.

Key features

  • Slim nose for reduced interference
  • Max. clamping dia. Ø16 mm with GERC/ER collets
S16-SDC7S-100M Shank: S16 | ØD (mm): 1.0~7.0 | L (mm): 100 | ØD1 (mm): 16 | ØD2 (mm): 16 | L1 (mm): 21 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC7S-150M Shank: S16 | ØD (mm): 1.0~7.0 | L (mm): 150 | ØD1 (mm): 16 | ØD2 (mm): 16 | L1 (mm): 21 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC10S-100M Shank: S16 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 22 | ØD2 (mm): 16 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.1 | Stock: Yes
S16-SDC10S-150M Shank: S16 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 22 | ØD2 (mm): 16 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.1 | Stock: Yes
S20-SDC7S-100M Shank: S20 | ØD (mm): 1.0~7.0 | L (mm): 100 | ØD1 (mm): 16 | ØD2 (mm): 20 | L1 (mm): 30 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S20-SDC7S-150M Shank: S20 | ØD (mm): 1.0~7.0 | L (mm): 150 | ØD1 (mm): 16 | ØD2 (mm): 20 | L1 (mm): 80 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.2 | Stock: Yes
S20-SDC10S-100M Shank: S20 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 22 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.1 | Stock: Yes
S20-SDC10S-150M Shank: S20 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 22 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.2 | Stock: Yes
S20-SDC10S-200M Shank: S20 | ØD (mm): 1.0~10.0 | L (mm): 200 | ØD1 (mm): 22 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.3 | Stock: Yes
S20-SDC13S-100M Shank: S20 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 28 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.1 | Stock: Yes
S20-SDC13S-150M Shank: S20 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.2 | Stock: Yes
S25-SDC7S-100M Shank: S25 | ØD (mm): 1.0~7.0 | L (mm): 100 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 30 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.2 | Stock: Yes
S25-SDC7S-150M Shank: S25 | ØD (mm): 1.0~7.0 | L (mm): 150 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 80 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.2 | Stock: Yes
S25-SDC10S-100M Shank: S25 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 22 | ØD2 (mm): 25 | L1 (mm): 30 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.2 | Stock: Yes
S25-SDC10S-150M Shank: S25 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 22 | ØD2 (mm): 25 | L1 (mm): 80 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.3 | Stock: Yes
S25-SDC13S-100M Shank: S25 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 28 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.2 | Stock: Yes
S25-SDC13S-150M Shank: S25 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S25-SDC16S-100M Shank: S25 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M13 | Weight (kg): 0.3 | Stock: Yes
S25-SDC16S-150M Shank: S25 | ØD (mm): 2.0~16.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S25-SDC16S-200M Shank: S25 | ØD (mm): 2.0~16.0 | L (mm): 200 | ØD1 (mm): 35 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M13 | Weight (kg): 0.6 | Stock: Yes
S32-SDC16S-120M Shank: S32 | ØD (mm): 2.0~16.0 | L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 32 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 0.5 | Stock: Yes
S32-SDC16S-150M Shank: S32 | ØD (mm): 2.0~16.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 32 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 0.6 | Stock: Yes
Collet ChucksTAUMAX
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Straight Shank Collet Chuck Slim Type S-SDC/S

Brand TAUMAX·Collet Chucks

Available part numbers (22)

S16-SDC7S-100M, S16-SDC7S-150M, S16-SDC10S-100M, S16-SDC10S-150M, S20-SDC7S-100M, S20-SDC7S-150M, S20-SDC10S-100M, S20-SDC10S-150M, S20-SDC10S-200M, S20-SDC13S-100M + 12 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S16-SDC7S-100MShank: S16 | ØD (mm): 1.0~7.0 | L (mm): 100 | ØD1 (mm): 16 | ØD2 (mm): 16 | L1 (mm): 21 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC7S-150MShank: S16 | ØD (mm): 1.0~7.0 | L (mm): 150 | ØD1 (mm): 16 | ØD2 (mm): 16 | L1 (mm): 21 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S16-SDC10S-100MShank: S16 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 22 | ØD2 (mm): 16 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.1 | Stock: Yes
S16-SDC10S-150MShank: S16 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 22 | ØD2 (mm): 16 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.1 | Stock: Yes
S20-SDC7S-100MShank: S20 | ØD (mm): 1.0~7.0 | L (mm): 100 | ØD1 (mm): 16 | ØD2 (mm): 20 | L1 (mm): 30 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.1 | Stock: Yes
S20-SDC7S-150MShank: S20 | ØD (mm): 1.0~7.0 | L (mm): 150 | ØD1 (mm): 16 | ØD2 (mm): 20 | L1 (mm): 80 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.2 | Stock: Yes
S20-SDC10S-100MShank: S20 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 22 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.1 | Stock: Yes
S20-SDC10S-150MShank: S20 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 22 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.2 | Stock: Yes
S20-SDC10S-200MShank: S20 | ØD (mm): 1.0~10.0 | L (mm): 200 | ØD1 (mm): 22 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.3 | Stock: Yes
S20-SDC13S-100MShank: S20 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 28 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.1 | Stock: Yes
S20-SDC13S-150MShank: S20 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.2 | Stock: Yes
S25-SDC7S-100MShank: S25 | ØD (mm): 1.0~7.0 | L (mm): 100 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 30 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.2 | Stock: Yes
S25-SDC7S-150MShank: S25 | ØD (mm): 1.0~7.0 | L (mm): 150 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 80 | H insertion depth (mm): 33 | Collet/step (mm): GERC11/0.5 | G thread: M7 | Weight (kg): 0.2 | Stock: Yes
S25-SDC10S-100MShank: S25 | ØD (mm): 1.0~10.0 | L (mm): 100 | ØD1 (mm): 22 | ØD2 (mm): 25 | L1 (mm): 30 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.2 | Stock: Yes
S25-SDC10S-150MShank: S25 | ØD (mm): 1.0~10.0 | L (mm): 150 | ØD1 (mm): 22 | ØD2 (mm): 25 | L1 (mm): 80 | H insertion depth (mm): 44.5 | Collet/step (mm): GERC16/1.0 | G thread: M10 | Weight (kg): 0.3 | Stock: Yes
S25-SDC13S-100MShank: S25 | ØD (mm): 1.0~13.0 | L (mm): 100 | ØD1 (mm): 28 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.2 | Stock: Yes
S25-SDC13S-150MShank: S25 | ØD (mm): 1.0~13.0 | L (mm): 150 | ØD1 (mm): 28 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 49 | Collet/step (mm): GERC20/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S25-SDC16S-100MShank: S25 | ØD (mm): 2.0~16.0 | L (mm): 100 | ØD1 (mm): 35 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M13 | Weight (kg): 0.3 | Stock: Yes
S25-SDC16S-150MShank: S25 | ØD (mm): 2.0~16.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M13 | Weight (kg): 0.4 | Stock: Yes
S25-SDC16S-200MShank: S25 | ØD (mm): 2.0~16.0 | L (mm): 200 | ØD1 (mm): 35 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M13 | Weight (kg): 0.6 | Stock: Yes
S32-SDC16S-120MShank: S32 | ØD (mm): 2.0~16.0 | L (mm): 120 | ØD1 (mm): 35 | ØD2 (mm): 32 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 0.5 | Stock: Yes
S32-SDC16S-150MShank: S32 | ØD (mm): 2.0~16.0 | L (mm): 150 | ØD1 (mm): 35 | ØD2 (mm): 32 | L1 (mm): 50 | H insertion depth (mm): 50 | Collet/step (mm): GERC25/1.0 | G thread: M18 | Weight (kg): 0.6 | Stock: Yes
