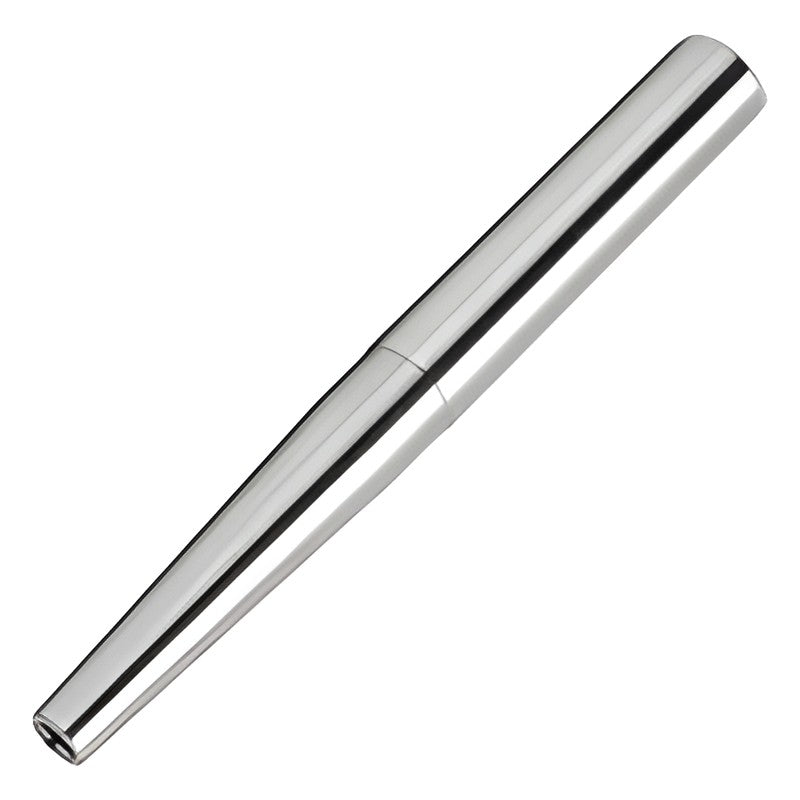

TAUMAX Straight Shank Shrinking Chuck ST-DSC/M

TAUMAX Straight Shank Shrinking Chuck ST-DSC/M

Straight-shank shrink-fit extension chuck used in combination with hydraulic, milling or collet chucks.

Key features

  • Shrink-fit clamping with run-out of 3 µm or less
  • 30% higher clamping force compared to hydraulic chucks
  • Symmetrical design for balanced high-speed machining
ST16-DSC6M-115 Shank: ST16 | ØD (mm): 6 | L (mm): 115 | ØD1 (mm): 10 | ØD2 (mm): 16 | L1 (mm): 50 | H insertion depth (mm): 95 | Weight (kg): 0.1 | Stock: No
ST16-DSC6M-140 Shank: ST16 | ØD (mm): 6 | L (mm): 140 | ØD1 (mm): 10 | ØD2 (mm): 16 | L1 (mm): 60 | H insertion depth (mm): 120 | Weight (kg): 0.1 | Stock: No
ST20-DSC6M-175 Shank: ST20 | ØD (mm): 6 | L (mm): 175 | ØD1 (mm): 10 | ØD2 (mm): 20 | L1 (mm): 95 | H insertion depth (mm): 155 | Weight (kg): 0.2 | Stock: No
ST20-DSC8M-145 Shank: ST20 | ØD (mm): 8 | L (mm): 145 | ØD1 (mm): 13 | ØD2 (mm): 20 | L1 (mm): 70 | H insertion depth (mm): 125 | Weight (kg): 0.2 | Stock: No
ST20-DSC10M-120 Shank: ST20 | ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 16 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 45 | Weight (kg): 0.2 | Stock: Yes (to be switched to NP order after stock depletion)
ST25-DSC8M-175 Shank: ST25 | ØD (mm): 8 | L (mm): 175 | ØD1 (mm): 13 | ØD2 (mm): 25 | L1 (mm): 105 | H insertion depth (mm): 155 | Weight (kg): 0.4 | Stock: No
ST25-DSC10M-145 Shank: ST25 | ØD (mm): 10 | L (mm): 145 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 75 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: Yes (to be switched to NP order after stock depletion)
ST25-DSC10M-175 Shank: ST25 | ØD (mm): 10 | L (mm): 175 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 105 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: No
ST25-DSC12M-120 Shank: ST25 | ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: No
ST25-DSC12M-150 Shank: ST25 | ØD (mm): 12 | L (mm): 150 | ØD1 (mm): 19 | ØD2 (mm): 25 | L1 (mm): 80 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: No
ST25-DSC16M-175 Shank: ST25 | ØD (mm): 16 | L (mm): 175 | ØD1 (mm): 24 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 47 | Weight (kg): 0.5 | Stock: No
ST32-DSC20M-175 Shank: ST32 | ØD (mm): 20 | L (mm): 175 | ØD1 (mm): 29 | ØD2 (mm): 32 | L1 (mm): 50 | H insertion depth (mm): 55 | Weight (kg): 0.8 | Stock: Yes (to be switched to NP order after stock depletion)
Shrink Fit HoldersTAUMAX
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Straight Shank Shrinking Chuck ST-DSC/M

Brand TAUMAX·Shrink Fit Holders

Available part numbers (12)

ST16-DSC6M-115, ST16-DSC6M-140, ST20-DSC6M-175, ST20-DSC8M-145, ST20-DSC10M-120, ST25-DSC8M-175, ST25-DSC10M-145, ST25-DSC10M-175, ST25-DSC12M-120, ST25-DSC12M-150 + 2 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST16-DSC6M-115Shank: ST16 | ØD (mm): 6 | L (mm): 115 | ØD1 (mm): 10 | ØD2 (mm): 16 | L1 (mm): 50 | H insertion depth (mm): 95 | Weight (kg): 0.1 | Stock: No
ST16-DSC6M-140Shank: ST16 | ØD (mm): 6 | L (mm): 140 | ØD1 (mm): 10 | ØD2 (mm): 16 | L1 (mm): 60 | H insertion depth (mm): 120 | Weight (kg): 0.1 | Stock: No
ST20-DSC6M-175Shank: ST20 | ØD (mm): 6 | L (mm): 175 | ØD1 (mm): 10 | ØD2 (mm): 20 | L1 (mm): 95 | H insertion depth (mm): 155 | Weight (kg): 0.2 | Stock: No
ST20-DSC8M-145Shank: ST20 | ØD (mm): 8 | L (mm): 145 | ØD1 (mm): 13 | ØD2 (mm): 20 | L1 (mm): 70 | H insertion depth (mm): 125 | Weight (kg): 0.2 | Stock: No
ST20-DSC10M-120Shank: ST20 | ØD (mm): 10 | L (mm): 120 | ØD1 (mm): 16 | ØD2 (mm): 20 | L1 (mm): 50 | H insertion depth (mm): 45 | Weight (kg): 0.2 | Stock: Yes (to be switched to NP order after stock depletion)
ST25-DSC8M-175Shank: ST25 | ØD (mm): 8 | L (mm): 175 | ØD1 (mm): 13 | ØD2 (mm): 25 | L1 (mm): 105 | H insertion depth (mm): 155 | Weight (kg): 0.4 | Stock: No
ST25-DSC10M-145Shank: ST25 | ØD (mm): 10 | L (mm): 145 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 75 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: Yes (to be switched to NP order after stock depletion)
ST25-DSC10M-175Shank: ST25 | ØD (mm): 10 | L (mm): 175 | ØD1 (mm): 16 | ØD2 (mm): 25 | L1 (mm): 105 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: No
ST25-DSC12M-120Shank: ST25 | ØD (mm): 12 | L (mm): 120 | ØD1 (mm): 19 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: No
ST25-DSC12M-150Shank: ST25 | ØD (mm): 12 | L (mm): 150 | ØD1 (mm): 19 | ØD2 (mm): 25 | L1 (mm): 80 | H insertion depth (mm): 45 | Weight (kg): 0.4 | Stock: No
ST25-DSC16M-175Shank: ST25 | ØD (mm): 16 | L (mm): 175 | ØD1 (mm): 24 | ØD2 (mm): 25 | L1 (mm): 50 | H insertion depth (mm): 47 | Weight (kg): 0.5 | Stock: No
ST32-DSC20M-175Shank: ST32 | ØD (mm): 20 | L (mm): 175 | ØD1 (mm): 29 | ØD2 (mm): 32 | L1 (mm): 50 | H insertion depth (mm): 55 | Weight (kg): 0.8 | Stock: Yes (to be switched to NP order after stock depletion)
