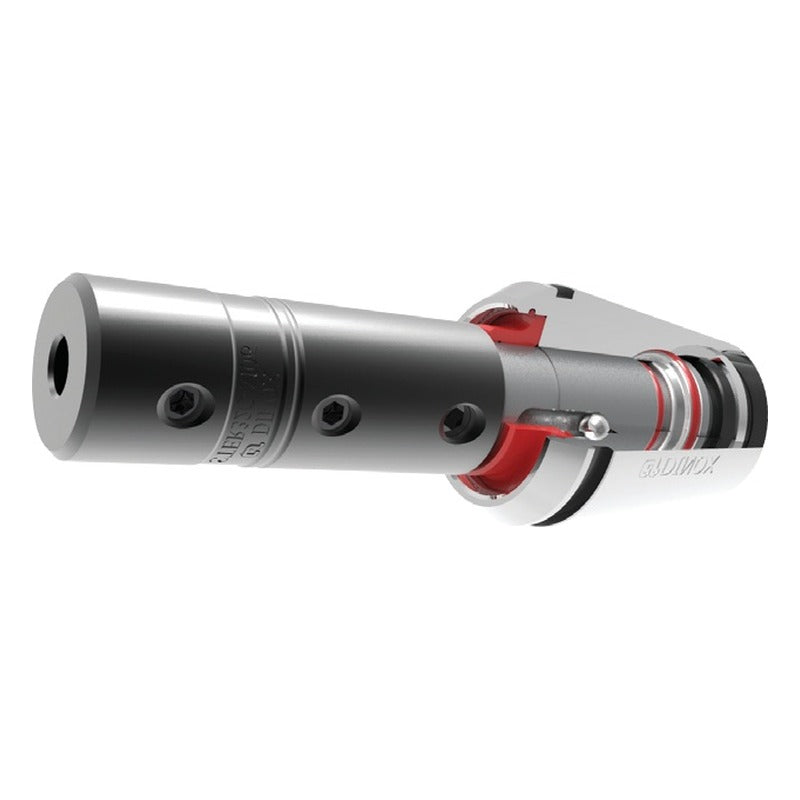

TAUMAX Synchro Tapping ER Collet STER

TAUMAX Synchro Tapping ER Collet STER

ER32 synchro tapping collet with a floating function that is used simply by fastening it in an ER collet chuck, with exchangeable tap connectors.

Key features

  • Floating function for tapping just by fastening in an ER collet chuck
  • Tap size changed by replacing the connector
  • Tap range M6-M16
  • Axial tension compensation ±0.2 mm

Specifications

Collet Size ER32
STER32 Item: Collet | ØD (mm): 32 | ØD1 (mm): 23.1 | ØD2 (mm): 11 | ØD3 (mm): 11 | L (mm): 44 | L1 (mm): 40 | L2 (mm): 8.2 | Stock: Yes
STER32C-M6 Item: Connector | Tap Size: M6 | ØD (mm): 19 | ØD1 (mm): 19 | ØD2 (mm): 6 | ØD3 (mm): 11 | L (mm): 50 | H (mm): 30 | W (mm): 4.5 | Stock: Yes
STER32C-M8 Item: Connector | Tap Size: M8 | ØD (mm): 19 | ØD1 (mm): 19 | ØD2 (mm): 6.2 | ØD3 (mm): 11 | L (mm): 50 | H (mm): 30 | W (mm): 5 | Stock: Yes
STER32C-M10 Item: Connector | Tap Size: M10 | ØD (mm): 19 | ØD1 (mm): 19 | ØD2 (mm): 7 | ØD3 (mm): 11 | L (mm): 50 | H (mm): 30 | W (mm): 5.5 | Stock: Yes
STER32C-M12 Item: Connector | Tap Size: M12 | ØD (mm): 19 | ØD1 (mm): 19 | ØD2 (mm): 8.5 | ØD3 (mm): 11 | L (mm): 50 | H (mm): 30 | W (mm): 6.5 | Stock: Yes
STER32C-M14 Item: Connector | Tap Size: M14 | ØD (mm): 19 | ØD1 (mm): 19 | ØD2 (mm): 10.5 | ØD3 (mm): 11 | L (mm): 50 | H (mm): 30 | W (mm): 8 | Stock: Yes
STER32C-M16 Item: Connector | Tap Size: M16 | ØD (mm): 21 | ØD1 (mm): 19 | ØD2 (mm): 12.5 | ØD3 (mm): 11 | L (mm): 60 | H (mm): 40 | W (mm): 10 | Stock: Yes
ColletsTAUMAX
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Synchro Tapping ER Collet STER

Brand TAUMAX·Collets

Available part numbers (7)

STER32, STER32C-M6, STER32C-M8, STER32C-M10, STER32C-M12, STER32C-M14, STER32C-M16
