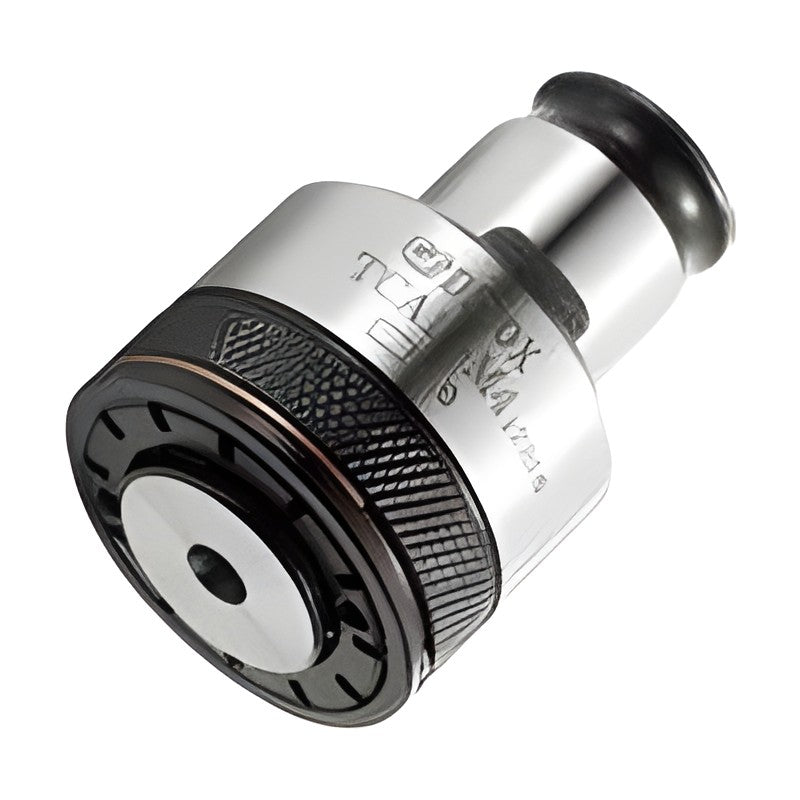

TAUMAX Tap Adapter TCA

TAUMAX Tap Adapter TCA

Quick-change tap adapter for DTN tapping holders, selected by tap shank diameter and square size.

TCA1-M2 Adapter size: TCA1 | Tap shank ØD (mm): 3 | Square W (mm): 2.5 | Metric thread: M1 | Metric fine thread: M2 | Whitworth thread: W1/16~3/32 | Unified thread: NO.0~4
TCA1-M3 Adapter size: TCA1 | Tap shank ØD (mm): 4 | Square W (mm): 3.2 | Metric thread: M3 | Metric fine thread: M3.5 | Whitworth thread: W1/8 | Unified thread: NO.5~6 | Stock: Yes
TCA1-M4 Adapter size: TCA1 | Tap shank ØD (mm): 5 | Square W (mm): 4 | Metric thread: M4 | Metric fine thread: M4.5 | Whitworth thread: W5/32 | Unified thread: NO.8 | Stock: Yes
TCA1-M5 Adapter size: TCA1 | Tap shank ØD (mm): 5.5 | Square W (mm): 4.5 | Metric thread: M5 | Metric fine thread: M5.5 | Whitworth thread: W3/16 | Unified thread: NO.10~12 | Stock: Yes
TCA1-M6 Adapter size: TCA1 | Tap shank ØD (mm): 6 | Square W (mm): 4.5 | Metric thread: M6 | Whitworth thread: W1/4 | Unified thread: U1/4 | Stock: Yes
TCA1-U5/16 Adapter size: TCA1 | Tap shank ØD (mm): 6.1 | Square W (mm): 5 | Whitworth thread: W5/16 | Unified thread: U5/16
TCA1-M8 Adapter size: TCA1 | Tap shank ØD (mm): 6.2 | Square W (mm): 5 | Metric thread: M7 | Metric fine thread: M8 | Stock: Yes
TCA1-M10 Adapter size: TCA1 | Tap shank ØD (mm): 7 | Square W (mm): 5.5 | Metric thread: M9 | Metric fine thread: M10 | Whitworth thread: W3/8 | Unified thread: U3/8 | Stock: Yes
TCA1-M11 Adapter size: TCA1 | Tap shank ØD (mm): 8 | Square W (mm): 6 | Metric thread: M11 | Whitworth thread: W7/16 | Unified thread: U7/16 | Pipe thread (PT/PF): P1/8 | Stock: Yes
TCA1-M12 Adapter size: TCA1 | Tap shank ØD (mm): 8.5 | Square W (mm): 6.5 | Metric thread: M12 | Stock: Yes
TCA1-U1/2 Adapter size: TCA1 | Tap shank ØD (mm): 9 | Square W (mm): 7 | Whitworth thread: W1/2 | Unified thread: U1/2
TCA2-M6 Adapter size: TCA2 | Tap shank ØD (mm): 6 | Square W (mm): 4.5 | Metric thread: M6 | Whitworth thread: W1/4 | Unified thread: U1/4
TCA2-U5/16 Adapter size: TCA2 | Tap shank ØD (mm): 6.1 | Square W (mm): 5 | Whitworth thread: W5/16 | Unified thread: U5/16
TCA2-M8 Adapter size: TCA2 | Tap shank ØD (mm): 6.2 | Square W (mm): 5 | Metric thread: M7 | Metric fine thread: M8 | Stock: Yes
TCA2-M10 Adapter size: TCA2 | Tap shank ØD (mm): 7 | Square W (mm): 5.5 | Metric thread: M9 | Metric fine thread: M10 | Whitworth thread: W3/8 | Unified thread: U3/8 | Stock: Yes
TCA2-M11 Adapter size: TCA2 | Tap shank ØD (mm): 8 | Square W (mm): 6 | Metric thread: M11 | Whitworth thread: W7/16 | Unified thread: U7/16 | Pipe thread (PT/PF): P1/8
TCA2-M12 Adapter size: TCA2 | Tap shank ØD (mm): 8.5 | Square W (mm): 6.5 | Metric thread: M12 | Stock: Yes
TCA2-U1/2 Adapter size: TCA2 | Tap shank ØD (mm): 9 | Square W (mm): 7 | Whitworth thread: W1/2 | Unified thread: U1/2
TCA2-M13 Adapter size: TCA2 | Tap shank ØD (mm): 9.5 | Square W (mm): 7 | Metric thread: M13
TCA2-M14 Adapter size: TCA2 | Tap shank ØD (mm): 10.5 | Square W (mm): 8 | Metric thread: M14 | Metric fine thread: M15 | Whitworth thread: W9/16 | Unified thread: U9/16 | Stock: Yes
TCA2-P1/4 Adapter size: TCA2 | Tap shank ØD (mm): 11 | Square W (mm): 9 | Pipe thread (PT/PF): P1/4 | Stock: Yes
TCA2-U5/8 Adapter size: TCA2 | Tap shank ØD (mm): 12 | Square W (mm): 9 | Whitworth thread: W5/8 | Unified thread: U5/8
TCA2-M16 Adapter size: TCA2 | Tap shank ØD (mm): 12.5 | Square W (mm): 10 | Metric thread: M16 | Stock: Yes
TCA2-M17 Adapter size: TCA2 | Tap shank ØD (mm): 13 | Square W (mm): 10 | Metric thread: M17 | Whitworth thread: W11/16
TCA2-M18 Adapter size: TCA2 | Tap shank ØD (mm): 14 | Square W (mm): 11 | Metric thread: M18 | Metric fine thread: M19 | Whitworth thread: W3/4 | Unified thread: U3/4 | Pipe thread (PT/PF): P3/8 | Stock: Yes
TCA2-M20 Adapter size: TCA2 | Tap shank ØD (mm): 15 | Square W (mm): 12 | Metric thread: M20 | Stock: Yes
TCA2-W13/16 Adapter size: TCA2 | Tap shank ØD (mm): 16 | Square W (mm): 12 | Whitworth thread: W13/16
TCA2-M22 Adapter size: TCA2 | Tap shank ØD (mm): 17 | Square W (mm): 13 | Metric thread: M22 | Whitworth thread: W7/8 | Unified thread: U7/8 | Stock: Yes
TCA2-P1/2 Adapter size: TCA2 | Tap shank ØD (mm): 18 | Square W (mm): 14 | Pipe thread (PT/PF): P1/2 | Stock: Yes
TCA2-M24 Adapter size: TCA2 | Tap shank ØD (mm): 19 | Square W (mm): 15 | Metric thread: M24 | Metric fine thread: M25 | Pipe thread (PT/PF): P5/8 | Stock: Yes
TCA3-M16 Adapter size: TCA3 | Tap shank ØD (mm): 12.5 | Square W (mm): 10 | Metric thread: M16 | Stock: Yes
TCA3-M17 Adapter size: TCA3 | Tap shank ØD (mm): 13 | Square W (mm): 10 | Metric thread: M17 | Whitworth thread: W11/16
TCA3-M18 Adapter size: TCA3 | Tap shank ØD (mm): 14 | Square W (mm): 11 | Metric thread: M18 | Metric fine thread: M19 | Whitworth thread: W3/4 | Unified thread: U3/4 | Pipe thread (PT/PF): P3/8 | Stock: Yes
TCA3-M20 Adapter size: TCA3 | Tap shank ØD (mm): 15 | Square W (mm): 12 | Metric thread: M20 | Stock: Yes
TCA3-W13/16 Adapter size: TCA3 | Tap shank ØD (mm): 16 | Square W (mm): 12 | Whitworth thread: W13/16
TCA3-M22 Adapter size: TCA3 | Tap shank ØD (mm): 17 | Square W (mm): 13 | Metric thread: M22 | Whitworth thread: W7/8 | Unified thread: U7/8 | Stock: Yes
TCA3-P1/2 Adapter size: TCA3 | Tap shank ØD (mm): 18 | Square W (mm): 14 | Pipe thread (PT/PF): P1/2
TCA3-M24 Adapter size: TCA3 | Tap shank ØD (mm): 19 | Square W (mm): 15 | Metric thread: M24 | Metric fine thread: M25 | Pipe thread (PT/PF): P5/8 | Stock: Yes
TCA3-M27 Adapter size: TCA3 | Tap shank ØD (mm): 20 | Square W (mm): 15 | Metric thread: M26 | Metric fine thread: M27 | Whitworth thread: W1 | Unified thread: U1 | Stock: Yes
TCA3-M28 Adapter size: TCA3 | Tap shank ØD (mm): 21 | Square W (mm): 17 | Metric thread: M28
TCA3-U1 1/8 Adapter size: TCA3 | Tap shank ØD (mm): 22 | Square W (mm): 17 | Whitworth thread: W1 1/8 | Unified thread: U1 1/8
TCA3-M30 Adapter size: TCA3 | Tap shank ØD (mm): 23 | Square W (mm): 17 | Metric thread: M30 | Pipe thread (PT/PF): P3/4 | Stock: Yes
TCA3-M32 Adapter size: TCA3 | Tap shank ØD (mm): 24 | Square W (mm): 19 | Metric thread: M32 | Whitworth thread: W1 1/4 | Unified thread: U1 1/4 | Pipe thread (PT/PF): P7/8
TCA3-M33 Adapter size: TCA3 | Tap shank ØD (mm): 25 | Square W (mm): 19 | Metric thread: M33 | Stock: Yes
TCA3-U1 3/8 Adapter size: TCA3 | Tap shank ØD (mm): 26 | Square W (mm): 21 | Metric thread: M34 | Metric fine thread: M35 | Whitworth thread: W1 3/8 | Unified thread: U1 3/8 | Pipe thread (PT/PF): P1
TCA3-M36 Adapter size: TCA3 | Tap shank ØD (mm): 28 | Square W (mm): 21 | Metric thread: M36 | Metric fine thread: M38 | Pipe thread (PT/PF): P1 1/8 | Stock: Yes
TCA3-M39 Adapter size: TCA3 | Tap shank ØD (mm): 30 | Square W (mm): 23 | Metric thread: M39 | Metric fine thread: M40 | Whitworth thread: W1 1/2 | Unified thread: U1 1/2
Tap AdaptersTAUMAX
47 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Tap Adapter TCA

Brand TAUMAX·Tap Adapters

Available part numbers (47)

TCA1-M2, TCA1-M3, TCA1-M4, TCA1-M5, TCA1-M6, TCA1-U5/16, TCA1-M8, TCA1-M10, TCA1-M11, TCA1-M12 + 37 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCA1-M2Adapter size: TCA1 | Tap shank ØD (mm): 3 | Square W (mm): 2.5 | Metric thread: M1 | Metric fine thread: M2 | Whitworth thread: W1/16~3/32 | Unified thread: NO.0~4
TCA1-M3Adapter size: TCA1 | Tap shank ØD (mm): 4 | Square W (mm): 3.2 | Metric thread: M3 | Metric fine thread: M3.5 | Whitworth thread: W1/8 | Unified thread: NO.5~6 | Stock: Yes
TCA1-M4Adapter size: TCA1 | Tap shank ØD (mm): 5 | Square W (mm): 4 | Metric thread: M4 | Metric fine thread: M4.5 | Whitworth thread: W5/32 | Unified thread: NO.8 | Stock: Yes
TCA1-M5Adapter size: TCA1 | Tap shank ØD (mm): 5.5 | Square W (mm): 4.5 | Metric thread: M5 | Metric fine thread: M5.5 | Whitworth thread: W3/16 | Unified thread: NO.10~12 | Stock: Yes
TCA1-M6Adapter size: TCA1 | Tap shank ØD (mm): 6 | Square W (mm): 4.5 | Metric thread: M6 | Whitworth thread: W1/4 | Unified thread: U1/4 | Stock: Yes
TCA1-U5/16Adapter size: TCA1 | Tap shank ØD (mm): 6.1 | Square W (mm): 5 | Whitworth thread: W5/16 | Unified thread: U5/16
TCA1-M8Adapter size: TCA1 | Tap shank ØD (mm): 6.2 | Square W (mm): 5 | Metric thread: M7 | Metric fine thread: M8 | Stock: Yes
TCA1-M10Adapter size: TCA1 | Tap shank ØD (mm): 7 | Square W (mm): 5.5 | Metric thread: M9 | Metric fine thread: M10 | Whitworth thread: W3/8 | Unified thread: U3/8 | Stock: Yes
TCA1-M11Adapter size: TCA1 | Tap shank ØD (mm): 8 | Square W (mm): 6 | Metric thread: M11 | Whitworth thread: W7/16 | Unified thread: U7/16 | Pipe thread (PT/PF): P1/8 | Stock: Yes
TCA1-M12Adapter size: TCA1 | Tap shank ØD (mm): 8.5 | Square W (mm): 6.5 | Metric thread: M12 | Stock: Yes
TCA1-U1/2Adapter size: TCA1 | Tap shank ØD (mm): 9 | Square W (mm): 7 | Whitworth thread: W1/2 | Unified thread: U1/2
TCA2-M6Adapter size: TCA2 | Tap shank ØD (mm): 6 | Square W (mm): 4.5 | Metric thread: M6 | Whitworth thread: W1/4 | Unified thread: U1/4
TCA2-U5/16Adapter size: TCA2 | Tap shank ØD (mm): 6.1 | Square W (mm): 5 | Whitworth thread: W5/16 | Unified thread: U5/16
TCA2-M8Adapter size: TCA2 | Tap shank ØD (mm): 6.2 | Square W (mm): 5 | Metric thread: M7 | Metric fine thread: M8 | Stock: Yes
TCA2-M10Adapter size: TCA2 | Tap shank ØD (mm): 7 | Square W (mm): 5.5 | Metric thread: M9 | Metric fine thread: M10 | Whitworth thread: W3/8 | Unified thread: U3/8 | Stock: Yes
TCA2-M11Adapter size: TCA2 | Tap shank ØD (mm): 8 | Square W (mm): 6 | Metric thread: M11 | Whitworth thread: W7/16 | Unified thread: U7/16 | Pipe thread (PT/PF): P1/8
TCA2-M12Adapter size: TCA2 | Tap shank ØD (mm): 8.5 | Square W (mm): 6.5 | Metric thread: M12 | Stock: Yes
TCA2-U1/2Adapter size: TCA2 | Tap shank ØD (mm): 9 | Square W (mm): 7 | Whitworth thread: W1/2 | Unified thread: U1/2
TCA2-M13Adapter size: TCA2 | Tap shank ØD (mm): 9.5 | Square W (mm): 7 | Metric thread: M13
TCA2-M14Adapter size: TCA2 | Tap shank ØD (mm): 10.5 | Square W (mm): 8 | Metric thread: M14 | Metric fine thread: M15 | Whitworth thread: W9/16 | Unified thread: U9/16 | Stock: Yes
TCA2-P1/4Adapter size: TCA2 | Tap shank ØD (mm): 11 | Square W (mm): 9 | Pipe thread (PT/PF): P1/4 | Stock: Yes
TCA2-U5/8Adapter size: TCA2 | Tap shank ØD (mm): 12 | Square W (mm): 9 | Whitworth thread: W5/8 | Unified thread: U5/8
TCA2-M16Adapter size: TCA2 | Tap shank ØD (mm): 12.5 | Square W (mm): 10 | Metric thread: M16 | Stock: Yes
TCA2-M17Adapter size: TCA2 | Tap shank ØD (mm): 13 | Square W (mm): 10 | Metric thread: M17 | Whitworth thread: W11/16
TCA2-M18Adapter size: TCA2 | Tap shank ØD (mm): 14 | Square W (mm): 11 | Metric thread: M18 | Metric fine thread: M19 | Whitworth thread: W3/4 | Unified thread: U3/4 | Pipe thread (PT/PF): P3/8 | Stock: Yes
TCA2-M20Adapter size: TCA2 | Tap shank ØD (mm): 15 | Square W (mm): 12 | Metric thread: M20 | Stock: Yes
TCA2-W13/16Adapter size: TCA2 | Tap shank ØD (mm): 16 | Square W (mm): 12 | Whitworth thread: W13/16
TCA2-M22Adapter size: TCA2 | Tap shank ØD (mm): 17 | Square W (mm): 13 | Metric thread: M22 | Whitworth thread: W7/8 | Unified thread: U7/8 | Stock: Yes
TCA2-P1/2Adapter size: TCA2 | Tap shank ØD (mm): 18 | Square W (mm): 14 | Pipe thread (PT/PF): P1/2 | Stock: Yes
TCA2-M24Adapter size: TCA2 | Tap shank ØD (mm): 19 | Square W (mm): 15 | Metric thread: M24 | Metric fine thread: M25 | Pipe thread (PT/PF): P5/8 | Stock: Yes
TCA3-M16Adapter size: TCA3 | Tap shank ØD (mm): 12.5 | Square W (mm): 10 | Metric thread: M16 | Stock: Yes
TCA3-M17Adapter size: TCA3 | Tap shank ØD (mm): 13 | Square W (mm): 10 | Metric thread: M17 | Whitworth thread: W11/16
TCA3-M18Adapter size: TCA3 | Tap shank ØD (mm): 14 | Square W (mm): 11 | Metric thread: M18 | Metric fine thread: M19 | Whitworth thread: W3/4 | Unified thread: U3/4 | Pipe thread (PT/PF): P3/8 | Stock: Yes
TCA3-M20Adapter size: TCA3 | Tap shank ØD (mm): 15 | Square W (mm): 12 | Metric thread: M20 | Stock: Yes
TCA3-W13/16Adapter size: TCA3 | Tap shank ØD (mm): 16 | Square W (mm): 12 | Whitworth thread: W13/16
TCA3-M22Adapter size: TCA3 | Tap shank ØD (mm): 17 | Square W (mm): 13 | Metric thread: M22 | Whitworth thread: W7/8 | Unified thread: U7/8 | Stock: Yes
TCA3-P1/2Adapter size: TCA3 | Tap shank ØD (mm): 18 | Square W (mm): 14 | Pipe thread (PT/PF): P1/2
TCA3-M24Adapter size: TCA3 | Tap shank ØD (mm): 19 | Square W (mm): 15 | Metric thread: M24 | Metric fine thread: M25 | Pipe thread (PT/PF): P5/8 | Stock: Yes
TCA3-M27Adapter size: TCA3 | Tap shank ØD (mm): 20 | Square W (mm): 15 | Metric thread: M26 | Metric fine thread: M27 | Whitworth thread: W1 | Unified thread: U1 | Stock: Yes
TCA3-M28Adapter size: TCA3 | Tap shank ØD (mm): 21 | Square W (mm): 17 | Metric thread: M28
TCA3-U1 1/8Adapter size: TCA3 | Tap shank ØD (mm): 22 | Square W (mm): 17 | Whitworth thread: W1 1/8 | Unified thread: U1 1/8
TCA3-M30Adapter size: TCA3 | Tap shank ØD (mm): 23 | Square W (mm): 17 | Metric thread: M30 | Pipe thread (PT/PF): P3/4 | Stock: Yes
TCA3-M32Adapter size: TCA3 | Tap shank ØD (mm): 24 | Square W (mm): 19 | Metric thread: M32 | Whitworth thread: W1 1/4 | Unified thread: U1 1/4 | Pipe thread (PT/PF): P7/8
TCA3-M33Adapter size: TCA3 | Tap shank ØD (mm): 25 | Square W (mm): 19 | Metric thread: M33 | Stock: Yes
TCA3-U1 3/8Adapter size: TCA3 | Tap shank ØD (mm): 26 | Square W (mm): 21 | Metric thread: M34 | Metric fine thread: M35 | Whitworth thread: W1 3/8 | Unified thread: U1 3/8 | Pipe thread (PT/PF): P1
TCA3-M36Adapter size: TCA3 | Tap shank ØD (mm): 28 | Square W (mm): 21 | Metric thread: M36 | Metric fine thread: M38 | Pipe thread (PT/PF): P1 1/8 | Stock: Yes
TCA3-M39Adapter size: TCA3 | Tap shank ØD (mm): 30 | Square W (mm): 23 | Metric thread: M39 | Metric fine thread: M40 | Whitworth thread: W1 1/2 | Unified thread: U1 1/2
