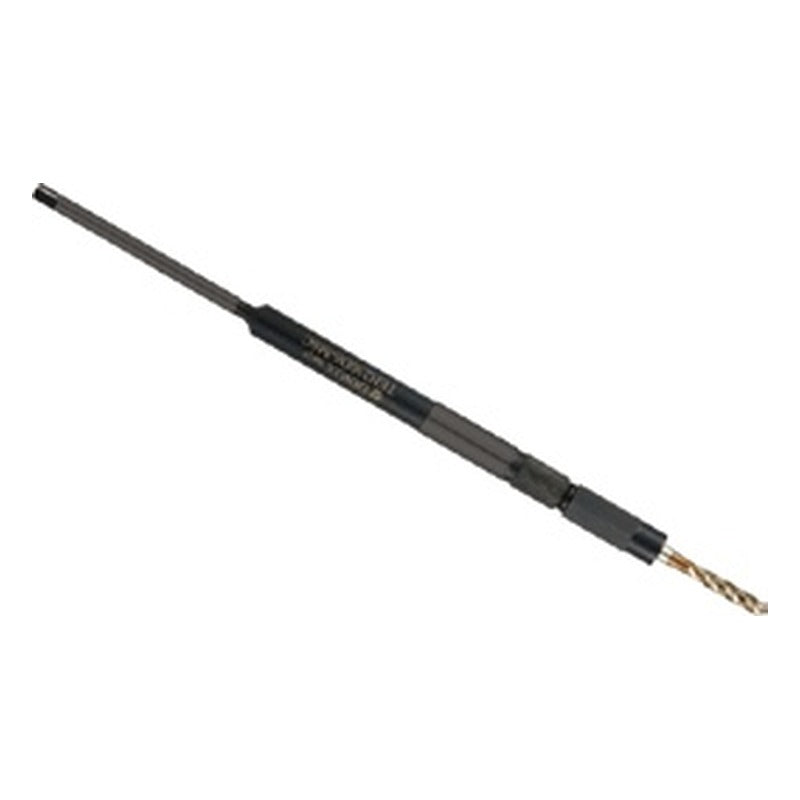

TAUMAX Tap Extension Holder TEH DIN Type

TAUMAX Tap Extension Holder TEH DIN Type

Tap extension holder for DIN taps that extends the reach of standard taps in place of long taps.

Key features

  • Length-extending holder for taps in interference areas
  • Lower tool cost and better performance than long taps

Specifications

Tap standard DIN
TEH130D6-M4 Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 10 | ØD2 (mm): 4.5 | ØD3 (mm): 6 | K1 (mm): 3.4 | K2 (mm): 4.5 | Nut outer dia. (mm): 11.1 | Nut: TEN(S)-M4
TEH130D7-M6C Tap size: M6 | L1 (mm): 20 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 7 | K1 (mm): 4.9 | K2 (mm): 5.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6
TEH130D8-M8C Tap size: M8 | L1 (mm): 23 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 14 | ØD2 (mm): 8 | ØD3 (mm): 8 | K1 (mm): 6.2 | K2 (mm): 6.2 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M8
TEH130D10-M10C Tap size: M10 | L1 (mm): 24 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 16 | ØD2 (mm): 10 | ØD3 (mm): 10 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN(S)-M10
TEH130D9-M12C Tap size: M12 | L1 (mm): 23 | L2 (mm): 41 | L3 (mm): 130 | ØD1 (mm): 15 | ØD2 (mm): 9 | ØD3 (mm): 9 | K1 (mm): 7 | K2 (mm): 7 | Nut outer dia. (mm): 16.8 | Nut: TEN(S)-M12
TEH180D6-M4 Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 10 | ØD2 (mm): 4.5 | ØD3 (mm): 6 | K1 (mm): 3.4 | K2 (mm): 4.5 | Nut outer dia. (mm): 11.1 | Nut: TEN(S)-M4
TEH180D7-M6C Tap size: M6 | L1 (mm): 20 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 7 | K1 (mm): 4.9 | K2 (mm): 5.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6 | Stock: Yes
TEH180D8-M8C Tap size: M8 | L1 (mm): 23 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 14 | ØD2 (mm): 8 | ØD3 (mm): 8 | K1 (mm): 6.2 | K2 (mm): 6.2 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M8 | Stock: Yes
TEH180D10-M10C Tap size: M10 | L1 (mm): 24 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 16 | ØD2 (mm): 10 | ØD3 (mm): 10 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN(S)-M10 | Stock: Yes
TEH180D9-M12C Tap size: M12 | L1 (mm): 23 | L2 (mm): 41 | L3 (mm): 180 | ØD1 (mm): 15 | ØD2 (mm): 9 | ØD3 (mm): 9 | K1 (mm): 7 | K2 (mm): 7 | Nut outer dia. (mm): 16.8 | Nut: TEN(S)-M12 | Stock: Yes
TEH180D11-M14C Tap size: M14 | L1 (mm): 26 | L2 (mm): 46 | L3 (mm): 180 | ØD1 (mm): 17 | ØD2 (mm): 11 | ØD3 (mm): 11 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.1 | Nut: TEN(S)-M14
TEH180D12-M16C Tap size: M16 | L1 (mm): 26 | L2 (mm): 48 | L3 (mm): 180 | ØD1 (mm): 18 | ØD2 (mm): 12 | ØD3 (mm): 12 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.9 | Nut: TEN(S)-M16
TEH180D14-M18C Tap size: M18 | L1 (mm): 28 | L2 (mm): 49 | L3 (mm): 180 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN(S)-M18
TEH180D16-M20C Tap size: M20 | L1 (mm): 28 | L2 (mm): 50 | L3 (mm): 180 | ØD1 (mm): 22 | ØD2 (mm): 16 | ØD3 (mm): 16 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 23.9 | Nut: TEN(S)-M20
TEH180D18-M22C Tap size: M22 | L1 (mm): 28 | L2 (mm): 51 | L3 (mm): 180 | ØD1 (mm): 24 | ØD2 (mm): 18 | ØD3 (mm): 18 | K1 (mm): 14.5 | K2 (mm): 14.5 | Nut outer dia. (mm): 25.9 | Nut: TEN(S)-M22
TEH230D6-M4 Tap size: M4 | L1 (mm): 18 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 10 | ØD2 (mm): 4.5 | ØD3 (mm): 6 | K1 (mm): 3.4 | K2 (mm): 4.5 | Nut outer dia. (mm): 11.1 | Nut: TEN-M4
TEH230D7-M6C Tap size: M6 | L1 (mm): 20 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 7 | K1 (mm): 4.9 | K2 (mm): 5.5 | Nut outer dia. (mm): 13.3 | Nut: TEN-M6
TEH230D8-M8C Tap size: M8 | L1 (mm): 23 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 14 | ØD2 (mm): 8 | ØD3 (mm): 8 | K1 (mm): 6.2 | K2 (mm): 6.2 | Nut outer dia. (mm): 15.6 | Nut: TEN-M8
TEH230D10-M10C Tap size: M10 | L1 (mm): 24 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 16 | ØD2 (mm): 10 | ØD3 (mm): 10 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN-M10
TEH230D9-M12C Tap size: M12 | L1 (mm): 23 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 15 | ØD2 (mm): 9 | ØD3 (mm): 9 | K1 (mm): 7 | K2 (mm): 7 | Nut outer dia. (mm): 16.8 | Nut: TEN-M12
TEH330D11-M14C Tap size: M14 | L1 (mm): 26 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 17 | ØD2 (mm): 11 | ØD3 (mm): 11 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.1 | Nut: TEN-M14
TEH330D12-M16C Tap size: M16 | L1 (mm): 26 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 18 | ØD2 (mm): 12 | ØD3 (mm): 12 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.9 | Nut: TEN-M16
TEH330D14-M18C Tap size: M18 | L1 (mm): 28 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN-M18
TEH330D16-M20C Tap size: M20 | L1 (mm): 28 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 22 | ØD2 (mm): 16 | ØD3 (mm): 16 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 23.9 | Nut: TEN-M20
TEH330D18-M22C Tap size: M22 | L1 (mm): 28 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 24 | ØD2 (mm): 18 | ØD3 (mm): 18 | K1 (mm): 14.5 | K2 (mm): 14.5 | Nut outer dia. (mm): 25.9 | Nut: TEN-M22
Tapping HoldersTAUMAX
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Tap Extension Holder TEH DIN Type

Brand TAUMAX·Tapping Holders

Available part numbers (25)

TEH130D6-M4, TEH130D7-M6C, TEH130D8-M8C, TEH130D10-M10C, TEH130D9-M12C, TEH180D6-M4, TEH180D7-M6C, TEH180D8-M8C, TEH180D10-M10C, TEH180D9-M12C + 15 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TEH130D6-M4Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 10 | ØD2 (mm): 4.5 | ØD3 (mm): 6 | K1 (mm): 3.4 | K2 (mm): 4.5 | Nut outer dia. (mm): 11.1 | Nut: TEN(S)-M4
TEH130D7-M6CTap size: M6 | L1 (mm): 20 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 7 | K1 (mm): 4.9 | K2 (mm): 5.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6
TEH130D8-M8CTap size: M8 | L1 (mm): 23 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 14 | ØD2 (mm): 8 | ØD3 (mm): 8 | K1 (mm): 6.2 | K2 (mm): 6.2 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M8
TEH130D10-M10CTap size: M10 | L1 (mm): 24 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 16 | ØD2 (mm): 10 | ØD3 (mm): 10 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN(S)-M10
TEH130D9-M12CTap size: M12 | L1 (mm): 23 | L2 (mm): 41 | L3 (mm): 130 | ØD1 (mm): 15 | ØD2 (mm): 9 | ØD3 (mm): 9 | K1 (mm): 7 | K2 (mm): 7 | Nut outer dia. (mm): 16.8 | Nut: TEN(S)-M12
TEH180D6-M4Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 10 | ØD2 (mm): 4.5 | ØD3 (mm): 6 | K1 (mm): 3.4 | K2 (mm): 4.5 | Nut outer dia. (mm): 11.1 | Nut: TEN(S)-M4
TEH180D7-M6CTap size: M6 | L1 (mm): 20 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 7 | K1 (mm): 4.9 | K2 (mm): 5.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6 | Stock: Yes
TEH180D8-M8CTap size: M8 | L1 (mm): 23 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 14 | ØD2 (mm): 8 | ØD3 (mm): 8 | K1 (mm): 6.2 | K2 (mm): 6.2 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M8 | Stock: Yes
TEH180D10-M10CTap size: M10 | L1 (mm): 24 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 16 | ØD2 (mm): 10 | ØD3 (mm): 10 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN(S)-M10 | Stock: Yes
TEH180D9-M12CTap size: M12 | L1 (mm): 23 | L2 (mm): 41 | L3 (mm): 180 | ØD1 (mm): 15 | ØD2 (mm): 9 | ØD3 (mm): 9 | K1 (mm): 7 | K2 (mm): 7 | Nut outer dia. (mm): 16.8 | Nut: TEN(S)-M12 | Stock: Yes
TEH180D11-M14CTap size: M14 | L1 (mm): 26 | L2 (mm): 46 | L3 (mm): 180 | ØD1 (mm): 17 | ØD2 (mm): 11 | ØD3 (mm): 11 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.1 | Nut: TEN(S)-M14
TEH180D12-M16CTap size: M16 | L1 (mm): 26 | L2 (mm): 48 | L3 (mm): 180 | ØD1 (mm): 18 | ØD2 (mm): 12 | ØD3 (mm): 12 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.9 | Nut: TEN(S)-M16
TEH180D14-M18CTap size: M18 | L1 (mm): 28 | L2 (mm): 49 | L3 (mm): 180 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN(S)-M18
TEH180D16-M20CTap size: M20 | L1 (mm): 28 | L2 (mm): 50 | L3 (mm): 180 | ØD1 (mm): 22 | ØD2 (mm): 16 | ØD3 (mm): 16 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 23.9 | Nut: TEN(S)-M20
TEH180D18-M22CTap size: M22 | L1 (mm): 28 | L2 (mm): 51 | L3 (mm): 180 | ØD1 (mm): 24 | ØD2 (mm): 18 | ØD3 (mm): 18 | K1 (mm): 14.5 | K2 (mm): 14.5 | Nut outer dia. (mm): 25.9 | Nut: TEN(S)-M22
TEH230D6-M4Tap size: M4 | L1 (mm): 18 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 10 | ØD2 (mm): 4.5 | ØD3 (mm): 6 | K1 (mm): 3.4 | K2 (mm): 4.5 | Nut outer dia. (mm): 11.1 | Nut: TEN-M4
TEH230D7-M6CTap size: M6 | L1 (mm): 20 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 7 | K1 (mm): 4.9 | K2 (mm): 5.5 | Nut outer dia. (mm): 13.3 | Nut: TEN-M6
TEH230D8-M8CTap size: M8 | L1 (mm): 23 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 14 | ØD2 (mm): 8 | ØD3 (mm): 8 | K1 (mm): 6.2 | K2 (mm): 6.2 | Nut outer dia. (mm): 15.6 | Nut: TEN-M8
TEH230D10-M10CTap size: M10 | L1 (mm): 24 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 16 | ØD2 (mm): 10 | ØD3 (mm): 10 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN-M10
TEH230D9-M12CTap size: M12 | L1 (mm): 23 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 15 | ØD2 (mm): 9 | ØD3 (mm): 9 | K1 (mm): 7 | K2 (mm): 7 | Nut outer dia. (mm): 16.8 | Nut: TEN-M12
TEH330D11-M14CTap size: M14 | L1 (mm): 26 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 17 | ØD2 (mm): 11 | ØD3 (mm): 11 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.1 | Nut: TEN-M14
TEH330D12-M16CTap size: M16 | L1 (mm): 26 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 18 | ØD2 (mm): 12 | ØD3 (mm): 12 | K1 (mm): 9 | K2 (mm): 9 | Nut outer dia. (mm): 19.9 | Nut: TEN-M16
TEH330D14-M18CTap size: M18 | L1 (mm): 28 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN-M18
TEH330D16-M20CTap size: M20 | L1 (mm): 28 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 22 | ØD2 (mm): 16 | ØD3 (mm): 16 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 23.9 | Nut: TEN-M20
TEH330D18-M22CTap size: M22 | L1 (mm): 28 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 24 | ØD2 (mm): 18 | ØD3 (mm): 18 | K1 (mm): 14.5 | K2 (mm): 14.5 | Nut outer dia. (mm): 25.9 | Nut: TEN-M22
