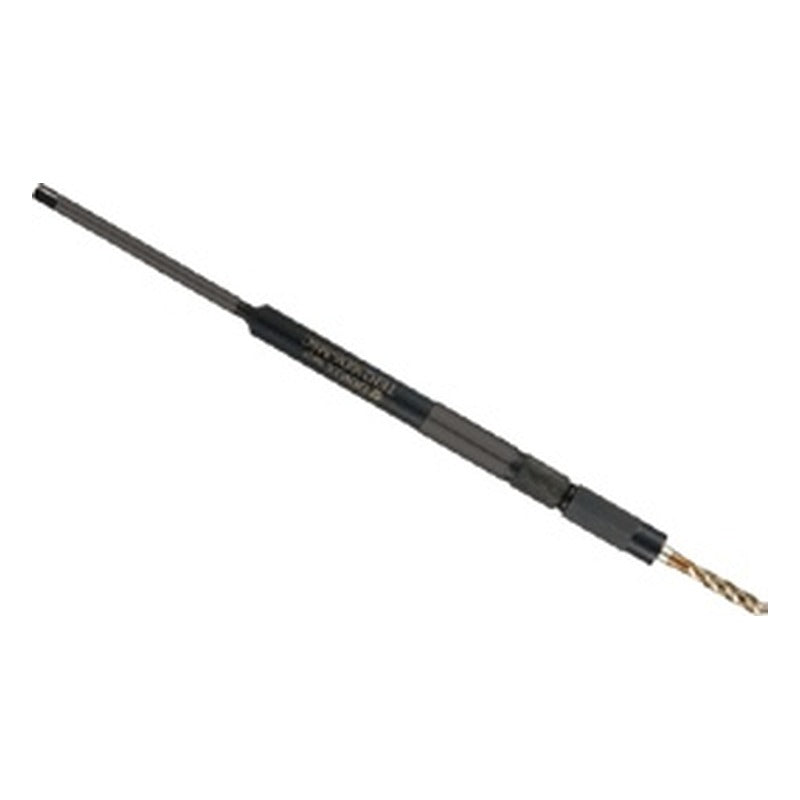

TAUMAX Tap Extension Holder TEH JIS Type

TAUMAX Tap Extension Holder TEH JIS Type

Tap extension holder for JIS taps that extends the reach of standard taps in place of long taps.

Key features

  • Length-extending holder for taps in interference areas
  • Lower tool cost and better performance than long taps

Specifications

Tap standard JIS
TEH130D6J-M4 Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 11 | ØD2 (mm): 5 | ØD3 (mm): 6 | K1 (mm): 4 | K2 (mm): 4.5 | Nut outer dia. (mm): 12.1 | Nut: TEN(S)-M4J
TEH130D6J-M6C Tap size: M6 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 6 | K1 (mm): 4.5 | K2 (mm): 4.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6J
TEH130D6.2J-M8C Tap size: M8 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 12 | ØD2 (mm): 6.2 | ØD3 (mm): 6.2 | K1 (mm): 5 | K2 (mm): 5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M8J
TEH130D7J-M10C Tap size: M10 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 13 | ØD2 (mm): 7 | ØD3 (mm): 7 | K1 (mm): 5.5 | K2 (mm): 5.5 | Nut outer dia. (mm): 14.4 | Nut: TEN(S)-M10J
TEH130D8.5J-M12C Tap size: M12 | L1 (mm): 22 | L2 (mm): 41 | L3 (mm): 130 | ØD1 (mm): 14 | ØD2 (mm): 8.5 | ØD3 (mm): 8.5 | K1 (mm): 6.5 | K2 (mm): 6.5 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M12J
TEH180D6J-M4 Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 11 | ØD2 (mm): 5 | ØD3 (mm): 6 | K1 (mm): 4 | K2 (mm): 4.5 | Nut outer dia. (mm): 12.1 | Nut: TEN(S)-M4J
TEH180D6J-M6C Tap size: M6 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 6 | K1 (mm): 4.5 | K2 (mm): 4.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6J | Stock: Yes
TEH180D6.2J-M8C Tap size: M8 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 12 | ØD2 (mm): 6.2 | ØD3 (mm): 6.2 | K1 (mm): 5 | K2 (mm): 5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M8J | Stock: Yes
TEH180D7J-M10C Tap size: M10 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 13 | ØD2 (mm): 7 | ØD3 (mm): 7 | K1 (mm): 5.5 | K2 (mm): 5.5 | Nut outer dia. (mm): 14.4 | Nut: TEN(S)-M10J | Stock: Yes
TEH180D8.5J-M12C Tap size: M12 | L1 (mm): 22 | L2 (mm): 41 | L3 (mm): 180 | ØD1 (mm): 14 | ØD2 (mm): 8.5 | ØD3 (mm): 8.5 | K1 (mm): 6.5 | K2 (mm): 6.5 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M12J | Stock: Yes
TEH180D10.5J-M14C Tap size: M14 | L1 (mm): 25 | L2 (mm): 46 | L3 (mm): 180 | ØD1 (mm): 16 | ØD2 (mm): 10.5 | ØD3 (mm): 10.5 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN(S)-M14J
TEH180D12.5J-M16C Tap size: M16 | L1 (mm): 25 | L2 (mm): 48 | L3 (mm): 180 | ØD1 (mm): 18 | ØD2 (mm): 12.5 | ØD3 (mm): 12.5 | K1 (mm): 10 | K2 (mm): 10 | Nut outer dia. (mm): 19.9 | Nut: TEN(S)-M16J
TEH180D14J-M18C Tap size: M18 | L1 (mm): 25 | L2 (mm): 50 | L3 (mm): 180 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN(S)-M18J
TEH180D15J-M20C Tap size: M20 | L1 (mm): 25 | L2 (mm): 50 | L3 (mm): 180 | ØD1 (mm): 21 | ØD2 (mm): 15 | ØD3 (mm): 15 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 22.9 | Nut: TEN(S)-M20J
TEH180D17J-M22C Tap size: M22 | L1 (mm): 25 | L2 (mm): 51 | L3 (mm): 180 | ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 17 | K1 (mm): 13 | K2 (mm): 13 | Nut outer dia. (mm): 25.9 | Nut: TEN(S)-M22J
TEH230D6J-M4 Tap size: M4 | L1 (mm): 18 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 11 | ØD2 (mm): 5 | ØD3 (mm): 6 | K1 (mm): 4 | K2 (mm): 4.5 | Nut outer dia. (mm): 12.1 | Nut: TEN-M4J
TEH230D6J-M6C Tap size: M6 | L1 (mm): 18 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 6 | K1 (mm): 4.5 | K2 (mm): 4.5 | Nut outer dia. (mm): 13.3 | Nut: TEN-M6J
TEH230D6.2J-M8C Tap size: M8 | L1 (mm): 18 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 12 | ØD2 (mm): 6.2 | ØD3 (mm): 6.2 | K1 (mm): 5 | K2 (mm): 5 | Nut outer dia. (mm): 13.3 | Nut: TEN-M8J
TEH230D7J-M10C Tap size: M10 | L1 (mm): 18 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 13 | ØD2 (mm): 7 | ØD3 (mm): 7 | K1 (mm): 5.5 | K2 (mm): 5.5 | Nut outer dia. (mm): 14.4 | Nut: TEN-M10J
TEH230D8.5J-M12C Tap size: M12 | L1 (mm): 22 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 14 | ØD2 (mm): 8.5 | ØD3 (mm): 8.5 | K1 (mm): 6.5 | K2 (mm): 6.5 | Nut outer dia. (mm): 15.6 | Nut: TEN-M12J
TEH330D10.5J-M14C Tap size: M14 | L1 (mm): 25 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 16 | ØD2 (mm): 10.5 | ØD3 (mm): 10.5 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN-M14J
TEH330D12.5J-M16C Tap size: M16 | L1 (mm): 25 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 18 | ØD2 (mm): 12.5 | ØD3 (mm): 12.5 | K1 (mm): 10 | K2 (mm): 10 | Nut outer dia. (mm): 19.9 | Nut: TEN-M16J
TEH330D14J-M18C Tap size: M18 | L1 (mm): 25 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN-M18J
TEH330D15J-M20C Tap size: M20 | L1 (mm): 25 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 21 | ØD2 (mm): 15 | ØD3 (mm): 15 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 22.9 | Nut: TEN-M20J
TEH330D17J-M22C Tap size: M22 | L1 (mm): 25 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 17 | K1 (mm): 13 | K2 (mm): 13 | Nut outer dia. (mm): 25.9 | Nut: TEN-M22J
Tapping HoldersTAUMAX
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Tap Extension Holder TEH JIS Type

Brand TAUMAX·Tapping Holders

Available part numbers (25)

TEH130D6J-M4, TEH130D6J-M6C, TEH130D6.2J-M8C, TEH130D7J-M10C, TEH130D8.5J-M12C, TEH180D6J-M4, TEH180D6J-M6C, TEH180D6.2J-M8C, TEH180D7J-M10C, TEH180D8.5J-M12C + 15 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TEH130D6J-M4Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 11 | ØD2 (mm): 5 | ØD3 (mm): 6 | K1 (mm): 4 | K2 (mm): 4.5 | Nut outer dia. (mm): 12.1 | Nut: TEN(S)-M4J
TEH130D6J-M6CTap size: M6 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 130 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 6 | K1 (mm): 4.5 | K2 (mm): 4.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6J
TEH130D6.2J-M8CTap size: M8 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 12 | ØD2 (mm): 6.2 | ØD3 (mm): 6.2 | K1 (mm): 5 | K2 (mm): 5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M8J
TEH130D7J-M10CTap size: M10 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 130 | ØD1 (mm): 13 | ØD2 (mm): 7 | ØD3 (mm): 7 | K1 (mm): 5.5 | K2 (mm): 5.5 | Nut outer dia. (mm): 14.4 | Nut: TEN(S)-M10J
TEH130D8.5J-M12CTap size: M12 | L1 (mm): 22 | L2 (mm): 41 | L3 (mm): 130 | ØD1 (mm): 14 | ØD2 (mm): 8.5 | ØD3 (mm): 8.5 | K1 (mm): 6.5 | K2 (mm): 6.5 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M12J
TEH180D6J-M4Tap size: M4 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 11 | ØD2 (mm): 5 | ØD3 (mm): 6 | K1 (mm): 4 | K2 (mm): 4.5 | Nut outer dia. (mm): 12.1 | Nut: TEN(S)-M4J
TEH180D6J-M6CTap size: M6 | L1 (mm): 18 | L2 (mm): 35 | L3 (mm): 180 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 6 | K1 (mm): 4.5 | K2 (mm): 4.5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M6J | Stock: Yes
TEH180D6.2J-M8CTap size: M8 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 12 | ØD2 (mm): 6.2 | ØD3 (mm): 6.2 | K1 (mm): 5 | K2 (mm): 5 | Nut outer dia. (mm): 13.3 | Nut: TEN(S)-M8J | Stock: Yes
TEH180D7J-M10CTap size: M10 | L1 (mm): 18 | L2 (mm): 36 | L3 (mm): 180 | ØD1 (mm): 13 | ØD2 (mm): 7 | ØD3 (mm): 7 | K1 (mm): 5.5 | K2 (mm): 5.5 | Nut outer dia. (mm): 14.4 | Nut: TEN(S)-M10J | Stock: Yes
TEH180D8.5J-M12CTap size: M12 | L1 (mm): 22 | L2 (mm): 41 | L3 (mm): 180 | ØD1 (mm): 14 | ØD2 (mm): 8.5 | ØD3 (mm): 8.5 | K1 (mm): 6.5 | K2 (mm): 6.5 | Nut outer dia. (mm): 15.6 | Nut: TEN(S)-M12J | Stock: Yes
TEH180D10.5J-M14CTap size: M14 | L1 (mm): 25 | L2 (mm): 46 | L3 (mm): 180 | ØD1 (mm): 16 | ØD2 (mm): 10.5 | ØD3 (mm): 10.5 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN(S)-M14J
TEH180D12.5J-M16CTap size: M16 | L1 (mm): 25 | L2 (mm): 48 | L3 (mm): 180 | ØD1 (mm): 18 | ØD2 (mm): 12.5 | ØD3 (mm): 12.5 | K1 (mm): 10 | K2 (mm): 10 | Nut outer dia. (mm): 19.9 | Nut: TEN(S)-M16J
TEH180D14J-M18CTap size: M18 | L1 (mm): 25 | L2 (mm): 50 | L3 (mm): 180 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN(S)-M18J
TEH180D15J-M20CTap size: M20 | L1 (mm): 25 | L2 (mm): 50 | L3 (mm): 180 | ØD1 (mm): 21 | ØD2 (mm): 15 | ØD3 (mm): 15 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 22.9 | Nut: TEN(S)-M20J
TEH180D17J-M22CTap size: M22 | L1 (mm): 25 | L2 (mm): 51 | L3 (mm): 180 | ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 17 | K1 (mm): 13 | K2 (mm): 13 | Nut outer dia. (mm): 25.9 | Nut: TEN(S)-M22J
TEH230D6J-M4Tap size: M4 | L1 (mm): 18 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 11 | ØD2 (mm): 5 | ØD3 (mm): 6 | K1 (mm): 4 | K2 (mm): 4.5 | Nut outer dia. (mm): 12.1 | Nut: TEN-M4J
TEH230D6J-M6CTap size: M6 | L1 (mm): 18 | L2 (mm): 50 | L3 (mm): 230 | ØD1 (mm): 12 | ØD2 (mm): 6 | ØD3 (mm): 6 | K1 (mm): 4.5 | K2 (mm): 4.5 | Nut outer dia. (mm): 13.3 | Nut: TEN-M6J
TEH230D6.2J-M8CTap size: M8 | L1 (mm): 18 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 12 | ØD2 (mm): 6.2 | ØD3 (mm): 6.2 | K1 (mm): 5 | K2 (mm): 5 | Nut outer dia. (mm): 13.3 | Nut: TEN-M8J
TEH230D7J-M10CTap size: M10 | L1 (mm): 18 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 13 | ØD2 (mm): 7 | ØD3 (mm): 7 | K1 (mm): 5.5 | K2 (mm): 5.5 | Nut outer dia. (mm): 14.4 | Nut: TEN-M10J
TEH230D8.5J-M12CTap size: M12 | L1 (mm): 22 | L2 (mm): 65 | L3 (mm): 230 | ØD1 (mm): 14 | ØD2 (mm): 8.5 | ØD3 (mm): 8.5 | K1 (mm): 6.5 | K2 (mm): 6.5 | Nut outer dia. (mm): 15.6 | Nut: TEN-M12J
TEH330D10.5J-M14CTap size: M14 | L1 (mm): 25 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 16 | ØD2 (mm): 10.5 | ØD3 (mm): 10.5 | K1 (mm): 8 | K2 (mm): 8 | Nut outer dia. (mm): 17.9 | Nut: TEN-M14J
TEH330D12.5J-M16CTap size: M16 | L1 (mm): 25 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 18 | ØD2 (mm): 12.5 | ØD3 (mm): 12.5 | K1 (mm): 10 | K2 (mm): 10 | Nut outer dia. (mm): 19.9 | Nut: TEN-M16J
TEH330D14J-M18CTap size: M18 | L1 (mm): 25 | L2 (mm): 70 | L3 (mm): 330 | ØD1 (mm): 20 | ØD2 (mm): 14 | ØD3 (mm): 14 | K1 (mm): 11 | K2 (mm): 11 | Nut outer dia. (mm): 21.9 | Nut: TEN-M18J
TEH330D15J-M20CTap size: M20 | L1 (mm): 25 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 21 | ØD2 (mm): 15 | ØD3 (mm): 15 | K1 (mm): 12 | K2 (mm): 12 | Nut outer dia. (mm): 22.9 | Nut: TEN-M20J
TEH330D17J-M22CTap size: M22 | L1 (mm): 25 | L2 (mm): 75 | L3 (mm): 330 | ØD1 (mm): 23 | ØD2 (mm): 17 | ØD3 (mm): 17 | K1 (mm): 13 | K2 (mm): 13 | Nut outer dia. (mm): 25.9 | Nut: TEN-M22J
