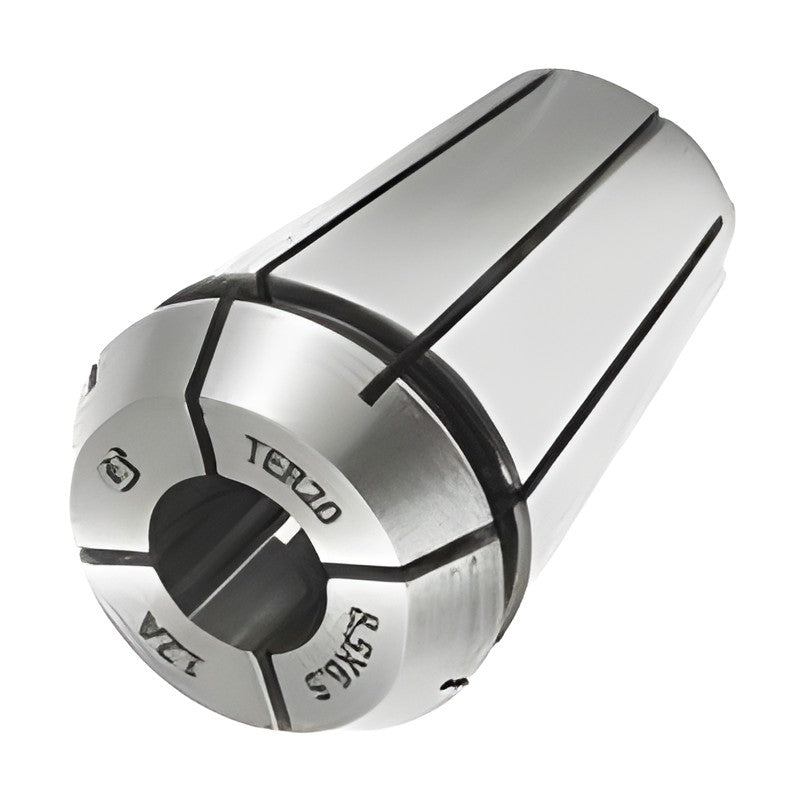

TAUMAX Tapping ER Collet TER

TAUMAX Tapping ER Collet TER

ER-type tapping collet with square drive for holding taps in DST synchro tapping chucks.

TER16-4x3.2 Tap applied: M3 | Tap shank ØD (mm): 4 | L (mm): 27.5 | Square W (mm): 3.2 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.03 | Stock: Yes
TER16-5x4 Tap applied: M4 | Tap shank ØD (mm): 5 | L (mm): 27.5 | Square W (mm): 4 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.03 | Stock: Yes
TER16-5.5x4.5 Tap applied: M5 | Tap shank ØD (mm): 5.5 | L (mm): 27.5 | Square W (mm): 4.5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER16-6x4.5 Tap applied: M6,U1/4 | Tap shank ØD (mm): 6 | L (mm): 27.5 | Square W (mm): 4.5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER16-6.2x5 Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 27.5 | Square W (mm): 5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER16-7x5.5 Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 27.5 | Square W (mm): 5.5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER20-5x4 Tap applied: M4 | Tap shank ØD (mm): 5 | L (mm): 31.5 | Square W (mm): 4 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-5.5x4.5 Tap applied: M5 | Tap shank ØD (mm): 5.5 | L (mm): 31.5 | Square W (mm): 4.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-6x4.5 Tap applied: M6,U1/4 | Tap shank ØD (mm): 6 | L (mm): 31.5 | Square W (mm): 4.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-6.2x5 Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 31.5 | Square W (mm): 5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.04 | Stock: Yes
TER20-7x5.5 Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 31.5 | Square W (mm): 5.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-8x6 Tap applied: M11, U7/16, P1/8 | Tap shank ØD (mm): 8 | L (mm): 31.5 | Square W (mm): 6 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.04 | Stock: Yes
TER20-8.5x6.5 Tap applied: M12 | Tap shank ØD (mm): 8.5 | L (mm): 31.5 | Square W (mm): 6.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.04 | Stock: Yes
TER25-5x4 Tap applied: M4 | Tap shank ØD (mm): 5 | L (mm): 34 | Square W (mm): 4 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.9 | Stock: Yes
TER25-5.5x4.5 Tap applied: M5 | Tap shank ØD (mm): 5.5 | L (mm): 34 | Square W (mm): 4.5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.8 | Stock: Yes
TER25-6x4.5 Tap applied: M6, U1/4 | Tap shank ØD (mm): 6 | L (mm): 34 | Square W (mm): 4.5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.8 | Stock: Yes
TER25-6.2x5 Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 34 | Square W (mm): 5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.1 | Stock: Yes
TER25-7x5.5 Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 34 | Square W (mm): 5.5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.8 | Stock: Yes
TER32-6x4.5 Tap applied: M6,U1/4 | Tap shank ØD (mm): 6 | L (mm): 40 | Square W (mm): 4.5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-6.2x5 Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 40 | Square W (mm): 5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-7x5.5 Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 40 | Square W (mm): 5.5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-8X6 Tap applied: M11, U7/16, P1/8 | Tap shank ØD (mm): 8 | L (mm): 40 | Square W (mm): 6 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-8.5x6.5 Tap applied: M12 | Tap shank ØD (mm): 8.5 | L (mm): 40 | Square W (mm): 6.5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-10.5x8 Tap applied: M14, U9/16 | Tap shank ØD (mm): 10.5 | L (mm): 40 | Square W (mm): 8 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-12.5x10 Tap applied: M16 | Tap shank ØD (mm): 12.5 | L (mm): 40 | Square W (mm): 10 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-9x7 Tap applied: U1/2 | Tap shank ØD (mm): 9 | L (mm): 40 | Square W (mm): 7 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-11x9 Tap applied: P1/4 | Tap shank ØD (mm): 11 | L (mm): 40 | Square W (mm): 9 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-12x9 Tap applied: U5/8 | Tap shank ØD (mm): 12 | L (mm): 40 | Square W (mm): 9 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-14x11 Tap applied: M18, U3/4, P3/8 | Tap shank ØD (mm): 14 | L (mm): 40 | Square W (mm): 11 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.1 | Stock: Yes
TER32-15x12 Tap applied: M20 | Tap shank ØD (mm): 15 | L (mm): 40 | Square W (mm): 12 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.1 | Stock: Yes
TER32-17x13 Tap applied: M22, U7/8 | Tap shank ØD (mm): 17 | L (mm): 40 | Square W (mm): 13 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.1 | Stock: Yes
ColletsTAUMAX
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Tapping ER Collet TER

Brand TAUMAX·Collets

Available part numbers (31)

TER16-4x3.2, TER16-5x4, TER16-5.5x4.5, TER16-6x4.5, TER16-6.2x5, TER16-7x5.5, TER20-5x4, TER20-5.5x4.5, TER20-6x4.5, TER20-6.2x5 + 21 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TER16-4x3.2Tap applied: M3 | Tap shank ØD (mm): 4 | L (mm): 27.5 | Square W (mm): 3.2 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.03 | Stock: Yes
TER16-5x4Tap applied: M4 | Tap shank ØD (mm): 5 | L (mm): 27.5 | Square W (mm): 4 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.03 | Stock: Yes
TER16-5.5x4.5Tap applied: M5 | Tap shank ØD (mm): 5.5 | L (mm): 27.5 | Square W (mm): 4.5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER16-6x4.5Tap applied: M6,U1/4 | Tap shank ØD (mm): 6 | L (mm): 27.5 | Square W (mm): 4.5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER16-6.2x5Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 27.5 | Square W (mm): 5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER16-7x5.5Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 27.5 | Square W (mm): 5.5 | ØD1 (mm): 16.74 | ØD2 (mm): 10.1 | L1 (mm): 6.3 | Weight (kg): 0.02 | Stock: Yes
TER20-5x4Tap applied: M4 | Tap shank ØD (mm): 5 | L (mm): 31.5 | Square W (mm): 4 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-5.5x4.5Tap applied: M5 | Tap shank ØD (mm): 5.5 | L (mm): 31.5 | Square W (mm): 4.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-6x4.5Tap applied: M6,U1/4 | Tap shank ØD (mm): 6 | L (mm): 31.5 | Square W (mm): 4.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-6.2x5Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 31.5 | Square W (mm): 5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.04 | Stock: Yes
TER20-7x5.5Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 31.5 | Square W (mm): 5.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.05 | Stock: Yes
TER20-8x6Tap applied: M11, U7/16, P1/8 | Tap shank ØD (mm): 8 | L (mm): 31.5 | Square W (mm): 6 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.04 | Stock: Yes
TER20-8.5x6.5Tap applied: M12 | Tap shank ØD (mm): 8.5 | L (mm): 31.5 | Square W (mm): 6.5 | ØD1 (mm): 20.74 | ØD2 (mm): 13.2 | L1 (mm): 7.2 | Weight (kg): 0.04 | Stock: Yes
TER25-5x4Tap applied: M4 | Tap shank ØD (mm): 5 | L (mm): 34 | Square W (mm): 4 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.9 | Stock: Yes
TER25-5.5x4.5Tap applied: M5 | Tap shank ØD (mm): 5.5 | L (mm): 34 | Square W (mm): 4.5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.8 | Stock: Yes
TER25-6x4.5Tap applied: M6, U1/4 | Tap shank ØD (mm): 6 | L (mm): 34 | Square W (mm): 4.5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.8 | Stock: Yes
TER25-6.2x5Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 34 | Square W (mm): 5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.1 | Stock: Yes
TER25-7x5.5Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 34 | Square W (mm): 5.5 | ØD1 (mm): 25.74 | ØD2 (mm): 17.6 | L1 (mm): 7.5 | Weight (kg): 0.8 | Stock: Yes
TER32-6x4.5Tap applied: M6,U1/4 | Tap shank ØD (mm): 6 | L (mm): 40 | Square W (mm): 4.5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-6.2x5Tap applied: M7, M8 | Tap shank ØD (mm): 6.2 | L (mm): 40 | Square W (mm): 5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-7x5.5Tap applied: M9, M10, U3/8 | Tap shank ØD (mm): 7 | L (mm): 40 | Square W (mm): 5.5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-8X6Tap applied: M11, U7/16, P1/8 | Tap shank ØD (mm): 8 | L (mm): 40 | Square W (mm): 6 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-8.5x6.5Tap applied: M12 | Tap shank ØD (mm): 8.5 | L (mm): 40 | Square W (mm): 6.5 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-10.5x8Tap applied: M14, U9/16 | Tap shank ØD (mm): 10.5 | L (mm): 40 | Square W (mm): 8 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-12.5x10Tap applied: M16 | Tap shank ØD (mm): 12.5 | L (mm): 40 | Square W (mm): 10 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-9x7Tap applied: U1/2 | Tap shank ØD (mm): 9 | L (mm): 40 | Square W (mm): 7 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-11x9Tap applied: P1/4 | Tap shank ØD (mm): 11 | L (mm): 40 | Square W (mm): 9 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-12x9Tap applied: U5/8 | Tap shank ØD (mm): 12 | L (mm): 40 | Square W (mm): 9 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.2 | Stock: Yes
TER32-14x11Tap applied: M18, U3/4, P3/8 | Tap shank ØD (mm): 14 | L (mm): 40 | Square W (mm): 11 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.1 | Stock: Yes
TER32-15x12Tap applied: M20 | Tap shank ØD (mm): 15 | L (mm): 40 | Square W (mm): 12 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.1 | Stock: Yes
TER32-17x13Tap applied: M22, U7/8 | Tap shank ØD (mm): 17 | L (mm): 40 | Square W (mm): 13 | ØD1 (mm): 32.74 | ØD2 (mm): 23.1 | L1 (mm): 8.2 | Weight (kg): 0.1 | Stock: Yes
