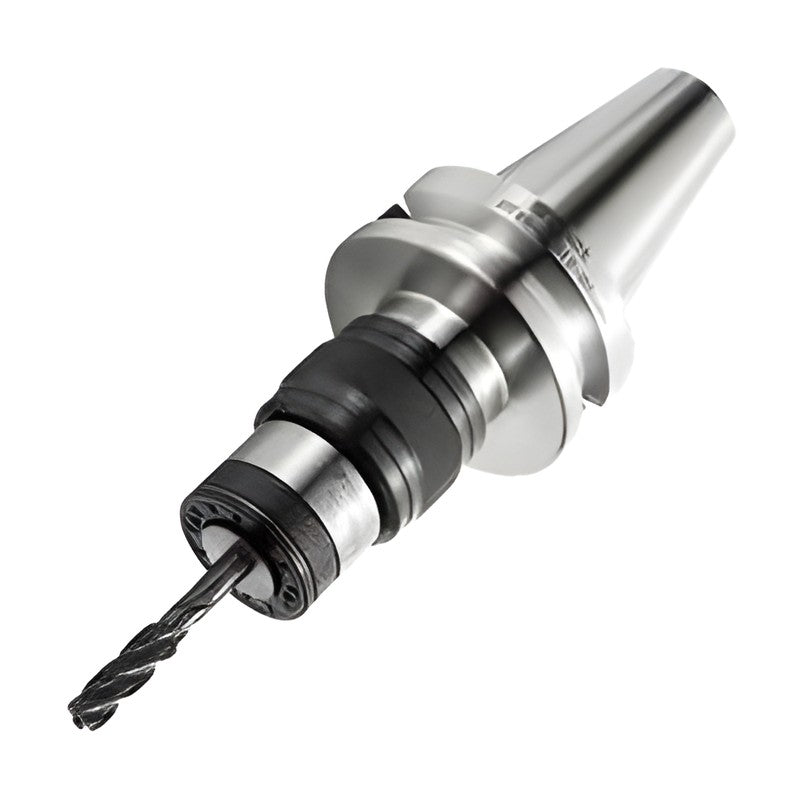

TAUMAX Tension and Compression Tapping Holder DTN

TAUMAX Tension and Compression Tapping Holder DTN

Tapping holder with tension/compression float and quick-change TCA tap adapters for taps M3 to M38.

Key features

  • Quick modular tool change with exclusive TCA adapter
  • Tension function increases tap life on machining centers
  • Tapping range M3 to M38
BT30-DTN12-85 Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 85 | ØC1 (mm): 39 | L1 (mm): 60 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 0.5 | Stock: Yes
BT40-DTN12-90 Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 90 | ØC1 (mm): 39 | L1 (mm): 65 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.2 | Stock: Yes
BT40-DTN12-120 Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 120 | ØC1 (mm): 39 | L1 (mm): 95 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.5 | Stock: Yes
BT40-DTN22-130 Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 130 | ØC1 (mm): 56 | L1 (mm): 96 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 1.7 | Stock: Yes
BT40-DTN22-160 Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 160 | ØC1 (mm): 56 | L1 (mm): 126 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 2.2 | Stock: Yes
BT50-DTN12-100 Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 100 | ØC1 (mm): 39 | L1 (mm): 75 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 3.9 | Stock: Yes
BT50-DTN12-130 Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 130 | ØC1 (mm): 39 | L1 (mm): 105 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 3.9 | Stock: Yes
BT50-DTN22-140 Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 140 | ØC1 (mm): 56 | L1 (mm): 106 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 4.3 | Stock: Yes
BT50-DTN22-170 Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 170 | ØC1 (mm): 56 | L1 (mm): 136 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 4.7 | Stock: Yes
BT50-DTN38-185 Tapping range: M16~M38 | ØC (mm): 72 | L (mm): 185 | ØC1 (mm): 81 | L1 (mm): 140 | Adapter: TCA3-M | Compression F- (mm): 20.0 | Tension F+ (mm): 20.0 | Weight (kg): 5.7 | Stock: Yes
BT50-DTN38-215 Tapping range: M16~M38 | ØC (mm): 72 | L (mm): 215 | ØC1 (mm): 81 | L1 (mm): 170 | Adapter: TCA3-M | Compression F- (mm): 20.0 | Tension F+ (mm): 20.0 | Weight (kg): 6.7 | Stock: Yes
S32-DTN12-90 Tapping range: M3-M12 | ØC (mm): 32 | Shank ØD (mm): 32 | L (mm): 170 | ØC1 (mm): 39 | L1 (mm): 90 | L2 (mm): 65 | Adapter: TCA1 | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.0 | Stock: Yes
S32-DTN22-130 Tapping range: M8-M24 | ØC (mm): 50 | Shank ØD (mm): 32 | L (mm): 210 | ØC1 (mm): 56 | L1 (mm): 130 | L2 (mm): 96 | Adapter: TCA2 | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 1.8 | Stock: Yes
SK40-DTN12-90 Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 90 | ØC1 (mm): 39 | L1 (mm): 65 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.0 | Stock: Yes
SK40-DTN22-130 Tapping range: M8~M22 | ØC (mm): 50 | L (mm): 130 | ØC1 (mm): 56 | L1 (mm): 96 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 1.6 | Stock: Yes
SK50-DTN12-100 Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 100 | ØC1 (mm): 39 | L1 (mm): 75 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 2.9 | Stock: Yes
SK50-DTN22-140 Tapping range: M8~M22 | ØC (mm): 50 | L (mm): 140 | ØC1 (mm): 56 | L1 (mm): 106 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 3.5 | Stock: Yes
Tapping HoldersTAUMAX
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Tension and Compression Tapping Holder DTN

Brand TAUMAX·Tapping Holders

Available part numbers (17)

BT30-DTN12-85, BT40-DTN12-90, BT40-DTN12-120, BT40-DTN22-130, BT40-DTN22-160, BT50-DTN12-100, BT50-DTN12-130, BT50-DTN22-140, BT50-DTN22-170, BT50-DTN38-185 + 7 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT30-DTN12-85Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 85 | ØC1 (mm): 39 | L1 (mm): 60 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 0.5 | Stock: Yes
BT40-DTN12-90Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 90 | ØC1 (mm): 39 | L1 (mm): 65 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.2 | Stock: Yes
BT40-DTN12-120Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 120 | ØC1 (mm): 39 | L1 (mm): 95 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.5 | Stock: Yes
BT40-DTN22-130Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 130 | ØC1 (mm): 56 | L1 (mm): 96 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 1.7 | Stock: Yes
BT40-DTN22-160Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 160 | ØC1 (mm): 56 | L1 (mm): 126 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 2.2 | Stock: Yes
BT50-DTN12-100Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 100 | ØC1 (mm): 39 | L1 (mm): 75 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 3.9 | Stock: Yes
BT50-DTN12-130Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 130 | ØC1 (mm): 39 | L1 (mm): 105 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 3.9 | Stock: Yes
BT50-DTN22-140Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 140 | ØC1 (mm): 56 | L1 (mm): 106 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 4.3 | Stock: Yes
BT50-DTN22-170Tapping range: M8~M24 | ØC (mm): 50 | L (mm): 170 | ØC1 (mm): 56 | L1 (mm): 136 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 4.7 | Stock: Yes
BT50-DTN38-185Tapping range: M16~M38 | ØC (mm): 72 | L (mm): 185 | ØC1 (mm): 81 | L1 (mm): 140 | Adapter: TCA3-M | Compression F- (mm): 20.0 | Tension F+ (mm): 20.0 | Weight (kg): 5.7 | Stock: Yes
BT50-DTN38-215Tapping range: M16~M38 | ØC (mm): 72 | L (mm): 215 | ØC1 (mm): 81 | L1 (mm): 170 | Adapter: TCA3-M | Compression F- (mm): 20.0 | Tension F+ (mm): 20.0 | Weight (kg): 6.7 | Stock: Yes
S32-DTN12-90Tapping range: M3-M12 | ØC (mm): 32 | Shank ØD (mm): 32 | L (mm): 170 | ØC1 (mm): 39 | L1 (mm): 90 | L2 (mm): 65 | Adapter: TCA1 | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.0 | Stock: Yes
S32-DTN22-130Tapping range: M8-M24 | ØC (mm): 50 | Shank ØD (mm): 32 | L (mm): 210 | ØC1 (mm): 56 | L1 (mm): 130 | L2 (mm): 96 | Adapter: TCA2 | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 1.8 | Stock: Yes
SK40-DTN12-90Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 90 | ØC1 (mm): 39 | L1 (mm): 65 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 1.0 | Stock: Yes
SK40-DTN22-130Tapping range: M8~M22 | ØC (mm): 50 | L (mm): 130 | ØC1 (mm): 56 | L1 (mm): 96 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 1.6 | Stock: Yes
SK50-DTN12-100Tapping range: M3~M12 | ØC (mm): 32 | L (mm): 100 | ØC1 (mm): 39 | L1 (mm): 75 | Adapter: TCA1-M | Compression F- (mm): 4.0 | Tension F+ (mm): 10.0 | Weight (kg): 2.9 | Stock: Yes
SK50-DTN22-140Tapping range: M8~M22 | ØC (mm): 50 | L (mm): 140 | ØC1 (mm): 56 | L1 (mm): 106 | Adapter: TCA2-M | Compression F- (mm): 12.5 | Tension F+ (mm): 12.5 | Weight (kg): 3.5 | Stock: Yes
