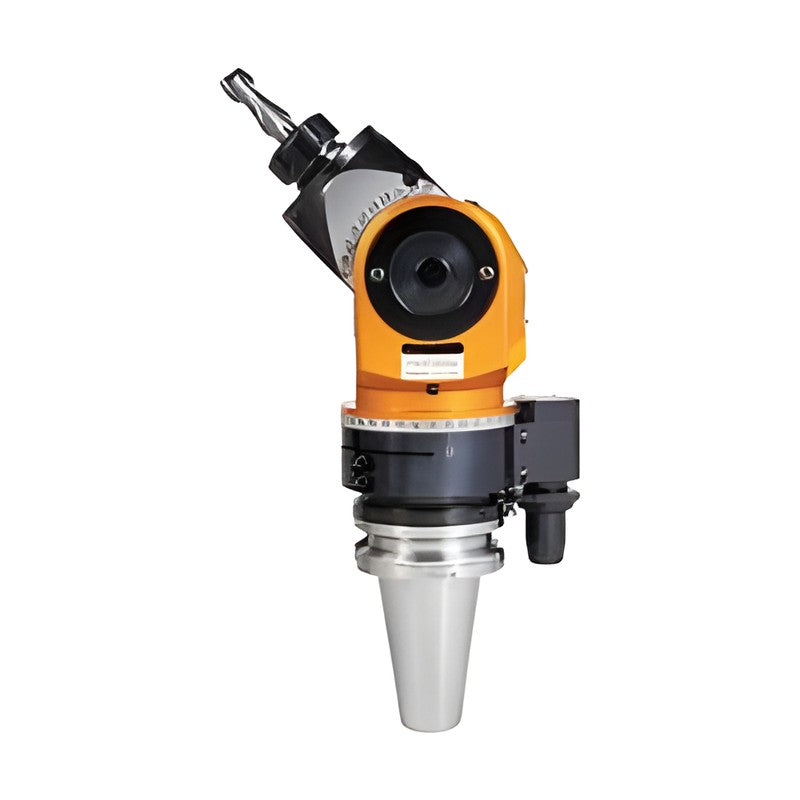

TAUMAX Universal Angular Head KHU Free Angle

TAUMAX Universal Angular Head KHU Free Angle

Universal angular head with vertical 0-90 degree and horizontal 360 degree adjustment for copy and inclined machining.

Key features

  • Vertical angle 0-90 degrees
  • Horizontal angle 360 degrees
  • High-strength aluminum alloy body

Specifications

Shank standard MAS 403-BT
Clamping GERC collet
BT40-KHU10-160 Shank: BT40 | Tool dia. range (mm): 1.0-10.0 | Gear ratio (IN:OUT): 1:2 | Rotation: CW:CW | Max RPM: 6,000 | Collet: GERC16 | Weight (kg): 8.3 | Stock: Yes
BT50-KHU10-180 Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | Gear ratio (IN:OUT): 1:2 | Rotation: CW:CW | Max RPM: 6,000 | Collet: GERC16 | Weight (kg): 11.5 | Stock: Yes
BT50-KHU20-195 Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CW | Max RPM: 3,000 | Collet: GERC32 | Weight (kg): 17.9 | Stock: Yes
Angular HeadsTAUMAX
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Universal Angular Head KHU Free Angle

Brand TAUMAX·Angular Heads

Available part numbers (3)

BT40-KHU10-160, BT50-KHU10-180, BT50-KHU20-195

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BT40-KHU10-160Shank: BT40 | Tool dia. range (mm): 1.0-10.0 | Gear ratio (IN:OUT): 1:2 | Rotation: CW:CW | Max RPM: 6,000 | Collet: GERC16 | Weight (kg): 8.3 | Stock: Yes
BT50-KHU10-180Shank: BT50 | Tool dia. range (mm): 1.0-10.0 | Gear ratio (IN:OUT): 1:2 | Rotation: CW:CW | Max RPM: 6,000 | Collet: GERC16 | Weight (kg): 11.5 | Stock: Yes
BT50-KHU20-195Shank: BT50 | Tool dia. range (mm): 2.0-20.0 | Gear ratio (IN:OUT): 1:1 | Rotation: CW:CW | Max RPM: 3,000 | Collet: GERC32 | Weight (kg): 17.9 | Stock: Yes
