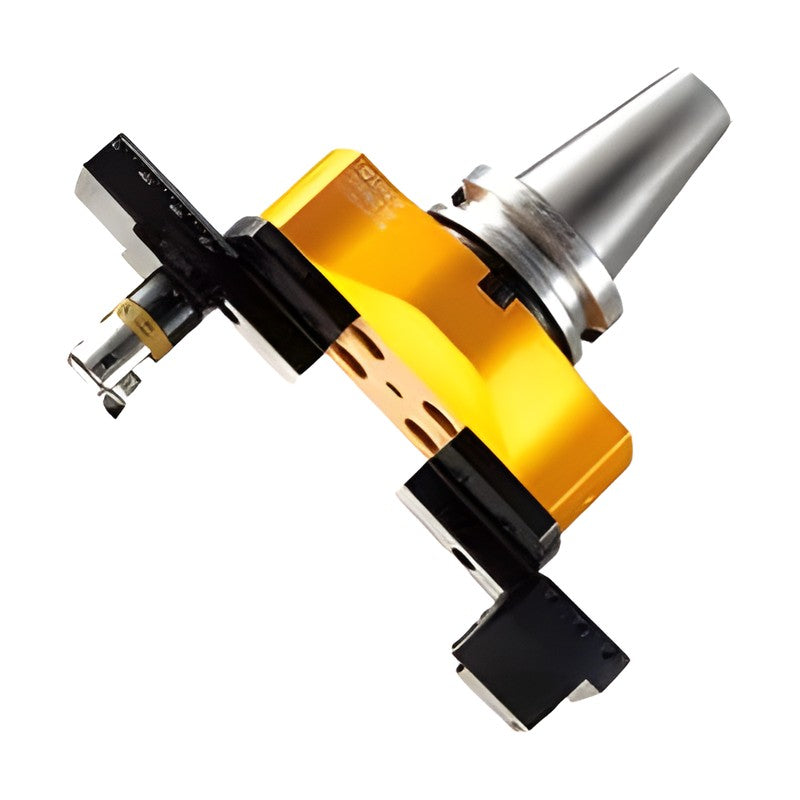

TAUMAX Wide Range Diameter Boring System TBCA

TAUMAX Wide Range Diameter Boring System TBCA

Large-diameter boring system with aerospace aluminum bridge for inside boring Ø130 to Ø615 mm and outside boring up to Ø315 mm.

Key features

  • Aluminum bridge made of aerospace material minimizes deformation
  • Inside and outside diameter boring
  • Fine boring possible by changing the cartridge
  • Inside boring range Ø130 to Ø615 mm
  • Outside boring range up to Ø315 mm
TBC130A Inside boring range (mm): 130~180 | Outside boring range (mm): 0~34 | L roughing (mm): 108 | L1 (mm): 34 | Weight roughing set (kg): 4.2 | Bridge: DBB130 | Rail: DBR130 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC175A Inside boring range (mm): 175~225 | Outside boring range (mm): 25~75 | L roughing (mm): 113 | L1 (mm): 34 | Weight roughing set (kg): 5.6 | Bridge: DBB175 | Rail: DBR175 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC220A Inside boring range (mm): 220~270 | Outside boring range (mm): 15~65 | L roughing (mm): 118 | L1 (mm): 34 | Weight roughing set (kg): 6.6 | Bridge: DBB220 | Rail: DBR07015 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC265A Inside boring range (mm): 265~315 | Outside boring range (mm): 61~111 | L roughing (mm): 123 | L1 (mm): 34 | Weight roughing set (kg): 7.5 | Bridge: DBB265 | Rail: DBR07015 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC310A Inside boring range (mm): 310~390 | Outside boring range (mm): 10~90 | L roughing (mm): 128 | L1 (mm): 34 | Weight roughing set (kg): 9.6 | Bridge: DBB310 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
TBC385A Inside boring range (mm): 385~465 | Outside boring range (mm): 85~165 | L roughing (mm): 133 | L1 (mm): 34 | Weight roughing set (kg): 11.7 | Bridge: DBB385 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
TBC460A Inside boring range (mm): 460~540 | Outside boring range (mm): 160~240 | L roughing (mm): 138 | L1 (mm): 34 | Weight roughing set (kg): 14.1 | Bridge: DBB460 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
TBC535A Inside boring range (mm): 535~615 | Outside boring range (mm): 235~315 | L roughing (mm): 143 | L1 (mm): 34 | Weight roughing set (kg): 16.5 | Bridge: DBB535 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
Boring HeadsTAUMAX
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Wide Range Diameter Boring System TBCA

Brand TAUMAX·Boring Heads

Available part numbers (8)

TBC130A, TBC175A, TBC220A, TBC265A, TBC310A, TBC385A, TBC460A, TBC535A

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TBC130AInside boring range (mm): 130~180 | Outside boring range (mm): 0~34 | L roughing (mm): 108 | L1 (mm): 34 | Weight roughing set (kg): 4.2 | Bridge: DBB130 | Rail: DBR130 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC175AInside boring range (mm): 175~225 | Outside boring range (mm): 25~75 | L roughing (mm): 113 | L1 (mm): 34 | Weight roughing set (kg): 5.6 | Bridge: DBB175 | Rail: DBR175 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC220AInside boring range (mm): 220~270 | Outside boring range (mm): 15~65 | L roughing (mm): 118 | L1 (mm): 34 | Weight roughing set (kg): 6.6 | Bridge: DBB220 | Rail: DBR07015 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC265AInside boring range (mm): 265~315 | Outside boring range (mm): 61~111 | L roughing (mm): 123 | L1 (mm): 34 | Weight roughing set (kg): 7.5 | Bridge: DBB265 | Rail: DBR07015 | Roughing cartridge: BCC1348(SET) | Finishing cartridge: FCC130 | Balance block: FCB130 | Arbor: BT50-FMC40-50 (sold separately)
TBC310AInside boring range (mm): 310~390 | Outside boring range (mm): 10~90 | L roughing (mm): 128 | L1 (mm): 34 | Weight roughing set (kg): 9.6 | Bridge: DBB310 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
TBC385AInside boring range (mm): 385~465 | Outside boring range (mm): 85~165 | L roughing (mm): 133 | L1 (mm): 34 | Weight roughing set (kg): 11.7 | Bridge: DBB385 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
TBC460AInside boring range (mm): 460~540 | Outside boring range (mm): 160~240 | L roughing (mm): 138 | L1 (mm): 34 | Weight roughing set (kg): 14.1 | Bridge: DBB460 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
TBC535AInside boring range (mm): 535~615 | Outside boring range (mm): 235~315 | L roughing (mm): 143 | L1 (mm): 34 | Weight roughing set (kg): 16.5 | Bridge: DBB535 | Rail: DBR10015 | Roughing cartridge: BCC1354(SET) | Finishing cartridge: FCC310 | Balance block: FCB310 | Arbor: BT50-FMC40-50 (sold separately)
