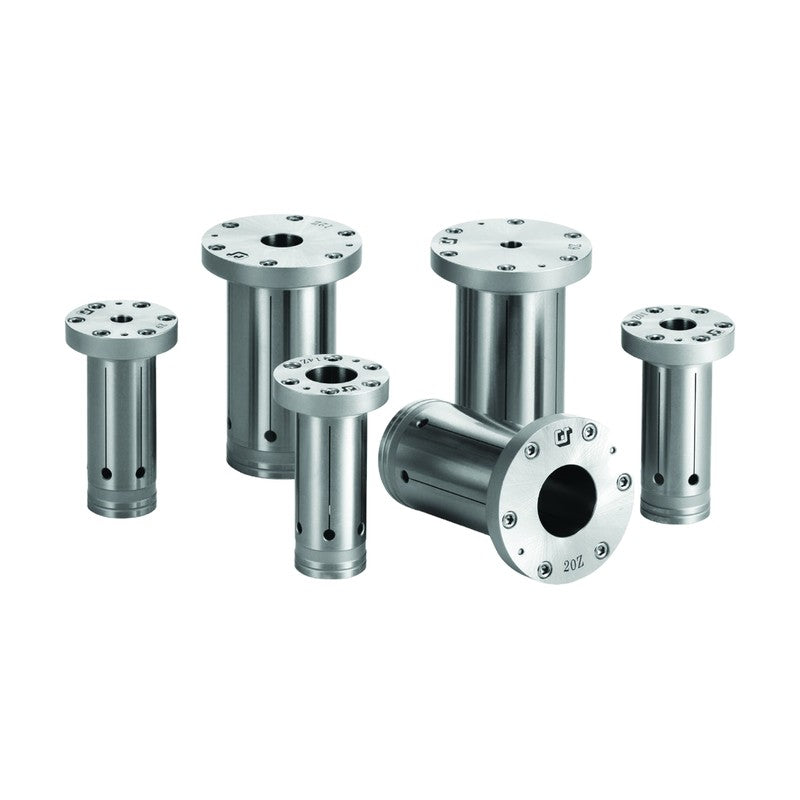

TAUMAX Zero Fit Collet DZC

TAUMAX Zero Fit Collet DZC

Run-out adjustable collet whose six screws allow tool-tip run-out to be corrected to within 2 um, for hydraulic and milling chucks.

Key features

  • Six adjusting screws set run-out for higher precision
  • Corrects machine and clamping errors (max. correction 20 um)
  • Usable in both hydraulic chucks and milling chucks
  • Run-out 2 um or less
  • Recommended screw torque 600 cN·m or less
DZC20-6 Inner Dia. ØD (mm): 6 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-8 Inner Dia. ØD (mm): 8 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-10 Inner Dia. ØD (mm): 10 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-12 Inner Dia. ØD (mm): 12 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-14 Inner Dia. ØD (mm): 14 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-16 Inner Dia. ØD (mm): 16 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC32-6 Inner Dia. ØD (mm): 6 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-8 Inner Dia. ØD (mm): 8 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-10 Inner Dia. ØD (mm): 10 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-12 Inner Dia. ØD (mm): 12 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-16 Inner Dia. ØD (mm): 16 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-20 Inner Dia. ØD (mm): 20 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-25 Inner Dia. ØD (mm): 25 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
ColletsTAUMAX
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TAUMAX Zero Fit Collet DZC

Brand TAUMAX·Collets

Available part numbers (13)

DZC20-6, DZC20-8, DZC20-10, DZC20-12, DZC20-14, DZC20-16, DZC32-6, DZC32-8, DZC32-10, DZC32-12 + 3 more — see full table ↓

How to order

Send the TAUMAX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DZC20-6Inner Dia. ØD (mm): 6 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-8Inner Dia. ØD (mm): 8 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-10Inner Dia. ØD (mm): 10 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-12Inner Dia. ØD (mm): 12 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-14Inner Dia. ØD (mm): 14 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC20-16Inner Dia. ØD (mm): 16 | Length L (mm): 56.5 | Outer Dia. ØD1 (mm): 20 | Stock: Yes
DZC32-6Inner Dia. ØD (mm): 6 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-8Inner Dia. ØD (mm): 8 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-10Inner Dia. ØD (mm): 10 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-12Inner Dia. ØD (mm): 12 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-16Inner Dia. ØD (mm): 16 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-20Inner Dia. ØD (mm): 20 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
DZC32-25Inner Dia. ØD (mm): 25 | Length L (mm): 67.5 | Outer Dia. ØD1 (mm): 32 | Stock: Yes
