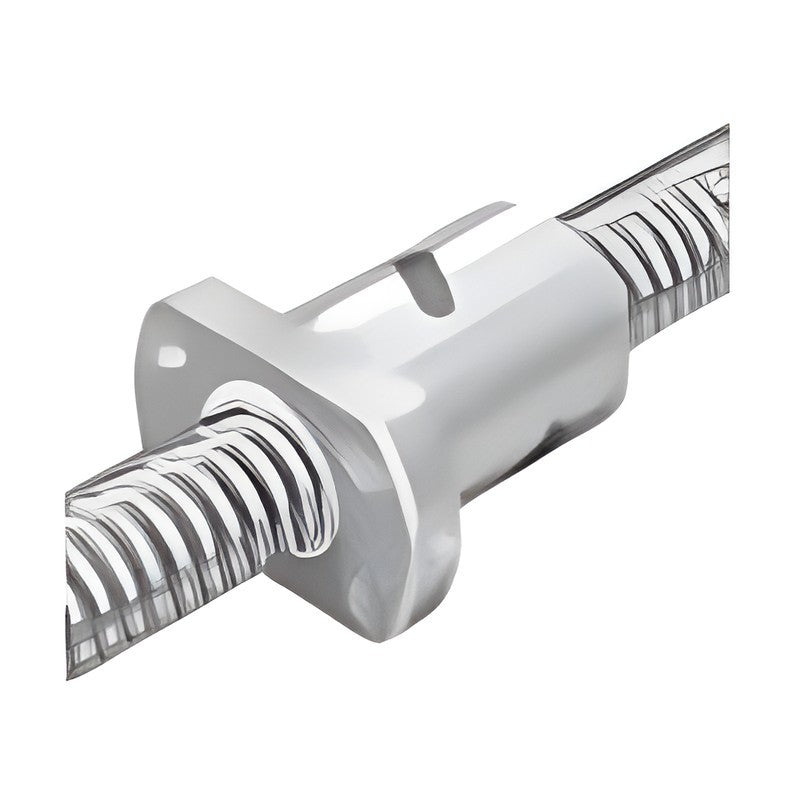

THK BLK Large-Lead Precision Ball Screw (Shaft 8-50, Lead = Shaft)

THK BLK Large-Lead Precision Ball Screw (Shaft 8-50, Lead = Shaft)

Large-lead end-cap nut precision ball screw whose lead equals the shaft diameter, shaft 8-50 mm.

Key features

  • Lead equal to shaft diameter (lead 8-50 mm) for high-speed feed
  • End-cap circulation nut, four-hole flange
  • Axial clearance selectable per A15-19
  • No seal as standard; brush seal possible on some models (consult); WW / QZ on listed sizes
  • Ground screw shaft, accuracy grades C0 to C7 per JIS B 1192 (ISO 3408)

Specifications

Series BLK (no preload type)
Category Precision ball screw (ground shaft)
Preload None (axial clearance G0/GT/G1/G2/G3)
DN value 70,000
Accuracy grades C0, C1, C2, C3, C5, C7 (specify; A15-12)
Shaft length Specify overall length "+xxxL" (mm)
Lubricator QZ Optional (code "QZ" before seal symbol)
Code format Model + seal + clearance, e.g. BLK2525-3.6G1
Source THK General Catalog Ball Screw (Korean ed. 515-2K), p. 198-251
BLK0808-3.2G0 Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2GT Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2G1 Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2G2 Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2G3 Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK1510-5.6G0 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6GT Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6G1 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6G2 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6G3 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG0 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWGT Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG1 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG2 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG3 Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1616-2.8 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G0 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8GT Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G1 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G2 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G3 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG0 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWGT Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG1 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG2 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG3 Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-3.6G0 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6GT Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6G1 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6G2 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6G3 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG0 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWGT Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG1 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG2 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG3 Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK2020-2.8 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G0 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8GT Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G1 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G2 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G3 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG0 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWGT Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG1 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG2 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG3 Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-3.6G0 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6GT Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6G1 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6G2 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6G3 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG0 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWGT Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG1 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG2 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG3 Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2525-2.8 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G0 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8GT Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G1 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G2 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G3 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG0 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWGT Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG1 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG2 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG3 Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-3.6G0 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6GT Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6G1 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6G2 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6G3 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG0 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWGT Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG1 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG2 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG3 Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK3232-2.8 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G0 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8GT Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G1 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G2 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G3 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG0 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWGT Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG1 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG2 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG3 Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-3.6G0 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6GT Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6G1 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6G2 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6G3 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG0 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWGT Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG1 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG2 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG3 Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3620-5.6G0 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6GT Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6G1 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6G2 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6G3 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG0 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWGT Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG1 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG2 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG3 Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3624-5.6G0 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6GT Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6G1 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6G2 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6G3 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG0 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWGT Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG1 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG2 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG3 Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3636-2.8 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G0 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8GT Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G1 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G2 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G3 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG0 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWGT Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG1 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG2 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG3 Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-3.6G0 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6GT Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6G1 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6G2 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6G3 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG0 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWGT Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG1 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG2 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG3 Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK4040-2.8 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G0 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8GT Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G1 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G2 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G3 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG0 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWGT Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG1 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG2 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG3 Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-3.6G0 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6GT Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6G1 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6G2 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6G3 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG0 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWGT Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG1 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG2 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG3 Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK5050-2.8 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G0 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8GT Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G1 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G2 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G3 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG0 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWGT Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG1 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG2 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG3 Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-3.6G0 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6GT Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6G1 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6G2 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6G3 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG0 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWGT Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG1 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG2 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG3 Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
Ball ScrewsTHK
182 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BLK Large-Lead Precision Ball Screw (Shaft 8-50, Lead = Shaft)

Brand THK·Ball Screws

Available part numbers (182)

BLK0808-3.2G0, BLK0808-3.2GT, BLK0808-3.2G1, BLK0808-3.2G2, BLK0808-3.2G3, BLK1510-5.6G0, BLK1510-5.6GT, BLK1510-5.6G1, BLK1510-5.6G2, BLK1510-5.6G3 + 172 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BLK0808-3.2G0Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2GTShaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2G1Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2G2Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK0808-3.2G3Shaft x lead: 8 x 8 | Circuits: 2×1.6 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 2.2 / 3.8 kN | Nut D x L1: 18 x 20
BLK1510-5.6G0Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6GTShaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6G1Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6G2Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6G3Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG0Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWGTShaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG1Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG2Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1510-5.6WWG3Shaft x lead: 15 x 10 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.3 / 27.8 kN | Nut D x L1: 34 x 44
BLK1616-2.8Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G0Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8GTShaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G1Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G2Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8G3Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG0Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWGTShaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG1Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG2Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-2.8WWG3Shaft x lead: 16 x 16 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 5.2 / 9.9 kN | Nut D x L1: 32 x 54
BLK1616-3.6G0Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6GTShaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6G1Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6G2Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6G3Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG0Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWGTShaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG1Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG2Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK1616-3.6WWG3Shaft x lead: 16 x 16 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.1 / 14.3 kN | Nut D x L1: 32 x 38
BLK2020-2.8Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G0Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8GTShaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G1Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G2Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8G3Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG0Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWGTShaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG1Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG2Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-2.8WWG3Shaft x lead: 20 x 20 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.1 / 17.2 kN | Nut D x L1: 39 x 65
BLK2020-3.6G0Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6GTShaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6G1Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6G2Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6G3Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG0Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWGTShaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG1Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG2Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2020-3.6WWG3Shaft x lead: 20 x 20 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 11.1 / 24.7 kN | Nut D x L1: 39 x 45
BLK2525-2.8Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G0Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8GTShaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G1Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G2Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8G3Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG0Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWGTShaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG1Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG2Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-2.8WWG3Shaft x lead: 25 x 25 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 12.2 / 26.9 kN | Nut D x L1: 47 x 80
BLK2525-3.6G0Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6GTShaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6G1Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6G2Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6G3Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG0Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWGTShaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG1Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG2Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK2525-3.6WWG3Shaft x lead: 25 x 25 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 16.6 / 38.7 kN | Nut D x L1: 47 x 55
BLK3232-2.8Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G0Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8GTShaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G1Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G2Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8G3Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG0Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWGTShaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG1Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG2Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-2.8WWG3Shaft x lead: 32 x 32 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 17.3 / 41.4 kN | Nut D x L1: 58 x 102
BLK3232-3.6G0Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6GTShaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6G1Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6G2Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6G3Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG0Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWGTShaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG1Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG2Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3232-3.6WWG3Shaft x lead: 32 x 32 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 23.7 / 59.5 kN | Nut D x L1: 58 x 70
BLK3620-5.6G0Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6GTShaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6G1Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6G2Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6G3Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG0Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWGTShaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG1Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG2Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3620-5.6WWG3Shaft x lead: 36 x 20 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 54.9 / 134.3 kN | Nut D x L1: 70 x 78
BLK3624-5.6G0Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6GTShaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6G1Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6G2Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6G3Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG0Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWGTShaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG1Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG2Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3624-5.6WWG3Shaft x lead: 36 x 24 | Circuits: 2×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 63.8 / 151.9 kN | Nut D x L1: 75 x 94
BLK3636-2.8Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G0Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8GTShaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G1Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G2Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8G3Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG0Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWGTShaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG1Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG2Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-2.8WWG3Shaft x lead: 36 x 36 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 22.4 / 54.1 kN | Nut D x L1: 66 x 113
BLK3636-3.6G0Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6GTShaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6G1Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6G2Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6G3Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG0Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWGTShaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG1Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG2Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK3636-3.6WWG3Shaft x lead: 36 x 36 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 30.8 / 78 kN | Nut D x L1: 66 x 77
BLK4040-2.8Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G0Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8GTShaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G1Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G2Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8G3Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG0Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWGTShaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG1Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG2Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-2.8WWG3Shaft x lead: 40 x 40 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.2 / 68.9 kN | Nut D x L1: 73 x 125
BLK4040-3.6G0Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6GTShaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6G1Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6G2Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6G3Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG0Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWGTShaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG1Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG2Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK4040-3.6WWG3Shaft x lead: 40 x 40 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 38.7 / 99.2 kN | Nut D x L1: 73 x 85
BLK5050-2.8Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: Specify (base model) | Clearance: Specify (base model) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G0Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8GTShaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G1Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G2Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8G3Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG0Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWGTShaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG1Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG2Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-2.8WWG3Shaft x lead: 50 x 50 | Circuits: 1×2.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 42.2 / 107.8 kN | Nut D x L1: 90 x 156
BLK5050-3.6G0Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6GTShaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6G1Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6G2Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6G3Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG0Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWGTShaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG1Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG2Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106
BLK5050-3.6WWG3Shaft x lead: 50 x 50 | Circuits: 2×1.8 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 57.8 / 155 kN | Nut D x L1: 90 x 106

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
