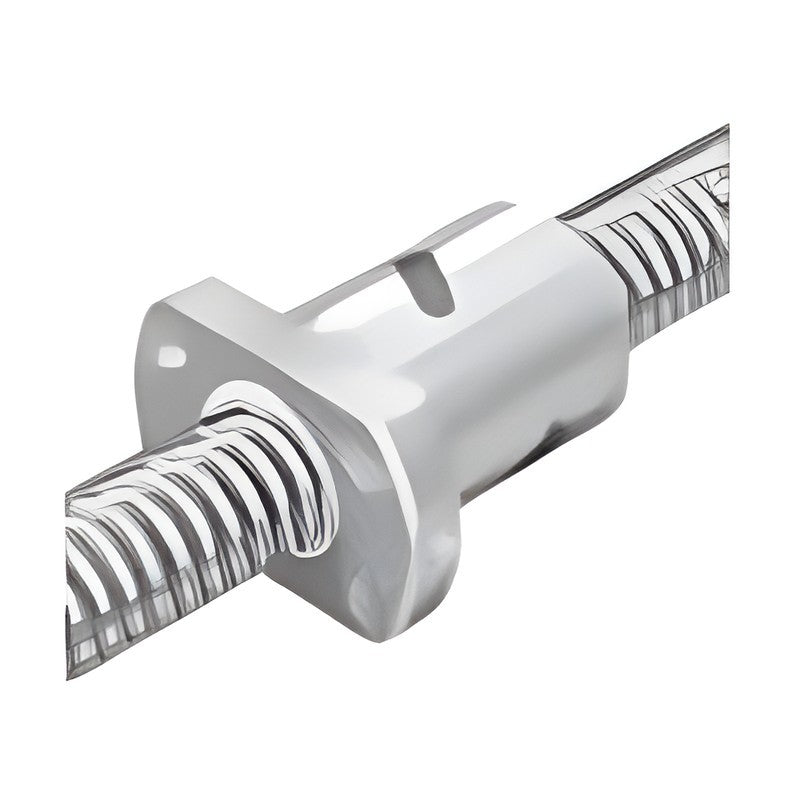

THK BNT Square-Nut Precision Ball Screw (Shaft 14-45)

THK BNT Square-Nut Precision Ball Screw (Shaft 14-45)

Precision ball screw with a square nut that has tapped mounting holes, allowing compact mounting directly on the machine without a housing.

Key features

  • Square nut with tapped mounting holes - no housing required
  • Compact installation directly onto the machine body
  • Axial clearance selectable per A15-19
  • Labyrinth seal (RR) standard; wiper ring WW and lubricator QZ available
  • Ground screw shaft, accuracy grades C0 to C7 per JIS B 1192 (ISO 3408)

Specifications

Series BNT (no preload type)
Category Precision ball screw (ground shaft)
Preload None (axial clearance G0/GT/G1/G2/G3)
DN value 70,000
Accuracy grades C0, C1, C2, C3, C5, C7 (specify; A15-12)
Shaft length Specify overall length "+xxxL" (mm)
Lubricator QZ Optional (code "QZ" before seal symbol)
Code format Model + seal + clearance, e.g. BNT2510-5.3RRG1
Source THK General Catalog Ball Screw (Korean ed. 515-2K), p. 198-255
BNT1404-3.6G0 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6GT Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6G1 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6G2 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6G3 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG0 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRGT Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG1 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG2 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG3 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG0 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWGT Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG1 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG2 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG3 Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G0 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6GT Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G1 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G2 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G3 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG0 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRGT Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG1 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG2 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG3 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG0 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWGT Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG1 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG2 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG3 Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1605-2.6G0 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6GT Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6G1 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6G2 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6G3 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG0 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRGT Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG1 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG2 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG3 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG0 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWGT Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG1 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG2 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG3 Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1808-3.6G0 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6GT Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6G1 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6G2 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6G3 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG0 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRGT Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG1 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG2 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG3 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG0 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWGT Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG1 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG2 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG3 Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT2005-2.6G0 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6GT Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6G1 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6G2 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6G3 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG0 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRGT Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG1 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG2 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG3 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG0 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWGT Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG1 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG2 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG3 Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2010-2.6G0 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6GT Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6G1 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6G2 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6G3 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG0 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRGT Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG1 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG2 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG3 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG0 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWGT Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG1 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG2 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG3 Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2505-2.6G0 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6GT Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6G1 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6G2 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6G3 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG0 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRGT Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG1 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG2 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG3 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG0 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWGT Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG1 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG2 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG3 Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2510-5.3G0 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3GT Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3G1 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3G2 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3G3 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG0 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRGT Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG1 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG2 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG3 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG0 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWGT Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG1 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG2 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG3 Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2806-2.6G0 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6GT Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6G1 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6G2 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6G3 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG0 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRGT Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG1 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG2 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG3 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG0 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWGT Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG1 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG2 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG3 Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-5.3G0 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3GT Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3G1 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3G2 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3G3 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG0 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRGT Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG1 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG2 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG3 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG0 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWGT Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG1 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG2 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG3 Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT3210-2.6G0 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6GT Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6G1 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6G2 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6G3 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG0 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRGT Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG1 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG2 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG3 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG0 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWGT Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG1 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG2 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG3 Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-5.3G0 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3GT Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3G1 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3G2 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3G3 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG0 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRGT Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG1 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG2 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG3 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG0 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWGT Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG1 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG2 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG3 Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3610-2.6G0 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6GT Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6G1 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6G2 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6G3 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG0 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRGT Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG1 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG2 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG3 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG0 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWGT Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG1 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG2 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG3 Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-5.3G0 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3GT Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3G1 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3G2 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3G3 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG0 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRGT Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG1 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG2 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG3 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG0 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWGT Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG1 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG2 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG3 Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT4512-5.3G0 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3GT Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3G1 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3G2 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3G3 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG0 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRGT Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG1 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG2 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG3 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG0 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWGT Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG1 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG2 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG3 Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
Ball ScrewsTHK
225 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BNT Square-Nut Precision Ball Screw (Shaft 14-45)

Brand THK·Ball Screws

Available part numbers (225)

BNT1404-3.6G0, BNT1404-3.6GT, BNT1404-3.6G1, BNT1404-3.6G2, BNT1404-3.6G3, BNT1404-3.6RRG0, BNT1404-3.6RRGT, BNT1404-3.6RRG1, BNT1404-3.6RRG2, BNT1404-3.6RRG3 + 215 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BNT1404-3.6G0Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6GTShaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6G1Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6G2Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6G3Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG0Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRGTShaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG1Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG2Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6RRG3Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG0Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWGTShaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG1Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG2Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1404-3.6WWG3Shaft x lead: 14 x 4 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 6.8 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G0Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6GTShaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G1Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G2Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6G3Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG0Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRGTShaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG1Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG2Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6RRG3Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG0Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWGTShaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG1Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG2Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1405-2.6WWG3Shaft x lead: 14 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.2 / 12.6 kN | Nut W x L1: 34 x 35
BNT1605-2.6G0Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6GTShaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6G1Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6G2Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6G3Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG0Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRGTShaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG1Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG2Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6RRG3Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG0Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWGTShaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG1Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG2Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1605-2.6WWG3Shaft x lead: 16 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7.8 / 14.7 kN | Nut W x L1: 42 x 36
BNT1808-3.6G0Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6GTShaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6G1Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6G2Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6G3Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG0Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRGTShaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG1Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG2Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6RRG3Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG0Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWGTShaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG1Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG2Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT1808-3.6WWG3Shaft x lead: 18 x 8 | Circuits: 1×3.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.2 / 34.4 kN | Nut W x L1: 48 x 56
BNT2005-2.6G0Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6GTShaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6G1Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6G2Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6G3Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG0Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRGTShaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG1Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG2Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6RRG3Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG0Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWGTShaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG1Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG2Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2005-2.6WWG3Shaft x lead: 20 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 8.7 / 18.3 kN | Nut W x L1: 48 x 35
BNT2010-2.6G0Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6GTShaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6G1Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6G2Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6G3Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG0Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRGTShaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG1Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG2Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6RRG3Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG0Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWGTShaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG1Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG2Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2010-2.6WWG3Shaft x lead: 20 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 14.7 / 27.8 kN | Nut W x L1: 48 x 58
BNT2505-2.6G0Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6GTShaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6G1Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6G2Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6G3Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG0Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRGTShaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG1Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG2Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6RRG3Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG0Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWGTShaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG1Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG2Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2505-2.6WWG3Shaft x lead: 25 x 5 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 9.6 / 23 kN | Nut W x L1: 60 x 35
BNT2510-5.3G0Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3GTShaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3G1Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3G2Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3G3Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG0Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRGTShaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG1Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG2Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3RRG3Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG0Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWGTShaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG1Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG2Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2510-5.3WWG3Shaft x lead: 25 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 43.4 / 92.8 kN | Nut W x L1: 60 x 94
BNT2806-2.6G0Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6GTShaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6G1Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6G2Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6G3Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG0Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRGTShaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG1Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG2Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6RRG3Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG0Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWGTShaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG1Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG2Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-2.6WWG3Shaft x lead: 28 x 6 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 10.1 / 25.8 kN | Nut W x L1: 60 x 42
BNT2806-5.3G0Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3GTShaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3G1Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3G2Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3G3Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG0Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRGTShaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG1Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG2Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3RRG3Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG0Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWGTShaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG1Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG2Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT2806-5.3WWG3Shaft x lead: 28 x 6 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 18.3 / 51.6 kN | Nut W x L1: 60 x 67
BNT3210-2.6G0Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6GTShaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6G1Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6G2Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6G3Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG0Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRGTShaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG1Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG2Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6RRG3Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG0Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWGTShaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG1Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG2Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-2.6WWG3Shaft x lead: 32 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 27.3 / 59.5 kN | Nut W x L1: 70 x 64
BNT3210-5.3G0Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3GTShaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3G1Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3G2Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3G3Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG0Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRGTShaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG1Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG2Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3RRG3Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG0Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWGTShaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG1Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG2Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3210-5.3WWG3Shaft x lead: 32 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 49.6 / 118.9 kN | Nut W x L1: 70 x 94
BNT3610-2.6G0Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6GTShaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6G1Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6G2Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6G3Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG0Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRGTShaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG1Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG2Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6RRG3Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG0Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWGTShaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG1Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG2Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-2.6WWG3Shaft x lead: 36 x 10 | Circuits: 1×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 28.7 / 65.6 kN | Nut W x L1: 86 x 64
BNT3610-5.3G0Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3GTShaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3G1Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3G2Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3G3Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG0Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRGTShaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG1Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG2Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3RRG3Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG0Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWGTShaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG1Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG2Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT3610-5.3WWG3Shaft x lead: 36 x 10 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 52.1 / 131.2 kN | Nut W x L1: 86 x 96
BNT4512-5.3G0Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3GTShaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3G1Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3G2Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3G3Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG0Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRGTShaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG1Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG2Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3RRG3Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG0Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G0 (0 or less, preload) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWGTShaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG1Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG2Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115
BNT4512-5.3WWG3Shaft x lead: 45 x 12 | Circuits: 2×2.65 | Seal: WW (wiper ring) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 68.1 / 186.7 kN | Nut W x L1: 100 x 115

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
