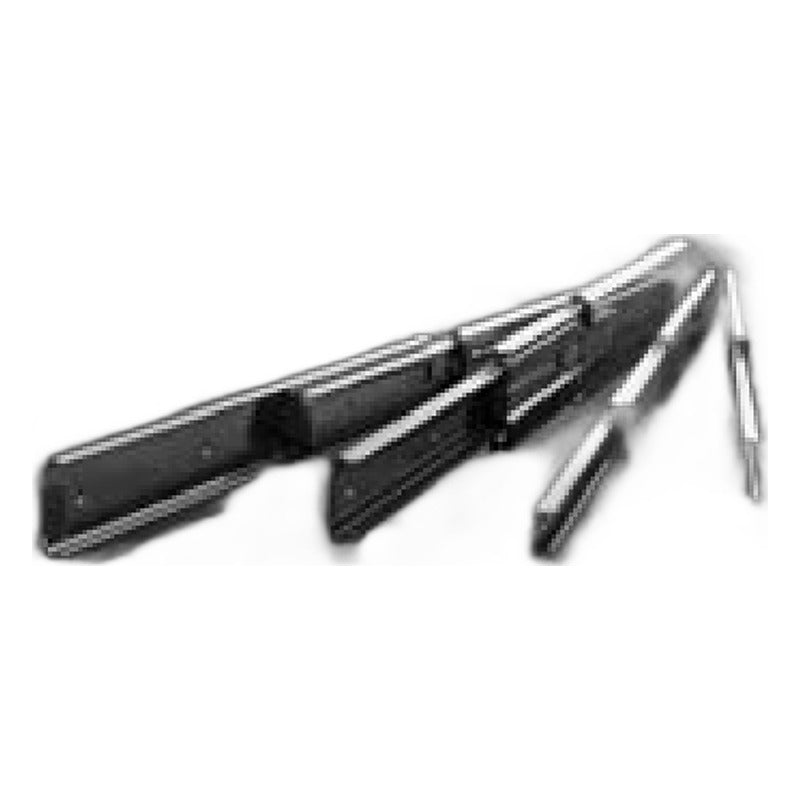

THK E15/E20/D20 Aluminium Alloy Slide Rail

THK E15/E20/D20 Aluminium Alloy Slide Rail

THK E15, E20, D20 are lightweight aluminium-alloy single (E15, E20) and double (D20) slides for magnetic, rust-sensitive or appearance-critical areas.

Key features

  • Aluminium-alloy (E15/E20/D20) or resin-bearing (E36RS) construction
  • Balls or bearings run between rails for smooth drawer-type extension
  • Standard rail lengths with fixed stroke per length (see rows)
  • Permissible loads given per set of two rails
  • Ordered by model and overall rail length, e.g. E15 +50L

Specifications

Series E15, E20, D20
Category Aluminium alloy slide rail
Code composition Model + rail length (mm), e.g. E15 +50L
Rail lengths 50-300 mm (standard steps)
Load basis Per set of 2 rails
Source THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-38-A13-43
E15 Type: Aluminium single, compact | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
E15 +50L Type: Aluminium single, compact | Rail length: 50 mm | Stroke: 20 mm | Load: 5 N/set
E15 +80L Type: Aluminium single, compact | Rail length: 80 mm | Stroke: 45 mm | Load: 8 N/set
E15 +100L Type: Aluminium single, compact | Rail length: 100 mm | Stroke: 60 mm | Load: 10 N/set
E15 +120L Type: Aluminium single, compact | Rail length: 120 mm | Stroke: 75 mm | Load: 10 N/set
E20 Type: Aluminium single, basic | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
E20 +80L Type: Aluminium single, basic | Rail length: 80 mm | Stroke: 45 mm | Load: 20 N/set
E20 +100L Type: Aluminium single, basic | Rail length: 100 mm | Stroke: 60 mm | Load: 30 N/set
E20 +150L Type: Aluminium single, basic | Rail length: 150 mm | Stroke: 85 mm | Load: 80 N/set
E20 +200L Type: Aluminium single, basic | Rail length: 200 mm | Stroke: 120 mm | Load: 140 N/set
E20 +300L Type: Aluminium single, basic | Rail length: 300 mm | Stroke: 180 mm | Load: 145 N/set
D20 Type: Aluminium double | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
D20 +80L Type: Aluminium double | Rail length: 80 mm | Stroke: 80 mm | Load: 20 N/set
D20 +100L Type: Aluminium double | Rail length: 100 mm | Stroke: 100 mm | Load: 30 N/set
D20 +150L Type: Aluminium double | Rail length: 150 mm | Stroke: 160 mm | Load: 80 N/set
D20 +200L Type: Aluminium double | Rail length: 200 mm | Stroke: 223 mm | Load: 140 N/set
D20 +300L Type: Aluminium double | Rail length: 300 mm | Stroke: 345 mm | Load: 145 N/set
