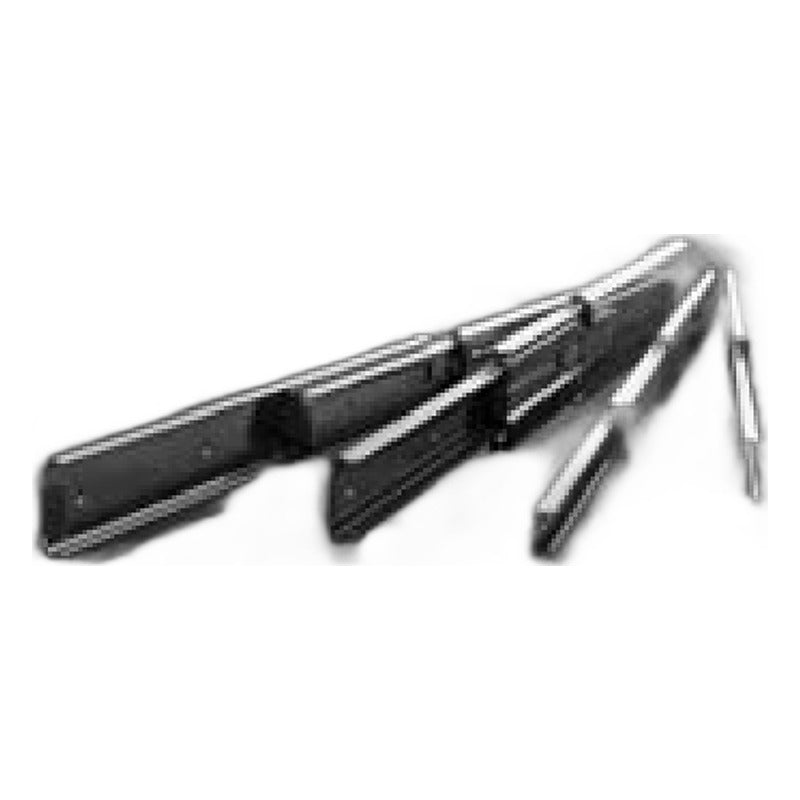

THK FBL27D Slide Rail (Light-Load Double Slide)

THK FBL27D Slide Rail (Light-Load Double Slide)

THK FBL27D is a light-load double slide combining two FBL27S rails back to back, widely used in OA equipment.

Key features

  • Roll-formed precision sheet rails for low-cost finite linear motion
  • Balls or bearings run between rails for smooth drawer-type extension
  • Standard rail lengths with fixed stroke per length (see rows)
  • Permissible loads given per set of two rails
  • Ordered by model and overall rail length, e.g. FBL27D +200L

Specifications

Series FBL27D
Category Light-Load Double Slide
Code composition Model + rail length (mm), e.g. FBL27D +200L
Rail lengths 200-500 mm (standard steps)
Load basis Per set of 2 rails
Source THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-22-A13-43
FBL27D Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL27D +200L Rail length: 200 mm | Stroke: 229 mm | Load: 370 N/set
FBL27D +250L Rail length: 250 mm | Stroke: 276 mm | Load: 360 N/set
FBL27D +300L Rail length: 300 mm | Stroke: 327 mm | Load: 350 N/set
FBL27D +350L Rail length: 350 mm | Stroke: 376 mm | Load: 330 N/set
FBL27D +400L Rail length: 400 mm | Stroke: 426 mm | Load: 310 N/set
FBL27D +450L Rail length: 450 mm | Stroke: 475 mm | Load: 290 N/set
FBL27D +500L Rail length: 500 mm | Stroke: 524 mm | Load: 280 N/set
Slide RailsTHK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBL27D Slide Rail (Light-Load Double Slide)

Brand THK·Slide Rails

Available part numbers (8)

FBL27D, FBL27D +200L, FBL27D +250L, FBL27D +300L, FBL27D +350L, FBL27D +400L, FBL27D +450L, FBL27D +500L

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
