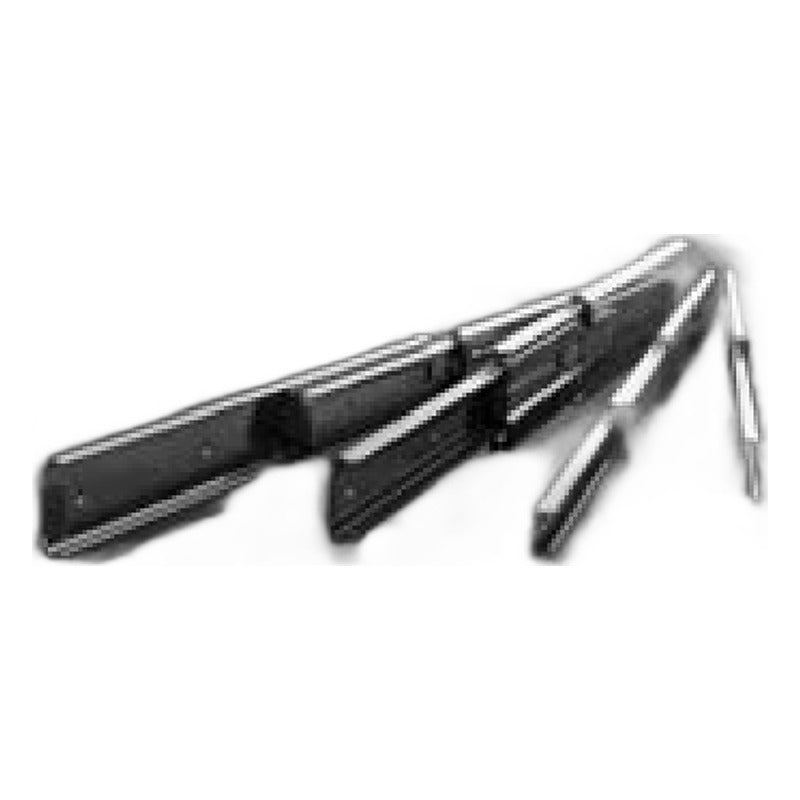

THK FBL27S Slide Rail (Light-Load Single Slide)

THK FBL27S, FBL27S-P14 are the most compact light-load single slide rail, also offered with removable inner rail (P14).

Key features

Roll-formed precision sheet rails for low-cost finite linear motion
Balls or bearings run between rails for smooth drawer-type extension
Standard rail lengths with fixed stroke per length (see rows)
Permissible loads given per set of two rails
Ordered by model and overall rail length, e.g. FBL27S +200L

Specifications

Series	FBL27S, FBL27S-P14
Category	Light-Load Single Slide
Code composition	Model + rail length (mm), e.g. FBL27S +200L
Rail lengths	200-550 mm (standard steps)
Load basis	Per set of 2 rails
Source	THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-14-A13-43

FBL27S		Type: Single, compact \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL27S +200L		Type: Single, compact \| Rail length: 200 mm \| Stroke: 135 mm \| Load: 260 N/set
FBL27S +250L		Type: Single, compact \| Rail length: 250 mm \| Stroke: 185 mm \| Load: 240 N/set
FBL27S +300L		Type: Single, compact \| Rail length: 300 mm \| Stroke: 222 mm \| Load: 240 N/set
FBL27S +350L		Type: Single, compact \| Rail length: 350 mm \| Stroke: 260 mm \| Load: 230 N/set
FBL27S +400L		Type: Single, compact \| Rail length: 400 mm \| Stroke: 297 mm \| Load: 210 N/set
FBL27S +450L		Type: Single, compact \| Rail length: 450 mm \| Stroke: 334 mm \| Load: 200 N/set
FBL27S +500L		Type: Single, compact \| Rail length: 500 mm \| Stroke: 371 mm \| Load: 180 N/set
FBL27S-P14		Type: Single, removable, auto release \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL27S-P14 +200L		Type: Single, removable, auto release \| Rail length: 200 mm \| Stroke: 116 mm \| Load: 260 N/set
FBL27S-P14 +250L		Type: Single, removable, auto release \| Rail length: 250 mm \| Stroke: 152 mm \| Load: 240 N/set
FBL27S-P14 +300L		Type: Single, removable, auto release \| Rail length: 300 mm \| Stroke: 202 mm \| Load: 240 N/set
FBL27S-P14 +350L		Type: Single, removable, auto release \| Rail length: 350 mm \| Stroke: 251 mm \| Load: 230 N/set
FBL27S-P14 +400L		Type: Single, removable, auto release \| Rail length: 400 mm \| Stroke: 297 mm \| Load: 210 N/set
FBL27S-P14 +450L		Type: Single, removable, auto release \| Rail length: 450 mm \| Stroke: 332 mm \| Load: 210 N/set
FBL27S-P14 +500L		Type: Single, removable, auto release \| Rail length: 500 mm \| Stroke: 371 mm \| Load: 200 N/set
FBL27S-P14 +550L		Type: Single, removable, auto release \| Rail length: 550 mm \| Stroke: 407 mm \| Load: 180 N/set

Slide RailsTHK

17 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBL27S Slide Rail (Light-Load Single Slide)

Brand THK·Slide Rails

Available part numbers (17)

FBL27S, FBL27S +200L, FBL27S +250L, FBL27S +300L, FBL27S +350L, FBL27S +400L, FBL27S +450L, FBL27S +500L, FBL27S-P14, FBL27S-P14 +200L + 7 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
