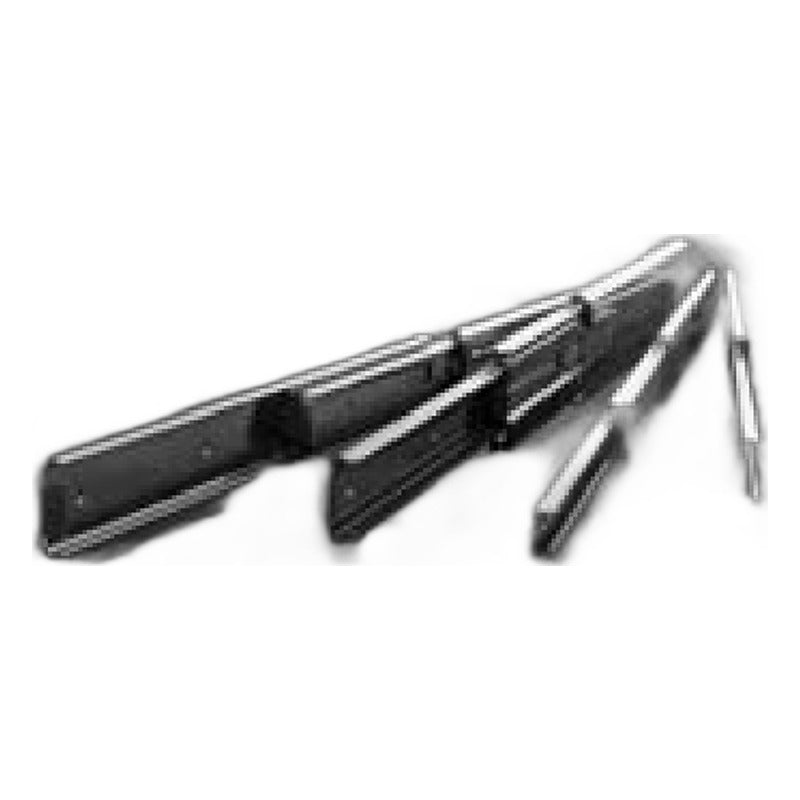

THK FBL35G Slide Rail (Medium-Load Double Slide)

THK FBL35G Slide Rail (Medium-Load Double Slide)

THK FBL35G-P13, FBL35G-P14 are medium-load double slides combining FBL35S rails face to face with removable draw rail and an extension lock.

Key features

  • Roll-formed precision sheet rails for low-cost finite linear motion
  • Balls or bearings run between rails for smooth drawer-type extension
  • Standard rail lengths with fixed stroke per length (see rows)
  • Permissible loads given per set of two rails
  • Ordered by model and overall rail length, e.g. FBL35G-P13 +305L

Specifications

Series FBL35G-P13, FBL35G-P14
Category Medium-Load Double Slide
Code composition Model + rail length (mm), e.g. FBL35G-P13 +305L
Rail lengths 305-711 mm (standard steps)
Load basis Per set of 2 rails
Source THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-26-A13-43
FBL35G-P13 Type: Double, removable, manual release | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35G-P13 +305L Type: Double, removable, manual release | Rail length: 305 mm | Stroke: 327 mm | Load: 623 N/set
FBL35G-P13 +356L Type: Double, removable, manual release | Rail length: 356 mm | Stroke: 378 mm | Load: 586 N/set
FBL35G-P13 +406L Type: Double, removable, manual release | Rail length: 406 mm | Stroke: 429 mm | Load: 555 N/set
FBL35G-P13 +457L Type: Double, removable, manual release | Rail length: 457 mm | Stroke: 480 mm | Load: 516 N/set
FBL35G-P13 +508L Type: Double, removable, manual release | Rail length: 508 mm | Stroke: 530 mm | Load: 475 N/set
FBL35G-P13 +559L Type: Double, removable, manual release | Rail length: 559 mm | Stroke: 581 mm | Load: 444 N/set
FBL35G-P13 +610L Type: Double, removable, manual release | Rail length: 610 mm | Stroke: 632 mm | Load: 413 N/set
FBL35G-P13 +660L Type: Double, removable, manual release | Rail length: 660 mm | Stroke: 683 mm | Load: 382 N/set
FBL35G-P13 +711L Type: Double, removable, manual release | Rail length: 711 mm | Stroke: 734 mm | Load: 355 N/set
FBL35G-P14 Type: Double, removable, auto release | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35G-P14 +305L Type: Double, removable, auto release | Rail length: 305 mm | Stroke: 327 mm | Load: 623 N/set
FBL35G-P14 +356L Type: Double, removable, auto release | Rail length: 356 mm | Stroke: 378 mm | Load: 586 N/set
FBL35G-P14 +406L Type: Double, removable, auto release | Rail length: 406 mm | Stroke: 429 mm | Load: 555 N/set
FBL35G-P14 +457L Type: Double, removable, auto release | Rail length: 457 mm | Stroke: 480 mm | Load: 516 N/set
FBL35G-P14 +508L Type: Double, removable, auto release | Rail length: 508 mm | Stroke: 530 mm | Load: 475 N/set
FBL35G-P14 +559L Type: Double, removable, auto release | Rail length: 559 mm | Stroke: 581 mm | Load: 444 N/set
FBL35G-P14 +610L Type: Double, removable, auto release | Rail length: 610 mm | Stroke: 632 mm | Load: 413 N/set
FBL35G-P14 +660L Type: Double, removable, auto release | Rail length: 660 mm | Stroke: 683 mm | Load: 382 N/set
FBL35G-P14 +711L Type: Double, removable, auto release | Rail length: 711 mm | Stroke: 734 mm | Load: 355 N/set
Slide RailsTHK
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBL35G Slide Rail (Medium-Load Double Slide)

Brand THK·Slide Rails

Available part numbers (20)

FBL35G-P13, FBL35G-P13 +305L, FBL35G-P13 +356L, FBL35G-P13 +406L, FBL35G-P13 +457L, FBL35G-P13 +508L, FBL35G-P13 +559L, FBL35G-P13 +610L, FBL35G-P13 +660L, FBL35G-P13 +711L + 10 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FBL35G-P13Type: Double, removable, manual release | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35G-P13 +305LType: Double, removable, manual release | Rail length: 305 mm | Stroke: 327 mm | Load: 623 N/set
FBL35G-P13 +356LType: Double, removable, manual release | Rail length: 356 mm | Stroke: 378 mm | Load: 586 N/set
FBL35G-P13 +406LType: Double, removable, manual release | Rail length: 406 mm | Stroke: 429 mm | Load: 555 N/set
FBL35G-P13 +457LType: Double, removable, manual release | Rail length: 457 mm | Stroke: 480 mm | Load: 516 N/set
FBL35G-P13 +508LType: Double, removable, manual release | Rail length: 508 mm | Stroke: 530 mm | Load: 475 N/set
FBL35G-P13 +559LType: Double, removable, manual release | Rail length: 559 mm | Stroke: 581 mm | Load: 444 N/set
FBL35G-P13 +610LType: Double, removable, manual release | Rail length: 610 mm | Stroke: 632 mm | Load: 413 N/set
FBL35G-P13 +660LType: Double, removable, manual release | Rail length: 660 mm | Stroke: 683 mm | Load: 382 N/set
FBL35G-P13 +711LType: Double, removable, manual release | Rail length: 711 mm | Stroke: 734 mm | Load: 355 N/set
FBL35G-P14Type: Double, removable, auto release | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35G-P14 +305LType: Double, removable, auto release | Rail length: 305 mm | Stroke: 327 mm | Load: 623 N/set
FBL35G-P14 +356LType: Double, removable, auto release | Rail length: 356 mm | Stroke: 378 mm | Load: 586 N/set
FBL35G-P14 +406LType: Double, removable, auto release | Rail length: 406 mm | Stroke: 429 mm | Load: 555 N/set
FBL35G-P14 +457LType: Double, removable, auto release | Rail length: 457 mm | Stroke: 480 mm | Load: 516 N/set
FBL35G-P14 +508LType: Double, removable, auto release | Rail length: 508 mm | Stroke: 530 mm | Load: 475 N/set
FBL35G-P14 +559LType: Double, removable, auto release | Rail length: 559 mm | Stroke: 581 mm | Load: 444 N/set
FBL35G-P14 +610LType: Double, removable, auto release | Rail length: 610 mm | Stroke: 632 mm | Load: 413 N/set
FBL35G-P14 +660LType: Double, removable, auto release | Rail length: 660 mm | Stroke: 683 mm | Load: 382 N/set
FBL35G-P14 +711LType: Double, removable, auto release | Rail length: 711 mm | Stroke: 734 mm | Load: 355 N/set
