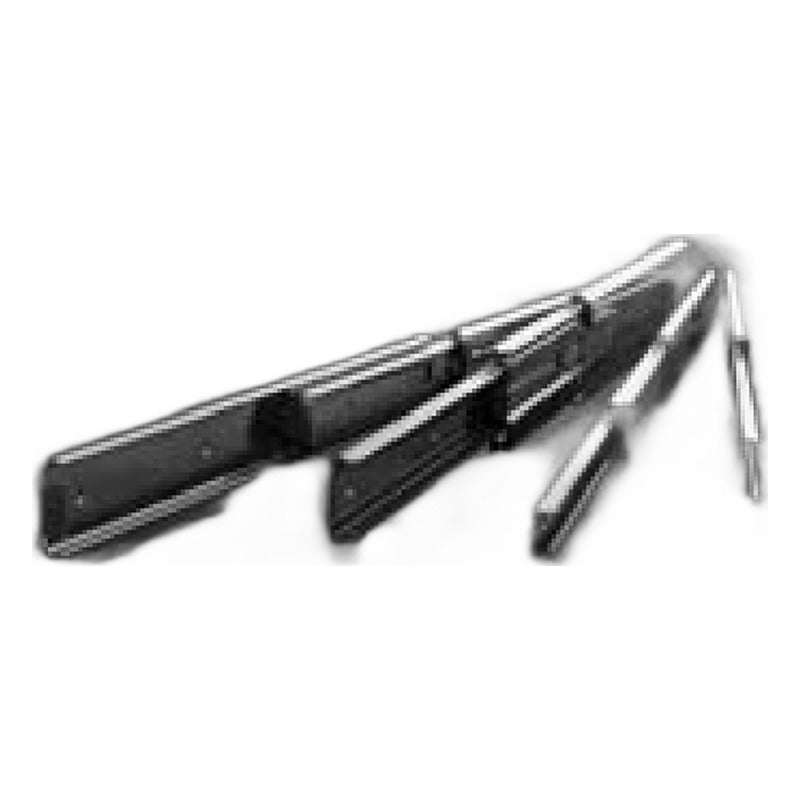

THK FBL35K Slide Rail (Heavy-Load Double Slide)

THK FBL35K Slide Rail (Heavy-Load Double Slide)

THK FBL35K is heavy-load double slides built from four FBL35S units, the highest permissible load of all slide rails.

Key features

  • Roll-formed precision sheet rails for low-cost finite linear motion
  • Balls or bearings run between rails for smooth drawer-type extension
  • Standard rail lengths with fixed stroke per length (see rows)
  • Permissible loads given per set of two rails
  • Ordered by model and overall rail length, e.g. FBL35K +305L

Specifications

Series FBL35K
Category Heavy-Load Double Slide
Code composition Model + rail length (mm), e.g. FBL35K +305L
Rail lengths 305-711 mm (standard steps)
Load basis Per set of 2 rails
Source THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-32-A13-43
FBL35K Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35K +305L Rail length: 305 mm | Stroke: 327 mm | Load: 2670 N/set
FBL35K +356L Rail length: 356 mm | Stroke: 378 mm | Load: 2630 N/set
FBL35K +406L Rail length: 406 mm | Stroke: 429 mm | Load: 2540 N/set
FBL35K +457L Rail length: 457 mm | Stroke: 480 mm | Load: 2450 N/set
FBL35K +508L Rail length: 508 mm | Stroke: 530 mm | Load: 2360 N/set
FBL35K +559L Rail length: 559 mm | Stroke: 581 mm | Load: 2250 N/set
FBL35K +610L Rail length: 610 mm | Stroke: 632 mm | Load: 2120 N/set
FBL35K +660L Rail length: 660 mm | Stroke: 683 mm | Load: 1960 N/set
FBL35K +711L Rail length: 711 mm | Stroke: 734 mm | Load: 1780 N/set
Slide RailsTHK
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBL35K Slide Rail (Heavy-Load Double Slide)

Brand THK·Slide Rails

Available part numbers (10)

FBL35K, FBL35K +305L, FBL35K +356L, FBL35K +406L, FBL35K +457L, FBL35K +508L, FBL35K +559L, FBL35K +610L, FBL35K +660L, FBL35K +711L

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
