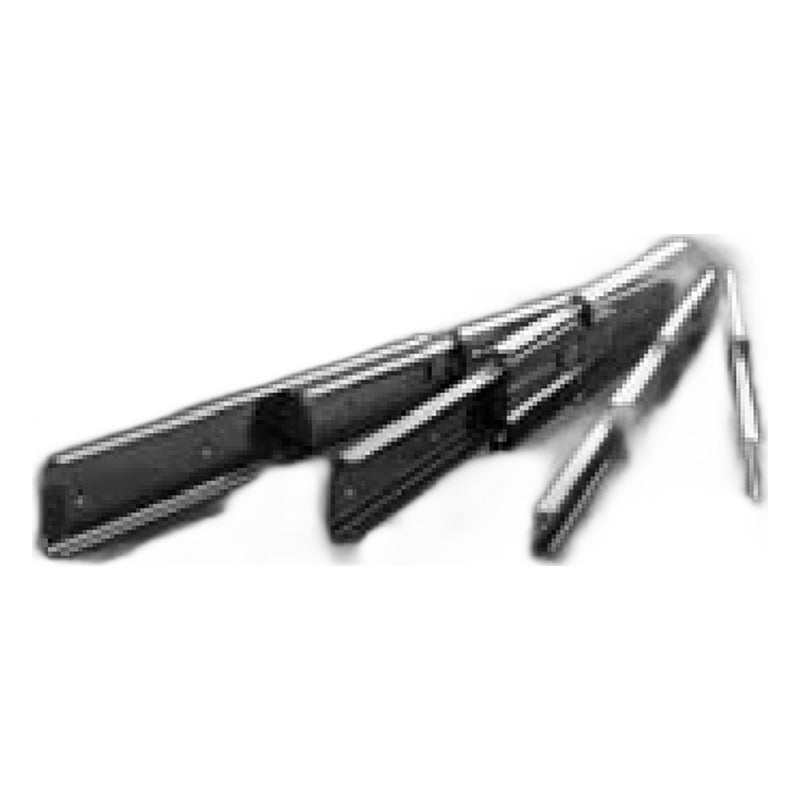

THK FBL35M/J/B Slide Rail (Brake-Stop Single Slide)

THK FBL35M, FBL35J, FBL35B are single slide rails whose inner rail stops by friction when extended and can be removed by pulling harder (J adds a lead ball, B adds brackets).

Key features

Roll-formed precision sheet rails for low-cost finite linear motion
Balls or bearings run between rails for smooth drawer-type extension
Standard rail lengths with fixed stroke per length (see rows)
Permissible loads given per set of two rails
Ordered by model and overall rail length, e.g. FBL35M +305L

Specifications

Series	FBL35M, FBL35J, FBL35B
Category	Brake-Stop Single Slide
Code composition	Model + rail length (mm), e.g. FBL35M +305L
Rail lengths	305-711 mm (standard steps)
Load basis	Per set of 2 rails
Source	THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-19-A13-43

FBL35M		Type: Single, brake stop \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL35M +305L		Type: Single, brake stop \| Rail length: 305 mm \| Stroke: 229 mm \| Load: 490 N/set
FBL35M +356L		Type: Single, brake stop \| Rail length: 356 mm \| Stroke: 279 mm \| Load: 400 N/set
FBL35M +406L		Type: Single, brake stop \| Rail length: 406 mm \| Stroke: 305 mm \| Load: 390 N/set
FBL35M +457L		Type: Single, brake stop \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
FBL35M +508L		Type: Single, brake stop \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
FBL35M +559L		Type: Single, brake stop \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
FBL35M +610L		Type: Single, brake stop \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
FBL35M +660L		Type: Single, brake stop \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
FBL35M +711L		Type: Single, brake stop \| Rail length: 711 mm \| Stroke: 508 mm \| Load: 270 N/set
FBL35J		Type: Single, brake stop, lead ball \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL35J +305L		Type: Single, brake stop, lead ball \| Rail length: 305 mm \| Stroke: 229 mm \| Load: 490 N/set
FBL35J +356L		Type: Single, brake stop, lead ball \| Rail length: 356 mm \| Stroke: 279 mm \| Load: 400 N/set
FBL35J +406L		Type: Single, brake stop, lead ball \| Rail length: 406 mm \| Stroke: 305 mm \| Load: 390 N/set
FBL35J +457L		Type: Single, brake stop, lead ball \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
FBL35J +508L		Type: Single, brake stop, lead ball \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
FBL35J +559L		Type: Single, brake stop, lead ball \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
FBL35J +610L		Type: Single, brake stop, lead ball \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
FBL35J +660L		Type: Single, brake stop, lead ball \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
FBL35J +711L		Type: Single, brake stop, lead ball \| Rail length: 711 mm \| Stroke: 508 mm \| Load: 270 N/set
FBL35B		Type: Single, brake stop, bracket \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL35B +324L		Type: Single, brake stop, bracket \| Rail length: 324 mm \| Stroke: 216 mm \| Load: 115 N/set
FBL35B +375L		Type: Single, brake stop, bracket \| Rail length: 375 mm \| Stroke: 267 mm \| Load: 105 N/set
FBL35B +425L		Type: Single, brake stop, bracket \| Rail length: 425 mm \| Stroke: 305 mm \| Load: 100 N/set
FBL35B +476L		Type: Single, brake stop, bracket \| Rail length: 476 mm \| Stroke: 318 mm \| Load: 90 N/set
FBL35B +527L		Type: Single, brake stop, bracket \| Rail length: 527 mm \| Stroke: 368 mm \| Load: 83 N/set
FBL35B +578L		Type: Single, brake stop, bracket \| Rail length: 578 mm \| Stroke: 419 mm \| Load: 73 N/set
FBL35B +629L		Type: Single, brake stop, bracket \| Rail length: 629 mm \| Stroke: 445 mm \| Load: 66 N/set
FBL35B +679L		Type: Single, brake stop, bracket \| Rail length: 679 mm \| Stroke: 495 mm \| Load: 61 N/set

Slide RailsTHK

29 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBL35M/J/B Slide Rail (Brake-Stop Single Slide)

Brand THK·Slide Rails

Available part numbers (29)

FBL35M, FBL35M +305L, FBL35M +356L, FBL35M +406L, FBL35M +457L, FBL35M +508L, FBL35M +559L, FBL35M +610L, FBL35M +660L, FBL35M +711L + 19 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FBL35M	Type: Single, brake stop \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
	FBL35M +305L	Type: Single, brake stop \| Rail length: 305 mm \| Stroke: 229 mm \| Load: 490 N/set
	FBL35M +356L	Type: Single, brake stop \| Rail length: 356 mm \| Stroke: 279 mm \| Load: 400 N/set
	FBL35M +406L	Type: Single, brake stop \| Rail length: 406 mm \| Stroke: 305 mm \| Load: 390 N/set
	FBL35M +457L	Type: Single, brake stop \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
	FBL35M +508L	Type: Single, brake stop \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
	FBL35M +559L	Type: Single, brake stop \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
	FBL35M +610L	Type: Single, brake stop \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
	FBL35M +660L	Type: Single, brake stop \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
	FBL35M +711L	Type: Single, brake stop \| Rail length: 711 mm \| Stroke: 508 mm \| Load: 270 N/set
	FBL35J	Type: Single, brake stop, lead ball \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
	FBL35J +305L	Type: Single, brake stop, lead ball \| Rail length: 305 mm \| Stroke: 229 mm \| Load: 490 N/set
	FBL35J +356L	Type: Single, brake stop, lead ball \| Rail length: 356 mm \| Stroke: 279 mm \| Load: 400 N/set
	FBL35J +406L	Type: Single, brake stop, lead ball \| Rail length: 406 mm \| Stroke: 305 mm \| Load: 390 N/set
	FBL35J +457L	Type: Single, brake stop, lead ball \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
	FBL35J +508L	Type: Single, brake stop, lead ball \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
	FBL35J +559L	Type: Single, brake stop, lead ball \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
	FBL35J +610L	Type: Single, brake stop, lead ball \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
	FBL35J +660L	Type: Single, brake stop, lead ball \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
	FBL35J +711L	Type: Single, brake stop, lead ball \| Rail length: 711 mm \| Stroke: 508 mm \| Load: 270 N/set
	FBL35B	Type: Single, brake stop, bracket \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
	FBL35B +324L	Type: Single, brake stop, bracket \| Rail length: 324 mm \| Stroke: 216 mm \| Load: 115 N/set
	FBL35B +375L	Type: Single, brake stop, bracket \| Rail length: 375 mm \| Stroke: 267 mm \| Load: 105 N/set
	FBL35B +425L	Type: Single, brake stop, bracket \| Rail length: 425 mm \| Stroke: 305 mm \| Load: 100 N/set
	FBL35B +476L	Type: Single, brake stop, bracket \| Rail length: 476 mm \| Stroke: 318 mm \| Load: 90 N/set
	FBL35B +527L	Type: Single, brake stop, bracket \| Rail length: 527 mm \| Stroke: 368 mm \| Load: 83 N/set
	FBL35B +578L	Type: Single, brake stop, bracket \| Rail length: 578 mm \| Stroke: 419 mm \| Load: 73 N/set
	FBL35B +629L	Type: Single, brake stop, bracket \| Rail length: 629 mm \| Stroke: 445 mm \| Load: 66 N/set
	FBL35B +679L	Type: Single, brake stop, bracket \| Rail length: 679 mm \| Stroke: 495 mm \| Load: 61 N/set
