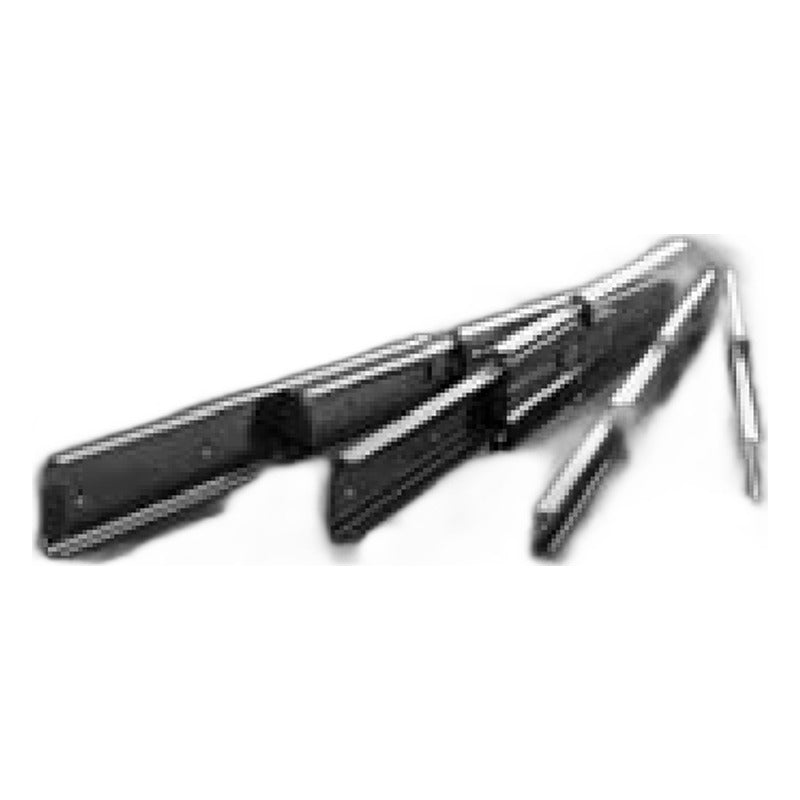

THK FBL35N Slide Rail (Light-Load 3-Rail Double Slide)

THK FBL35N Slide Rail (Light-Load 3-Rail Double Slide)

THK FBL35N, FBL35N-P16 are lightweight 3-rail double slides in 1.2 mm sheet giving long stroke in a small space (P16: removable inner rail).

Key features

  • Roll-formed precision sheet rails for low-cost finite linear motion
  • Balls or bearings run between rails for smooth drawer-type extension
  • Standard rail lengths with fixed stroke per length (see rows)
  • Permissible loads given per set of two rails
  • Ordered by model and overall rail length, e.g. FBL35N +254L

Specifications

Series FBL35N, FBL35N-P16
Category Light-Load 3-Rail Double Slide
Code composition Model + rail length (mm), e.g. FBL35N +254L
Rail lengths 254-508 mm (standard steps)
Load basis Per set of 2 rails
Source THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-24-A13-43
FBL35N Type: Double, 3-rail, 1.2 mm | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35N +254L Type: Double, 3-rail, 1.2 mm | Rail length: 254 mm | Stroke: 280 mm | Load: 290 N/set
FBL35N +305L Type: Double, 3-rail, 1.2 mm | Rail length: 305 mm | Stroke: 330 mm | Load: 290 N/set
FBL35N +356L Type: Double, 3-rail, 1.2 mm | Rail length: 356 mm | Stroke: 381 mm | Load: 280 N/set
FBL35N +406L Type: Double, 3-rail, 1.2 mm | Rail length: 406 mm | Stroke: 432 mm | Load: 270 N/set
FBL35N +457L Type: Double, 3-rail, 1.2 mm | Rail length: 457 mm | Stroke: 483 mm | Load: 250 N/set
FBL35N +508L Type: Double, 3-rail, 1.2 mm | Rail length: 508 mm | Stroke: 533 mm | Load: 240 N/set
FBL35N-P16 Type: Double, 3-rail, removable | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35N-P16 +254L Type: Double, 3-rail, removable | Rail length: 254 mm | Stroke: 280 mm | Load: 290 N/set
FBL35N-P16 +305L Type: Double, 3-rail, removable | Rail length: 305 mm | Stroke: 330 mm | Load: 290 N/set
FBL35N-P16 +356L Type: Double, 3-rail, removable | Rail length: 356 mm | Stroke: 381 mm | Load: 280 N/set
FBL35N-P16 +406L Type: Double, 3-rail, removable | Rail length: 406 mm | Stroke: 432 mm | Load: 270 N/set
FBL35N-P16 +457L Type: Double, 3-rail, removable | Rail length: 457 mm | Stroke: 483 mm | Load: 250 N/set
FBL35N-P16 +508L Type: Double, 3-rail, removable | Rail length: 508 mm | Stroke: 533 mm | Load: 240 N/set
Slide RailsTHK
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBL35N Slide Rail (Light-Load 3-Rail Double Slide)

Brand THK·Slide Rails

Available part numbers (14)

FBL35N, FBL35N +254L, FBL35N +305L, FBL35N +356L, FBL35N +406L, FBL35N +457L, FBL35N +508L, FBL35N-P16, FBL35N-P16 +254L, FBL35N-P16 +305L + 4 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FBL35NType: Double, 3-rail, 1.2 mm | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35N +254LType: Double, 3-rail, 1.2 mm | Rail length: 254 mm | Stroke: 280 mm | Load: 290 N/set
FBL35N +305LType: Double, 3-rail, 1.2 mm | Rail length: 305 mm | Stroke: 330 mm | Load: 290 N/set
FBL35N +356LType: Double, 3-rail, 1.2 mm | Rail length: 356 mm | Stroke: 381 mm | Load: 280 N/set
FBL35N +406LType: Double, 3-rail, 1.2 mm | Rail length: 406 mm | Stroke: 432 mm | Load: 270 N/set
FBL35N +457LType: Double, 3-rail, 1.2 mm | Rail length: 457 mm | Stroke: 483 mm | Load: 250 N/set
FBL35N +508LType: Double, 3-rail, 1.2 mm | Rail length: 508 mm | Stroke: 533 mm | Load: 240 N/set
FBL35N-P16Type: Double, 3-rail, removable | Rail length: Specify (+L) | Stroke: Per rail length | Load: —
FBL35N-P16 +254LType: Double, 3-rail, removable | Rail length: 254 mm | Stroke: 280 mm | Load: 290 N/set
FBL35N-P16 +305LType: Double, 3-rail, removable | Rail length: 305 mm | Stroke: 330 mm | Load: 290 N/set
FBL35N-P16 +356LType: Double, 3-rail, removable | Rail length: 356 mm | Stroke: 381 mm | Load: 280 N/set
FBL35N-P16 +406LType: Double, 3-rail, removable | Rail length: 406 mm | Stroke: 432 mm | Load: 270 N/set
FBL35N-P16 +457LType: Double, 3-rail, removable | Rail length: 457 mm | Stroke: 483 mm | Load: 250 N/set
FBL35N-P16 +508LType: Double, 3-rail, removable | Rail length: 508 mm | Stroke: 533 mm | Load: 240 N/set
