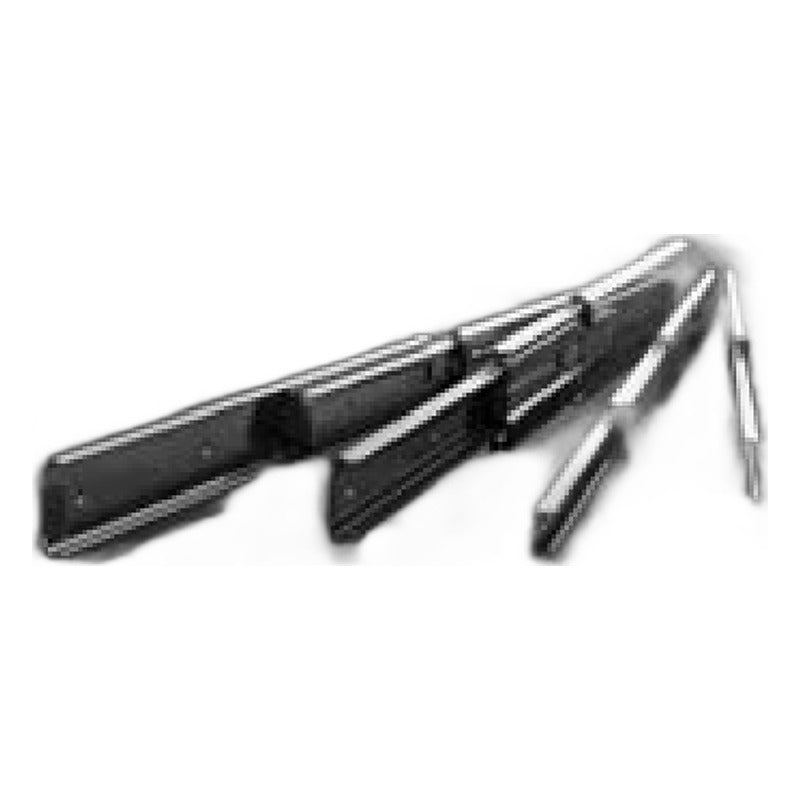

THK FBL35S Slide Rail (Light-Load Single Slide)

THK FBL35S, FBL35S-P13, FBL35S-P14 are the basic light-load single slide rail, with removable-inner-rail versions P13 (manual lock release) and P14 (push release).

Key features

Roll-formed precision sheet rails for low-cost finite linear motion
Balls or bearings run between rails for smooth drawer-type extension
Standard rail lengths with fixed stroke per length (see rows)
Permissible loads given per set of two rails
Ordered by model and overall rail length, e.g. FBL35S +305L

Specifications

Series	FBL35S, FBL35S-P13, FBL35S-P14
Category	Light-Load Single Slide
Code composition	Model + rail length (mm), e.g. FBL35S +305L
Rail lengths	305-711 mm (standard steps)
Load basis	Per set of 2 rails
Source	THK General Catalog Slide Rail (Korean ed. 515-2K), p. A13-16-A13-43

FBL35S		Type: Single, basic \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL35S +305L		Type: Single, basic \| Rail length: 305 mm \| Stroke: 229 mm \| Load: 490 N/set
FBL35S +356L		Type: Single, basic \| Rail length: 356 mm \| Stroke: 279 mm \| Load: 400 N/set
FBL35S +406L		Type: Single, basic \| Rail length: 406 mm \| Stroke: 305 mm \| Load: 390 N/set
FBL35S +457L		Type: Single, basic \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
FBL35S +508L		Type: Single, basic \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
FBL35S +559L		Type: Single, basic \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
FBL35S +610L		Type: Single, basic \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
FBL35S +660L		Type: Single, basic \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
FBL35S +711L		Type: Single, basic \| Rail length: 711 mm \| Stroke: 508 mm \| Load: 270 N/set
FBL35S-P13		Type: Single, removable, manual release \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL35S-P13 +305L		Type: Single, removable, manual release \| Rail length: 305 mm \| Stroke: 224 mm \| Load: 490 N/set
FBL35S-P13 +356L		Type: Single, removable, manual release \| Rail length: 356 mm \| Stroke: 275 mm \| Load: 400 N/set
FBL35S-P13 +406L		Type: Single, removable, manual release \| Rail length: 406 mm \| Stroke: 315 mm \| Load: 390 N/set
FBL35S-P13 +457L		Type: Single, removable, manual release \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
FBL35S-P13 +508L		Type: Single, removable, manual release \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
FBL35S-P13 +559L		Type: Single, removable, manual release \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
FBL35S-P13 +610L		Type: Single, removable, manual release \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
FBL35S-P13 +660L		Type: Single, removable, manual release \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
FBL35S-P13 +711L		Type: Single, removable, manual release \| Rail length: 711 mm \| Stroke: 493 mm \| Load: 270 N/set
FBL35S-P14		Type: Single, removable, auto release \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
FBL35S-P14 +305L		Type: Single, removable, auto release \| Rail length: 305 mm \| Stroke: 224 mm \| Load: 490 N/set
FBL35S-P14 +356L		Type: Single, removable, auto release \| Rail length: 356 mm \| Stroke: 275 mm \| Load: 400 N/set
FBL35S-P14 +406L		Type: Single, removable, auto release \| Rail length: 406 mm \| Stroke: 315 mm \| Load: 390 N/set
FBL35S-P14 +457L		Type: Single, removable, auto release \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
FBL35S-P14 +508L		Type: Single, removable, auto release \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
FBL35S-P14 +559L		Type: Single, removable, auto release \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
FBL35S-P14 +610L		Type: Single, removable, auto release \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
FBL35S-P14 +660L		Type: Single, removable, auto release \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
FBL35S-P14 +711L		Type: Single, removable, auto release \| Rail length: 711 mm \| Stroke: 493 mm \| Load: 270 N/set

Slide RailsTHK

30 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBL35S Slide Rail (Light-Load Single Slide)

Brand THK·Slide Rails

Available part numbers (30)

FBL35S, FBL35S +305L, FBL35S +356L, FBL35S +406L, FBL35S +457L, FBL35S +508L, FBL35S +559L, FBL35S +610L, FBL35S +660L, FBL35S +711L + 20 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FBL35S	Type: Single, basic \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
	FBL35S +305L	Type: Single, basic \| Rail length: 305 mm \| Stroke: 229 mm \| Load: 490 N/set
	FBL35S +356L	Type: Single, basic \| Rail length: 356 mm \| Stroke: 279 mm \| Load: 400 N/set
	FBL35S +406L	Type: Single, basic \| Rail length: 406 mm \| Stroke: 305 mm \| Load: 390 N/set
	FBL35S +457L	Type: Single, basic \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
	FBL35S +508L	Type: Single, basic \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
	FBL35S +559L	Type: Single, basic \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
	FBL35S +610L	Type: Single, basic \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
	FBL35S +660L	Type: Single, basic \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
	FBL35S +711L	Type: Single, basic \| Rail length: 711 mm \| Stroke: 508 mm \| Load: 270 N/set
	FBL35S-P13	Type: Single, removable, manual release \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
	FBL35S-P13 +305L	Type: Single, removable, manual release \| Rail length: 305 mm \| Stroke: 224 mm \| Load: 490 N/set
	FBL35S-P13 +356L	Type: Single, removable, manual release \| Rail length: 356 mm \| Stroke: 275 mm \| Load: 400 N/set
	FBL35S-P13 +406L	Type: Single, removable, manual release \| Rail length: 406 mm \| Stroke: 315 mm \| Load: 390 N/set
	FBL35S-P13 +457L	Type: Single, removable, manual release \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
	FBL35S-P13 +508L	Type: Single, removable, manual release \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
	FBL35S-P13 +559L	Type: Single, removable, manual release \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
	FBL35S-P13 +610L	Type: Single, removable, manual release \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
	FBL35S-P13 +660L	Type: Single, removable, manual release \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
	FBL35S-P13 +711L	Type: Single, removable, manual release \| Rail length: 711 mm \| Stroke: 493 mm \| Load: 270 N/set
	FBL35S-P14	Type: Single, removable, auto release \| Rail length: Specify (+L) \| Stroke: Per rail length \| Load: —
	FBL35S-P14 +305L	Type: Single, removable, auto release \| Rail length: 305 mm \| Stroke: 224 mm \| Load: 490 N/set
	FBL35S-P14 +356L	Type: Single, removable, auto release \| Rail length: 356 mm \| Stroke: 275 mm \| Load: 400 N/set
	FBL35S-P14 +406L	Type: Single, removable, auto release \| Rail length: 406 mm \| Stroke: 315 mm \| Load: 390 N/set
	FBL35S-P14 +457L	Type: Single, removable, auto release \| Rail length: 457 mm \| Stroke: 330 mm \| Load: 380 N/set
	FBL35S-P14 +508L	Type: Single, removable, auto release \| Rail length: 508 mm \| Stroke: 381 mm \| Load: 330 N/set
	FBL35S-P14 +559L	Type: Single, removable, auto release \| Rail length: 559 mm \| Stroke: 406 mm \| Load: 320 N/set
	FBL35S-P14 +610L	Type: Single, removable, auto release \| Rail length: 610 mm \| Stroke: 432 mm \| Load: 310 N/set
	FBL35S-P14 +660L	Type: Single, removable, auto release \| Rail length: 660 mm \| Stroke: 483 mm \| Load: 280 N/set
	FBL35S-P14 +711L	Type: Single, removable, auto release \| Rail length: 711 mm \| Stroke: 493 mm \| Load: 270 N/set
