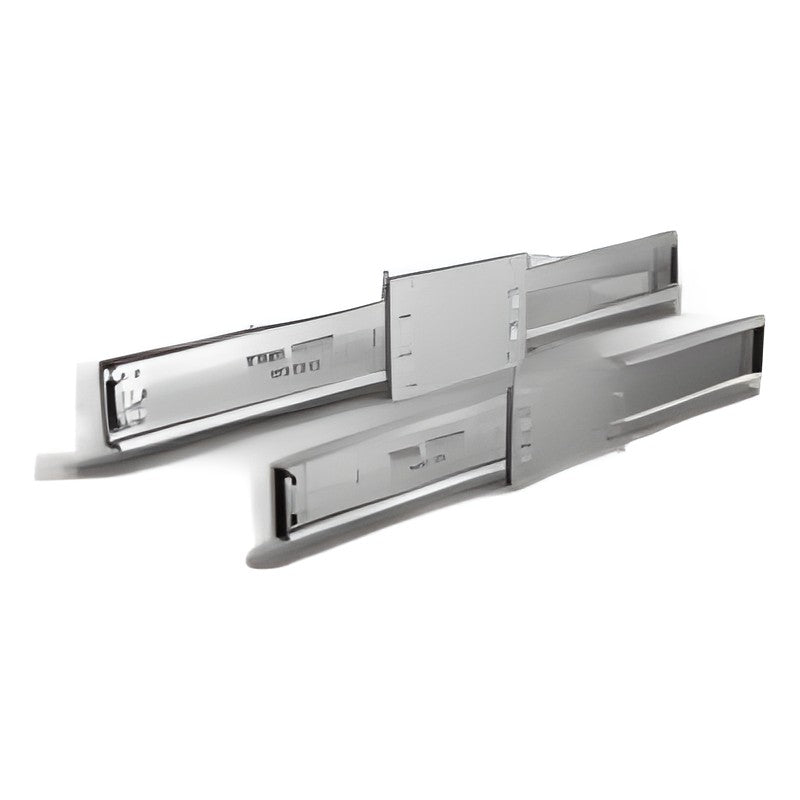

THK FBW2560XR Slide Pack (Compact Type, Rail 160-1200 mm)

THK FBW2560XR Slide Pack (Compact Type, Rail 160-1200 mm)

THK FBW2560XR slide packs (compact type) run a press-formed ball slider endlessly along a stainless slide rail for light, compact and quiet linear motion.

Key features

  • Precision press-formed ball case slider with unlimited stroke along the rail
  • Austenitic stainless rail, mounting plate and stoppers for high corrosion resistance
  • Redesigned slider about 5 dBA quieter than conventional models
  • Optional UU rubber seals or stainless metal dust cover (G) over the whole rail
  • Connected rails (-T) available beyond standard lengths

Specifications

Series FBW2560XR slide pack
Static permissible load Pa 590 N, Pb 150 N, Pc 70 N
Clearance Vertical < 0.03 mm, horizontal < 0.1 mm
Code composition Sliders per rail + model + UU + rail length (+ -T), e.g. 2 FBW2560XR UU +800L
Metal dust cover FBW2560XRG (no seal fitted)
Lubrication Lithium soap grease No. 2 pre-applied
Connected rails Suffix -T, specify total length
Source THK General Catalog Slide Pack (Korean ed. 515-2K), p. A12-4-A12-11
FBW2560XR Rail length: Specify (+L) | Seal / cover: None | Stroke: Per rail length
FBW2560XR UU Rail length: Specify (+L) | Seal / cover: UU (both ends) | Stroke: Per rail length
FBW2560XRG Rail length: Specify (+L) | Seal / cover: Metal dust cover (G) | Stroke: Per rail length
FBW2560XR +160L Rail length: 160 mm | Seal / cover: None | Stroke: 88 mm
FBW2560XR UU +160L Rail length: 160 mm | Seal / cover: UU (both ends) | Stroke: 83 mm
FBW2560XRG +160L Rail length: 160 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +240L Rail length: 240 mm | Seal / cover: None | Stroke: 168 mm
FBW2560XR UU +240L Rail length: 240 mm | Seal / cover: UU (both ends) | Stroke: 163 mm
FBW2560XRG +240L Rail length: 240 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +320L Rail length: 320 mm | Seal / cover: None | Stroke: 248 mm
FBW2560XR UU +320L Rail length: 320 mm | Seal / cover: UU (both ends) | Stroke: 243 mm
FBW2560XRG +320L Rail length: 320 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +400L Rail length: 400 mm | Seal / cover: None | Stroke: 328 mm
FBW2560XR UU +400L Rail length: 400 mm | Seal / cover: UU (both ends) | Stroke: 323 mm
FBW2560XRG +400L Rail length: 400 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +480L Rail length: 480 mm | Seal / cover: None | Stroke: 408 mm
FBW2560XR UU +480L Rail length: 480 mm | Seal / cover: UU (both ends) | Stroke: 403 mm
FBW2560XRG +480L Rail length: 480 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +560L Rail length: 560 mm | Seal / cover: None | Stroke: 488 mm
FBW2560XR UU +560L Rail length: 560 mm | Seal / cover: UU (both ends) | Stroke: 483 mm
FBW2560XRG +560L Rail length: 560 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +640L Rail length: 640 mm | Seal / cover: None | Stroke: 568 mm
FBW2560XR UU +640L Rail length: 640 mm | Seal / cover: UU (both ends) | Stroke: 563 mm
FBW2560XRG +640L Rail length: 640 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +720L Rail length: 720 mm | Seal / cover: None | Stroke: 648 mm
FBW2560XR UU +720L Rail length: 720 mm | Seal / cover: UU (both ends) | Stroke: 643 mm
FBW2560XRG +720L Rail length: 720 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +800L Rail length: 800 mm | Seal / cover: None | Stroke: 728 mm
FBW2560XR UU +800L Rail length: 800 mm | Seal / cover: UU (both ends) | Stroke: 723 mm
FBW2560XRG +800L Rail length: 800 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +880L Rail length: 880 mm | Seal / cover: None | Stroke: 808 mm
FBW2560XR UU +880L Rail length: 880 mm | Seal / cover: UU (both ends) | Stroke: 803 mm
FBW2560XRG +880L Rail length: 880 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +960L Rail length: 960 mm | Seal / cover: None | Stroke: 888 mm
FBW2560XR UU +960L Rail length: 960 mm | Seal / cover: UU (both ends) | Stroke: 883 mm
FBW2560XRG +960L Rail length: 960 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +1040L Rail length: 1040 mm | Seal / cover: None | Stroke: 968 mm
FBW2560XR UU +1040L Rail length: 1040 mm | Seal / cover: UU (both ends) | Stroke: 963 mm
FBW2560XRG +1040L Rail length: 1040 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW2560XR +1200L Rail length: 1200 mm | Seal / cover: None | Stroke: 1128 mm
FBW2560XR UU +1200L Rail length: 1200 mm | Seal / cover: UU (both ends) | Stroke: 1123 mm
FBW2560XRG +1200L Rail length: 1200 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
