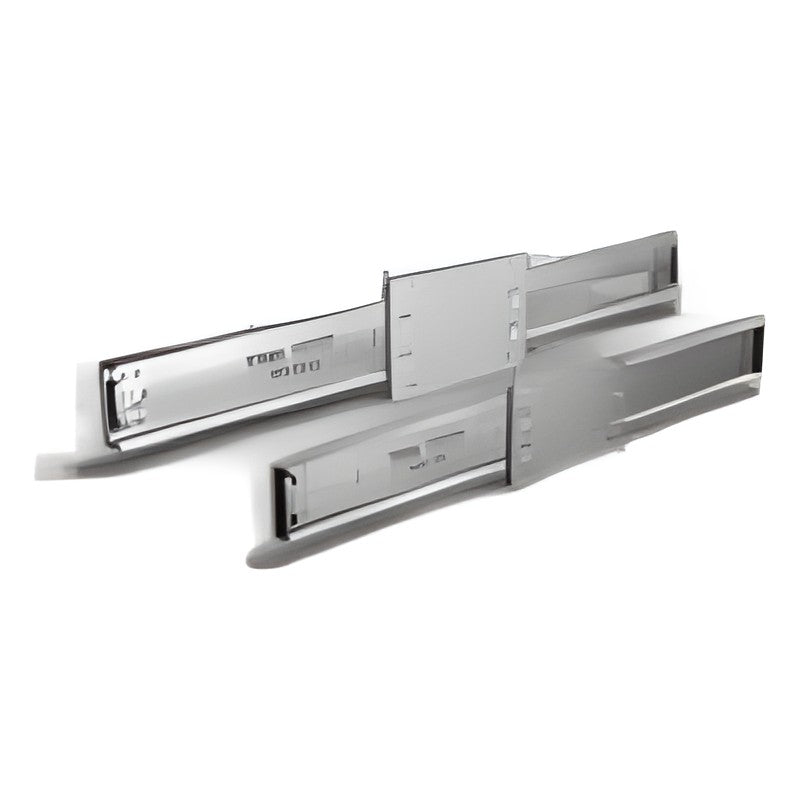

THK FBW3590XR Slide Pack (Standard Type, Rail 300-1800 mm)

THK FBW3590XR Slide Pack (Standard Type, Rail 300-1800 mm)

THK FBW3590XR slide packs (standard type) run a press-formed ball slider endlessly along a stainless slide rail for light, compact and quiet linear motion.

Key features

  • Precision press-formed ball case slider with unlimited stroke along the rail
  • Austenitic stainless rail, mounting plate and stoppers for high corrosion resistance
  • Redesigned slider about 5 dBA quieter than conventional models
  • Optional UU rubber seals or stainless metal dust cover (G) over the whole rail
  • Connected rails (-T) available beyond standard lengths

Specifications

Series FBW3590XR slide pack
Static permissible load Pa 880 N, Pb 200 N, Pc 100 N
Clearance Vertical < 0.03 mm, horizontal < 0.1 mm
Code composition Sliders per rail + model + UU + rail length (+ -T), e.g. 2 FBW3590XR UU +800L
Metal dust cover FBW3590XRG (no seal fitted)
Lubrication Lithium soap grease No. 2 pre-applied
Connected rails Suffix -T, specify total length
Source THK General Catalog Slide Pack (Korean ed. 515-2K), p. A12-5-A12-11
FBW3590XR Rail length: Specify (+L) | Seal / cover: None | Stroke: Per rail length
FBW3590XR UU Rail length: Specify (+L) | Seal / cover: UU (both ends) | Stroke: Per rail length
FBW3590XRG Rail length: Specify (+L) | Seal / cover: Metal dust cover (G) | Stroke: Per rail length
FBW3590XR +300L Rail length: 300 mm | Seal / cover: None | Stroke: 200 mm
FBW3590XR UU +300L Rail length: 300 mm | Seal / cover: UU (both ends) | Stroke: 195 mm
FBW3590XRG +300L Rail length: 300 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +350L Rail length: 350 mm | Seal / cover: None | Stroke: 250 mm
FBW3590XR UU +350L Rail length: 350 mm | Seal / cover: UU (both ends) | Stroke: 245 mm
FBW3590XRG +350L Rail length: 350 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +400L Rail length: 400 mm | Seal / cover: None | Stroke: 300 mm
FBW3590XR UU +400L Rail length: 400 mm | Seal / cover: UU (both ends) | Stroke: 295 mm
FBW3590XRG +400L Rail length: 400 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +450L Rail length: 450 mm | Seal / cover: None | Stroke: 350 mm
FBW3590XR UU +450L Rail length: 450 mm | Seal / cover: UU (both ends) | Stroke: 345 mm
FBW3590XRG +450L Rail length: 450 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +500L Rail length: 500 mm | Seal / cover: None | Stroke: 400 mm
FBW3590XR UU +500L Rail length: 500 mm | Seal / cover: UU (both ends) | Stroke: 395 mm
FBW3590XRG +500L Rail length: 500 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +550L Rail length: 550 mm | Seal / cover: None | Stroke: 450 mm
FBW3590XR UU +550L Rail length: 550 mm | Seal / cover: UU (both ends) | Stroke: 445 mm
FBW3590XRG +550L Rail length: 550 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +600L Rail length: 600 mm | Seal / cover: None | Stroke: 500 mm
FBW3590XR UU +600L Rail length: 600 mm | Seal / cover: UU (both ends) | Stroke: 495 mm
FBW3590XRG +600L Rail length: 600 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +650L Rail length: 650 mm | Seal / cover: None | Stroke: 550 mm
FBW3590XR UU +650L Rail length: 650 mm | Seal / cover: UU (both ends) | Stroke: 545 mm
FBW3590XRG +650L Rail length: 650 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +700L Rail length: 700 mm | Seal / cover: None | Stroke: 600 mm
FBW3590XR UU +700L Rail length: 700 mm | Seal / cover: UU (both ends) | Stroke: 595 mm
FBW3590XRG +700L Rail length: 700 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +750L Rail length: 750 mm | Seal / cover: None | Stroke: 650 mm
FBW3590XR UU +750L Rail length: 750 mm | Seal / cover: UU (both ends) | Stroke: 645 mm
FBW3590XRG +750L Rail length: 750 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +800L Rail length: 800 mm | Seal / cover: None | Stroke: 700 mm
FBW3590XR UU +800L Rail length: 800 mm | Seal / cover: UU (both ends) | Stroke: 695 mm
FBW3590XRG +800L Rail length: 800 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +900L Rail length: 900 mm | Seal / cover: None | Stroke: 800 mm
FBW3590XR UU +900L Rail length: 900 mm | Seal / cover: UU (both ends) | Stroke: 795 mm
FBW3590XRG +900L Rail length: 900 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +1000L Rail length: 1000 mm | Seal / cover: None | Stroke: 900 mm
FBW3590XR UU +1000L Rail length: 1000 mm | Seal / cover: UU (both ends) | Stroke: 895 mm
FBW3590XRG +1000L Rail length: 1000 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +1200L Rail length: 1200 mm | Seal / cover: None | Stroke: 1100 mm
FBW3590XR UU +1200L Rail length: 1200 mm | Seal / cover: UU (both ends) | Stroke: 1095 mm
FBW3590XRG +1200L Rail length: 1200 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +1500L Rail length: 1500 mm | Seal / cover: None | Stroke: 1400 mm
FBW3590XR UU +1500L Rail length: 1500 mm | Seal / cover: UU (both ends) | Stroke: 1395 mm
FBW3590XRG +1500L Rail length: 1500 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW3590XR +1800L Rail length: 1800 mm | Seal / cover: None | Stroke: 1700 mm
FBW3590XR UU +1800L Rail length: 1800 mm | Seal / cover: UU (both ends) | Stroke: 1695 mm
FBW3590XRG +1800L Rail length: 1800 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
Slide RailsTHK
51 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK FBW3590XR Slide Pack (Standard Type, Rail 300-1800 mm)

Brand THK·Slide Rails

Available part numbers (51)

FBW3590XR, FBW3590XR UU, FBW3590XRG, FBW3590XR +300L, FBW3590XR UU +300L, FBW3590XRG +300L, FBW3590XR +350L, FBW3590XR UU +350L, FBW3590XRG +350L, FBW3590XR +400L + 41 more — see full table ↓
