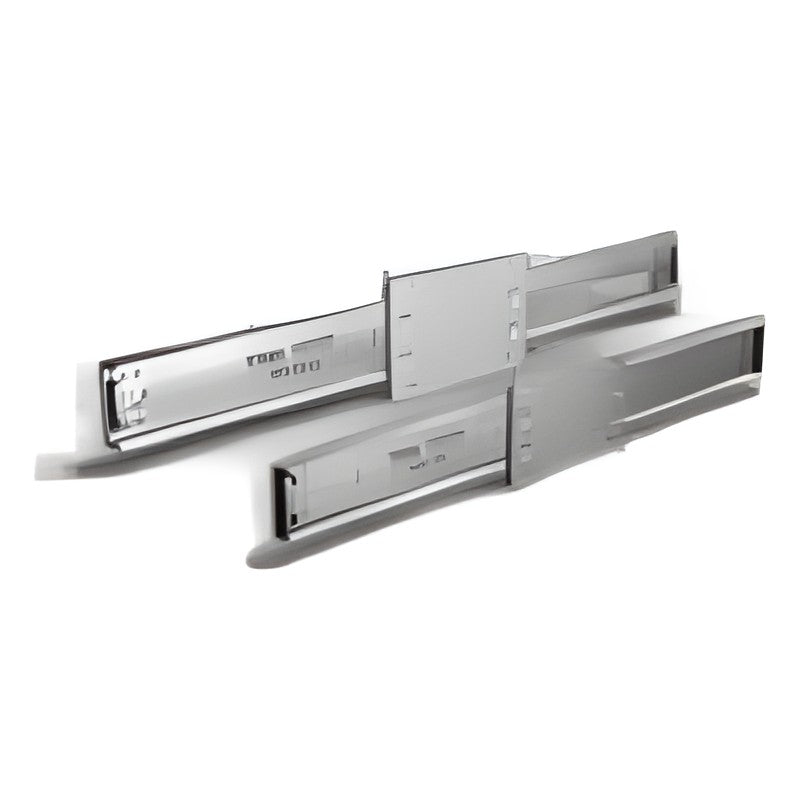

THK FBW50110XR Slide Pack (Heavy-Load Type, Rail 300-1800 mm)

THK FBW50110XR Slide Pack (Heavy-Load Type, Rail 300-1800 mm)

THK FBW50110XR slide packs (heavy-load type) run a press-formed ball slider endlessly along a stainless slide rail for light, compact and quiet linear motion.

Key features

  • Precision press-formed ball case slider with unlimited stroke along the rail
  • Austenitic stainless rail, mounting plate and stoppers for high corrosion resistance
  • Redesigned slider about 5 dBA quieter than conventional models
  • Optional UU rubber seals or stainless metal dust cover (G) over the whole rail
  • Connected rails (-T) available beyond standard lengths

Specifications

Series FBW50110XR slide pack
Static permissible load Pa 1960 N, Pb 500 N, Pc 390 N
Clearance Vertical < 0.03 mm, horizontal < 0.1 mm
Code composition Sliders per rail + model + UU + rail length (+ -T), e.g. 2 FBW50110XR UU +800L
Metal dust cover FBW50110XRG (no seal fitted)
Lubrication Lithium soap grease No. 2 pre-applied
Connected rails Suffix -T, specify total length
Source THK General Catalog Slide Pack (Korean ed. 515-2K), p. A12-6-A12-11
FBW50110XR Rail length: Specify (+L) | Seal / cover: None | Stroke: Per rail length
FBW50110XR UU Rail length: Specify (+L) | Seal / cover: UU (both ends) | Stroke: Per rail length
FBW50110XRG Rail length: Specify (+L) | Seal / cover: Metal dust cover (G) | Stroke: Per rail length
FBW50110XR +300L Rail length: 300 mm | Seal / cover: None | Stroke: 170 mm
FBW50110XR UU +300L Rail length: 300 mm | Seal / cover: UU (both ends) | Stroke: 164 mm
FBW50110XRG +300L Rail length: 300 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +350L Rail length: 350 mm | Seal / cover: None | Stroke: 220 mm
FBW50110XR UU +350L Rail length: 350 mm | Seal / cover: UU (both ends) | Stroke: 214 mm
FBW50110XRG +350L Rail length: 350 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +400L Rail length: 400 mm | Seal / cover: None | Stroke: 270 mm
FBW50110XR UU +400L Rail length: 400 mm | Seal / cover: UU (both ends) | Stroke: 264 mm
FBW50110XRG +400L Rail length: 400 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +450L Rail length: 450 mm | Seal / cover: None | Stroke: 320 mm
FBW50110XR UU +450L Rail length: 450 mm | Seal / cover: UU (both ends) | Stroke: 314 mm
FBW50110XRG +450L Rail length: 450 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +500L Rail length: 500 mm | Seal / cover: None | Stroke: 370 mm
FBW50110XR UU +500L Rail length: 500 mm | Seal / cover: UU (both ends) | Stroke: 364 mm
FBW50110XRG +500L Rail length: 500 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +600L Rail length: 600 mm | Seal / cover: None | Stroke: 470 mm
FBW50110XR UU +600L Rail length: 600 mm | Seal / cover: UU (both ends) | Stroke: 464 mm
FBW50110XRG +600L Rail length: 600 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +700L Rail length: 700 mm | Seal / cover: None | Stroke: 570 mm
FBW50110XR UU +700L Rail length: 700 mm | Seal / cover: UU (both ends) | Stroke: 564 mm
FBW50110XRG +700L Rail length: 700 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +800L Rail length: 800 mm | Seal / cover: None | Stroke: 670 mm
FBW50110XR UU +800L Rail length: 800 mm | Seal / cover: UU (both ends) | Stroke: 664 mm
FBW50110XRG +800L Rail length: 800 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +900L Rail length: 900 mm | Seal / cover: None | Stroke: 770 mm
FBW50110XR UU +900L Rail length: 900 mm | Seal / cover: UU (both ends) | Stroke: 764 mm
FBW50110XRG +900L Rail length: 900 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +1000L Rail length: 1000 mm | Seal / cover: None | Stroke: 870 mm
FBW50110XR UU +1000L Rail length: 1000 mm | Seal / cover: UU (both ends) | Stroke: 864 mm
FBW50110XRG +1000L Rail length: 1000 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +1200L Rail length: 1200 mm | Seal / cover: None | Stroke: 1070 mm
FBW50110XR UU +1200L Rail length: 1200 mm | Seal / cover: UU (both ends) | Stroke: 1064 mm
FBW50110XRG +1200L Rail length: 1200 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +1500L Rail length: 1500 mm | Seal / cover: None | Stroke: 1370 mm
FBW50110XR UU +1500L Rail length: 1500 mm | Seal / cover: UU (both ends) | Stroke: 1364 mm
FBW50110XRG +1500L Rail length: 1500 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
FBW50110XR +1800L Rail length: 1800 mm | Seal / cover: None | Stroke: 1670 mm
FBW50110XR UU +1800L Rail length: 1800 mm | Seal / cover: UU (both ends) | Stroke: 1664 mm
FBW50110XRG +1800L Rail length: 1800 mm | Seal / cover: Metal dust cover (G) | Stroke: See catalogue
