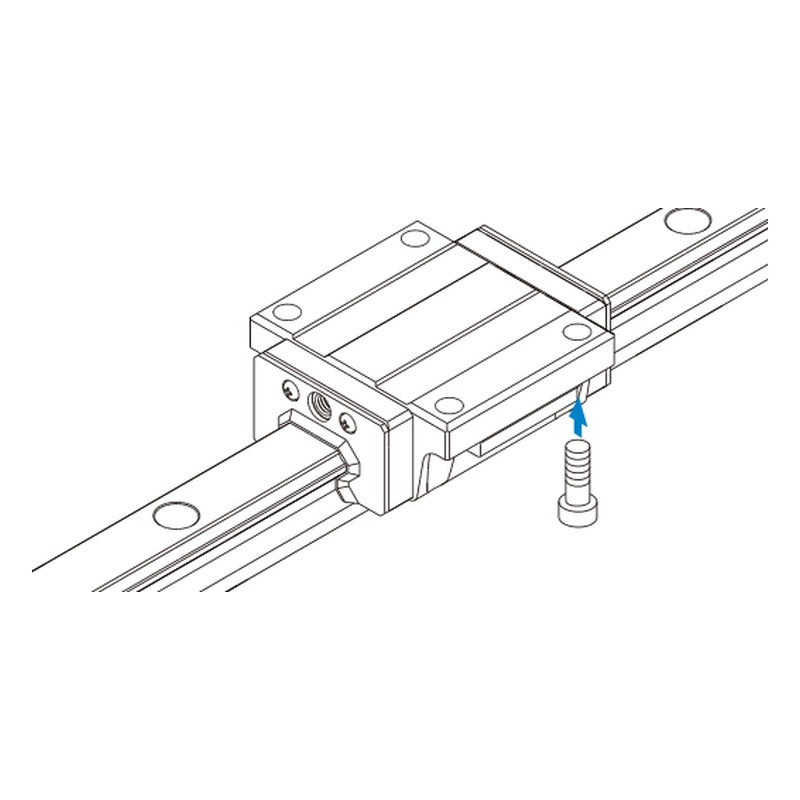

THK HSR-M1B and HSR-M1LB are high-temperature HSR LM Guides (through-hole flange, bottom mounting) usable at service temperatures up to 150 °C.

Key features

  • Service temperature up to 150 °C
  • Stainless steel LM block and LM rail
  • Heat-resistant end seals and end plates
  • Same four-way equal load design as HSR
  • Block slightly longer than the standard HSR type
  • Clearance normal/C1/C0; accuracy normal, H, P, SP, UP

Specifications

Series HSR-M1
Block Flange, type M1B / M1LB
Sizes 15, 20, 25, 30, 35
Max. temperature 150 °C
Material Stainless steel
Clearance options Normal, C1, C0
Accuracy options Normal, H, P, SP, UP
Seal options Dust-control symbols, see p. A1-494
Source THK LM Guide General Catalog (A Product Descriptions), p. A1-342-343
HSR15M1B M: 24 mm | W: 47 mm | L: 59.6 mm | C: 10.9 kN | C0: 15.7 kN
HSR20M1B M: 30 mm | W: 63 mm | L: 76 mm | C: 19.8 kN | C0: 27.4 kN
HSR20M1LB M: 30 mm | W: 63 mm | L: 92 mm | C: 23.9 kN | C0: 35.8 kN
HSR25M1B M: 36 mm | W: 70 mm | L: 83.9 mm | C: 27.6 kN | C0: 36.4 kN
HSR25M1LB M: 36 mm | W: 70 mm | L: 103 mm | C: 35.2 kN | C0: 51.6 kN
HSR30M1B M: 42 mm | W: 90 mm | L: 98.8 mm | C: 40.5 kN | C0: 53.7 kN
HSR30M1LB M: 42 mm | W: 90 mm | L: 121.4 mm | C: 48.9 kN | C0: 70.2 kN
HSR35M1B M: 48 mm | W: 100 mm | L: 112 mm | C: 53.9 kN | C0: 70.2 kN
HSR35M1LB M: 48 mm | W: 100 mm | L: 137.4 mm | C: 65 kN | C0: 91.7 kN
