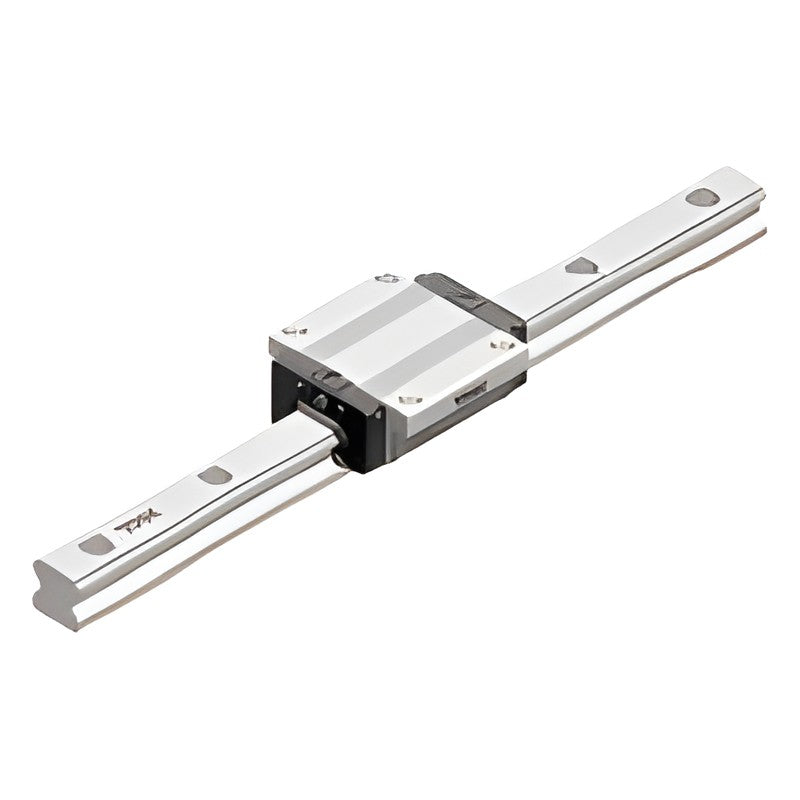

THK HSR-R/LR/RM/LRM LM Guide (Narrow Tapped Block, Size 45-85)

THK HSR-R/LR/RM/LRM LM Guide (Narrow Tapped Block, Size 45-85)

THK HSR-R/LR world-standard LM Guide with narrow tapped blocks for limited table width (X types for size 65; stainless RM/LRM for 15-35).

Key features

  • Four rows of balls on precision-ground circular-arc grooves at 45° contact angle give equal load ratings in all four directions.
  • Face-to-face (DF) circular-arc groove arrangement provides THK self-adjusting capability that absorbs mounting errors.
  • Balanced four-row layout allows heavy preload for high rigidity while keeping smooth, low-friction motion.
  • No differential ball slip under preload or offset loads, giving excellent wear resistance and long-term accuracy.
  • Balls are held by a retaining plate and do not fall out when the block is removed from the rail (except sizes 8X/10X/12X).

Specifications

Brand THK
Series HSR (world-standard LM Guide)
Rolling element Steel balls, 4 rows, 45° contact angle
Block types R, LR (XR, XLR size 65); RM/LRM stainless 15-35
Preload (radial clearance) Normal / C1 / C0 (C0 for size 20 and up)
Accuracy grades Normal / H / P / SP / UP (UP for 15 and up)
Stainless (M) option Symbol M after preload; rail also stainless
Options (not coded) QZ lube, LaCS, bellows, caps, rail tap (K/W) - specify
Source THK General Catalog LM Guide (Korean ed. 515-2K), p. A1-182 to A1-212
HSR45R Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 45 | Block: R (narrow, tapped) | HxWxL: 70x86x138.9 mm | C/C0: 82.2 / 101 kN
HSR45R UU Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R UU H Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R UU P Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R UU SP Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R UU UP Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R UU C1 Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R UU C1 H Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R UU C1 P Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R UU C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R UU C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R UU C0 Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R UU C0 H Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R UU C0 P Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R UU C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R UU C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SS Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SS H Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SS P Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SS SP Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SS UP Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SS C1 Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SS C1 H Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SS C1 P Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SS C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SS C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SS C0 Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SS C0 H Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SS C0 P Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SS C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SS C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DD Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DD H Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DD P Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DD SP Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DD UP Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DD C1 Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DD C1 H Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DD C1 P Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DD C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DD C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DD C0 Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DD C0 H Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DD C0 P Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DD C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DD C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZ H Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZ P Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ SP Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ UP Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 H Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 P Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 H Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 P Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KK Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KK H Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KK P Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KK SP Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KK UP Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KK C1 Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KK C1 H Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KK C1 P Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KK C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KK C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KK C0 Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KK C0 H Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KK C0 P Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KK C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KK C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SSHH H Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SSHH P Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH SP Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH UP Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 H Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 P Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 H Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 P Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DDHH H Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DDHH P Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH SP Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH UP Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 H Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 P Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 H Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 P Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZHH H Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZHH P Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH SP Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH UP Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 H Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 P Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 H Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 P Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KKHH H Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KKHH P Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH SP Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH UP Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 H Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 P Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 H Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 P Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R LL Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R LL H Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R LL P Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R LL SP Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R LL UP Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R LL C1 Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R LL C1 H Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R LL C1 P Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R LL C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R LL C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R LL C0 Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R LL C0 H Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R LL C0 P Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R LL C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R LL C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R RR Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R RR H Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R RR P Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R RR SP Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R RR UP Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R RR C1 Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R RR C1 H Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R RR C1 P Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R RR C1 SP Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R RR C1 UP Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R RR C0 Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R RR C0 H Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R RR C0 P Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R RR C0 SP Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R RR C0 UP Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45LR Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 45 | Block: LR (narrow, tapped, long) | HxWxL: 70x86x170.7 mm | C/C0: 100 / 135 kN
HSR45LR UU Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR UU H Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR UU P Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR UU SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR UU UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR UU C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR UU C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR UU C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR UU C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR UU C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR UU C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR UU C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR UU C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR UU C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR UU C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SS Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SS H Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SS P Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SS SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SS UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SS C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SS C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SS C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SS C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SS C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SS C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SS C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SS C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SS C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SS C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DD Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DD H Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DD P Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DD SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DD UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DD C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DD C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DD C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DD C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DD C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DD C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DD C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DD C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DD C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DD C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZ Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZ H Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZ P Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZ SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZ UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZ C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZ C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZ C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZ C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KK Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KK H Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KK P Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KK SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KK UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KK C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KK C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KK C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KK C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KK C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KK C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KK C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KK C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KK C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KK C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SSHH Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SSHH H Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SSHH P Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SSHH SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SSHH UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SSHH C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SSHH C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SSHH C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SSHH C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DDHH Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DDHH H Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DDHH P Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DDHH SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DDHH UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DDHH C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DDHH C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DDHH C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DDHH C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZHH H Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZHH P Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KKHH Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KKHH H Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KKHH P Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KKHH SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KKHH UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KKHH C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KKHH C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KKHH C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KKHH C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR LL Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR LL H Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR LL P Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR LL SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR LL UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR LL C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR LL C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR LL C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR LL C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR LL C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR LL C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR LL C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR LL C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR LL C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR LL C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR RR Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR RR H Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR RR P Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR RR SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR RR UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR RR C1 Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR RR C1 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR RR C1 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR RR C1 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR RR C1 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR RR C0 Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR RR C0 H Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR RR C0 P Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR RR C0 SP Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR RR C0 UP Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR55R Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 55 | Block: R (narrow, tapped) | HxWxL: 80x100x162.9 mm | C/C0: 121 / 146 kN
HSR55R UU Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R UU H Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R UU P Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R UU SP Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R UU UP Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R UU C1 Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R UU C1 H Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R UU C1 P Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R UU C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R UU C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R UU C0 Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R UU C0 H Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R UU C0 P Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R UU C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R UU C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SS Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SS H Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SS P Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SS SP Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SS UP Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SS C1 Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SS C1 H Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SS C1 P Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SS C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SS C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SS C0 Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SS C0 H Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SS C0 P Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SS C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SS C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DD Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DD H Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DD P Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DD SP Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DD UP Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DD C1 Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DD C1 H Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DD C1 P Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DD C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DD C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DD C0 Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DD C0 H Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DD C0 P Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DD C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DD C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZ Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZ H Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZ P Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZ SP Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZ UP Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZ C1 Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZ C1 H Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZ C1 P Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZ C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZ C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZ C0 Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZ C0 H Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZ C0 P Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZ C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZ C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KK Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KK H Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KK P Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KK SP Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KK UP Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KK C1 Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KK C1 H Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KK C1 P Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KK C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KK C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KK C0 Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KK C0 H Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KK C0 P Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KK C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KK C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SSHH Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SSHH H Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SSHH P Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SSHH SP Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SSHH UP Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SSHH C1 Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SSHH C1 H Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SSHH C1 P Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SSHH C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SSHH C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SSHH C0 Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SSHH C0 H Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SSHH C0 P Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SSHH C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SSHH C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DDHH Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DDHH H Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DDHH P Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DDHH SP Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DDHH UP Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DDHH C1 Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DDHH C1 H Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DDHH C1 P Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DDHH C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DDHH C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DDHH C0 Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DDHH C0 H Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DDHH C0 P Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DDHH C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DDHH C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZHH Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZHH H Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZHH P Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZHH SP Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZHH UP Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C1 Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZHH C1 H Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZHH C1 P Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C0 Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZHH C0 H Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZHH C0 P Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KKHH Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KKHH H Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KKHH P Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KKHH SP Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KKHH UP Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KKHH C1 Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KKHH C1 H Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KKHH C1 P Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KKHH C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KKHH C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KKHH C0 Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KKHH C0 H Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KKHH C0 P Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KKHH C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KKHH C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R LL Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R LL H Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R LL P Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R LL SP Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R LL UP Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R LL C1 Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R LL C1 H Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R LL C1 P Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R LL C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R LL C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R LL C0 Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R LL C0 H Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R LL C0 P Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R LL C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R LL C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R RR Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R RR H Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R RR P Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R RR SP Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R RR UP Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R RR C1 Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R RR C1 H Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R RR C1 P Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R RR C1 SP Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R RR C1 UP Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R RR C0 Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R RR C0 H Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R RR C0 P Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R RR C0 SP Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R RR C0 UP Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55LR Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 55 | Block: LR (narrow, tapped, long) | HxWxL: 80x100x201 mm | C/C0: 148 / 194 kN
HSR55LR UU Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR UU H Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR UU P Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR UU SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR UU UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR UU C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR UU C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR UU C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR UU C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR UU C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR UU C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR UU C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR UU C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR UU C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR UU C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SS Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SS H Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SS P Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SS SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SS UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SS C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SS C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SS C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SS C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SS C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SS C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SS C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SS C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SS C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SS C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DD Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DD H Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DD P Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DD SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DD UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DD C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DD C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DD C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DD C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DD C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DD C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DD C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DD C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DD C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DD C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZ Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZ H Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZ P Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZ SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZ UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZ C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZ C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZ C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZ C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KK Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KK H Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KK P Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KK SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KK UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KK C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KK C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KK C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KK C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KK C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KK C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KK C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KK C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KK C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KK C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SSHH Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SSHH H Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SSHH P Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SSHH SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SSHH UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SSHH C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SSHH C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SSHH C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SSHH C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DDHH Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DDHH H Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DDHH P Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DDHH SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DDHH UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DDHH C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DDHH C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DDHH C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DDHH C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZHH H Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZHH P Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KKHH Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KKHH H Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KKHH P Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KKHH SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KKHH UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KKHH C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KKHH C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KKHH C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KKHH C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR LL Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR LL H Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR LL P Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR LL SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR LL UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR LL C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR LL C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR LL C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR LL C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR LL C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR LL C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR LL C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR LL C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR LL C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR LL C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR RR Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR RR H Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR RR P Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR RR SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR RR UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR RR C1 Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR RR C1 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR RR C1 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR RR C1 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR RR C1 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR RR C0 Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR RR C0 H Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR RR C0 P Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR RR C0 SP Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR RR C0 UP Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR65XR Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 65 | Block: XR (narrow, tapped) | HxWxL: 90x126x190.5 mm | C/C0: 195 / 228 kN
HSR65XR UU Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR UU H Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR UU P Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR UU SP Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR UU UP Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR UU C1 Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR UU C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR UU C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR UU C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR UU C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR UU C0 Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR UU C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR UU C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR UU C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR UU C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SS Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SS H Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SS P Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SS SP Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SS UP Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SS C1 Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SS C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SS C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SS C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SS C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SS C0 Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SS C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SS C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SS C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SS C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DD Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DD H Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DD P Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DD SP Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DD UP Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DD C1 Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DD C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DD C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DD C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DD C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DD C0 Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DD C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DD C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DD C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DD C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZ Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZ H Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZ P Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZ SP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZ UP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C1 Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZ C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZ C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C0 Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZ C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZ C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KK Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KK H Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KK P Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KK SP Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KK UP Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KK C1 Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KK C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KK C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KK C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KK C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KK C0 Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KK C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KK C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KK C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KK C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SSHH Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SSHH H Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SSHH P Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SSHH SP Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SSHH UP Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C1 Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SSHH C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SSHH C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C0 Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SSHH C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SSHH C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DDHH Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DDHH H Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DDHH P Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DDHH SP Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DDHH UP Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C1 Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DDHH C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DDHH C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C0 Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DDHH C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DDHH C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZHH H Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZHH P Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH SP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH UP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KKHH Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KKHH H Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KKHH P Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KKHH SP Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KKHH UP Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C1 Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KKHH C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KKHH C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C0 Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KKHH C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KKHH C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR LL Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR LL H Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR LL P Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR LL SP Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR LL UP Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR LL C1 Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR LL C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR LL C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR LL C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR LL C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR LL C0 Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR LL C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR LL C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR LL C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR LL C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR RR Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR RR H Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR RR P Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR RR SP Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR RR UP Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR RR C1 Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR RR C1 H Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR RR C1 P Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR RR C1 SP Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR RR C1 UP Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR RR C0 Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR RR C0 H Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR RR C0 P Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR RR C0 SP Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR RR C0 UP Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XLR Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 65 | Block: XLR (narrow, tapped, long) | HxWxL: 90x126x250 mm | C/C0: 249 / 323 kN
HSR65XLR UU Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR UU H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR UU P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR UU SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR UU UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR UU C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR UU C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR UU C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR UU C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR UU C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR UU C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR UU C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR UU C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR UU C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR UU C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SS Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SS H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SS P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SS SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SS UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SS C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SS C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SS C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SS C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SS C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SS C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SS C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SS C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SS C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SS C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DD Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DD H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DD P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DD SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DD UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DD C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DD C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DD C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DD C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DD C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DD C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DD C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DD C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DD C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DD C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZ H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZ P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KK Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KK H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KK P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KK SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KK UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KK C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KK C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KK C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KK C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KK C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KK C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KK C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KK C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KK C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KK C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SSHH H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SSHH P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DDHH H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DDHH P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZHH H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZHH P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KKHH H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KKHH P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR LL Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR LL H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR LL P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR LL SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR LL UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR LL C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR LL C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR LL C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR LL C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR LL C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR LL C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR LL C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR LL C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR LL C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR LL C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR RR Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR RR H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR RR P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR RR SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR RR UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR RR C1 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR RR C1 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR RR C1 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR RR C1 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR RR C1 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR RR C0 Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR RR C0 H Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR RR C0 P Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR RR C0 SP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR RR C0 UP Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR85R Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 85 | Block: R (narrow, tapped) | HxWxL: 110x156x245.6 mm | C/C0: 304 / 355 kN
HSR85R UU Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R UU H Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R UU P Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R UU SP Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R UU UP Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R UU C1 Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R UU C1 H Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R UU C1 P Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R UU C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R UU C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R UU C0 Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R UU C0 H Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R UU C0 P Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R UU C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R UU C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SS Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SS H Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SS P Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SS SP Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SS UP Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SS C1 Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SS C1 H Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SS C1 P Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SS C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SS C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SS C0 Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SS C0 H Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SS C0 P Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SS C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SS C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DD Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DD H Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DD P Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DD SP Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DD UP Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DD C1 Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DD C1 H Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DD C1 P Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DD C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DD C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DD C0 Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DD C0 H Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DD C0 P Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DD C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DD C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZ Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZ H Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZ P Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZ SP Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZ UP Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZ C1 Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZ C1 H Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZ C1 P Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZ C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZ C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZ C0 Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZ C0 H Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZ C0 P Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZ C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZ C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KK Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KK H Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KK P Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KK SP Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KK UP Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KK C1 Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KK C1 H Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KK C1 P Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KK C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KK C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KK C0 Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KK C0 H Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KK C0 P Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KK C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KK C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SSHH Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SSHH H Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SSHH P Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SSHH SP Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SSHH UP Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SSHH C1 Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SSHH C1 H Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SSHH C1 P Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SSHH C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SSHH C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SSHH C0 Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SSHH C0 H Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SSHH C0 P Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SSHH C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SSHH C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DDHH Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DDHH H Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DDHH P Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DDHH SP Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DDHH UP Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DDHH C1 Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DDHH C1 H Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DDHH C1 P Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DDHH C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DDHH C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DDHH C0 Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DDHH C0 H Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DDHH C0 P Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DDHH C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DDHH C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZHH Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZHH H Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZHH P Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZHH SP Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZHH UP Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C1 Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZHH C1 H Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZHH C1 P Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C0 Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZHH C0 H Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZHH C0 P Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KKHH Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KKHH H Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KKHH P Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KKHH SP Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KKHH UP Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KKHH C1 Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KKHH C1 H Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KKHH C1 P Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KKHH C1 SP Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KKHH C1 UP Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KKHH C0 Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KKHH C0 H Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KKHH C0 P Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KKHH C0 SP Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KKHH C0 UP Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85LR Base model (specify seal, preload, accuracy, blocks, rail length) | Size: 85 | Block: LR (narrow, tapped, long) | HxWxL: 110x156x303 mm | C/C0: 367 / 464 kN
HSR85LR UU Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR UU H Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR UU P Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR UU SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR UU UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR UU C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR UU C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR UU C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR UU C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR UU C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR UU C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR UU C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR UU C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR UU C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR UU C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SS Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SS H Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SS P Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SS SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SS UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SS C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SS C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SS C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SS C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SS C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SS C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SS C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SS C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SS C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SS C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DD Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DD H Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DD P Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DD SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DD UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DD C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DD C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DD C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DD C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DD C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DD C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DD C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DD C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DD C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DD C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZ Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZ H Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZ P Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZ SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZ UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZ C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZ C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZ C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZ C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KK Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KK H Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KK P Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KK SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KK UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KK C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KK C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KK C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KK C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KK C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KK C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KK C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KK C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KK C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KK C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SSHH Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SSHH H Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SSHH P Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SSHH SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SSHH UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SSHH C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SSHH C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SSHH C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SSHH C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DDHH Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DDHH H Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DDHH P Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DDHH SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DDHH UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DDHH C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DDHH C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DDHH C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DDHH C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZHH H Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZHH P Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KKHH Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KKHH H Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KKHH P Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KKHH SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KKHH UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C1 Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KKHH C1 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KKHH C1 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C1 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C1 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C0 Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KKHH C0 H Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KKHH C0 P Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C0 SP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C0 UP Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
LM GuidesTHK
1268 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HSR-R/LR/RM/LRM LM Guide (Narrow Tapped Block, Size 45-85)

Brand THK·LM Guides

Available part numbers (1268)

HSR45R, HSR45R UU, HSR45R UU H, HSR45R UU P, HSR45R UU SP, HSR45R UU UP, HSR45R UU C1, HSR45R UU C1 H, HSR45R UU C1 P, HSR45R UU C1 SP + 1258 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSR45RBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 45 | Block: R (narrow, tapped) | HxWxL: 70x86x138.9 mm | C/C0: 82.2 / 101 kN
HSR45R UUSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R UU HSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R UU PSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R UU SPSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R UU UPSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R UU C1Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R UU C1 HSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R UU C1 PSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R UU C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R UU C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R UU C0Size: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R UU C0 HSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R UU C0 PSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R UU C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R UU C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SSSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SS HSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SS PSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SS SPSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SS UPSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SS C1Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SS C1 HSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SS C1 PSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SS C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SS C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SS C0Size: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SS C0 HSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SS C0 PSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SS C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SS C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DDSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DD HSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DD PSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DD SPSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DD UPSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DD C1Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DD C1 HSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DD C1 PSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DD C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DD C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DD C0Size: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DD C0 HSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DD C0 PSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DD C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DD C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZ HSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZ PSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ SPSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ UPSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 HSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 PSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0Size: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 HSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 PSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZ C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KKSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KK HSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KK PSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KK SPSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KK UPSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KK C1Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KK C1 HSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KK C1 PSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KK C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KK C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KK C0Size: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KK C0 HSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KK C0 PSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KK C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KK C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SSHHSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SSHH HSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SSHH PSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH SPSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH UPSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 HSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 PSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0Size: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 HSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 PSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R SSHH C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DDHHSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DDHH HSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DDHH PSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH SPSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH UPSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 HSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 PSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0Size: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 HSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 PSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R DDHH C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHHSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZHH HSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZHH PSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH SPSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH UPSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 HSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 PSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0Size: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 HSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 PSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R ZZHH C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KKHHSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KKHH HSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KKHH PSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH SPSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH UPSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 HSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 PSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0Size: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 HSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 PSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R KKHH C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R LLSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R LL HSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R LL PSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R LL SPSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R LL UPSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R LL C1Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R LL C1 HSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R LL C1 PSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R LL C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R LL C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R LL C0Size: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R LL C0 HSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R LL C0 PSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R LL C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R LL C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R RRSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R RR HSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R RR PSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R RR SPSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R RR UPSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R RR C1Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R RR C1 HSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R RR C1 PSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R RR C1 SPSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R RR C1 UPSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45R RR C0Size: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 82.2 / 101 kN
HSR45R RR C0 HSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 82.2 / 101 kN
HSR45R RR C0 PSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 82.2 / 101 kN
HSR45R RR C0 SPSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 82.2 / 101 kN
HSR45R RR C0 UPSize: 45 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 82.2 / 101 kN
HSR45LRBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 45 | Block: LR (narrow, tapped, long) | HxWxL: 70x86x170.7 mm | C/C0: 100 / 135 kN
HSR45LR UUSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR UU HSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR UU PSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR UU SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR UU UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR UU C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR UU C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR UU C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR UU C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR UU C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR UU C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR UU C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR UU C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR UU C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR UU C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SSSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SS HSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SS PSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SS SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SS UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SS C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SS C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SS C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SS C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SS C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SS C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SS C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SS C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SS C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SS C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DDSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DD HSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DD PSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DD SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DD UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DD C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DD C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DD C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DD C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DD C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DD C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DD C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DD C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DD C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DD C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZ HSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZ PSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZ SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZ UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZ C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZ C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZ C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZ C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZ C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KKSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KK HSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KK PSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KK SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KK UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KK C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KK C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KK C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KK C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KK C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KK C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KK C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KK C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KK C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KK C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SSHHSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SSHH HSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SSHH PSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SSHH SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SSHH UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SSHH C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SSHH C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR SSHH C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR SSHH C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR SSHH C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DDHHSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DDHH HSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DDHH PSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DDHH SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DDHH UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DDHH C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DDHH C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR DDHH C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR DDHH C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR DDHH C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZHHSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZHH HSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZHH PSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR ZZHH C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KKHHSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KKHH HSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KKHH PSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KKHH SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KKHH UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KKHH C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KKHH C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR KKHH C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR KKHH C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR KKHH C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR LLSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR LL HSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR LL PSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR LL SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR LL UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR LL C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR LL C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR LL C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR LL C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR LL C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR LL C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR LL C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR LL C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR LL C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR LL C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR RRSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR RR HSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR RR PSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR RR SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR RR UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR RR C1Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR RR C1 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR RR C1 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR RR C1 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR RR C1 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR45LR RR C0Size: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 100 / 135 kN
HSR45LR RR C0 HSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 100 / 135 kN
HSR45LR RR C0 PSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 100 / 135 kN
HSR45LR RR C0 SPSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 100 / 135 kN
HSR45LR RR C0 UPSize: 45 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 100 / 135 kN
HSR55RBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 55 | Block: R (narrow, tapped) | HxWxL: 80x100x162.9 mm | C/C0: 121 / 146 kN
HSR55R UUSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R UU HSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R UU PSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R UU SPSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R UU UPSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R UU C1Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R UU C1 HSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R UU C1 PSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R UU C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R UU C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R UU C0Size: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R UU C0 HSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R UU C0 PSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R UU C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R UU C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SSSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SS HSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SS PSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SS SPSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SS UPSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SS C1Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SS C1 HSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SS C1 PSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SS C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SS C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SS C0Size: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SS C0 HSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SS C0 PSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SS C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SS C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DDSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DD HSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DD PSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DD SPSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DD UPSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DD C1Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DD C1 HSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DD C1 PSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DD C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DD C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DD C0Size: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DD C0 HSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DD C0 PSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DD C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DD C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZ HSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZ PSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZ SPSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZ UPSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZ C1Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZ C1 HSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZ C1 PSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZ C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZ C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZ C0Size: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZ C0 HSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZ C0 PSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZ C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZ C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KKSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KK HSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KK PSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KK SPSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KK UPSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KK C1Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KK C1 HSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KK C1 PSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KK C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KK C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KK C0Size: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KK C0 HSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KK C0 PSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KK C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KK C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SSHHSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SSHH HSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SSHH PSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SSHH SPSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SSHH UPSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SSHH C1Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SSHH C1 HSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SSHH C1 PSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SSHH C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SSHH C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R SSHH C0Size: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R SSHH C0 HSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R SSHH C0 PSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R SSHH C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R SSHH C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DDHHSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DDHH HSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DDHH PSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DDHH SPSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DDHH UPSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DDHH C1Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DDHH C1 HSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DDHH C1 PSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DDHH C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DDHH C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R DDHH C0Size: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R DDHH C0 HSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R DDHH C0 PSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R DDHH C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R DDHH C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZHHSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZHH HSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZHH PSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZHH SPSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZHH UPSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C1Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZHH C1 HSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZHH C1 PSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C0Size: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R ZZHH C0 HSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R ZZHH C0 PSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R ZZHH C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KKHHSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KKHH HSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KKHH PSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KKHH SPSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KKHH UPSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KKHH C1Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KKHH C1 HSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KKHH C1 PSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KKHH C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KKHH C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R KKHH C0Size: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R KKHH C0 HSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R KKHH C0 PSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R KKHH C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R KKHH C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R LLSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R LL HSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R LL PSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R LL SPSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R LL UPSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R LL C1Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R LL C1 HSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R LL C1 PSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R LL C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R LL C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R LL C0Size: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R LL C0 HSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R LL C0 PSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R LL C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R LL C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R RRSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R RR HSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R RR PSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R RR SPSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R RR UPSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R RR C1Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R RR C1 HSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R RR C1 PSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R RR C1 SPSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R RR C1 UPSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55R RR C0Size: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 121 / 146 kN
HSR55R RR C0 HSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 121 / 146 kN
HSR55R RR C0 PSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 121 / 146 kN
HSR55R RR C0 SPSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 121 / 146 kN
HSR55R RR C0 UPSize: 55 | Block: R (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 121 / 146 kN
HSR55LRBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 55 | Block: LR (narrow, tapped, long) | HxWxL: 80x100x201 mm | C/C0: 148 / 194 kN
HSR55LR UUSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR UU HSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR UU PSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR UU SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR UU UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR UU C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR UU C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR UU C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR UU C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR UU C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR UU C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR UU C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR UU C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR UU C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR UU C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SSSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SS HSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SS PSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SS SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SS UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SS C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SS C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SS C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SS C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SS C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SS C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SS C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SS C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SS C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SS C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DDSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DD HSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DD PSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DD SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DD UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DD C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DD C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DD C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DD C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DD C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DD C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DD C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DD C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DD C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DD C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZ HSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZ PSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZ SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZ UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZ C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZ C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZ C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZ C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZ C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KKSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KK HSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KK PSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KK SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KK UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KK C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KK C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KK C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KK C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KK C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KK C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KK C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KK C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KK C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KK C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SSHHSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SSHH HSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SSHH PSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SSHH SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SSHH UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SSHH C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SSHH C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR SSHH C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR SSHH C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR SSHH C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DDHHSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DDHH HSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DDHH PSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DDHH SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DDHH UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DDHH C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DDHH C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR DDHH C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR DDHH C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR DDHH C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZHHSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZHH HSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZHH PSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR ZZHH C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KKHHSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KKHH HSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KKHH PSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KKHH SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KKHH UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KKHH C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KKHH C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR KKHH C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR KKHH C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR KKHH C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR LLSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR LL HSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR LL PSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR LL SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR LL UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR LL C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR LL C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR LL C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR LL C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR LL C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR LL C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR LL C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR LL C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR LL C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR LL C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR RRSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR RR HSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR RR PSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR RR SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR RR UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR RR C1Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR RR C1 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR RR C1 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR RR C1 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR RR C1 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR55LR RR C0Size: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 148 / 194 kN
HSR55LR RR C0 HSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 148 / 194 kN
HSR55LR RR C0 PSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 148 / 194 kN
HSR55LR RR C0 SPSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 148 / 194 kN
HSR55LR RR C0 UPSize: 55 | Block: LR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 148 / 194 kN
HSR65XRBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 65 | Block: XR (narrow, tapped) | HxWxL: 90x126x190.5 mm | C/C0: 195 / 228 kN
HSR65XR UUSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR UU HSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR UU PSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR UU SPSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR UU UPSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR UU C1Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR UU C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR UU C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR UU C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR UU C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR UU C0Size: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR UU C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR UU C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR UU C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR UU C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SSSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SS HSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SS PSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SS SPSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SS UPSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SS C1Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SS C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SS C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SS C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SS C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SS C0Size: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SS C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SS C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SS C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SS C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DDSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DD HSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DD PSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DD SPSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DD UPSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DD C1Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DD C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DD C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DD C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DD C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DD C0Size: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DD C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DD C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DD C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DD C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZ HSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZ PSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZ SPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZ UPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C1Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZ C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZ C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C0Size: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZ C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZ C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZ C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KKSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KK HSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KK PSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KK SPSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KK UPSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KK C1Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KK C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KK C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KK C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KK C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KK C0Size: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KK C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KK C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KK C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KK C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SSHHSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SSHH HSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SSHH PSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SSHH SPSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SSHH UPSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C1Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SSHH C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SSHH C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C0Size: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR SSHH C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR SSHH C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR SSHH C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DDHHSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DDHH HSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DDHH PSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DDHH SPSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DDHH UPSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C1Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DDHH C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DDHH C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C0Size: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR DDHH C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR DDHH C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR DDHH C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZHHSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZHH HSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZHH PSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH SPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH UPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0Size: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR ZZHH C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KKHHSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KKHH HSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KKHH PSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KKHH SPSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KKHH UPSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C1Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KKHH C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KKHH C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C0Size: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR KKHH C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR KKHH C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR KKHH C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR LLSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR LL HSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR LL PSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR LL SPSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR LL UPSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR LL C1Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR LL C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR LL C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR LL C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR LL C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR LL C0Size: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR LL C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR LL C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR LL C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR LL C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR RRSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR RR HSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR RR PSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR RR SPSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR RR UPSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR RR C1Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR RR C1 HSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR RR C1 PSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR RR C1 SPSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR RR C1 UPSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XR RR C0Size: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 195 / 228 kN
HSR65XR RR C0 HSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 195 / 228 kN
HSR65XR RR C0 PSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 195 / 228 kN
HSR65XR RR C0 SPSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 195 / 228 kN
HSR65XR RR C0 UPSize: 65 | Block: XR (narrow, tapped) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 195 / 228 kN
HSR65XLRBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 65 | Block: XLR (narrow, tapped, long) | HxWxL: 90x126x250 mm | C/C0: 249 / 323 kN
HSR65XLR UUSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR UU HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR UU PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR UU SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR UU UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR UU C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR UU C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR UU C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR UU C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR UU C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR UU C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR UU C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR UU C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR UU C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR UU C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SSSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SS HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SS PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SS SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SS UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SS C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SS C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SS C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SS C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SS C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SS C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SS C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SS C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SS C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SS C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DDSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DD HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DD PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DD SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DD UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DD C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DD C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DD C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DD C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DD C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DD C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DD C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DD C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DD C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DD C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZ HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZ PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZ C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KKSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KK HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KK PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KK SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KK UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KK C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KK C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KK C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KK C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KK C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KK C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KK C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KK C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KK C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KK C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SSHHSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SSHH HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SSHH PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR SSHH C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DDHHSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DDHH HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DDHH PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR DDHH C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHHSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZHH HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZHH PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR ZZHH C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KKHHSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KKHH HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KKHH PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR KKHH C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR LLSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR LL HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR LL PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR LL SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR LL UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR LL C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR LL C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR LL C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR LL C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR LL C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR LL C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR LL C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR LL C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR LL C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR LL C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: LL (low-resistance end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR RRSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR RR HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR RR PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR RR SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR RR UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR RR C1Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR RR C1 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR RR C1 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR RR C1 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR RR C1 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR65XLR RR C0Size: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 249 / 323 kN
HSR65XLR RR C0 HSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 249 / 323 kN
HSR65XLR RR C0 PSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 249 / 323 kN
HSR65XLR RR C0 SPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 249 / 323 kN
HSR65XLR RR C0 UPSize: 65 | Block: XLR (narrow, tapped, long) | Seal: RR (low-res. end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 249 / 323 kN
HSR85RBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 85 | Block: R (narrow, tapped) | HxWxL: 110x156x245.6 mm | C/C0: 304 / 355 kN
HSR85R UUSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R UU HSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R UU PSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R UU SPSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R UU UPSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R UU C1Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R UU C1 HSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R UU C1 PSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R UU C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R UU C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R UU C0Size: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R UU C0 HSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R UU C0 PSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R UU C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R UU C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SSSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SS HSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SS PSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SS SPSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SS UPSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SS C1Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SS C1 HSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SS C1 PSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SS C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SS C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SS C0Size: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SS C0 HSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SS C0 PSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SS C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SS C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DDSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DD HSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DD PSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DD SPSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DD UPSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DD C1Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DD C1 HSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DD C1 PSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DD C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DD C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DD C0Size: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DD C0 HSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DD C0 PSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DD C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DD C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZ HSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZ PSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZ SPSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZ UPSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZ C1Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZ C1 HSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZ C1 PSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZ C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZ C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZ C0Size: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZ C0 HSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZ C0 PSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZ C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZ C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KKSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KK HSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KK PSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KK SPSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KK UPSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KK C1Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KK C1 HSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KK C1 PSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KK C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KK C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KK C0Size: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KK C0 HSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KK C0 PSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KK C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KK C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SSHHSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SSHH HSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SSHH PSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SSHH SPSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SSHH UPSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SSHH C1Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SSHH C1 HSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SSHH C1 PSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SSHH C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SSHH C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R SSHH C0Size: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R SSHH C0 HSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R SSHH C0 PSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R SSHH C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R SSHH C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DDHHSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DDHH HSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DDHH PSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DDHH SPSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DDHH UPSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DDHH C1Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DDHH C1 HSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DDHH C1 PSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DDHH C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DDHH C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R DDHH C0Size: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R DDHH C0 HSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R DDHH C0 PSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R DDHH C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R DDHH C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZHHSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZHH HSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZHH PSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZHH SPSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZHH UPSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C1Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZHH C1 HSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZHH C1 PSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C0Size: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R ZZHH C0 HSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R ZZHH C0 PSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R ZZHH C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KKHHSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KKHH HSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KKHH PSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KKHH SPSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KKHH UPSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KKHH C1Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KKHH C1 HSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KKHH C1 PSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KKHH C1 SPSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KKHH C1 UPSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85R KKHH C0Size: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 304 / 355 kN
HSR85R KKHH C0 HSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 304 / 355 kN
HSR85R KKHH C0 PSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 304 / 355 kN
HSR85R KKHH C0 SPSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 304 / 355 kN
HSR85R KKHH C0 UPSize: 85 | Block: R (narrow, tapped) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 304 / 355 kN
HSR85LRBase model (specify seal, preload, accuracy, blocks, rail length) | Size: 85 | Block: LR (narrow, tapped, long) | HxWxL: 110x156x303 mm | C/C0: 367 / 464 kN
HSR85LR UUSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR UU HSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR UU PSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR UU SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR UU UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR UU C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR UU C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR UU C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR UU C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR UU C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR UU C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR UU C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR UU C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR UU C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR UU C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: UU (end seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SSSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SS HSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SS PSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SS SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SS UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SS C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SS C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SS C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SS C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SS C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SS C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SS C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SS C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SS C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SS C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SS (end + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DDSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DD HSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DD PSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DD SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DD UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DD C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DD C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DD C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DD C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DD C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DD C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DD C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DD C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DD C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DD C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DD (double + side seals) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZ HSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZ PSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZ SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZ UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZ C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZ C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZ C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZ C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZ C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KKSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KK HSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KK PSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KK SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KK UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KK C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KK C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KK C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KK C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KK C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KK C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KK C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KK C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KK C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KK C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SSHHSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SSHH HSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SSHH PSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SSHH SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SSHH UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SSHH C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SSHH C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR SSHH C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR SSHH C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR SSHH C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: SSHH (SS + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DDHHSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DDHH HSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DDHH PSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DDHH SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DDHH UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DDHH C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DDHH C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR DDHH C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR DDHH C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR DDHH C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: DDHH (DD + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZHHSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZHH HSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZHH PSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR ZZHH C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: ZZHH (ZZ + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KKHHSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KKHH HSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KKHH PSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KKHH SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KKHH UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: Normal | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C1Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KKHH C1 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KKHH C1 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C1 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C1 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C0Size: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: Normal | C/C0: 367 / 464 kN
HSR85LR KKHH C0 HSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: H (high) | C/C0: 367 / 464 kN
HSR85LR KKHH C0 PSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: P (precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C0 SPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | C/C0: 367 / 464 kN
HSR85LR KKHH C0 UPSize: 85 | Block: LR (narrow, tapped, long) | Seal: KKHH (KK + LaCS scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | C/C0: 367 / 464 kN

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
