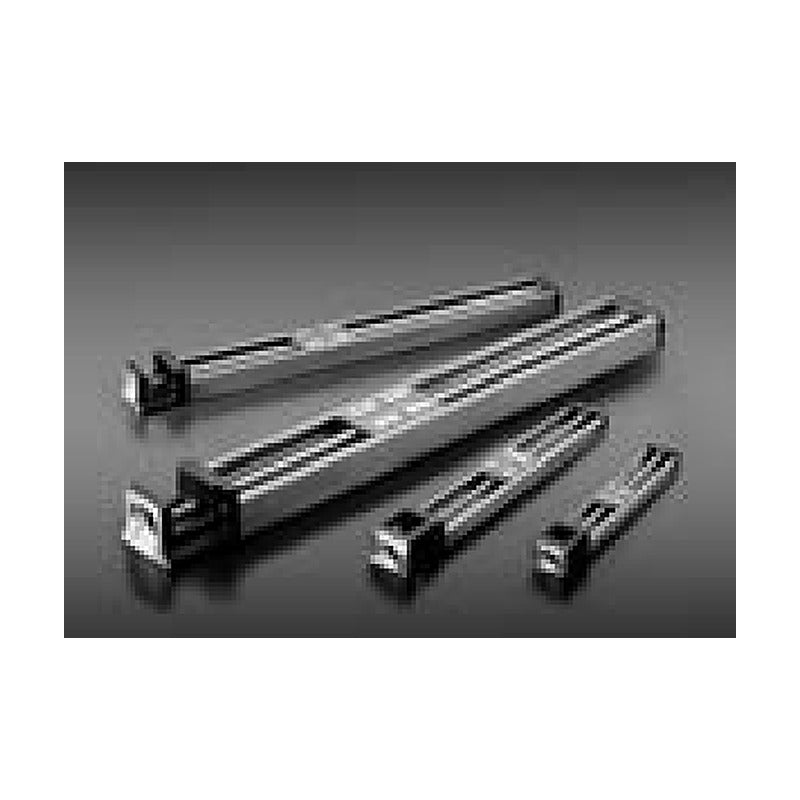

THK KSF-RU LM Guide Actuator (Open Cover, Motor Parallel, KSF4-10)

THK KSF-RU LM Guide Actuator (Open Cover, Motor Parallel, KSF4-10)

THK KSF open cover (u) LM guide actuators (motor parallel) integrate an LM guide and a large-diameter ball screw in a U-shaped outer rail for compact, rigid, high-speed positioning.

Key features

  • U-section high-rigidity outer rail with integrated LM guide raceways and ball screw in one inner block
  • Four-way equal load rating: balls at 45 deg contact on each raceway
  • Large-diameter, large-lead ball screw for high speed (up to 2,500 mm/s on KSF10 lead 50)
  • Repeatability +/-0.01 mm, lost motion 0.1 mm; end seals and side seals standard
  • Motor mounted parallel via timing pulley/belt return (R type)
  • Options: rear tapped sub table, sensor rail, photo/proximity sensors, steel sub table

Specifications

Series KSF
Cover Open cover (U)
Motor layout Motor Parallel (R type)
Models KSF4RU, KSF5RU, KSF6RU, KSF8RU, KSF10RU
Ball screw shaft dia. KSF4: 10 mm, KSF5: 13 mm, KSF6: 15 mm, KSF8: 20 mm, KSF10: 25 mm
Basic load rating C / C0 (guide) 4: 6400/12900 N; 5: 10200/17900 N; 6: 17400/33000 N; 8: 32400/63500 N; 10: 58500/103700 N
Repeatability +/-0.01 mm
Lost motion 0.1 mm
Code composition Model-lead-stroke-motor, then flange, shaft dia., shaft fixing, options
Intermediate flange Parallel W-codes e.g. WQ-08D, WV-14K, WZ-19M
Options (field 8) MR/ML/MD (parallel side), T, 1, 6, J, M, F
Source THK General Catalog LM Guide Actuator (Korean ed. 515-2K), p. A2-268-A2-355
KSF4RU-06-0050-0 Model: KSF4RU | Lead: 6 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0050-1 Model: KSF4RU | Lead: 6 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0100-0 Model: KSF4RU | Lead: 6 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0100-1 Model: KSF4RU | Lead: 6 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0150-0 Model: KSF4RU | Lead: 6 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0150-1 Model: KSF4RU | Lead: 6 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0200-0 Model: KSF4RU | Lead: 6 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0200-1 Model: KSF4RU | Lead: 6 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0250-0 Model: KSF4RU | Lead: 6 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0250-1 Model: KSF4RU | Lead: 6 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0300-0 Model: KSF4RU | Lead: 6 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0300-1 Model: KSF4RU | Lead: 6 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0350-0 Model: KSF4RU | Lead: 6 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0350-1 Model: KSF4RU | Lead: 6 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0400-0 Model: KSF4RU | Lead: 6 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0400-1 Model: KSF4RU | Lead: 6 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0450-0 Model: KSF4RU | Lead: 6 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0450-1 Model: KSF4RU | Lead: 6 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0500-0 Model: KSF4RU | Lead: 6 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 360 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0500-1 Model: KSF4RU | Lead: 6 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 360 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0550-0 Model: KSF4RU | Lead: 6 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0550-1 Model: KSF4RU | Lead: 6 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0600-0 Model: KSF4RU | Lead: 6 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0600-1 Model: KSF4RU | Lead: 6 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0650-0 Model: KSF4RU | Lead: 6 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0650-1 Model: KSF4RU | Lead: 6 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0700-0 Model: KSF4RU | Lead: 6 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 190 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0700-1 Model: KSF4RU | Lead: 6 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 190 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0750-0 Model: KSF4RU | Lead: 6 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0750-1 Model: KSF4RU | Lead: 6 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0800-0 Model: KSF4RU | Lead: 6 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0800-1 Model: KSF4RU | Lead: 6 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0850-0 Model: KSF4RU | Lead: 6 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 130 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0850-1 Model: KSF4RU | Lead: 6 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 130 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0900-0 Model: KSF4RU | Lead: 6 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 120 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0900-1 Model: KSF4RU | Lead: 6 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 120 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0050-0 Model: KSF4RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0050-1 Model: KSF4RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0100-0 Model: KSF4RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0100-1 Model: KSF4RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0150-0 Model: KSF4RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0150-1 Model: KSF4RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0200-0 Model: KSF4RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0200-1 Model: KSF4RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0250-0 Model: KSF4RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0250-1 Model: KSF4RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0300-0 Model: KSF4RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0300-1 Model: KSF4RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0350-0 Model: KSF4RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0350-1 Model: KSF4RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0400-0 Model: KSF4RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0400-1 Model: KSF4RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0450-0 Model: KSF4RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0450-1 Model: KSF4RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0500-0 Model: KSF4RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 620 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0500-1 Model: KSF4RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 620 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0550-0 Model: KSF4RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0550-1 Model: KSF4RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0600-0 Model: KSF4RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0600-1 Model: KSF4RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0650-0 Model: KSF4RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0650-1 Model: KSF4RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0700-0 Model: KSF4RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0700-1 Model: KSF4RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0750-0 Model: KSF4RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0750-1 Model: KSF4RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0800-0 Model: KSF4RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0800-1 Model: KSF4RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0850-0 Model: KSF4RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0850-1 Model: KSF4RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0900-0 Model: KSF4RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0900-1 Model: KSF4RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0050-0 Model: KSF4RU | Lead: 16 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0050-1 Model: KSF4RU | Lead: 16 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0100-0 Model: KSF4RU | Lead: 16 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0100-1 Model: KSF4RU | Lead: 16 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0150-0 Model: KSF4RU | Lead: 16 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0150-1 Model: KSF4RU | Lead: 16 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0200-0 Model: KSF4RU | Lead: 16 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0200-1 Model: KSF4RU | Lead: 16 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0250-0 Model: KSF4RU | Lead: 16 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0250-1 Model: KSF4RU | Lead: 16 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0300-0 Model: KSF4RU | Lead: 16 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0300-1 Model: KSF4RU | Lead: 16 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0350-0 Model: KSF4RU | Lead: 16 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0350-1 Model: KSF4RU | Lead: 16 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0400-0 Model: KSF4RU | Lead: 16 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0400-1 Model: KSF4RU | Lead: 16 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0450-0 Model: KSF4RU | Lead: 16 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0450-1 Model: KSF4RU | Lead: 16 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0500-0 Model: KSF4RU | Lead: 16 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 990 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0500-1 Model: KSF4RU | Lead: 16 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 990 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0550-0 Model: KSF4RU | Lead: 16 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0550-1 Model: KSF4RU | Lead: 16 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0600-0 Model: KSF4RU | Lead: 16 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 710 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0600-1 Model: KSF4RU | Lead: 16 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 710 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0650-0 Model: KSF4RU | Lead: 16 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 620 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0650-1 Model: KSF4RU | Lead: 16 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 620 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0700-0 Model: KSF4RU | Lead: 16 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 540 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0700-1 Model: KSF4RU | Lead: 16 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 540 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0750-0 Model: KSF4RU | Lead: 16 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0750-1 Model: KSF4RU | Lead: 16 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0800-0 Model: KSF4RU | Lead: 16 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0800-1 Model: KSF4RU | Lead: 16 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0850-0 Model: KSF4RU | Lead: 16 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0850-1 Model: KSF4RU | Lead: 16 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0900-0 Model: KSF4RU | Lead: 16 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0900-1 Model: KSF4RU | Lead: 16 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0050-0 Model: KSF5RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0050-1 Model: KSF5RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0100-0 Model: KSF5RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0100-1 Model: KSF5RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0150-0 Model: KSF5RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0150-1 Model: KSF5RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0200-0 Model: KSF5RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0200-1 Model: KSF5RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0250-0 Model: KSF5RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0250-1 Model: KSF5RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0300-0 Model: KSF5RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0300-1 Model: KSF5RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0350-0 Model: KSF5RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0350-1 Model: KSF5RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0400-0 Model: KSF5RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0400-1 Model: KSF5RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0450-0 Model: KSF5RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0450-1 Model: KSF5RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0500-0 Model: KSF5RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0500-1 Model: KSF5RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0550-0 Model: KSF5RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 680 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0550-1 Model: KSF5RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 680 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0600-0 Model: KSF5RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 590 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0600-1 Model: KSF5RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 590 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0650-0 Model: KSF5RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0650-1 Model: KSF5RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0700-0 Model: KSF5RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0700-1 Model: KSF5RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0750-0 Model: KSF5RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0750-1 Model: KSF5RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0800-0 Model: KSF5RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0800-1 Model: KSF5RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0850-0 Model: KSF5RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0850-1 Model: KSF5RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0900-0 Model: KSF5RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0900-1 Model: KSF5RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0050-0 Model: KSF5RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0050-1 Model: KSF5RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0100-0 Model: KSF5RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0100-1 Model: KSF5RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0150-0 Model: KSF5RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0150-1 Model: KSF5RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0200-0 Model: KSF5RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0200-1 Model: KSF5RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0250-0 Model: KSF5RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0250-1 Model: KSF5RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0300-0 Model: KSF5RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0300-1 Model: KSF5RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0350-0 Model: KSF5RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0350-1 Model: KSF5RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0400-0 Model: KSF5RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0400-1 Model: KSF5RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0450-0 Model: KSF5RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0450-1 Model: KSF5RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0500-0 Model: KSF5RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0500-1 Model: KSF5RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0550-0 Model: KSF5RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0550-1 Model: KSF5RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0600-0 Model: KSF5RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 1180 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0600-1 Model: KSF5RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 1180 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0650-0 Model: KSF5RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 1020 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0650-1 Model: KSF5RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 1020 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0700-0 Model: KSF5RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0700-1 Model: KSF5RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0750-0 Model: KSF5RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 790 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0750-1 Model: KSF5RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 790 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0800-0 Model: KSF5RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 700 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0800-1 Model: KSF5RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 700 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0850-0 Model: KSF5RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0850-1 Model: KSF5RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0900-0 Model: KSF5RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0900-1 Model: KSF5RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0050-0 Model: KSF6RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0050-1 Model: KSF6RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0100-0 Model: KSF6RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0100-1 Model: KSF6RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0150-0 Model: KSF6RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0150-1 Model: KSF6RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0200-0 Model: KSF6RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0200-1 Model: KSF6RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0250-0 Model: KSF6RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0250-1 Model: KSF6RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0300-0 Model: KSF6RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0300-1 Model: KSF6RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0350-0 Model: KSF6RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0350-1 Model: KSF6RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0400-0 Model: KSF6RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0400-1 Model: KSF6RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0450-0 Model: KSF6RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0450-1 Model: KSF6RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0500-0 Model: KSF6RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0500-1 Model: KSF6RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0550-0 Model: KSF6RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0550-1 Model: KSF6RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0600-0 Model: KSF6RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 640 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0600-1 Model: KSF6RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 640 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0650-0 Model: KSF6RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0650-1 Model: KSF6RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0700-0 Model: KSF6RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 490 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0700-1 Model: KSF6RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 490 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0750-0 Model: KSF6RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0750-1 Model: KSF6RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0800-0 Model: KSF6RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0800-1 Model: KSF6RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0850-0 Model: KSF6RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0850-1 Model: KSF6RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0900-0 Model: KSF6RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0900-1 Model: KSF6RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0950-0 Model: KSF6RU | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0950-1 Model: KSF6RU | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1000-0 Model: KSF6RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1000-1 Model: KSF6RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1050-0 Model: KSF6RU | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1050-1 Model: KSF6RU | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1100-0 Model: KSF6RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1100-1 Model: KSF6RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1150-0 Model: KSF6RU | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1150-1 Model: KSF6RU | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1200-0 Model: KSF6RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1200-1 Model: KSF6RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1250-0 Model: KSF6RU | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1250-1 Model: KSF6RU | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1300-0 Model: KSF6RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 160 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1300-1 Model: KSF6RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 160 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0050-0 Model: KSF6RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0050-1 Model: KSF6RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0100-0 Model: KSF6RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0100-1 Model: KSF6RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0150-0 Model: KSF6RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0150-1 Model: KSF6RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0200-0 Model: KSF6RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0200-1 Model: KSF6RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0250-0 Model: KSF6RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0250-1 Model: KSF6RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0300-0 Model: KSF6RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0300-1 Model: KSF6RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0350-0 Model: KSF6RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0350-1 Model: KSF6RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0400-0 Model: KSF6RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0400-1 Model: KSF6RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0450-0 Model: KSF6RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0450-1 Model: KSF6RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0500-0 Model: KSF6RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0500-1 Model: KSF6RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0550-0 Model: KSF6RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0550-1 Model: KSF6RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0600-0 Model: KSF6RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0600-1 Model: KSF6RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0650-0 Model: KSF6RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0650-1 Model: KSF6RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0700-0 Model: KSF6RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0700-1 Model: KSF6RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0750-0 Model: KSF6RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 870 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0750-1 Model: KSF6RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 870 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0800-0 Model: KSF6RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 770 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0800-1 Model: KSF6RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 770 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0850-0 Model: KSF6RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 690 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0850-1 Model: KSF6RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 690 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0900-0 Model: KSF6RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0900-1 Model: KSF6RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0950-0 Model: KSF6RU | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0950-1 Model: KSF6RU | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1000-0 Model: KSF6RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1000-1 Model: KSF6RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1050-0 Model: KSF6RU | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 470 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1050-1 Model: KSF6RU | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 470 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1100-0 Model: KSF6RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1100-1 Model: KSF6RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1150-0 Model: KSF6RU | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 400 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1150-1 Model: KSF6RU | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 400 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1200-0 Model: KSF6RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 370 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1200-1 Model: KSF6RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 370 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1250-0 Model: KSF6RU | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1250-1 Model: KSF6RU | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1300-0 Model: KSF6RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1300-1 Model: KSF6RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0050-0 Model: KSF6RU | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0050-1 Model: KSF6RU | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0100-0 Model: KSF6RU | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0100-1 Model: KSF6RU | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0150-0 Model: KSF6RU | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0150-1 Model: KSF6RU | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0200-0 Model: KSF6RU | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0200-1 Model: KSF6RU | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0250-0 Model: KSF6RU | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0250-1 Model: KSF6RU | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0300-0 Model: KSF6RU | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0300-1 Model: KSF6RU | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0350-0 Model: KSF6RU | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0350-1 Model: KSF6RU | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0400-0 Model: KSF6RU | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0400-1 Model: KSF6RU | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0450-0 Model: KSF6RU | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0450-1 Model: KSF6RU | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0500-0 Model: KSF6RU | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0500-1 Model: KSF6RU | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0550-0 Model: KSF6RU | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0550-1 Model: KSF6RU | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0600-0 Model: KSF6RU | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0600-1 Model: KSF6RU | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0650-0 Model: KSF6RU | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0650-1 Model: KSF6RU | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0700-0 Model: KSF6RU | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 1480 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0700-1 Model: KSF6RU | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 1480 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0750-0 Model: KSF6RU | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 1310 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0750-1 Model: KSF6RU | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 1310 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0800-0 Model: KSF6RU | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0800-1 Model: KSF6RU | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0850-0 Model: KSF6RU | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 1040 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0850-1 Model: KSF6RU | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 1040 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0900-0 Model: KSF6RU | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 940 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0900-1 Model: KSF6RU | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 940 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0950-0 Model: KSF6RU | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 850 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0950-1 Model: KSF6RU | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 850 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1000-0 Model: KSF6RU | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 780 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1000-1 Model: KSF6RU | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 780 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1050-0 Model: KSF6RU | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 710 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1050-1 Model: KSF6RU | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 710 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1100-0 Model: KSF6RU | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1100-1 Model: KSF6RU | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1150-0 Model: KSF6RU | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1150-1 Model: KSF6RU | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1200-0 Model: KSF6RU | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1200-1 Model: KSF6RU | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1250-0 Model: KSF6RU | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1250-1 Model: KSF6RU | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1300-0 Model: KSF6RU | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1300-1 Model: KSF6RU | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0100-0 Model: KSF8RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0100-1 Model: KSF8RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0200-0 Model: KSF8RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0200-1 Model: KSF8RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0300-0 Model: KSF8RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0300-1 Model: KSF8RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0400-0 Model: KSF8RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0400-1 Model: KSF8RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0500-0 Model: KSF8RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0500-1 Model: KSF8RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0600-0 Model: KSF8RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0600-1 Model: KSF8RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0700-0 Model: KSF8RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0700-1 Model: KSF8RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0800-0 Model: KSF8RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 250 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0800-1 Model: KSF8RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 250 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0900-0 Model: KSF8RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0900-1 Model: KSF8RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1000-0 Model: KSF8RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1000-1 Model: KSF8RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1100-0 Model: KSF8RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 140 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1100-1 Model: KSF8RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 140 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1200-0 Model: KSF8RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 120 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1200-1 Model: KSF8RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 120 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1300-0 Model: KSF8RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1300-1 Model: KSF8RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1400-0 Model: KSF8RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 90 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1400-1 Model: KSF8RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 90 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1500-0 Model: KSF8RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 80 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1500-1 Model: KSF8RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 80 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0100-0 Model: KSF8RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0100-1 Model: KSF8RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0200-0 Model: KSF8RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0200-1 Model: KSF8RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0300-0 Model: KSF8RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0300-1 Model: KSF8RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0400-0 Model: KSF8RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0400-1 Model: KSF8RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0500-0 Model: KSF8RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0500-1 Model: KSF8RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0600-0 Model: KSF8RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0600-1 Model: KSF8RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0700-0 Model: KSF8RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0700-1 Model: KSF8RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0800-0 Model: KSF8RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0800-1 Model: KSF8RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0900-0 Model: KSF8RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0900-1 Model: KSF8RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1000-0 Model: KSF8RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 330 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1000-1 Model: KSF8RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 330 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1100-0 Model: KSF8RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 270 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1100-1 Model: KSF8RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 270 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1200-0 Model: KSF8RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1200-1 Model: KSF8RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1300-0 Model: KSF8RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1300-1 Model: KSF8RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1400-0 Model: KSF8RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1400-1 Model: KSF8RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1500-0 Model: KSF8RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1500-1 Model: KSF8RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0100-0 Model: KSF8RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0100-1 Model: KSF8RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0200-0 Model: KSF8RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0200-1 Model: KSF8RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0300-0 Model: KSF8RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0300-1 Model: KSF8RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0400-0 Model: KSF8RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0400-1 Model: KSF8RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0500-0 Model: KSF8RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0500-1 Model: KSF8RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0600-0 Model: KSF8RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0600-1 Model: KSF8RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0700-0 Model: KSF8RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0700-1 Model: KSF8RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0800-0 Model: KSF8RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0800-1 Model: KSF8RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0900-0 Model: KSF8RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0900-1 Model: KSF8RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1000-0 Model: KSF8RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 670 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1000-1 Model: KSF8RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 670 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1100-0 Model: KSF8RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1100-1 Model: KSF8RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1200-0 Model: KSF8RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1200-1 Model: KSF8RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1300-0 Model: KSF8RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1300-1 Model: KSF8RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1400-0 Model: KSF8RU | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 360 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1400-1 Model: KSF8RU | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 360 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1500-0 Model: KSF8RU | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1500-1 Model: KSF8RU | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0100-0 Model: KSF8RU | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0100-1 Model: KSF8RU | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0200-0 Model: KSF8RU | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0200-1 Model: KSF8RU | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0300-0 Model: KSF8RU | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0300-1 Model: KSF8RU | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0400-0 Model: KSF8RU | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0400-1 Model: KSF8RU | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0500-0 Model: KSF8RU | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0500-1 Model: KSF8RU | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0600-0 Model: KSF8RU | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0600-1 Model: KSF8RU | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0700-0 Model: KSF8RU | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0700-1 Model: KSF8RU | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0800-0 Model: KSF8RU | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 1970 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0800-1 Model: KSF8RU | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 1970 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0900-0 Model: KSF8RU | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 1610 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0900-1 Model: KSF8RU | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 1610 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1000-0 Model: KSF8RU | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 1340 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1000-1 Model: KSF8RU | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 1340 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1100-0 Model: KSF8RU | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 1130 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1100-1 Model: KSF8RU | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 1130 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1200-0 Model: KSF8RU | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 970 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1200-1 Model: KSF8RU | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 970 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1300-0 Model: KSF8RU | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 840 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1300-1 Model: KSF8RU | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 840 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1400-0 Model: KSF8RU | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 730 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1400-1 Model: KSF8RU | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 730 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1500-0 Model: KSF8RU | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1500-1 Model: KSF8RU | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0100-0 Model: KSF10RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0100-1 Model: KSF10RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0200-0 Model: KSF10RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0200-1 Model: KSF10RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0300-0 Model: KSF10RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0300-1 Model: KSF10RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0400-0 Model: KSF10RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0400-1 Model: KSF10RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0500-0 Model: KSF10RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0500-1 Model: KSF10RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0600-0 Model: KSF10RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0600-1 Model: KSF10RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0700-0 Model: KSF10RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0700-1 Model: KSF10RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0800-0 Model: KSF10RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0800-1 Model: KSF10RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0900-0 Model: KSF10RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0900-1 Model: KSF10RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1000-0 Model: KSF10RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1000-1 Model: KSF10RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1100-0 Model: KSF10RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1100-1 Model: KSF10RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1200-0 Model: KSF10RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1200-1 Model: KSF10RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1300-0 Model: KSF10RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 130 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1300-1 Model: KSF10RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 130 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1400-0 Model: KSF10RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 110 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1400-1 Model: KSF10RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 110 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1500-0 Model: KSF10RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1500-1 Model: KSF10RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0100-0 Model: KSF10RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0100-1 Model: KSF10RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0200-0 Model: KSF10RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0200-1 Model: KSF10RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0300-0 Model: KSF10RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0300-1 Model: KSF10RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0400-0 Model: KSF10RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0400-1 Model: KSF10RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0500-0 Model: KSF10RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0500-1 Model: KSF10RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0600-0 Model: KSF10RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0600-1 Model: KSF10RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0700-0 Model: KSF10RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0700-1 Model: KSF10RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0800-0 Model: KSF10RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0800-1 Model: KSF10RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0900-0 Model: KSF10RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0900-1 Model: KSF10RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1000-0 Model: KSF10RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1000-1 Model: KSF10RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1100-0 Model: KSF10RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1100-1 Model: KSF10RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1200-0 Model: KSF10RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1200-1 Model: KSF10RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1300-0 Model: KSF10RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1300-1 Model: KSF10RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1400-0 Model: KSF10RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1400-1 Model: KSF10RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1500-0 Model: KSF10RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1500-1 Model: KSF10RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0100-0 Model: KSF10RU | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0100-1 Model: KSF10RU | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0200-0 Model: KSF10RU | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0200-1 Model: KSF10RU | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0300-0 Model: KSF10RU | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0300-1 Model: KSF10RU | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0400-0 Model: KSF10RU | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0400-1 Model: KSF10RU | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0500-0 Model: KSF10RU | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0500-1 Model: KSF10RU | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0600-0 Model: KSF10RU | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0600-1 Model: KSF10RU | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0700-0 Model: KSF10RU | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0700-1 Model: KSF10RU | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0800-0 Model: KSF10RU | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0800-1 Model: KSF10RU | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0900-0 Model: KSF10RU | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0900-1 Model: KSF10RU | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1000-0 Model: KSF10RU | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 1050 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1000-1 Model: KSF10RU | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 1050 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1100-0 Model: KSF10RU | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1100-1 Model: KSF10RU | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1200-0 Model: KSF10RU | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 760 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1200-1 Model: KSF10RU | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 760 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1300-0 Model: KSF10RU | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 660 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1300-1 Model: KSF10RU | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 660 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1400-0 Model: KSF10RU | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 580 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1400-1 Model: KSF10RU | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 580 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1500-0 Model: KSF10RU | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1500-1 Model: KSF10RU | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0100-0 Model: KSF10RU | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0100-1 Model: KSF10RU | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0200-0 Model: KSF10RU | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0200-1 Model: KSF10RU | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0300-0 Model: KSF10RU | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0300-1 Model: KSF10RU | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0400-0 Model: KSF10RU | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0400-1 Model: KSF10RU | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0500-0 Model: KSF10RU | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0500-1 Model: KSF10RU | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0600-0 Model: KSF10RU | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0600-1 Model: KSF10RU | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0700-0 Model: KSF10RU | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0700-1 Model: KSF10RU | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0800-0 Model: KSF10RU | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0800-1 Model: KSF10RU | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0900-0 Model: KSF10RU | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0900-1 Model: KSF10RU | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1000-0 Model: KSF10RU | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 2110 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1000-1 Model: KSF10RU | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 2110 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1100-0 Model: KSF10RU | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 1790 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1100-1 Model: KSF10RU | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 1790 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1200-0 Model: KSF10RU | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 1530 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1200-1 Model: KSF10RU | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 1530 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1300-0 Model: KSF10RU | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1300-1 Model: KSF10RU | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1400-0 Model: KSF10RU | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1400-1 Model: KSF10RU | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1500-0 Model: KSF10RU | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 1030 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1500-1 Model: KSF10RU | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 1030 mm/s | Motor: 1 (mounted by THK)
LM Guide ActuatorsTHK
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK KSF-RU LM Guide Actuator (Open Cover, Motor Parallel, KSF4-10)

Brand THK·LM Guide Actuators

Available part numbers (576)

KSF4RU-06-0050-0, KSF4RU-06-0050-1, KSF4RU-06-0100-0, KSF4RU-06-0100-1, KSF4RU-06-0150-0, KSF4RU-06-0150-1, KSF4RU-06-0200-0, KSF4RU-06-0200-1, KSF4RU-06-0250-0, KSF4RU-06-0250-1 + 566 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KSF4RU-06-0050-0Model: KSF4RU | Lead: 6 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0050-1Model: KSF4RU | Lead: 6 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0100-0Model: KSF4RU | Lead: 6 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0100-1Model: KSF4RU | Lead: 6 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0150-0Model: KSF4RU | Lead: 6 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0150-1Model: KSF4RU | Lead: 6 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0200-0Model: KSF4RU | Lead: 6 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0200-1Model: KSF4RU | Lead: 6 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0250-0Model: KSF4RU | Lead: 6 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0250-1Model: KSF4RU | Lead: 6 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0300-0Model: KSF4RU | Lead: 6 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0300-1Model: KSF4RU | Lead: 6 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0350-0Model: KSF4RU | Lead: 6 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0350-1Model: KSF4RU | Lead: 6 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0400-0Model: KSF4RU | Lead: 6 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0400-1Model: KSF4RU | Lead: 6 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0450-0Model: KSF4RU | Lead: 6 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0450-1Model: KSF4RU | Lead: 6 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0500-0Model: KSF4RU | Lead: 6 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 360 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0500-1Model: KSF4RU | Lead: 6 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 360 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0550-0Model: KSF4RU | Lead: 6 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0550-1Model: KSF4RU | Lead: 6 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0600-0Model: KSF4RU | Lead: 6 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0600-1Model: KSF4RU | Lead: 6 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0650-0Model: KSF4RU | Lead: 6 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0650-1Model: KSF4RU | Lead: 6 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0700-0Model: KSF4RU | Lead: 6 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 190 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0700-1Model: KSF4RU | Lead: 6 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 190 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0750-0Model: KSF4RU | Lead: 6 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0750-1Model: KSF4RU | Lead: 6 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0800-0Model: KSF4RU | Lead: 6 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0800-1Model: KSF4RU | Lead: 6 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0850-0Model: KSF4RU | Lead: 6 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 130 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0850-1Model: KSF4RU | Lead: 6 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 130 mm/s | Motor: 1 (mounted by THK)
KSF4RU-06-0900-0Model: KSF4RU | Lead: 6 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 120 mm/s | Motor: 0 (not mounted)
KSF4RU-06-0900-1Model: KSF4RU | Lead: 6 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 120 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0050-0Model: KSF4RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0050-1Model: KSF4RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0100-0Model: KSF4RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0100-1Model: KSF4RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0150-0Model: KSF4RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0150-1Model: KSF4RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0200-0Model: KSF4RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0200-1Model: KSF4RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0250-0Model: KSF4RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0250-1Model: KSF4RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0300-0Model: KSF4RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0300-1Model: KSF4RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0350-0Model: KSF4RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0350-1Model: KSF4RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0400-0Model: KSF4RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0400-1Model: KSF4RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0450-0Model: KSF4RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0450-1Model: KSF4RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0500-0Model: KSF4RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 620 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0500-1Model: KSF4RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 620 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0550-0Model: KSF4RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0550-1Model: KSF4RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0600-0Model: KSF4RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0600-1Model: KSF4RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0650-0Model: KSF4RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0650-1Model: KSF4RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0700-0Model: KSF4RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0700-1Model: KSF4RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0750-0Model: KSF4RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0750-1Model: KSF4RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0800-0Model: KSF4RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0800-1Model: KSF4RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0850-0Model: KSF4RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0850-1Model: KSF4RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF4RU-10-0900-0Model: KSF4RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF4RU-10-0900-1Model: KSF4RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0050-0Model: KSF4RU | Lead: 16 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0050-1Model: KSF4RU | Lead: 16 mm | Stroke: 50 mm | L1 / mass: 264 mm / 1.5 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0100-0Model: KSF4RU | Lead: 16 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0100-1Model: KSF4RU | Lead: 16 mm | Stroke: 100 mm | L1 / mass: 314 mm / 1.7 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0150-0Model: KSF4RU | Lead: 16 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0150-1Model: KSF4RU | Lead: 16 mm | Stroke: 150 mm | L1 / mass: 364 mm / 1.8 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0200-0Model: KSF4RU | Lead: 16 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0200-1Model: KSF4RU | Lead: 16 mm | Stroke: 200 mm | L1 / mass: 414 mm / 2 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0250-0Model: KSF4RU | Lead: 16 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0250-1Model: KSF4RU | Lead: 16 mm | Stroke: 250 mm | L1 / mass: 464 mm / 2.2 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0300-0Model: KSF4RU | Lead: 16 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0300-1Model: KSF4RU | Lead: 16 mm | Stroke: 300 mm | L1 / mass: 514 mm / 2.3 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0350-0Model: KSF4RU | Lead: 16 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0350-1Model: KSF4RU | Lead: 16 mm | Stroke: 350 mm | L1 / mass: 564 mm / 2.5 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0400-0Model: KSF4RU | Lead: 16 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0400-1Model: KSF4RU | Lead: 16 mm | Stroke: 400 mm | L1 / mass: 614 mm / 2.6 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0450-0Model: KSF4RU | Lead: 16 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 1060 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0450-1Model: KSF4RU | Lead: 16 mm | Stroke: 450 mm | L1 / mass: 664 mm / 2.8 kg | Max speed: 1060 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0500-0Model: KSF4RU | Lead: 16 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 990 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0500-1Model: KSF4RU | Lead: 16 mm | Stroke: 500 mm | L1 / mass: 714 mm / 3 kg | Max speed: 990 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0550-0Model: KSF4RU | Lead: 16 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0550-1Model: KSF4RU | Lead: 16 mm | Stroke: 550 mm | L1 / mass: 764 mm / 3.1 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0600-0Model: KSF4RU | Lead: 16 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 710 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0600-1Model: KSF4RU | Lead: 16 mm | Stroke: 600 mm | L1 / mass: 814 mm / 3.3 kg | Max speed: 710 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0650-0Model: KSF4RU | Lead: 16 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 620 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0650-1Model: KSF4RU | Lead: 16 mm | Stroke: 650 mm | L1 / mass: 864 mm / 3.4 kg | Max speed: 620 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0700-0Model: KSF4RU | Lead: 16 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 540 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0700-1Model: KSF4RU | Lead: 16 mm | Stroke: 700 mm | L1 / mass: 914 mm / 3.6 kg | Max speed: 540 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0750-0Model: KSF4RU | Lead: 16 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0750-1Model: KSF4RU | Lead: 16 mm | Stroke: 750 mm | L1 / mass: 964 mm / 3.8 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0800-0Model: KSF4RU | Lead: 16 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0800-1Model: KSF4RU | Lead: 16 mm | Stroke: 800 mm | L1 / mass: 1014 mm / 3.9 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0850-0Model: KSF4RU | Lead: 16 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0850-1Model: KSF4RU | Lead: 16 mm | Stroke: 850 mm | L1 / mass: 1064 mm / 4.1 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF4RU-16-0900-0Model: KSF4RU | Lead: 16 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF4RU-16-0900-1Model: KSF4RU | Lead: 16 mm | Stroke: 900 mm | L1 / mass: 1114 mm / 4.2 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0050-0Model: KSF5RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0050-1Model: KSF5RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0100-0Model: KSF5RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0100-1Model: KSF5RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0150-0Model: KSF5RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0150-1Model: KSF5RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0200-0Model: KSF5RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0200-1Model: KSF5RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0250-0Model: KSF5RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0250-1Model: KSF5RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0300-0Model: KSF5RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0300-1Model: KSF5RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0350-0Model: KSF5RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0350-1Model: KSF5RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0400-0Model: KSF5RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0400-1Model: KSF5RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0450-0Model: KSF5RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0450-1Model: KSF5RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0500-0Model: KSF5RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0500-1Model: KSF5RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0550-0Model: KSF5RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 680 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0550-1Model: KSF5RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 680 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0600-0Model: KSF5RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 590 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0600-1Model: KSF5RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 590 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0650-0Model: KSF5RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0650-1Model: KSF5RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0700-0Model: KSF5RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0700-1Model: KSF5RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0750-0Model: KSF5RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0750-1Model: KSF5RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0800-0Model: KSF5RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0800-1Model: KSF5RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0850-0Model: KSF5RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0850-1Model: KSF5RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF5RU-10-0900-0Model: KSF5RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF5RU-10-0900-1Model: KSF5RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0050-0Model: KSF5RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0050-1Model: KSF5RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 279 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0100-0Model: KSF5RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0100-1Model: KSF5RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 329 mm / 2.3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0150-0Model: KSF5RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0150-1Model: KSF5RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 379 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0200-0Model: KSF5RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0200-1Model: KSF5RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 429 mm / 2.8 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0250-0Model: KSF5RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0250-1Model: KSF5RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 479 mm / 3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0300-0Model: KSF5RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0300-1Model: KSF5RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 529 mm / 3.3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0350-0Model: KSF5RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0350-1Model: KSF5RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 579 mm / 3.5 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0400-0Model: KSF5RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0400-1Model: KSF5RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 629 mm / 3.8 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0450-0Model: KSF5RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0450-1Model: KSF5RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 679 mm / 4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0500-0Model: KSF5RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0500-1Model: KSF5RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 729 mm / 4.3 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0550-0Model: KSF5RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0550-1Model: KSF5RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 779 mm / 4.5 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0600-0Model: KSF5RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 1180 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0600-1Model: KSF5RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 829 mm / 4.8 kg | Max speed: 1180 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0650-0Model: KSF5RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 1020 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0650-1Model: KSF5RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 879 mm / 5 kg | Max speed: 1020 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0700-0Model: KSF5RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0700-1Model: KSF5RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 929 mm / 5.2 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0750-0Model: KSF5RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 790 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0750-1Model: KSF5RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 979 mm / 5.5 kg | Max speed: 790 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0800-0Model: KSF5RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 700 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0800-1Model: KSF5RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1029 mm / 5.7 kg | Max speed: 700 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0850-0Model: KSF5RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0850-1Model: KSF5RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1079 mm / 6 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF5RU-20-0900-0Model: KSF5RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF5RU-20-0900-1Model: KSF5RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1129 mm / 6.2 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0050-0Model: KSF6RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0050-1Model: KSF6RU | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0100-0Model: KSF6RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0100-1Model: KSF6RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0150-0Model: KSF6RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0150-1Model: KSF6RU | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0200-0Model: KSF6RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0200-1Model: KSF6RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0250-0Model: KSF6RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0250-1Model: KSF6RU | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0300-0Model: KSF6RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0300-1Model: KSF6RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0350-0Model: KSF6RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0350-1Model: KSF6RU | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0400-0Model: KSF6RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0400-1Model: KSF6RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0450-0Model: KSF6RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0450-1Model: KSF6RU | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0500-0Model: KSF6RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0500-1Model: KSF6RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0550-0Model: KSF6RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0550-1Model: KSF6RU | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0600-0Model: KSF6RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 640 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0600-1Model: KSF6RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 640 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0650-0Model: KSF6RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0650-1Model: KSF6RU | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0700-0Model: KSF6RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 490 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0700-1Model: KSF6RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 490 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0750-0Model: KSF6RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0750-1Model: KSF6RU | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0800-0Model: KSF6RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0800-1Model: KSF6RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0850-0Model: KSF6RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0850-1Model: KSF6RU | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0900-0Model: KSF6RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0900-1Model: KSF6RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-0950-0Model: KSF6RU | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF6RU-10-0950-1Model: KSF6RU | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1000-0Model: KSF6RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1000-1Model: KSF6RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1050-0Model: KSF6RU | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1050-1Model: KSF6RU | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1100-0Model: KSF6RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1100-1Model: KSF6RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1150-0Model: KSF6RU | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1150-1Model: KSF6RU | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1200-0Model: KSF6RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1200-1Model: KSF6RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1250-0Model: KSF6RU | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1250-1Model: KSF6RU | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF6RU-10-1300-0Model: KSF6RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 160 mm/s | Motor: 0 (not mounted)
KSF6RU-10-1300-1Model: KSF6RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 160 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0050-0Model: KSF6RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0050-1Model: KSF6RU | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0100-0Model: KSF6RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0100-1Model: KSF6RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0150-0Model: KSF6RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0150-1Model: KSF6RU | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0200-0Model: KSF6RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0200-1Model: KSF6RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0250-0Model: KSF6RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0250-1Model: KSF6RU | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0300-0Model: KSF6RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0300-1Model: KSF6RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0350-0Model: KSF6RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0350-1Model: KSF6RU | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0400-0Model: KSF6RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0400-1Model: KSF6RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0450-0Model: KSF6RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0450-1Model: KSF6RU | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0500-0Model: KSF6RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0500-1Model: KSF6RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0550-0Model: KSF6RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0550-1Model: KSF6RU | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0600-0Model: KSF6RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0600-1Model: KSF6RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0650-0Model: KSF6RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0650-1Model: KSF6RU | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0700-0Model: KSF6RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0700-1Model: KSF6RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0750-0Model: KSF6RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 870 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0750-1Model: KSF6RU | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 870 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0800-0Model: KSF6RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 770 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0800-1Model: KSF6RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 770 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0850-0Model: KSF6RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 690 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0850-1Model: KSF6RU | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 690 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0900-0Model: KSF6RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0900-1Model: KSF6RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-0950-0Model: KSF6RU | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF6RU-20-0950-1Model: KSF6RU | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1000-0Model: KSF6RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1000-1Model: KSF6RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1050-0Model: KSF6RU | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 470 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1050-1Model: KSF6RU | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 470 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1100-0Model: KSF6RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1100-1Model: KSF6RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1150-0Model: KSF6RU | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 400 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1150-1Model: KSF6RU | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 400 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1200-0Model: KSF6RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 370 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1200-1Model: KSF6RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 370 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1250-0Model: KSF6RU | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1250-1Model: KSF6RU | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6RU-20-1300-0Model: KSF6RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF6RU-20-1300-1Model: KSF6RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0050-0Model: KSF6RU | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0050-1Model: KSF6RU | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 336 mm / 4 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0100-0Model: KSF6RU | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0100-1Model: KSF6RU | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 386 mm / 4.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0150-0Model: KSF6RU | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0150-1Model: KSF6RU | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 436 mm / 4.7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0200-0Model: KSF6RU | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0200-1Model: KSF6RU | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 486 mm / 5 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0250-0Model: KSF6RU | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0250-1Model: KSF6RU | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 536 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0300-0Model: KSF6RU | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0300-1Model: KSF6RU | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 586 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0350-0Model: KSF6RU | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0350-1Model: KSF6RU | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 636 mm / 6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0400-0Model: KSF6RU | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0400-1Model: KSF6RU | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 686 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0450-0Model: KSF6RU | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0450-1Model: KSF6RU | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 736 mm / 6.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0500-0Model: KSF6RU | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0500-1Model: KSF6RU | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 786 mm / 7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0550-0Model: KSF6RU | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0550-1Model: KSF6RU | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 836 mm / 7.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0600-0Model: KSF6RU | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0600-1Model: KSF6RU | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 886 mm / 7.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0650-0Model: KSF6RU | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0650-1Model: KSF6RU | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 936 mm / 8 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0700-0Model: KSF6RU | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 1480 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0700-1Model: KSF6RU | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 986 mm / 8.3 kg | Max speed: 1480 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0750-0Model: KSF6RU | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 1310 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0750-1Model: KSF6RU | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1036 mm / 8.6 kg | Max speed: 1310 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0800-0Model: KSF6RU | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0800-1Model: KSF6RU | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1086 mm / 8.9 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0850-0Model: KSF6RU | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 1040 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0850-1Model: KSF6RU | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1136 mm / 9.3 kg | Max speed: 1040 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0900-0Model: KSF6RU | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 940 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0900-1Model: KSF6RU | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1186 mm / 9.6 kg | Max speed: 940 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-0950-0Model: KSF6RU | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 850 mm/s | Motor: 0 (not mounted)
KSF6RU-30-0950-1Model: KSF6RU | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1236 mm / 9.9 kg | Max speed: 850 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1000-0Model: KSF6RU | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 780 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1000-1Model: KSF6RU | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1286 mm / 10.3 kg | Max speed: 780 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1050-0Model: KSF6RU | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 710 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1050-1Model: KSF6RU | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1336 mm / 10.6 kg | Max speed: 710 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1100-0Model: KSF6RU | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1100-1Model: KSF6RU | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1386 mm / 10.9 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1150-0Model: KSF6RU | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1150-1Model: KSF6RU | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1436 mm / 11.2 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1200-0Model: KSF6RU | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1200-1Model: KSF6RU | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1486 mm / 11.6 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1250-0Model: KSF6RU | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1250-1Model: KSF6RU | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1536 mm / 11.9 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF6RU-30-1300-0Model: KSF6RU | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF6RU-30-1300-1Model: KSF6RU | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1586 mm / 12.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0100-0Model: KSF8RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0100-1Model: KSF8RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0200-0Model: KSF8RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0200-1Model: KSF8RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0300-0Model: KSF8RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0300-1Model: KSF8RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0400-0Model: KSF8RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0400-1Model: KSF8RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0500-0Model: KSF8RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0500-1Model: KSF8RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0600-0Model: KSF8RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0600-1Model: KSF8RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0700-0Model: KSF8RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0700-1Model: KSF8RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0800-0Model: KSF8RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 250 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0800-1Model: KSF8RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 250 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-0900-0Model: KSF8RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8RU-05-0900-1Model: KSF8RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1000-0Model: KSF8RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1000-1Model: KSF8RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1100-0Model: KSF8RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 140 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1100-1Model: KSF8RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 140 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1200-0Model: KSF8RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 120 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1200-1Model: KSF8RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 120 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1300-0Model: KSF8RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1300-1Model: KSF8RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1400-0Model: KSF8RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 90 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1400-1Model: KSF8RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 90 mm/s | Motor: 1 (mounted by THK)
KSF8RU-05-1500-0Model: KSF8RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 80 mm/s | Motor: 0 (not mounted)
KSF8RU-05-1500-1Model: KSF8RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 80 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0100-0Model: KSF8RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0100-1Model: KSF8RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0200-0Model: KSF8RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0200-1Model: KSF8RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0300-0Model: KSF8RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0300-1Model: KSF8RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0400-0Model: KSF8RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0400-1Model: KSF8RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0500-0Model: KSF8RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0500-1Model: KSF8RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0600-0Model: KSF8RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0600-1Model: KSF8RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0700-0Model: KSF8RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0700-1Model: KSF8RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0800-0Model: KSF8RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0800-1Model: KSF8RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-0900-0Model: KSF8RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF8RU-10-0900-1Model: KSF8RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1000-0Model: KSF8RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 330 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1000-1Model: KSF8RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 330 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1100-0Model: KSF8RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 270 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1100-1Model: KSF8RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 270 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1200-0Model: KSF8RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1200-1Model: KSF8RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1300-0Model: KSF8RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1300-1Model: KSF8RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1400-0Model: KSF8RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1400-1Model: KSF8RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF8RU-10-1500-0Model: KSF8RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF8RU-10-1500-1Model: KSF8RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0100-0Model: KSF8RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0100-1Model: KSF8RU | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0200-0Model: KSF8RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0200-1Model: KSF8RU | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0300-0Model: KSF8RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0300-1Model: KSF8RU | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0400-0Model: KSF8RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0400-1Model: KSF8RU | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0500-0Model: KSF8RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0500-1Model: KSF8RU | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0600-0Model: KSF8RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0600-1Model: KSF8RU | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0700-0Model: KSF8RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0700-1Model: KSF8RU | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0800-0Model: KSF8RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0800-1Model: KSF8RU | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-0900-0Model: KSF8RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF8RU-20-0900-1Model: KSF8RU | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1000-0Model: KSF8RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 670 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1000-1Model: KSF8RU | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 670 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1100-0Model: KSF8RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1100-1Model: KSF8RU | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1200-0Model: KSF8RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1200-1Model: KSF8RU | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1300-0Model: KSF8RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1300-1Model: KSF8RU | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1400-0Model: KSF8RU | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 360 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1400-1Model: KSF8RU | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 360 mm/s | Motor: 1 (mounted by THK)
KSF8RU-20-1500-0Model: KSF8RU | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF8RU-20-1500-1Model: KSF8RU | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0100-0Model: KSF8RU | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0100-1Model: KSF8RU | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 455 mm / 8 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0200-0Model: KSF8RU | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0200-1Model: KSF8RU | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 555 mm / 9.2 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0300-0Model: KSF8RU | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0300-1Model: KSF8RU | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 655 mm / 10.4 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0400-0Model: KSF8RU | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0400-1Model: KSF8RU | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 755 mm / 11.5 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0500-0Model: KSF8RU | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0500-1Model: KSF8RU | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 855 mm / 12.7 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0600-0Model: KSF8RU | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0600-1Model: KSF8RU | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 955 mm / 13.9 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0700-0Model: KSF8RU | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0700-1Model: KSF8RU | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1055 mm / 15.1 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0800-0Model: KSF8RU | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 1970 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0800-1Model: KSF8RU | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1155 mm / 16.2 kg | Max speed: 1970 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-0900-0Model: KSF8RU | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 1610 mm/s | Motor: 0 (not mounted)
KSF8RU-40-0900-1Model: KSF8RU | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1255 mm / 17.4 kg | Max speed: 1610 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1000-0Model: KSF8RU | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 1340 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1000-1Model: KSF8RU | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1355 mm / 18.6 kg | Max speed: 1340 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1100-0Model: KSF8RU | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 1130 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1100-1Model: KSF8RU | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1455 mm / 19.8 kg | Max speed: 1130 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1200-0Model: KSF8RU | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 970 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1200-1Model: KSF8RU | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1555 mm / 20.9 kg | Max speed: 970 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1300-0Model: KSF8RU | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 840 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1300-1Model: KSF8RU | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1655 mm / 22.1 kg | Max speed: 840 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1400-0Model: KSF8RU | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 730 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1400-1Model: KSF8RU | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1755 mm / 23.3 kg | Max speed: 730 mm/s | Motor: 1 (mounted by THK)
KSF8RU-40-1500-0Model: KSF8RU | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF8RU-40-1500-1Model: KSF8RU | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1855 mm / 24.4 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0100-0Model: KSF10RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0100-1Model: KSF10RU | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0200-0Model: KSF10RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0200-1Model: KSF10RU | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0300-0Model: KSF10RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0300-1Model: KSF10RU | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0400-0Model: KSF10RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0400-1Model: KSF10RU | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0500-0Model: KSF10RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0500-1Model: KSF10RU | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0600-0Model: KSF10RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0600-1Model: KSF10RU | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0700-0Model: KSF10RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0700-1Model: KSF10RU | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0800-0Model: KSF10RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0800-1Model: KSF10RU | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-0900-0Model: KSF10RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10RU-05-0900-1Model: KSF10RU | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1000-0Model: KSF10RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1000-1Model: KSF10RU | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1100-0Model: KSF10RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1100-1Model: KSF10RU | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1200-0Model: KSF10RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1200-1Model: KSF10RU | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1300-0Model: KSF10RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 130 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1300-1Model: KSF10RU | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 130 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1400-0Model: KSF10RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 110 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1400-1Model: KSF10RU | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 110 mm/s | Motor: 1 (mounted by THK)
KSF10RU-05-1500-0Model: KSF10RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF10RU-05-1500-1Model: KSF10RU | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0100-0Model: KSF10RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0100-1Model: KSF10RU | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0200-0Model: KSF10RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0200-1Model: KSF10RU | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0300-0Model: KSF10RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0300-1Model: KSF10RU | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0400-0Model: KSF10RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0400-1Model: KSF10RU | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0500-0Model: KSF10RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0500-1Model: KSF10RU | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0600-0Model: KSF10RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0600-1Model: KSF10RU | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0700-0Model: KSF10RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0700-1Model: KSF10RU | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0800-0Model: KSF10RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0800-1Model: KSF10RU | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-0900-0Model: KSF10RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10RU-10-0900-1Model: KSF10RU | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1000-0Model: KSF10RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1000-1Model: KSF10RU | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1100-0Model: KSF10RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1100-1Model: KSF10RU | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1200-0Model: KSF10RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1200-1Model: KSF10RU | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1300-0Model: KSF10RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1300-1Model: KSF10RU | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1400-0Model: KSF10RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1400-1Model: KSF10RU | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF10RU-10-1500-0Model: KSF10RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF10RU-10-1500-1Model: KSF10RU | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0100-0Model: KSF10RU | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0100-1Model: KSF10RU | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0200-0Model: KSF10RU | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0200-1Model: KSF10RU | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0300-0Model: KSF10RU | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0300-1Model: KSF10RU | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0400-0Model: KSF10RU | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0400-1Model: KSF10RU | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0500-0Model: KSF10RU | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0500-1Model: KSF10RU | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0600-0Model: KSF10RU | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0600-1Model: KSF10RU | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0700-0Model: KSF10RU | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0700-1Model: KSF10RU | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0800-0Model: KSF10RU | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0800-1Model: KSF10RU | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-0900-0Model: KSF10RU | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10RU-25-0900-1Model: KSF10RU | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1000-0Model: KSF10RU | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 1050 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1000-1Model: KSF10RU | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 1050 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1100-0Model: KSF10RU | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1100-1Model: KSF10RU | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1200-0Model: KSF10RU | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 760 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1200-1Model: KSF10RU | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 760 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1300-0Model: KSF10RU | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 660 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1300-1Model: KSF10RU | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 660 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1400-0Model: KSF10RU | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 580 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1400-1Model: KSF10RU | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 580 mm/s | Motor: 1 (mounted by THK)
KSF10RU-25-1500-0Model: KSF10RU | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF10RU-25-1500-1Model: KSF10RU | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0100-0Model: KSF10RU | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0100-1Model: KSF10RU | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 498 mm / 14.4 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0200-0Model: KSF10RU | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0200-1Model: KSF10RU | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 598 mm / 16.2 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0300-0Model: KSF10RU | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0300-1Model: KSF10RU | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 698 mm / 18.1 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0400-0Model: KSF10RU | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0400-1Model: KSF10RU | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 798 mm / 20 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0500-0Model: KSF10RU | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0500-1Model: KSF10RU | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 898 mm / 21.9 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0600-0Model: KSF10RU | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0600-1Model: KSF10RU | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 998 mm / 23.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0700-0Model: KSF10RU | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0700-1Model: KSF10RU | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1098 mm / 25.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0800-0Model: KSF10RU | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0800-1Model: KSF10RU | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1198 mm / 27.5 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-0900-0Model: KSF10RU | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10RU-50-0900-1Model: KSF10RU | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1298 mm / 29.4 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1000-0Model: KSF10RU | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 2110 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1000-1Model: KSF10RU | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1398 mm / 31.3 kg | Max speed: 2110 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1100-0Model: KSF10RU | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 1790 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1100-1Model: KSF10RU | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1498 mm / 33.2 kg | Max speed: 1790 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1200-0Model: KSF10RU | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 1530 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1200-1Model: KSF10RU | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1598 mm / 35.1 kg | Max speed: 1530 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1300-0Model: KSF10RU | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1300-1Model: KSF10RU | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1698 mm / 36.9 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1400-0Model: KSF10RU | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1400-1Model: KSF10RU | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1798 mm / 38.8 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF10RU-50-1500-0Model: KSF10RU | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 1030 mm/s | Motor: 0 (not mounted)
KSF10RU-50-1500-1Model: KSF10RU | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1898 mm / 40.7 kg | Max speed: 1030 mm/s | Motor: 1 (mounted by THK)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
