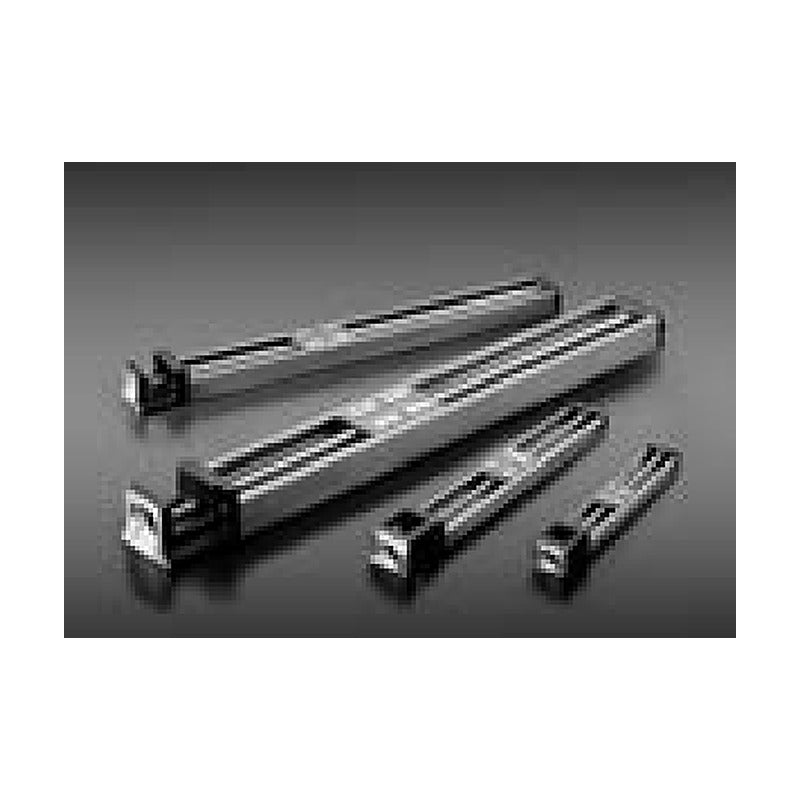

THK KSF-T LM Guide Actuator (Top Cover, Motor Inline, KSF5-10)

THK KSF-T LM Guide Actuator (Top Cover, Motor Inline, KSF5-10)

THK KSF top cover (t) LM guide actuators (motor inline) integrate an LM guide and a large-diameter ball screw in a U-shaped outer rail for compact, rigid, high-speed positioning.

Key features

  • U-section high-rigidity outer rail with integrated LM guide raceways and ball screw in one inner block
  • Four-way equal load rating: balls at 45 deg contact on each raceway
  • Large-diameter, large-lead ball screw for high speed (up to 2,500 mm/s on KSF10 lead 50)
  • Repeatability +/-0.01 mm, lost motion 0.1 mm; end seals and side seals standard
  • Motor mounted inline via intermediate flange and coupling
  • Options: rear tapped sub table, sensor rail, photo/proximity sensors, steel sub table

Specifications

Series KSF
Cover Top cover (T)
Motor layout Motor Inline
Models KSF5T, KSF6T, KSF8T, KSF10T
Ball screw shaft dia. KSF5: 13 mm, KSF6: 15 mm, KSF8: 20 mm, KSF10: 25 mm
Basic load rating C / C0 (guide) 5: 10200/17900 N; 6: 17400/33000 N; 8: 32400/63500 N; 10: 58500/103700 N
Repeatability +/-0.01 mm
Lost motion 0.1 mm
Code composition Model-lead-stroke-motor, then flange, shaft dia., shaft fixing, options
Intermediate flange Inline codes A0, AP, AQ, AR, AU, AV, AY, AZ, A5, A6
Options (field 8) MR/ML/MD (parallel side), T, 1, 6, J, M, F
Source THK General Catalog LM Guide Actuator (Korean ed. 515-2K), p. A2-268-A2-355
KSF5T-10-0050-0 Model: KSF5T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0050-1 Model: KSF5T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0100-0 Model: KSF5T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0100-1 Model: KSF5T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0150-0 Model: KSF5T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0150-1 Model: KSF5T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0200-0 Model: KSF5T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0200-1 Model: KSF5T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0250-0 Model: KSF5T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0250-1 Model: KSF5T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0300-0 Model: KSF5T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0300-1 Model: KSF5T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0350-0 Model: KSF5T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0350-1 Model: KSF5T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0400-0 Model: KSF5T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0400-1 Model: KSF5T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0450-0 Model: KSF5T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0450-1 Model: KSF5T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0500-0 Model: KSF5T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF5T-10-0500-1 Model: KSF5T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0550-0 Model: KSF5T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 680 mm/s | Motor: 0 (not mounted)
KSF5T-10-0550-1 Model: KSF5T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 680 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0600-0 Model: KSF5T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 590 mm/s | Motor: 0 (not mounted)
KSF5T-10-0600-1 Model: KSF5T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 590 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0650-0 Model: KSF5T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF5T-10-0650-1 Model: KSF5T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0700-0 Model: KSF5T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF5T-10-0700-1 Model: KSF5T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0750-0 Model: KSF5T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF5T-10-0750-1 Model: KSF5T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0800-0 Model: KSF5T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF5T-10-0800-1 Model: KSF5T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0850-0 Model: KSF5T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF5T-10-0850-1 Model: KSF5T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0900-0 Model: KSF5T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF5T-10-0900-1 Model: KSF5T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0050-0 Model: KSF5T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0050-1 Model: KSF5T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0100-0 Model: KSF5T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0100-1 Model: KSF5T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0150-0 Model: KSF5T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0150-1 Model: KSF5T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0200-0 Model: KSF5T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0200-1 Model: KSF5T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0250-0 Model: KSF5T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0250-1 Model: KSF5T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0300-0 Model: KSF5T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0300-1 Model: KSF5T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0350-0 Model: KSF5T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0350-1 Model: KSF5T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0400-0 Model: KSF5T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0400-1 Model: KSF5T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0450-0 Model: KSF5T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0450-1 Model: KSF5T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0500-0 Model: KSF5T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0500-1 Model: KSF5T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0550-0 Model: KSF5T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0550-1 Model: KSF5T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0600-0 Model: KSF5T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 1180 mm/s | Motor: 0 (not mounted)
KSF5T-20-0600-1 Model: KSF5T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 1180 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0650-0 Model: KSF5T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 1020 mm/s | Motor: 0 (not mounted)
KSF5T-20-0650-1 Model: KSF5T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 1020 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0700-0 Model: KSF5T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF5T-20-0700-1 Model: KSF5T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0750-0 Model: KSF5T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 790 mm/s | Motor: 0 (not mounted)
KSF5T-20-0750-1 Model: KSF5T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 790 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0800-0 Model: KSF5T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 700 mm/s | Motor: 0 (not mounted)
KSF5T-20-0800-1 Model: KSF5T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 700 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0850-0 Model: KSF5T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF5T-20-0850-1 Model: KSF5T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0900-0 Model: KSF5T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF5T-20-0900-1 Model: KSF5T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0050-0 Model: KSF6T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0050-1 Model: KSF6T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0100-0 Model: KSF6T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0100-1 Model: KSF6T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0150-0 Model: KSF6T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0150-1 Model: KSF6T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0200-0 Model: KSF6T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0200-1 Model: KSF6T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0250-0 Model: KSF6T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0250-1 Model: KSF6T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0300-0 Model: KSF6T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0300-1 Model: KSF6T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0350-0 Model: KSF6T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0350-1 Model: KSF6T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0400-0 Model: KSF6T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0400-1 Model: KSF6T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0450-0 Model: KSF6T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0450-1 Model: KSF6T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0500-0 Model: KSF6T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0500-1 Model: KSF6T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0550-0 Model: KSF6T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0550-1 Model: KSF6T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0600-0 Model: KSF6T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 640 mm/s | Motor: 0 (not mounted)
KSF6T-10-0600-1 Model: KSF6T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 640 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0650-0 Model: KSF6T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF6T-10-0650-1 Model: KSF6T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0700-0 Model: KSF6T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 490 mm/s | Motor: 0 (not mounted)
KSF6T-10-0700-1 Model: KSF6T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 490 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0750-0 Model: KSF6T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6T-10-0750-1 Model: KSF6T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0800-0 Model: KSF6T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF6T-10-0800-1 Model: KSF6T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0850-0 Model: KSF6T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6T-10-0850-1 Model: KSF6T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0900-0 Model: KSF6T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF6T-10-0900-1 Model: KSF6T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0950-0 Model: KSF6T | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF6T-10-0950-1 Model: KSF6T | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1000-0 Model: KSF6T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF6T-10-1000-1 Model: KSF6T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1050-0 Model: KSF6T | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF6T-10-1050-1 Model: KSF6T | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1100-0 Model: KSF6T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF6T-10-1100-1 Model: KSF6T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1150-0 Model: KSF6T | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF6T-10-1150-1 Model: KSF6T | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1200-0 Model: KSF6T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF6T-10-1200-1 Model: KSF6T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1250-0 Model: KSF6T | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF6T-10-1250-1 Model: KSF6T | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1300-0 Model: KSF6T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 160 mm/s | Motor: 0 (not mounted)
KSF6T-10-1300-1 Model: KSF6T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 160 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0050-0 Model: KSF6T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0050-1 Model: KSF6T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0100-0 Model: KSF6T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0100-1 Model: KSF6T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0150-0 Model: KSF6T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0150-1 Model: KSF6T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0200-0 Model: KSF6T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0200-1 Model: KSF6T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0250-0 Model: KSF6T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0250-1 Model: KSF6T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0300-0 Model: KSF6T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0300-1 Model: KSF6T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0350-0 Model: KSF6T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0350-1 Model: KSF6T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0400-0 Model: KSF6T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0400-1 Model: KSF6T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0450-0 Model: KSF6T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0450-1 Model: KSF6T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0500-0 Model: KSF6T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0500-1 Model: KSF6T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0550-0 Model: KSF6T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0550-1 Model: KSF6T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0600-0 Model: KSF6T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0600-1 Model: KSF6T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0650-0 Model: KSF6T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0650-1 Model: KSF6T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0700-0 Model: KSF6T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF6T-20-0700-1 Model: KSF6T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0750-0 Model: KSF6T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 870 mm/s | Motor: 0 (not mounted)
KSF6T-20-0750-1 Model: KSF6T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 870 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0800-0 Model: KSF6T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 770 mm/s | Motor: 0 (not mounted)
KSF6T-20-0800-1 Model: KSF6T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 770 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0850-0 Model: KSF6T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 690 mm/s | Motor: 0 (not mounted)
KSF6T-20-0850-1 Model: KSF6T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 690 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0900-0 Model: KSF6T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF6T-20-0900-1 Model: KSF6T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0950-0 Model: KSF6T | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF6T-20-0950-1 Model: KSF6T | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1000-0 Model: KSF6T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF6T-20-1000-1 Model: KSF6T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1050-0 Model: KSF6T | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 470 mm/s | Motor: 0 (not mounted)
KSF6T-20-1050-1 Model: KSF6T | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 470 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1100-0 Model: KSF6T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6T-20-1100-1 Model: KSF6T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1150-0 Model: KSF6T | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 400 mm/s | Motor: 0 (not mounted)
KSF6T-20-1150-1 Model: KSF6T | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 400 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1200-0 Model: KSF6T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 370 mm/s | Motor: 0 (not mounted)
KSF6T-20-1200-1 Model: KSF6T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 370 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1250-0 Model: KSF6T | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6T-20-1250-1 Model: KSF6T | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1300-0 Model: KSF6T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF6T-20-1300-1 Model: KSF6T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0050-0 Model: KSF6T | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0050-1 Model: KSF6T | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0100-0 Model: KSF6T | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0100-1 Model: KSF6T | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0150-0 Model: KSF6T | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0150-1 Model: KSF6T | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0200-0 Model: KSF6T | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0200-1 Model: KSF6T | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0250-0 Model: KSF6T | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0250-1 Model: KSF6T | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0300-0 Model: KSF6T | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0300-1 Model: KSF6T | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0350-0 Model: KSF6T | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0350-1 Model: KSF6T | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0400-0 Model: KSF6T | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0400-1 Model: KSF6T | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0450-0 Model: KSF6T | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0450-1 Model: KSF6T | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0500-0 Model: KSF6T | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0500-1 Model: KSF6T | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0550-0 Model: KSF6T | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0550-1 Model: KSF6T | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0600-0 Model: KSF6T | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0600-1 Model: KSF6T | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0650-0 Model: KSF6T | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0650-1 Model: KSF6T | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0700-0 Model: KSF6T | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 1480 mm/s | Motor: 0 (not mounted)
KSF6T-30-0700-1 Model: KSF6T | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 1480 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0750-0 Model: KSF6T | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 1310 mm/s | Motor: 0 (not mounted)
KSF6T-30-0750-1 Model: KSF6T | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 1310 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0800-0 Model: KSF6T | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF6T-30-0800-1 Model: KSF6T | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0850-0 Model: KSF6T | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 1040 mm/s | Motor: 0 (not mounted)
KSF6T-30-0850-1 Model: KSF6T | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 1040 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0900-0 Model: KSF6T | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 940 mm/s | Motor: 0 (not mounted)
KSF6T-30-0900-1 Model: KSF6T | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 940 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0950-0 Model: KSF6T | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 850 mm/s | Motor: 0 (not mounted)
KSF6T-30-0950-1 Model: KSF6T | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 850 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1000-0 Model: KSF6T | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 780 mm/s | Motor: 0 (not mounted)
KSF6T-30-1000-1 Model: KSF6T | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 780 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1050-0 Model: KSF6T | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 710 mm/s | Motor: 0 (not mounted)
KSF6T-30-1050-1 Model: KSF6T | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 710 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1100-0 Model: KSF6T | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF6T-30-1100-1 Model: KSF6T | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1150-0 Model: KSF6T | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF6T-30-1150-1 Model: KSF6T | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1200-0 Model: KSF6T | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF6T-30-1200-1 Model: KSF6T | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1250-0 Model: KSF6T | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF6T-30-1250-1 Model: KSF6T | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1300-0 Model: KSF6T | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF6T-30-1300-1 Model: KSF6T | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0100-0 Model: KSF8T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0100-1 Model: KSF8T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0200-0 Model: KSF8T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0200-1 Model: KSF8T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0300-0 Model: KSF8T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0300-1 Model: KSF8T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0400-0 Model: KSF8T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0400-1 Model: KSF8T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0500-0 Model: KSF8T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0500-1 Model: KSF8T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0600-0 Model: KSF8T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0600-1 Model: KSF8T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0700-0 Model: KSF8T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0700-1 Model: KSF8T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0800-0 Model: KSF8T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 250 mm/s | Motor: 0 (not mounted)
KSF8T-05-0800-1 Model: KSF8T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 250 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0900-0 Model: KSF8T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8T-05-0900-1 Model: KSF8T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1000-0 Model: KSF8T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF8T-05-1000-1 Model: KSF8T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1100-0 Model: KSF8T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 140 mm/s | Motor: 0 (not mounted)
KSF8T-05-1100-1 Model: KSF8T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 140 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1200-0 Model: KSF8T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 120 mm/s | Motor: 0 (not mounted)
KSF8T-05-1200-1 Model: KSF8T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 120 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1300-0 Model: KSF8T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF8T-05-1300-1 Model: KSF8T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1400-0 Model: KSF8T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 90 mm/s | Motor: 0 (not mounted)
KSF8T-05-1400-1 Model: KSF8T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 90 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1500-0 Model: KSF8T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 80 mm/s | Motor: 0 (not mounted)
KSF8T-05-1500-1 Model: KSF8T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 80 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0100-0 Model: KSF8T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0100-1 Model: KSF8T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0200-0 Model: KSF8T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0200-1 Model: KSF8T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0300-0 Model: KSF8T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0300-1 Model: KSF8T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0400-0 Model: KSF8T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0400-1 Model: KSF8T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0500-0 Model: KSF8T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0500-1 Model: KSF8T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0600-0 Model: KSF8T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0600-1 Model: KSF8T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0700-0 Model: KSF8T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0700-1 Model: KSF8T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0800-0 Model: KSF8T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8T-10-0800-1 Model: KSF8T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0900-0 Model: KSF8T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF8T-10-0900-1 Model: KSF8T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1000-0 Model: KSF8T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 330 mm/s | Motor: 0 (not mounted)
KSF8T-10-1000-1 Model: KSF8T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 330 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1100-0 Model: KSF8T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 270 mm/s | Motor: 0 (not mounted)
KSF8T-10-1100-1 Model: KSF8T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 270 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1200-0 Model: KSF8T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF8T-10-1200-1 Model: KSF8T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1300-0 Model: KSF8T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8T-10-1300-1 Model: KSF8T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1400-0 Model: KSF8T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF8T-10-1400-1 Model: KSF8T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1500-0 Model: KSF8T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF8T-10-1500-1 Model: KSF8T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0100-0 Model: KSF8T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0100-1 Model: KSF8T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0200-0 Model: KSF8T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0200-1 Model: KSF8T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0300-0 Model: KSF8T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0300-1 Model: KSF8T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0400-0 Model: KSF8T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0400-1 Model: KSF8T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0500-0 Model: KSF8T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0500-1 Model: KSF8T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0600-0 Model: KSF8T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0600-1 Model: KSF8T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0700-0 Model: KSF8T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0700-1 Model: KSF8T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0800-0 Model: KSF8T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF8T-20-0800-1 Model: KSF8T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0900-0 Model: KSF8T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF8T-20-0900-1 Model: KSF8T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1000-0 Model: KSF8T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 670 mm/s | Motor: 0 (not mounted)
KSF8T-20-1000-1 Model: KSF8T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 670 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1100-0 Model: KSF8T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF8T-20-1100-1 Model: KSF8T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1200-0 Model: KSF8T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8T-20-1200-1 Model: KSF8T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1300-0 Model: KSF8T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF8T-20-1300-1 Model: KSF8T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1400-0 Model: KSF8T | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 360 mm/s | Motor: 0 (not mounted)
KSF8T-20-1400-1 Model: KSF8T | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 360 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1500-0 Model: KSF8T | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF8T-20-1500-1 Model: KSF8T | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0100-0 Model: KSF8T | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0100-1 Model: KSF8T | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0200-0 Model: KSF8T | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0200-1 Model: KSF8T | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0300-0 Model: KSF8T | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0300-1 Model: KSF8T | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0400-0 Model: KSF8T | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0400-1 Model: KSF8T | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0500-0 Model: KSF8T | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0500-1 Model: KSF8T | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0600-0 Model: KSF8T | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0600-1 Model: KSF8T | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0700-0 Model: KSF8T | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0700-1 Model: KSF8T | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0800-0 Model: KSF8T | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 1970 mm/s | Motor: 0 (not mounted)
KSF8T-40-0800-1 Model: KSF8T | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 1970 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0900-0 Model: KSF8T | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 1610 mm/s | Motor: 0 (not mounted)
KSF8T-40-0900-1 Model: KSF8T | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 1610 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1000-0 Model: KSF8T | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 1340 mm/s | Motor: 0 (not mounted)
KSF8T-40-1000-1 Model: KSF8T | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 1340 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1100-0 Model: KSF8T | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 1130 mm/s | Motor: 0 (not mounted)
KSF8T-40-1100-1 Model: KSF8T | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 1130 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1200-0 Model: KSF8T | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 970 mm/s | Motor: 0 (not mounted)
KSF8T-40-1200-1 Model: KSF8T | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 970 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1300-0 Model: KSF8T | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 840 mm/s | Motor: 0 (not mounted)
KSF8T-40-1300-1 Model: KSF8T | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 840 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1400-0 Model: KSF8T | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 730 mm/s | Motor: 0 (not mounted)
KSF8T-40-1400-1 Model: KSF8T | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 730 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1500-0 Model: KSF8T | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF8T-40-1500-1 Model: KSF8T | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0100-0 Model: KSF10T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0100-1 Model: KSF10T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0200-0 Model: KSF10T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0200-1 Model: KSF10T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0300-0 Model: KSF10T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0300-1 Model: KSF10T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0400-0 Model: KSF10T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0400-1 Model: KSF10T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0500-0 Model: KSF10T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0500-1 Model: KSF10T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0600-0 Model: KSF10T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0600-1 Model: KSF10T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0700-0 Model: KSF10T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0700-1 Model: KSF10T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0800-0 Model: KSF10T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0800-1 Model: KSF10T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0900-0 Model: KSF10T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0900-1 Model: KSF10T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1000-0 Model: KSF10T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF10T-05-1000-1 Model: KSF10T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1100-0 Model: KSF10T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF10T-05-1100-1 Model: KSF10T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1200-0 Model: KSF10T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF10T-05-1200-1 Model: KSF10T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1300-0 Model: KSF10T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 130 mm/s | Motor: 0 (not mounted)
KSF10T-05-1300-1 Model: KSF10T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 130 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1400-0 Model: KSF10T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 110 mm/s | Motor: 0 (not mounted)
KSF10T-05-1400-1 Model: KSF10T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 110 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1500-0 Model: KSF10T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF10T-05-1500-1 Model: KSF10T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0100-0 Model: KSF10T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0100-1 Model: KSF10T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0200-0 Model: KSF10T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0200-1 Model: KSF10T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0300-0 Model: KSF10T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0300-1 Model: KSF10T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0400-0 Model: KSF10T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0400-1 Model: KSF10T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0500-0 Model: KSF10T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0500-1 Model: KSF10T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0600-0 Model: KSF10T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0600-1 Model: KSF10T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0700-0 Model: KSF10T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0700-1 Model: KSF10T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0800-0 Model: KSF10T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0800-1 Model: KSF10T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0900-0 Model: KSF10T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0900-1 Model: KSF10T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1000-0 Model: KSF10T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF10T-10-1000-1 Model: KSF10T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1100-0 Model: KSF10T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF10T-10-1100-1 Model: KSF10T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1200-0 Model: KSF10T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF10T-10-1200-1 Model: KSF10T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1300-0 Model: KSF10T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF10T-10-1300-1 Model: KSF10T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1400-0 Model: KSF10T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF10T-10-1400-1 Model: KSF10T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1500-0 Model: KSF10T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF10T-10-1500-1 Model: KSF10T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0100-0 Model: KSF10T | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0100-1 Model: KSF10T | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0200-0 Model: KSF10T | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0200-1 Model: KSF10T | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0300-0 Model: KSF10T | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0300-1 Model: KSF10T | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0400-0 Model: KSF10T | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0400-1 Model: KSF10T | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0500-0 Model: KSF10T | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0500-1 Model: KSF10T | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0600-0 Model: KSF10T | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0600-1 Model: KSF10T | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0700-0 Model: KSF10T | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0700-1 Model: KSF10T | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0800-0 Model: KSF10T | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0800-1 Model: KSF10T | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0900-0 Model: KSF10T | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0900-1 Model: KSF10T | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1000-0 Model: KSF10T | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 1050 mm/s | Motor: 0 (not mounted)
KSF10T-25-1000-1 Model: KSF10T | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 1050 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1100-0 Model: KSF10T | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF10T-25-1100-1 Model: KSF10T | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1200-0 Model: KSF10T | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 760 mm/s | Motor: 0 (not mounted)
KSF10T-25-1200-1 Model: KSF10T | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 760 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1300-0 Model: KSF10T | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 660 mm/s | Motor: 0 (not mounted)
KSF10T-25-1300-1 Model: KSF10T | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 660 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1400-0 Model: KSF10T | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 580 mm/s | Motor: 0 (not mounted)
KSF10T-25-1400-1 Model: KSF10T | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 580 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1500-0 Model: KSF10T | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF10T-25-1500-1 Model: KSF10T | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0100-0 Model: KSF10T | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0100-1 Model: KSF10T | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0200-0 Model: KSF10T | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0200-1 Model: KSF10T | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0300-0 Model: KSF10T | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0300-1 Model: KSF10T | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0400-0 Model: KSF10T | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0400-1 Model: KSF10T | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0500-0 Model: KSF10T | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0500-1 Model: KSF10T | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0600-0 Model: KSF10T | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0600-1 Model: KSF10T | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0700-0 Model: KSF10T | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0700-1 Model: KSF10T | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0800-0 Model: KSF10T | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0800-1 Model: KSF10T | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0900-0 Model: KSF10T | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0900-1 Model: KSF10T | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1000-0 Model: KSF10T | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 2110 mm/s | Motor: 0 (not mounted)
KSF10T-50-1000-1 Model: KSF10T | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 2110 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1100-0 Model: KSF10T | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 1790 mm/s | Motor: 0 (not mounted)
KSF10T-50-1100-1 Model: KSF10T | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 1790 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1200-0 Model: KSF10T | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 1530 mm/s | Motor: 0 (not mounted)
KSF10T-50-1200-1 Model: KSF10T | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 1530 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1300-0 Model: KSF10T | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF10T-50-1300-1 Model: KSF10T | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1400-0 Model: KSF10T | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF10T-50-1400-1 Model: KSF10T | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1500-0 Model: KSF10T | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 1030 mm/s | Motor: 0 (not mounted)
KSF10T-50-1500-1 Model: KSF10T | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 1030 mm/s | Motor: 1 (mounted by THK)
LM Guide ActuatorsTHK
468 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK KSF-T LM Guide Actuator (Top Cover, Motor Inline, KSF5-10)

Brand THK·LM Guide Actuators

Available part numbers (468)

KSF5T-10-0050-0, KSF5T-10-0050-1, KSF5T-10-0100-0, KSF5T-10-0100-1, KSF5T-10-0150-0, KSF5T-10-0150-1, KSF5T-10-0200-0, KSF5T-10-0200-1, KSF5T-10-0250-0, KSF5T-10-0250-1 + 458 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KSF5T-10-0050-0Model: KSF5T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0050-1Model: KSF5T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0100-0Model: KSF5T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0100-1Model: KSF5T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0150-0Model: KSF5T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0150-1Model: KSF5T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0200-0Model: KSF5T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0200-1Model: KSF5T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0250-0Model: KSF5T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0250-1Model: KSF5T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0300-0Model: KSF5T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0300-1Model: KSF5T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0350-0Model: KSF5T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0350-1Model: KSF5T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0400-0Model: KSF5T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0400-1Model: KSF5T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0450-0Model: KSF5T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 830 mm/s | Motor: 0 (not mounted)
KSF5T-10-0450-1Model: KSF5T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 830 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0500-0Model: KSF5T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF5T-10-0500-1Model: KSF5T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0550-0Model: KSF5T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 680 mm/s | Motor: 0 (not mounted)
KSF5T-10-0550-1Model: KSF5T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 680 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0600-0Model: KSF5T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 590 mm/s | Motor: 0 (not mounted)
KSF5T-10-0600-1Model: KSF5T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 590 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0650-0Model: KSF5T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF5T-10-0650-1Model: KSF5T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0700-0Model: KSF5T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF5T-10-0700-1Model: KSF5T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0750-0Model: KSF5T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF5T-10-0750-1Model: KSF5T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0800-0Model: KSF5T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF5T-10-0800-1Model: KSF5T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0850-0Model: KSF5T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF5T-10-0850-1Model: KSF5T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF5T-10-0900-0Model: KSF5T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF5T-10-0900-1Model: KSF5T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0050-0Model: KSF5T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0050-1Model: KSF5T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 300 mm / 2.1 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0100-0Model: KSF5T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0100-1Model: KSF5T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 350 mm / 2.4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0150-0Model: KSF5T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0150-1Model: KSF5T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 400 mm / 2.6 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0200-0Model: KSF5T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0200-1Model: KSF5T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 450 mm / 2.9 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0250-0Model: KSF5T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0250-1Model: KSF5T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 500 mm / 3.2 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0300-0Model: KSF5T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0300-1Model: KSF5T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 550 mm / 3.4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0350-0Model: KSF5T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0350-1Model: KSF5T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 600 mm / 3.7 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0400-0Model: KSF5T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0400-1Model: KSF5T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 650 mm / 3.9 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0450-0Model: KSF5T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0450-1Model: KSF5T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 700 mm / 4.2 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0500-0Model: KSF5T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0500-1Model: KSF5T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 750 mm / 4.4 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0550-0Model: KSF5T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF5T-20-0550-1Model: KSF5T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 800 mm / 4.7 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0600-0Model: KSF5T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 1180 mm/s | Motor: 0 (not mounted)
KSF5T-20-0600-1Model: KSF5T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 850 mm / 5 kg | Max speed: 1180 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0650-0Model: KSF5T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 1020 mm/s | Motor: 0 (not mounted)
KSF5T-20-0650-1Model: KSF5T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 900 mm / 5.2 kg | Max speed: 1020 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0700-0Model: KSF5T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF5T-20-0700-1Model: KSF5T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 950 mm / 5.5 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0750-0Model: KSF5T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 790 mm/s | Motor: 0 (not mounted)
KSF5T-20-0750-1Model: KSF5T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1000 mm / 5.7 kg | Max speed: 790 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0800-0Model: KSF5T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 700 mm/s | Motor: 0 (not mounted)
KSF5T-20-0800-1Model: KSF5T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1050 mm / 6 kg | Max speed: 700 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0850-0Model: KSF5T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF5T-20-0850-1Model: KSF5T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1100 mm / 6.2 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF5T-20-0900-0Model: KSF5T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF5T-20-0900-1Model: KSF5T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1150 mm / 6.5 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0050-0Model: KSF6T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0050-1Model: KSF6T | Lead: 10 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0100-0Model: KSF6T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0100-1Model: KSF6T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0150-0Model: KSF6T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0150-1Model: KSF6T | Lead: 10 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0200-0Model: KSF6T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0200-1Model: KSF6T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0250-0Model: KSF6T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0250-1Model: KSF6T | Lead: 10 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0300-0Model: KSF6T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0300-1Model: KSF6T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0350-0Model: KSF6T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0350-1Model: KSF6T | Lead: 10 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0400-0Model: KSF6T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0400-1Model: KSF6T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0450-0Model: KSF6T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0450-1Model: KSF6T | Lead: 10 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0500-0Model: KSF6T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0500-1Model: KSF6T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0550-0Model: KSF6T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 740 mm/s | Motor: 0 (not mounted)
KSF6T-10-0550-1Model: KSF6T | Lead: 10 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 740 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0600-0Model: KSF6T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 640 mm/s | Motor: 0 (not mounted)
KSF6T-10-0600-1Model: KSF6T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 640 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0650-0Model: KSF6T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF6T-10-0650-1Model: KSF6T | Lead: 10 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0700-0Model: KSF6T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 490 mm/s | Motor: 0 (not mounted)
KSF6T-10-0700-1Model: KSF6T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 490 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0750-0Model: KSF6T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6T-10-0750-1Model: KSF6T | Lead: 10 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0800-0Model: KSF6T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 380 mm/s | Motor: 0 (not mounted)
KSF6T-10-0800-1Model: KSF6T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 380 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0850-0Model: KSF6T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6T-10-0850-1Model: KSF6T | Lead: 10 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0900-0Model: KSF6T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 310 mm/s | Motor: 0 (not mounted)
KSF6T-10-0900-1Model: KSF6T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 310 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-0950-0Model: KSF6T | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF6T-10-0950-1Model: KSF6T | Lead: 10 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1000-0Model: KSF6T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF6T-10-1000-1Model: KSF6T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1050-0Model: KSF6T | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF6T-10-1050-1Model: KSF6T | Lead: 10 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1100-0Model: KSF6T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF6T-10-1100-1Model: KSF6T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1150-0Model: KSF6T | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF6T-10-1150-1Model: KSF6T | Lead: 10 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1200-0Model: KSF6T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF6T-10-1200-1Model: KSF6T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1250-0Model: KSF6T | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF6T-10-1250-1Model: KSF6T | Lead: 10 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF6T-10-1300-0Model: KSF6T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 160 mm/s | Motor: 0 (not mounted)
KSF6T-10-1300-1Model: KSF6T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 160 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0050-0Model: KSF6T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0050-1Model: KSF6T | Lead: 20 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0100-0Model: KSF6T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0100-1Model: KSF6T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0150-0Model: KSF6T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0150-1Model: KSF6T | Lead: 20 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0200-0Model: KSF6T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0200-1Model: KSF6T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0250-0Model: KSF6T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0250-1Model: KSF6T | Lead: 20 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0300-0Model: KSF6T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0300-1Model: KSF6T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0350-0Model: KSF6T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0350-1Model: KSF6T | Lead: 20 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0400-0Model: KSF6T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0400-1Model: KSF6T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0450-0Model: KSF6T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0450-1Model: KSF6T | Lead: 20 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0500-0Model: KSF6T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0500-1Model: KSF6T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0550-0Model: KSF6T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0550-1Model: KSF6T | Lead: 20 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0600-0Model: KSF6T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0600-1Model: KSF6T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0650-0Model: KSF6T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF6T-20-0650-1Model: KSF6T | Lead: 20 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0700-0Model: KSF6T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF6T-20-0700-1Model: KSF6T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0750-0Model: KSF6T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 870 mm/s | Motor: 0 (not mounted)
KSF6T-20-0750-1Model: KSF6T | Lead: 20 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 870 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0800-0Model: KSF6T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 770 mm/s | Motor: 0 (not mounted)
KSF6T-20-0800-1Model: KSF6T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 770 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0850-0Model: KSF6T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 690 mm/s | Motor: 0 (not mounted)
KSF6T-20-0850-1Model: KSF6T | Lead: 20 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 690 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0900-0Model: KSF6T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 630 mm/s | Motor: 0 (not mounted)
KSF6T-20-0900-1Model: KSF6T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 630 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-0950-0Model: KSF6T | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 570 mm/s | Motor: 0 (not mounted)
KSF6T-20-0950-1Model: KSF6T | Lead: 20 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 570 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1000-0Model: KSF6T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 520 mm/s | Motor: 0 (not mounted)
KSF6T-20-1000-1Model: KSF6T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 520 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1050-0Model: KSF6T | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 470 mm/s | Motor: 0 (not mounted)
KSF6T-20-1050-1Model: KSF6T | Lead: 20 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 470 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1100-0Model: KSF6T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 430 mm/s | Motor: 0 (not mounted)
KSF6T-20-1100-1Model: KSF6T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 430 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1150-0Model: KSF6T | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 400 mm/s | Motor: 0 (not mounted)
KSF6T-20-1150-1Model: KSF6T | Lead: 20 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 400 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1200-0Model: KSF6T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 370 mm/s | Motor: 0 (not mounted)
KSF6T-20-1200-1Model: KSF6T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 370 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1250-0Model: KSF6T | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 340 mm/s | Motor: 0 (not mounted)
KSF6T-20-1250-1Model: KSF6T | Lead: 20 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 340 mm/s | Motor: 1 (mounted by THK)
KSF6T-20-1300-0Model: KSF6T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF6T-20-1300-1Model: KSF6T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0050-0Model: KSF6T | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0050-1Model: KSF6T | Lead: 30 mm | Stroke: 50 mm | L1 / mass: 360 mm / 3.9 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0100-0Model: KSF6T | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0100-1Model: KSF6T | Lead: 30 mm | Stroke: 100 mm | L1 / mass: 410 mm / 4.2 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0150-0Model: KSF6T | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0150-1Model: KSF6T | Lead: 30 mm | Stroke: 150 mm | L1 / mass: 460 mm / 4.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0200-0Model: KSF6T | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0200-1Model: KSF6T | Lead: 30 mm | Stroke: 200 mm | L1 / mass: 510 mm / 4.9 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0250-0Model: KSF6T | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0250-1Model: KSF6T | Lead: 30 mm | Stroke: 250 mm | L1 / mass: 560 mm / 5.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0300-0Model: KSF6T | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0300-1Model: KSF6T | Lead: 30 mm | Stroke: 300 mm | L1 / mass: 610 mm / 5.6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0350-0Model: KSF6T | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0350-1Model: KSF6T | Lead: 30 mm | Stroke: 350 mm | L1 / mass: 660 mm / 6 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0400-0Model: KSF6T | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0400-1Model: KSF6T | Lead: 30 mm | Stroke: 400 mm | L1 / mass: 710 mm / 6.3 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0450-0Model: KSF6T | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0450-1Model: KSF6T | Lead: 30 mm | Stroke: 450 mm | L1 / mass: 760 mm / 6.7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0500-0Model: KSF6T | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0500-1Model: KSF6T | Lead: 30 mm | Stroke: 500 mm | L1 / mass: 810 mm / 7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0550-0Model: KSF6T | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0550-1Model: KSF6T | Lead: 30 mm | Stroke: 550 mm | L1 / mass: 860 mm / 7.4 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0600-0Model: KSF6T | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0600-1Model: KSF6T | Lead: 30 mm | Stroke: 600 mm | L1 / mass: 910 mm / 7.7 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0650-0Model: KSF6T | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1500 mm/s | Motor: 0 (not mounted)
KSF6T-30-0650-1Model: KSF6T | Lead: 30 mm | Stroke: 650 mm | L1 / mass: 960 mm / 8.1 kg | Max speed: 1500 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0700-0Model: KSF6T | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 1480 mm/s | Motor: 0 (not mounted)
KSF6T-30-0700-1Model: KSF6T | Lead: 30 mm | Stroke: 700 mm | L1 / mass: 1010 mm / 8.4 kg | Max speed: 1480 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0750-0Model: KSF6T | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 1310 mm/s | Motor: 0 (not mounted)
KSF6T-30-0750-1Model: KSF6T | Lead: 30 mm | Stroke: 750 mm | L1 / mass: 1060 mm / 8.8 kg | Max speed: 1310 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0800-0Model: KSF6T | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF6T-30-0800-1Model: KSF6T | Lead: 30 mm | Stroke: 800 mm | L1 / mass: 1110 mm / 9.1 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0850-0Model: KSF6T | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 1040 mm/s | Motor: 0 (not mounted)
KSF6T-30-0850-1Model: KSF6T | Lead: 30 mm | Stroke: 850 mm | L1 / mass: 1160 mm / 9.5 kg | Max speed: 1040 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0900-0Model: KSF6T | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 940 mm/s | Motor: 0 (not mounted)
KSF6T-30-0900-1Model: KSF6T | Lead: 30 mm | Stroke: 900 mm | L1 / mass: 1210 mm / 9.8 kg | Max speed: 940 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-0950-0Model: KSF6T | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 850 mm/s | Motor: 0 (not mounted)
KSF6T-30-0950-1Model: KSF6T | Lead: 30 mm | Stroke: 950 mm | L1 / mass: 1260 mm / 10.2 kg | Max speed: 850 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1000-0Model: KSF6T | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 780 mm/s | Motor: 0 (not mounted)
KSF6T-30-1000-1Model: KSF6T | Lead: 30 mm | Stroke: 1000 mm | L1 / mass: 1310 mm / 10.5 kg | Max speed: 780 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1050-0Model: KSF6T | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 710 mm/s | Motor: 0 (not mounted)
KSF6T-30-1050-1Model: KSF6T | Lead: 30 mm | Stroke: 1050 mm | L1 / mass: 1360 mm / 10.8 kg | Max speed: 710 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1100-0Model: KSF6T | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF6T-30-1100-1Model: KSF6T | Lead: 30 mm | Stroke: 1100 mm | L1 / mass: 1410 mm / 11.2 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1150-0Model: KSF6T | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 600 mm/s | Motor: 0 (not mounted)
KSF6T-30-1150-1Model: KSF6T | Lead: 30 mm | Stroke: 1150 mm | L1 / mass: 1460 mm / 11.5 kg | Max speed: 600 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1200-0Model: KSF6T | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF6T-30-1200-1Model: KSF6T | Lead: 30 mm | Stroke: 1200 mm | L1 / mass: 1510 mm / 11.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1250-0Model: KSF6T | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF6T-30-1250-1Model: KSF6T | Lead: 30 mm | Stroke: 1250 mm | L1 / mass: 1560 mm / 12.2 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF6T-30-1300-0Model: KSF6T | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF6T-30-1300-1Model: KSF6T | Lead: 30 mm | Stroke: 1300 mm | L1 / mass: 1610 mm / 12.6 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0100-0Model: KSF8T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0100-1Model: KSF8T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0200-0Model: KSF8T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0200-1Model: KSF8T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0300-0Model: KSF8T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0300-1Model: KSF8T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0400-0Model: KSF8T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0400-1Model: KSF8T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0500-0Model: KSF8T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0500-1Model: KSF8T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0600-0Model: KSF8T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0600-1Model: KSF8T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0700-0Model: KSF8T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 280 mm/s | Motor: 0 (not mounted)
KSF8T-05-0700-1Model: KSF8T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 280 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0800-0Model: KSF8T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 250 mm/s | Motor: 0 (not mounted)
KSF8T-05-0800-1Model: KSF8T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 250 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-0900-0Model: KSF8T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8T-05-0900-1Model: KSF8T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1000-0Model: KSF8T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF8T-05-1000-1Model: KSF8T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1100-0Model: KSF8T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 140 mm/s | Motor: 0 (not mounted)
KSF8T-05-1100-1Model: KSF8T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 140 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1200-0Model: KSF8T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 120 mm/s | Motor: 0 (not mounted)
KSF8T-05-1200-1Model: KSF8T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 120 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1300-0Model: KSF8T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF8T-05-1300-1Model: KSF8T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1400-0Model: KSF8T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 90 mm/s | Motor: 0 (not mounted)
KSF8T-05-1400-1Model: KSF8T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 90 mm/s | Motor: 1 (mounted by THK)
KSF8T-05-1500-0Model: KSF8T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 80 mm/s | Motor: 0 (not mounted)
KSF8T-05-1500-1Model: KSF8T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 80 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0100-0Model: KSF8T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0100-1Model: KSF8T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0200-0Model: KSF8T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0200-1Model: KSF8T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0300-0Model: KSF8T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0300-1Model: KSF8T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0400-0Model: KSF8T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0400-1Model: KSF8T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0500-0Model: KSF8T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0500-1Model: KSF8T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0600-0Model: KSF8T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0600-1Model: KSF8T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0700-0Model: KSF8T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 550 mm/s | Motor: 0 (not mounted)
KSF8T-10-0700-1Model: KSF8T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 550 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0800-0Model: KSF8T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8T-10-0800-1Model: KSF8T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-0900-0Model: KSF8T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 390 mm/s | Motor: 0 (not mounted)
KSF8T-10-0900-1Model: KSF8T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 390 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1000-0Model: KSF8T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 330 mm/s | Motor: 0 (not mounted)
KSF8T-10-1000-1Model: KSF8T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 330 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1100-0Model: KSF8T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 270 mm/s | Motor: 0 (not mounted)
KSF8T-10-1100-1Model: KSF8T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 270 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1200-0Model: KSF8T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF8T-10-1200-1Model: KSF8T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1300-0Model: KSF8T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF8T-10-1300-1Model: KSF8T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1400-0Model: KSF8T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 180 mm/s | Motor: 0 (not mounted)
KSF8T-10-1400-1Model: KSF8T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 180 mm/s | Motor: 1 (mounted by THK)
KSF8T-10-1500-0Model: KSF8T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF8T-10-1500-1Model: KSF8T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0100-0Model: KSF8T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0100-1Model: KSF8T | Lead: 20 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0200-0Model: KSF8T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0200-1Model: KSF8T | Lead: 20 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0300-0Model: KSF8T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0300-1Model: KSF8T | Lead: 20 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0400-0Model: KSF8T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0400-1Model: KSF8T | Lead: 20 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0500-0Model: KSF8T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0500-1Model: KSF8T | Lead: 20 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0600-0Model: KSF8T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0600-1Model: KSF8T | Lead: 20 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0700-0Model: KSF8T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 1000 mm/s | Motor: 0 (not mounted)
KSF8T-20-0700-1Model: KSF8T | Lead: 20 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 1000 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0800-0Model: KSF8T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 980 mm/s | Motor: 0 (not mounted)
KSF8T-20-0800-1Model: KSF8T | Lead: 20 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 980 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-0900-0Model: KSF8T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 800 mm/s | Motor: 0 (not mounted)
KSF8T-20-0900-1Model: KSF8T | Lead: 20 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 800 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1000-0Model: KSF8T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 670 mm/s | Motor: 0 (not mounted)
KSF8T-20-1000-1Model: KSF8T | Lead: 20 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 670 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1100-0Model: KSF8T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 560 mm/s | Motor: 0 (not mounted)
KSF8T-20-1100-1Model: KSF8T | Lead: 20 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 560 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1200-0Model: KSF8T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 480 mm/s | Motor: 0 (not mounted)
KSF8T-20-1200-1Model: KSF8T | Lead: 20 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 480 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1300-0Model: KSF8T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF8T-20-1300-1Model: KSF8T | Lead: 20 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1400-0Model: KSF8T | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 360 mm/s | Motor: 0 (not mounted)
KSF8T-20-1400-1Model: KSF8T | Lead: 20 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 360 mm/s | Motor: 1 (mounted by THK)
KSF8T-20-1500-0Model: KSF8T | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 320 mm/s | Motor: 0 (not mounted)
KSF8T-20-1500-1Model: KSF8T | Lead: 20 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 320 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0100-0Model: KSF8T | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0100-1Model: KSF8T | Lead: 40 mm | Stroke: 100 mm | L1 / mass: 478 mm / 8.4 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0200-0Model: KSF8T | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0200-1Model: KSF8T | Lead: 40 mm | Stroke: 200 mm | L1 / mass: 578 mm / 9.7 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0300-0Model: KSF8T | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0300-1Model: KSF8T | Lead: 40 mm | Stroke: 300 mm | L1 / mass: 678 mm / 10.9 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0400-0Model: KSF8T | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0400-1Model: KSF8T | Lead: 40 mm | Stroke: 400 mm | L1 / mass: 778 mm / 12.2 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0500-0Model: KSF8T | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0500-1Model: KSF8T | Lead: 40 mm | Stroke: 500 mm | L1 / mass: 878 mm / 13.4 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0600-0Model: KSF8T | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0600-1Model: KSF8T | Lead: 40 mm | Stroke: 600 mm | L1 / mass: 978 mm / 14.7 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0700-0Model: KSF8T | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 2000 mm/s | Motor: 0 (not mounted)
KSF8T-40-0700-1Model: KSF8T | Lead: 40 mm | Stroke: 700 mm | L1 / mass: 1078 mm / 15.9 kg | Max speed: 2000 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0800-0Model: KSF8T | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 1970 mm/s | Motor: 0 (not mounted)
KSF8T-40-0800-1Model: KSF8T | Lead: 40 mm | Stroke: 800 mm | L1 / mass: 1178 mm / 17.2 kg | Max speed: 1970 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-0900-0Model: KSF8T | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 1610 mm/s | Motor: 0 (not mounted)
KSF8T-40-0900-1Model: KSF8T | Lead: 40 mm | Stroke: 900 mm | L1 / mass: 1278 mm / 18.4 kg | Max speed: 1610 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1000-0Model: KSF8T | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 1340 mm/s | Motor: 0 (not mounted)
KSF8T-40-1000-1Model: KSF8T | Lead: 40 mm | Stroke: 1000 mm | L1 / mass: 1378 mm / 19.7 kg | Max speed: 1340 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1100-0Model: KSF8T | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 1130 mm/s | Motor: 0 (not mounted)
KSF8T-40-1100-1Model: KSF8T | Lead: 40 mm | Stroke: 1100 mm | L1 / mass: 1478 mm / 20.9 kg | Max speed: 1130 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1200-0Model: KSF8T | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 970 mm/s | Motor: 0 (not mounted)
KSF8T-40-1200-1Model: KSF8T | Lead: 40 mm | Stroke: 1200 mm | L1 / mass: 1578 mm / 22.2 kg | Max speed: 970 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1300-0Model: KSF8T | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 840 mm/s | Motor: 0 (not mounted)
KSF8T-40-1300-1Model: KSF8T | Lead: 40 mm | Stroke: 1300 mm | L1 / mass: 1678 mm / 23.5 kg | Max speed: 840 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1400-0Model: KSF8T | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 730 mm/s | Motor: 0 (not mounted)
KSF8T-40-1400-1Model: KSF8T | Lead: 40 mm | Stroke: 1400 mm | L1 / mass: 1778 mm / 24.7 kg | Max speed: 730 mm/s | Motor: 1 (mounted by THK)
KSF8T-40-1500-0Model: KSF8T | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 650 mm/s | Motor: 0 (not mounted)
KSF8T-40-1500-1Model: KSF8T | Lead: 40 mm | Stroke: 1500 mm | L1 / mass: 1878 mm / 26 kg | Max speed: 650 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0100-0Model: KSF10T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0100-1Model: KSF10T | Lead: 5 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0200-0Model: KSF10T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0200-1Model: KSF10T | Lead: 5 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0300-0Model: KSF10T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0300-1Model: KSF10T | Lead: 5 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0400-0Model: KSF10T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0400-1Model: KSF10T | Lead: 5 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0500-0Model: KSF10T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0500-1Model: KSF10T | Lead: 5 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0600-0Model: KSF10T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0600-1Model: KSF10T | Lead: 5 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0700-0Model: KSF10T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0700-1Model: KSF10T | Lead: 5 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0800-0Model: KSF10T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0800-1Model: KSF10T | Lead: 5 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-0900-0Model: KSF10T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 220 mm/s | Motor: 0 (not mounted)
KSF10T-05-0900-1Model: KSF10T | Lead: 5 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 220 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1000-0Model: KSF10T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 210 mm/s | Motor: 0 (not mounted)
KSF10T-05-1000-1Model: KSF10T | Lead: 5 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 210 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1100-0Model: KSF10T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 170 mm/s | Motor: 0 (not mounted)
KSF10T-05-1100-1Model: KSF10T | Lead: 5 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 170 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1200-0Model: KSF10T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 150 mm/s | Motor: 0 (not mounted)
KSF10T-05-1200-1Model: KSF10T | Lead: 5 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 150 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1300-0Model: KSF10T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 130 mm/s | Motor: 0 (not mounted)
KSF10T-05-1300-1Model: KSF10T | Lead: 5 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 130 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1400-0Model: KSF10T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 110 mm/s | Motor: 0 (not mounted)
KSF10T-05-1400-1Model: KSF10T | Lead: 5 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 110 mm/s | Motor: 1 (mounted by THK)
KSF10T-05-1500-0Model: KSF10T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 100 mm/s | Motor: 0 (not mounted)
KSF10T-05-1500-1Model: KSF10T | Lead: 5 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 100 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0100-0Model: KSF10T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0100-1Model: KSF10T | Lead: 10 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0200-0Model: KSF10T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0200-1Model: KSF10T | Lead: 10 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0300-0Model: KSF10T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0300-1Model: KSF10T | Lead: 10 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0400-0Model: KSF10T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0400-1Model: KSF10T | Lead: 10 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0500-0Model: KSF10T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0500-1Model: KSF10T | Lead: 10 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0600-0Model: KSF10T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0600-1Model: KSF10T | Lead: 10 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0700-0Model: KSF10T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0700-1Model: KSF10T | Lead: 10 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0800-0Model: KSF10T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0800-1Model: KSF10T | Lead: 10 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-0900-0Model: KSF10T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 440 mm/s | Motor: 0 (not mounted)
KSF10T-10-0900-1Model: KSF10T | Lead: 10 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 440 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1000-0Model: KSF10T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 420 mm/s | Motor: 0 (not mounted)
KSF10T-10-1000-1Model: KSF10T | Lead: 10 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 420 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1100-0Model: KSF10T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 350 mm/s | Motor: 0 (not mounted)
KSF10T-10-1100-1Model: KSF10T | Lead: 10 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 350 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1200-0Model: KSF10T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 300 mm/s | Motor: 0 (not mounted)
KSF10T-10-1200-1Model: KSF10T | Lead: 10 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 300 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1300-0Model: KSF10T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 260 mm/s | Motor: 0 (not mounted)
KSF10T-10-1300-1Model: KSF10T | Lead: 10 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 260 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1400-0Model: KSF10T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 230 mm/s | Motor: 0 (not mounted)
KSF10T-10-1400-1Model: KSF10T | Lead: 10 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 230 mm/s | Motor: 1 (mounted by THK)
KSF10T-10-1500-0Model: KSF10T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 200 mm/s | Motor: 0 (not mounted)
KSF10T-10-1500-1Model: KSF10T | Lead: 10 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 200 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0100-0Model: KSF10T | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0100-1Model: KSF10T | Lead: 25 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0200-0Model: KSF10T | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0200-1Model: KSF10T | Lead: 25 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0300-0Model: KSF10T | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0300-1Model: KSF10T | Lead: 25 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0400-0Model: KSF10T | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0400-1Model: KSF10T | Lead: 25 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0500-0Model: KSF10T | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0500-1Model: KSF10T | Lead: 25 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0600-0Model: KSF10T | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0600-1Model: KSF10T | Lead: 25 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0700-0Model: KSF10T | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0700-1Model: KSF10T | Lead: 25 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0800-0Model: KSF10T | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0800-1Model: KSF10T | Lead: 25 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-0900-0Model: KSF10T | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 1250 mm/s | Motor: 0 (not mounted)
KSF10T-25-0900-1Model: KSF10T | Lead: 25 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 1250 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1000-0Model: KSF10T | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 1050 mm/s | Motor: 0 (not mounted)
KSF10T-25-1000-1Model: KSF10T | Lead: 25 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 1050 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1100-0Model: KSF10T | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 890 mm/s | Motor: 0 (not mounted)
KSF10T-25-1100-1Model: KSF10T | Lead: 25 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 890 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1200-0Model: KSF10T | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 760 mm/s | Motor: 0 (not mounted)
KSF10T-25-1200-1Model: KSF10T | Lead: 25 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 760 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1300-0Model: KSF10T | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 660 mm/s | Motor: 0 (not mounted)
KSF10T-25-1300-1Model: KSF10T | Lead: 25 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 660 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1400-0Model: KSF10T | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 580 mm/s | Motor: 0 (not mounted)
KSF10T-25-1400-1Model: KSF10T | Lead: 25 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 580 mm/s | Motor: 1 (mounted by THK)
KSF10T-25-1500-0Model: KSF10T | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 510 mm/s | Motor: 0 (not mounted)
KSF10T-25-1500-1Model: KSF10T | Lead: 25 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 510 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0100-0Model: KSF10T | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0100-1Model: KSF10T | Lead: 50 mm | Stroke: 100 mm | L1 / mass: 525 mm / 16.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0200-0Model: KSF10T | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0200-1Model: KSF10T | Lead: 50 mm | Stroke: 200 mm | L1 / mass: 625 mm / 18.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0300-0Model: KSF10T | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0300-1Model: KSF10T | Lead: 50 mm | Stroke: 300 mm | L1 / mass: 725 mm / 20.8 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0400-0Model: KSF10T | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0400-1Model: KSF10T | Lead: 50 mm | Stroke: 400 mm | L1 / mass: 825 mm / 22.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0500-0Model: KSF10T | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0500-1Model: KSF10T | Lead: 50 mm | Stroke: 500 mm | L1 / mass: 925 mm / 24.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0600-0Model: KSF10T | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0600-1Model: KSF10T | Lead: 50 mm | Stroke: 600 mm | L1 / mass: 1025 mm / 26.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0700-0Model: KSF10T | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0700-1Model: KSF10T | Lead: 50 mm | Stroke: 700 mm | L1 / mass: 1125 mm / 28.7 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0800-0Model: KSF10T | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0800-1Model: KSF10T | Lead: 50 mm | Stroke: 800 mm | L1 / mass: 1225 mm / 30.6 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-0900-0Model: KSF10T | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 2500 mm/s | Motor: 0 (not mounted)
KSF10T-50-0900-1Model: KSF10T | Lead: 50 mm | Stroke: 900 mm | L1 / mass: 1325 mm / 32.6 kg | Max speed: 2500 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1000-0Model: KSF10T | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 2110 mm/s | Motor: 0 (not mounted)
KSF10T-50-1000-1Model: KSF10T | Lead: 50 mm | Stroke: 1000 mm | L1 / mass: 1425 mm / 34.6 kg | Max speed: 2110 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1100-0Model: KSF10T | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 1790 mm/s | Motor: 0 (not mounted)
KSF10T-50-1100-1Model: KSF10T | Lead: 50 mm | Stroke: 1100 mm | L1 / mass: 1525 mm / 36.6 kg | Max speed: 1790 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1200-0Model: KSF10T | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 1530 mm/s | Motor: 0 (not mounted)
KSF10T-50-1200-1Model: KSF10T | Lead: 50 mm | Stroke: 1200 mm | L1 / mass: 1625 mm / 38.6 kg | Max speed: 1530 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1300-0Model: KSF10T | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 1330 mm/s | Motor: 0 (not mounted)
KSF10T-50-1300-1Model: KSF10T | Lead: 50 mm | Stroke: 1300 mm | L1 / mass: 1725 mm / 40.5 kg | Max speed: 1330 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1400-0Model: KSF10T | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 1160 mm/s | Motor: 0 (not mounted)
KSF10T-50-1400-1Model: KSF10T | Lead: 50 mm | Stroke: 1400 mm | L1 / mass: 1825 mm / 42.5 kg | Max speed: 1160 mm/s | Motor: 1 (mounted by THK)
KSF10T-50-1500-0Model: KSF10T | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 1030 mm/s | Motor: 0 (not mounted)
KSF10T-50-1500-1Model: KSF10T | Lead: 50 mm | Stroke: 1500 mm | L1 / mass: 1925 mm / 44.5 kg | Max speed: 1030 mm/s | Motor: 1 (mounted by THK)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
