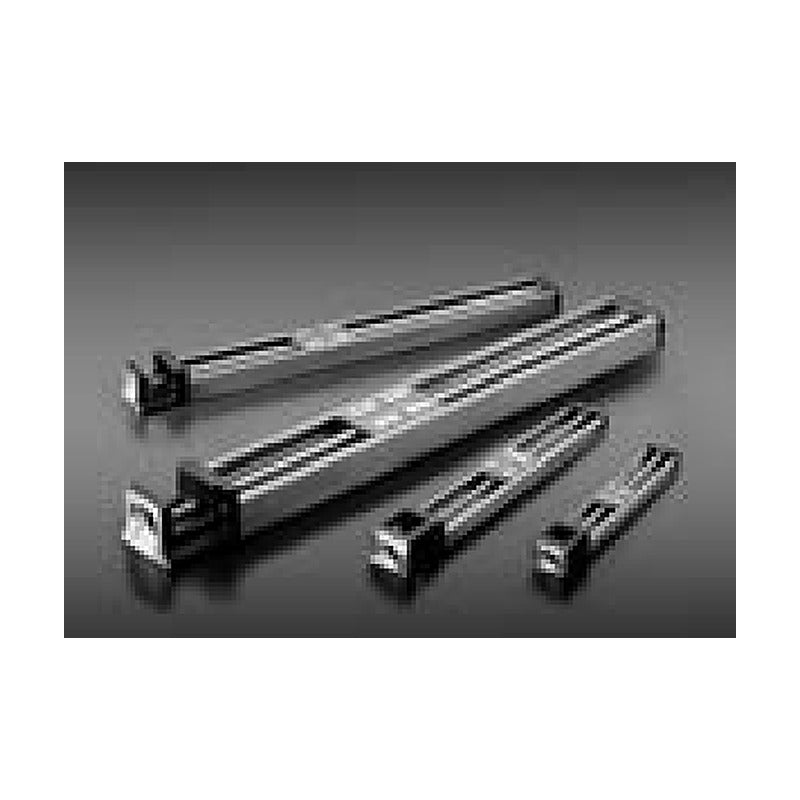

THK KSF-U LM Guide Actuator (Open Cover, Motor Inline, KSF4-10)

THK KSF open cover (u) LM guide actuators (motor inline) integrate an LM guide and a large-diameter ball screw in a U-shaped outer rail for compact, rigid, high-speed positioning.

Key features

U-section high-rigidity outer rail with integrated LM guide raceways and ball screw in one inner block
Four-way equal load rating: balls at 45 deg contact on each raceway
Large-diameter, large-lead ball screw for high speed (up to 2,500 mm/s on KSF10 lead 50)
Repeatability +/-0.01 mm, lost motion 0.1 mm; end seals and side seals standard
Motor mounted inline via intermediate flange and coupling
Options: rear tapped sub table, sensor rail, photo/proximity sensors, steel sub table

Specifications

Series	KSF
Cover	Open cover (U)
Motor layout	Motor Inline
Models	KSF4U, KSF5U, KSF6U, KSF8U, KSF10U
Ball screw shaft dia.	KSF4: 10 mm, KSF5: 13 mm, KSF6: 15 mm, KSF8: 20 mm, KSF10: 25 mm
Basic load rating C / C0 (guide)	4: 6400/12900 N; 5: 10200/17900 N; 6: 17400/33000 N; 8: 32400/63500 N; 10: 58500/103700 N
Repeatability	+/-0.01 mm
Lost motion	0.1 mm
Code composition	Model-lead-stroke-motor, then flange, shaft dia., shaft fixing, options
Intermediate flange	Inline codes A0, AP, AQ, AR, AU, AV, AY, AZ, A5, A6
Options (field 8)	MR/ML/MD (parallel side), T, 1, 6, J, M, F
Source	THK General Catalog LM Guide Actuator (Korean ed. 515-2K), p. A2-268-A2-355

KSF4U-06-0050-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0050-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0100-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0100-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0150-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0150-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0200-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0200-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0250-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0250-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0300-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0300-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0350-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0350-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0400-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 520 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0400-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 520 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0450-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 430 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0450-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 430 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0500-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 360 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0500-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 360 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0550-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 300 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0550-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 300 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0600-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0600-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0650-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0650-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0700-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 190 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0700-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 190 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0750-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0750-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0800-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 150 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0800-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 150 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0850-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 130 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0850-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 130 mm/s \| Motor: 1 (mounted by THK)
KSF4U-06-0900-0		Model: KSF4U \| Lead: 6 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 120 mm/s \| Motor: 0 (not mounted)
KSF4U-06-0900-1		Model: KSF4U \| Lead: 6 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 120 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0050-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0050-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0100-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0100-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0150-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0150-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0200-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0200-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0250-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0250-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0300-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0300-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0350-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0350-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0400-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0400-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0450-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0450-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0500-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 620 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0500-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 620 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0550-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 520 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0550-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 520 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0600-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0600-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0650-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 380 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0650-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 380 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0700-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0700-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0750-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 300 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0750-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 300 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0800-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0800-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0850-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0850-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
KSF4U-10-0900-0		Model: KSF4U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 210 mm/s \| Motor: 0 (not mounted)
KSF4U-10-0900-1		Model: KSF4U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 210 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0050-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0050-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0100-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0100-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0150-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0150-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0200-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0200-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0250-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0250-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0300-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0300-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0350-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0350-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0400-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0400-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0450-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0450-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0500-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 990 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0500-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 990 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0550-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0550-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0600-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 710 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0600-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 710 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0650-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 620 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0650-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 620 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0700-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 540 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0700-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 540 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0750-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0750-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0800-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 420 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0800-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 420 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0850-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 380 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0850-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 380 mm/s \| Motor: 1 (mounted by THK)
KSF4U-16-0900-0		Model: KSF4U \| Lead: 16 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
KSF4U-16-0900-1		Model: KSF4U \| Lead: 16 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0050-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0050-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0100-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0100-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0150-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0150-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0200-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0200-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0250-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0250-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0300-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0300-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0350-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0350-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0400-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0400-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0450-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0450-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0500-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 800 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0500-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 800 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0550-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 680 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0550-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 680 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0600-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 590 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0600-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 590 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0650-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 510 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0650-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 510 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0700-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0700-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0750-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 390 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0750-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 390 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0800-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 350 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0800-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 350 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0850-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 310 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0850-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 310 mm/s \| Motor: 1 (mounted by THK)
KSF5U-10-0900-0		Model: KSF5U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF5U-10-0900-1		Model: KSF5U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0050-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0050-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0100-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0100-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0150-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0150-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0200-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0200-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0250-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0250-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0300-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0300-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0350-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0350-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0400-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0400-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0450-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0450-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0500-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0500-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0550-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0550-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0600-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 1180 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0600-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 1180 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0650-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 1020 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0650-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 1020 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0700-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 890 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0700-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 890 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0750-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 790 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0750-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 790 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0800-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 700 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0800-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 700 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0850-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 630 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0850-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 630 mm/s \| Motor: 1 (mounted by THK)
KSF5U-20-0900-0		Model: KSF5U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 570 mm/s \| Motor: 0 (not mounted)
KSF5U-20-0900-1		Model: KSF5U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 570 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0050-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0050-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0100-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0100-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0150-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0150-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0200-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0200-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0250-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0250-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0300-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0300-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0350-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0350-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0400-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0400-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0450-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0450-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0500-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0500-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0550-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0550-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0600-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 640 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0600-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 640 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0650-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 560 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0650-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 560 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0700-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 490 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0700-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 490 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0750-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 430 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0750-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 430 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0800-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 380 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0800-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 380 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0850-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0850-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0900-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 310 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0900-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 310 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-0950-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF6U-10-0950-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-1000-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
KSF6U-10-1000-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-1050-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
KSF6U-10-1050-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-1100-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 210 mm/s \| Motor: 0 (not mounted)
KSF6U-10-1100-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 210 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-1150-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
KSF6U-10-1150-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-1200-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 180 mm/s \| Motor: 0 (not mounted)
KSF6U-10-1200-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 180 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-1250-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
KSF6U-10-1250-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
KSF6U-10-1300-0		Model: KSF6U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 160 mm/s \| Motor: 0 (not mounted)
KSF6U-10-1300-1		Model: KSF6U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 160 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0050-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0050-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0100-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0100-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0150-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0150-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0200-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0200-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0250-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0250-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0300-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0300-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0350-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0350-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0400-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0400-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0450-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0450-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0500-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0500-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0550-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0550-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0600-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0600-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0650-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0650-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0700-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 980 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0700-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 980 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0750-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 870 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0750-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 870 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0800-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 770 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0800-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 770 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0850-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 690 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0850-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 690 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0900-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 630 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0900-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 630 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-0950-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 570 mm/s \| Motor: 0 (not mounted)
KSF6U-20-0950-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 570 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-1000-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 520 mm/s \| Motor: 0 (not mounted)
KSF6U-20-1000-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 520 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-1050-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 470 mm/s \| Motor: 0 (not mounted)
KSF6U-20-1050-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 470 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-1100-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 430 mm/s \| Motor: 0 (not mounted)
KSF6U-20-1100-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 430 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-1150-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 400 mm/s \| Motor: 0 (not mounted)
KSF6U-20-1150-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 400 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-1200-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 370 mm/s \| Motor: 0 (not mounted)
KSF6U-20-1200-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 370 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-1250-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
KSF6U-20-1250-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
KSF6U-20-1300-0		Model: KSF6U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 320 mm/s \| Motor: 0 (not mounted)
KSF6U-20-1300-1		Model: KSF6U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 320 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0050-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0050-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0100-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0100-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0150-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0150-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0200-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0200-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0250-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0250-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0300-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0300-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0350-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0350-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0400-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0400-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0450-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0450-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0500-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0500-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0550-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0550-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0600-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0600-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0650-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0650-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0700-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 1480 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0700-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 1480 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0750-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 1310 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0750-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 1310 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0800-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 1160 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0800-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 1160 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0850-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 1040 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0850-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 1040 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0900-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 940 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0900-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 940 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-0950-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 850 mm/s \| Motor: 0 (not mounted)
KSF6U-30-0950-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 850 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-1000-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 780 mm/s \| Motor: 0 (not mounted)
KSF6U-30-1000-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 780 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-1050-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 710 mm/s \| Motor: 0 (not mounted)
KSF6U-30-1050-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 710 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-1100-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 650 mm/s \| Motor: 0 (not mounted)
KSF6U-30-1100-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 650 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-1150-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
KSF6U-30-1150-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-1200-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF6U-30-1200-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-1250-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 510 mm/s \| Motor: 0 (not mounted)
KSF6U-30-1250-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 510 mm/s \| Motor: 1 (mounted by THK)
KSF6U-30-1300-0		Model: KSF6U \| Lead: 30 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
KSF6U-30-1300-1		Model: KSF6U \| Lead: 30 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0100-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0100-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0200-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0200-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0300-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0300-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0400-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0400-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0500-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0500-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0600-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0600-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0700-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0700-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0800-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 250 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0800-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 250 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-0900-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
KSF8U-05-0900-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-1000-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
KSF8U-05-1000-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-1100-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 140 mm/s \| Motor: 0 (not mounted)
KSF8U-05-1100-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 140 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-1200-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 120 mm/s \| Motor: 0 (not mounted)
KSF8U-05-1200-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 120 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-1300-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 100 mm/s \| Motor: 0 (not mounted)
KSF8U-05-1300-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 100 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-1400-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 90 mm/s \| Motor: 0 (not mounted)
KSF8U-05-1400-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 90 mm/s \| Motor: 1 (mounted by THK)
KSF8U-05-1500-0		Model: KSF8U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 80 mm/s \| Motor: 0 (not mounted)
KSF8U-05-1500-1		Model: KSF8U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 80 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0100-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0100-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0200-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0200-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0300-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0300-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0400-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0400-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0500-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0500-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0600-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0600-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0700-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0700-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0800-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0800-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-0900-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 390 mm/s \| Motor: 0 (not mounted)
KSF8U-10-0900-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 390 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-1000-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 330 mm/s \| Motor: 0 (not mounted)
KSF8U-10-1000-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 330 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-1100-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 270 mm/s \| Motor: 0 (not mounted)
KSF8U-10-1100-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 270 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-1200-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
KSF8U-10-1200-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-1300-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
KSF8U-10-1300-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-1400-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 180 mm/s \| Motor: 0 (not mounted)
KSF8U-10-1400-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 180 mm/s \| Motor: 1 (mounted by THK)
KSF8U-10-1500-0		Model: KSF8U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 150 mm/s \| Motor: 0 (not mounted)
KSF8U-10-1500-1		Model: KSF8U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 150 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0100-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0100-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0200-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0200-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0300-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0300-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0400-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0400-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0500-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0500-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0600-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0600-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0700-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0700-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0800-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 980 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0800-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 980 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-0900-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 800 mm/s \| Motor: 0 (not mounted)
KSF8U-20-0900-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 800 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-1000-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 670 mm/s \| Motor: 0 (not mounted)
KSF8U-20-1000-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 670 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-1100-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 560 mm/s \| Motor: 0 (not mounted)
KSF8U-20-1100-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 560 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-1200-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
KSF8U-20-1200-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-1300-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 420 mm/s \| Motor: 0 (not mounted)
KSF8U-20-1300-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 420 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-1400-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 360 mm/s \| Motor: 0 (not mounted)
KSF8U-20-1400-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 360 mm/s \| Motor: 1 (mounted by THK)
KSF8U-20-1500-0		Model: KSF8U \| Lead: 20 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 320 mm/s \| Motor: 0 (not mounted)
KSF8U-20-1500-1		Model: KSF8U \| Lead: 20 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 320 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0100-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0100-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0200-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0200-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0300-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0300-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0400-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0400-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0500-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0500-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0600-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0600-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0700-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0700-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0800-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 1970 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0800-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 1970 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-0900-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 1610 mm/s \| Motor: 0 (not mounted)
KSF8U-40-0900-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 1610 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-1000-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 1340 mm/s \| Motor: 0 (not mounted)
KSF8U-40-1000-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 1340 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-1100-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 1130 mm/s \| Motor: 0 (not mounted)
KSF8U-40-1100-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 1130 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-1200-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 970 mm/s \| Motor: 0 (not mounted)
KSF8U-40-1200-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 970 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-1300-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 840 mm/s \| Motor: 0 (not mounted)
KSF8U-40-1300-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 840 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-1400-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 730 mm/s \| Motor: 0 (not mounted)
KSF8U-40-1400-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 730 mm/s \| Motor: 1 (mounted by THK)
KSF8U-40-1500-0		Model: KSF8U \| Lead: 40 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 650 mm/s \| Motor: 0 (not mounted)
KSF8U-40-1500-1		Model: KSF8U \| Lead: 40 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 650 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0100-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0100-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0200-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0200-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0300-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0300-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0400-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0400-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0500-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0500-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0600-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0600-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0700-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0700-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0800-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0800-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-0900-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
KSF10U-05-0900-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-1000-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 210 mm/s \| Motor: 0 (not mounted)
KSF10U-05-1000-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 210 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-1100-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
KSF10U-05-1100-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-1200-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 150 mm/s \| Motor: 0 (not mounted)
KSF10U-05-1200-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 150 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-1300-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 130 mm/s \| Motor: 0 (not mounted)
KSF10U-05-1300-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 130 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-1400-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 110 mm/s \| Motor: 0 (not mounted)
KSF10U-05-1400-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 110 mm/s \| Motor: 1 (mounted by THK)
KSF10U-05-1500-0		Model: KSF10U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 100 mm/s \| Motor: 0 (not mounted)
KSF10U-05-1500-1		Model: KSF10U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 100 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0100-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0100-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0200-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0200-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0300-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0300-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0400-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0400-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0500-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0500-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0600-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0600-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0700-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0700-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0800-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0800-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-0900-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
KSF10U-10-0900-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-1000-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 420 mm/s \| Motor: 0 (not mounted)
KSF10U-10-1000-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 420 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-1100-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 350 mm/s \| Motor: 0 (not mounted)
KSF10U-10-1100-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 350 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-1200-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 300 mm/s \| Motor: 0 (not mounted)
KSF10U-10-1200-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 300 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-1300-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
KSF10U-10-1300-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-1400-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
KSF10U-10-1400-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
KSF10U-10-1500-0		Model: KSF10U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
KSF10U-10-1500-1		Model: KSF10U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0100-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0100-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0200-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0200-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0300-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0300-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0400-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0400-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0500-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0500-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0600-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0600-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0700-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0700-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0800-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0800-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-0900-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
KSF10U-25-0900-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-1000-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 1050 mm/s \| Motor: 0 (not mounted)
KSF10U-25-1000-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 1050 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-1100-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 890 mm/s \| Motor: 0 (not mounted)
KSF10U-25-1100-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 890 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-1200-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 760 mm/s \| Motor: 0 (not mounted)
KSF10U-25-1200-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 760 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-1300-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 660 mm/s \| Motor: 0 (not mounted)
KSF10U-25-1300-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 660 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-1400-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 580 mm/s \| Motor: 0 (not mounted)
KSF10U-25-1400-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 580 mm/s \| Motor: 1 (mounted by THK)
KSF10U-25-1500-0		Model: KSF10U \| Lead: 25 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 510 mm/s \| Motor: 0 (not mounted)
KSF10U-25-1500-1		Model: KSF10U \| Lead: 25 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 510 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0100-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0100-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0200-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0200-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0300-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0300-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0400-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0400-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0500-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0500-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0600-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0600-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0700-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0700-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0800-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0800-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-0900-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
KSF10U-50-0900-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-1000-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 2110 mm/s \| Motor: 0 (not mounted)
KSF10U-50-1000-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 2110 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-1100-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 1790 mm/s \| Motor: 0 (not mounted)
KSF10U-50-1100-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 1790 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-1200-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 1530 mm/s \| Motor: 0 (not mounted)
KSF10U-50-1200-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 1530 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-1300-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
KSF10U-50-1300-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-1400-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 1160 mm/s \| Motor: 0 (not mounted)
KSF10U-50-1400-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 1160 mm/s \| Motor: 1 (mounted by THK)
KSF10U-50-1500-0		Model: KSF10U \| Lead: 50 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 1030 mm/s \| Motor: 0 (not mounted)
KSF10U-50-1500-1		Model: KSF10U \| Lead: 50 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 1030 mm/s \| Motor: 1 (mounted by THK)

LM Guide ActuatorsTHK

576 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK KSF-U LM Guide Actuator (Open Cover, Motor Inline, KSF4-10)

Brand THK·LM Guide Actuators

Available part numbers (576)

KSF4U-06-0050-0, KSF4U-06-0050-1, KSF4U-06-0100-0, KSF4U-06-0100-1, KSF4U-06-0150-0, KSF4U-06-0150-1, KSF4U-06-0200-0, KSF4U-06-0200-1, KSF4U-06-0250-0, KSF4U-06-0250-1 + 566 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	KSF4U-06-0050-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0050-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0100-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0100-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0150-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0150-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0200-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0200-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0250-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0250-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0300-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0300-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0350-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0350-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0400-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 520 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0400-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 520 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0450-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 430 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0450-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 430 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0500-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 360 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0500-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 360 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0550-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 300 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0550-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 300 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0600-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0600-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0650-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0650-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0700-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 190 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0700-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 190 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0750-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0750-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0800-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 150 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0800-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 150 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0850-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 130 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0850-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 130 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-06-0900-0	Model: KSF4U \| Lead: 6 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 120 mm/s \| Motor: 0 (not mounted)
	KSF4U-06-0900-1	Model: KSF4U \| Lead: 6 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 120 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0050-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0050-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0100-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0100-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0150-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0150-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0200-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0200-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0250-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0250-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0300-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0300-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0350-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0350-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0400-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0400-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0450-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0450-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0500-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 620 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0500-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 620 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0550-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 520 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0550-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 520 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0600-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0600-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0650-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 380 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0650-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 380 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0700-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0700-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0750-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 300 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0750-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 300 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0800-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0800-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0850-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0850-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-10-0900-0	Model: KSF4U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 210 mm/s \| Motor: 0 (not mounted)
	KSF4U-10-0900-1	Model: KSF4U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 210 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0050-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0050-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 50 mm \| L1 / mass: 283 mm / 1.3 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0100-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0100-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 100 mm \| L1 / mass: 333 mm / 1.5 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0150-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0150-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 150 mm \| L1 / mass: 383 mm / 1.6 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0200-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0200-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 200 mm \| L1 / mass: 433 mm / 1.8 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0250-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0250-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 250 mm \| L1 / mass: 483 mm / 2 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0300-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0300-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 300 mm \| L1 / mass: 533 mm / 2.1 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0350-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0350-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 350 mm \| L1 / mass: 583 mm / 2.3 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0400-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0400-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 400 mm \| L1 / mass: 633 mm / 2.4 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0450-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 1060 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0450-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 450 mm \| L1 / mass: 683 mm / 2.6 kg \| Max speed: 1060 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0500-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 990 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0500-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 500 mm \| L1 / mass: 733 mm / 2.8 kg \| Max speed: 990 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0550-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0550-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 550 mm \| L1 / mass: 783 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0600-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 710 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0600-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 600 mm \| L1 / mass: 833 mm / 3.1 kg \| Max speed: 710 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0650-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 620 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0650-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 650 mm \| L1 / mass: 883 mm / 3.2 kg \| Max speed: 620 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0700-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 540 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0700-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 700 mm \| L1 / mass: 933 mm / 3.4 kg \| Max speed: 540 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0750-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0750-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 750 mm \| L1 / mass: 983 mm / 3.6 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0800-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 420 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0800-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 800 mm \| L1 / mass: 1033 mm / 3.7 kg \| Max speed: 420 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0850-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 380 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0850-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 850 mm \| L1 / mass: 1083 mm / 3.9 kg \| Max speed: 380 mm/s \| Motor: 1 (mounted by THK)
	KSF4U-16-0900-0	Model: KSF4U \| Lead: 16 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
	KSF4U-16-0900-1	Model: KSF4U \| Lead: 16 mm \| Stroke: 900 mm \| L1 / mass: 1133 mm / 4 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0050-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0050-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0100-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0100-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0150-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0150-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0200-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0200-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0250-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0250-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0300-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0300-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0350-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0350-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0400-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0400-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0450-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 830 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0450-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 830 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0500-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 800 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0500-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 800 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0550-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 680 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0550-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 680 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0600-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 590 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0600-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 590 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0650-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 510 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0650-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 510 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0700-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0700-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0750-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 390 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0750-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 390 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0800-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 350 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0800-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 350 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0850-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 310 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0850-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 310 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-10-0900-0	Model: KSF5U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF5U-10-0900-1	Model: KSF5U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0050-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0050-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 300 mm / 1.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0100-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0100-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 350 mm / 2.2 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0150-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0150-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 400 mm / 2.4 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0200-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0200-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 450 mm / 2.7 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0250-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0250-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 500 mm / 2.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0300-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0300-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 550 mm / 3.1 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0350-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0350-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 600 mm / 3.4 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0400-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0400-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 650 mm / 3.6 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0450-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0450-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 700 mm / 3.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0500-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0500-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 750 mm / 4.1 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0550-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0550-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 800 mm / 4.4 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0600-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 1180 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0600-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 850 mm / 4.6 kg \| Max speed: 1180 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0650-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 1020 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0650-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 900 mm / 4.9 kg \| Max speed: 1020 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0700-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 890 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0700-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 950 mm / 5.1 kg \| Max speed: 890 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0750-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 790 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0750-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1000 mm / 5.3 kg \| Max speed: 790 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0800-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 700 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0800-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1050 mm / 5.6 kg \| Max speed: 700 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0850-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 630 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0850-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1100 mm / 5.8 kg \| Max speed: 630 mm/s \| Motor: 1 (mounted by THK)
	KSF5U-20-0900-0	Model: KSF5U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 570 mm/s \| Motor: 0 (not mounted)
	KSF5U-20-0900-1	Model: KSF5U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1150 mm / 6.1 kg \| Max speed: 570 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0050-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0050-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0100-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0100-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0150-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0150-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0200-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0200-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0250-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0250-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0300-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0300-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0350-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0350-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0400-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0400-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0450-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0450-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0500-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0500-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0550-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 740 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0550-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 740 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0600-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 640 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0600-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 640 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0650-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 560 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0650-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 560 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0700-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 490 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0700-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 490 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0750-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 430 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0750-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 430 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0800-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 380 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0800-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 380 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0850-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0850-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0900-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 310 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0900-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 310 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-0950-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-0950-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-1000-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-1000-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-1050-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-1050-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-1100-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 210 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-1100-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 210 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-1150-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-1150-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-1200-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 180 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-1200-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 180 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-1250-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-1250-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-10-1300-0	Model: KSF6U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 160 mm/s \| Motor: 0 (not mounted)
	KSF6U-10-1300-1	Model: KSF6U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 160 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0050-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0050-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0100-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0100-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0150-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0150-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0200-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0200-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0250-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0250-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0300-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0300-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0350-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0350-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0400-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0400-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0450-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0450-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0500-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0500-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0550-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0550-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0600-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0600-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0650-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0650-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0700-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 980 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0700-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 980 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0750-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 870 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0750-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 870 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0800-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 770 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0800-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 770 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0850-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 690 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0850-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 690 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0900-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 630 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0900-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 630 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-0950-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 570 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-0950-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 570 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-1000-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 520 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-1000-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 520 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-1050-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 470 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-1050-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 470 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-1100-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 430 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-1100-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 430 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-1150-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 400 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-1150-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 400 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-1200-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 370 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-1200-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 370 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-1250-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 340 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-1250-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 340 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-20-1300-0	Model: KSF6U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 320 mm/s \| Motor: 0 (not mounted)
	KSF6U-20-1300-1	Model: KSF6U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 320 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0050-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0050-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 50 mm \| L1 / mass: 360 mm / 3.5 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0100-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0100-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 100 mm \| L1 / mass: 410 mm / 3.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0150-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0150-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 150 mm \| L1 / mass: 460 mm / 4.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0200-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0200-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 200 mm \| L1 / mass: 510 mm / 4.5 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0250-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0250-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 250 mm \| L1 / mass: 560 mm / 4.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0300-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0300-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 300 mm \| L1 / mass: 610 mm / 5.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0350-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0350-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 350 mm \| L1 / mass: 660 mm / 5.4 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0400-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0400-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 400 mm \| L1 / mass: 710 mm / 5.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0450-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0450-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 450 mm \| L1 / mass: 760 mm / 6.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0500-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0500-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 500 mm \| L1 / mass: 810 mm / 6.4 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0550-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0550-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 550 mm \| L1 / mass: 860 mm / 6.8 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0600-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0600-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 600 mm \| L1 / mass: 910 mm / 7.1 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0650-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1500 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0650-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 650 mm \| L1 / mass: 960 mm / 7.4 kg \| Max speed: 1500 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0700-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 1480 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0700-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 700 mm \| L1 / mass: 1010 mm / 7.7 kg \| Max speed: 1480 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0750-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 1310 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0750-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 750 mm \| L1 / mass: 1060 mm / 8.1 kg \| Max speed: 1310 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0800-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 1160 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0800-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 800 mm \| L1 / mass: 1110 mm / 8.4 kg \| Max speed: 1160 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0850-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 1040 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0850-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 850 mm \| L1 / mass: 1160 mm / 8.7 kg \| Max speed: 1040 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0900-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 940 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0900-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 900 mm \| L1 / mass: 1210 mm / 9.1 kg \| Max speed: 940 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-0950-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 850 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-0950-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 950 mm \| L1 / mass: 1260 mm / 9.4 kg \| Max speed: 850 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-1000-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 780 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-1000-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 1000 mm \| L1 / mass: 1310 mm / 9.7 kg \| Max speed: 780 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-1050-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 710 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-1050-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 1050 mm \| L1 / mass: 1360 mm / 10 kg \| Max speed: 710 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-1100-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 650 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-1100-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 1100 mm \| L1 / mass: 1410 mm / 10.4 kg \| Max speed: 650 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-1150-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 600 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-1150-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 1150 mm \| L1 / mass: 1460 mm / 10.7 kg \| Max speed: 600 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-1200-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-1200-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 1200 mm \| L1 / mass: 1510 mm / 11 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-1250-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 510 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-1250-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 1250 mm \| L1 / mass: 1560 mm / 11.4 kg \| Max speed: 510 mm/s \| Motor: 1 (mounted by THK)
	KSF6U-30-1300-0	Model: KSF6U \| Lead: 30 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
	KSF6U-30-1300-1	Model: KSF6U \| Lead: 30 mm \| Stroke: 1300 mm \| L1 / mass: 1610 mm / 11.7 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0100-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0100-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0200-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0200-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0300-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0300-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0400-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0400-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0500-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0500-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0600-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0600-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0700-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 280 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0700-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 280 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0800-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 250 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0800-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 250 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-0900-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-0900-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-1000-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-1000-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-1100-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 140 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-1100-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 140 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-1200-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 120 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-1200-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 120 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-1300-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 100 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-1300-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 100 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-1400-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 90 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-1400-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 90 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-05-1500-0	Model: KSF8U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 80 mm/s \| Motor: 0 (not mounted)
	KSF8U-05-1500-1	Model: KSF8U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 80 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0100-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0100-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0200-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0200-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0300-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0300-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0400-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0400-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0500-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0500-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0600-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0600-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0700-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 550 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0700-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 550 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0800-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0800-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-0900-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 390 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-0900-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 390 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-1000-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 330 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-1000-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 330 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-1100-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 270 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-1100-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 270 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-1200-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-1200-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-1300-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-1300-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-1400-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 180 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-1400-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 180 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-10-1500-0	Model: KSF8U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 150 mm/s \| Motor: 0 (not mounted)
	KSF8U-10-1500-1	Model: KSF8U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 150 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0100-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0100-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0200-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0200-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0300-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0300-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0400-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0400-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0500-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0500-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0600-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0600-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0700-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 1000 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0700-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 1000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0800-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 980 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0800-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 980 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-0900-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 800 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-0900-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 800 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-1000-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 670 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-1000-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 670 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-1100-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 560 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-1100-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 560 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-1200-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 480 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-1200-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 480 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-1300-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 420 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-1300-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 420 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-1400-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 360 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-1400-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 360 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-20-1500-0	Model: KSF8U \| Lead: 20 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 320 mm/s \| Motor: 0 (not mounted)
	KSF8U-20-1500-1	Model: KSF8U \| Lead: 20 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 320 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0100-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0100-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 100 mm \| L1 / mass: 478 mm / 7.4 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0200-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0200-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 200 mm \| L1 / mass: 578 mm / 8.6 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0300-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0300-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 300 mm \| L1 / mass: 678 mm / 9.8 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0400-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0400-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 400 mm \| L1 / mass: 778 mm / 10.9 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0500-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0500-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 500 mm \| L1 / mass: 878 mm / 12.1 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0600-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0600-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 600 mm \| L1 / mass: 978 mm / 13.3 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0700-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 2000 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0700-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 700 mm \| L1 / mass: 1078 mm / 14.5 kg \| Max speed: 2000 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0800-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 1970 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0800-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 800 mm \| L1 / mass: 1178 mm / 15.6 kg \| Max speed: 1970 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-0900-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 1610 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-0900-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 900 mm \| L1 / mass: 1278 mm / 16.8 kg \| Max speed: 1610 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-1000-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 1340 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-1000-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 1000 mm \| L1 / mass: 1378 mm / 18 kg \| Max speed: 1340 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-1100-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 1130 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-1100-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 1100 mm \| L1 / mass: 1478 mm / 19.2 kg \| Max speed: 1130 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-1200-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 970 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-1200-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 1200 mm \| L1 / mass: 1578 mm / 20.3 kg \| Max speed: 970 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-1300-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 840 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-1300-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 1300 mm \| L1 / mass: 1678 mm / 21.5 kg \| Max speed: 840 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-1400-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 730 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-1400-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 1400 mm \| L1 / mass: 1778 mm / 22.7 kg \| Max speed: 730 mm/s \| Motor: 1 (mounted by THK)
	KSF8U-40-1500-0	Model: KSF8U \| Lead: 40 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 650 mm/s \| Motor: 0 (not mounted)
	KSF8U-40-1500-1	Model: KSF8U \| Lead: 40 mm \| Stroke: 1500 mm \| L1 / mass: 1878 mm / 23.9 kg \| Max speed: 650 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0100-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0100-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0200-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0200-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0300-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0300-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0400-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0400-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0500-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0500-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0600-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0600-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0700-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0700-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0800-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0800-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-0900-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 220 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-0900-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 220 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-1000-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 210 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-1000-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 210 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-1100-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 170 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-1100-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 170 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-1200-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 150 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-1200-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 150 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-1300-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 130 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-1300-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 130 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-1400-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 110 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-1400-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 110 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-05-1500-0	Model: KSF10U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 100 mm/s \| Motor: 0 (not mounted)
	KSF10U-05-1500-1	Model: KSF10U \| Lead: 5 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 100 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0100-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0100-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0200-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0200-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0300-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0300-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0400-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0400-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0500-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0500-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0600-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0600-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0700-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0700-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0800-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0800-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-0900-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 440 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-0900-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 440 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-1000-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 420 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-1000-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 420 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-1100-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 350 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-1100-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 350 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-1200-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 300 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-1200-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 300 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-1300-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 260 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-1300-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 260 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-1400-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 230 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-1400-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 230 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-10-1500-0	Model: KSF10U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 200 mm/s \| Motor: 0 (not mounted)
	KSF10U-10-1500-1	Model: KSF10U \| Lead: 10 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 200 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0100-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0100-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0200-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0200-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0300-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0300-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0400-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0400-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0500-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0500-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0600-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0600-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0700-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0700-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0800-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0800-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-0900-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 1250 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-0900-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 1250 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-1000-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 1050 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-1000-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 1050 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-1100-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 890 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-1100-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 890 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-1200-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 760 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-1200-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 760 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-1300-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 660 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-1300-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 660 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-1400-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 580 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-1400-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 580 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-25-1500-0	Model: KSF10U \| Lead: 25 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 510 mm/s \| Motor: 0 (not mounted)
	KSF10U-25-1500-1	Model: KSF10U \| Lead: 25 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 510 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0100-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0100-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 100 mm \| L1 / mass: 525 mm / 13.3 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0200-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0200-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 200 mm \| L1 / mass: 625 mm / 15.2 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0300-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0300-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 300 mm \| L1 / mass: 725 mm / 17.1 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0400-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0400-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 400 mm \| L1 / mass: 825 mm / 19 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0500-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0500-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 500 mm \| L1 / mass: 925 mm / 20.9 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0600-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0600-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 600 mm \| L1 / mass: 1025 mm / 22.8 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0700-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0700-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 700 mm \| L1 / mass: 1125 mm / 24.6 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0800-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0800-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 800 mm \| L1 / mass: 1225 mm / 26.5 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-0900-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 2500 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-0900-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 900 mm \| L1 / mass: 1325 mm / 28.4 kg \| Max speed: 2500 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-1000-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 2110 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-1000-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 1000 mm \| L1 / mass: 1425 mm / 30.3 kg \| Max speed: 2110 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-1100-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 1790 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-1100-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 1100 mm \| L1 / mass: 1525 mm / 32.2 kg \| Max speed: 1790 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-1200-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 1530 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-1200-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 1200 mm \| L1 / mass: 1625 mm / 34 kg \| Max speed: 1530 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-1300-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 1330 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-1300-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 1300 mm \| L1 / mass: 1725 mm / 35.9 kg \| Max speed: 1330 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-1400-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 1160 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-1400-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 1400 mm \| L1 / mass: 1825 mm / 37.8 kg \| Max speed: 1160 mm/s \| Motor: 1 (mounted by THK)
	KSF10U-50-1500-0	Model: KSF10U \| Lead: 50 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 1030 mm/s \| Motor: 0 (not mounted)
	KSF10U-50-1500-1	Model: KSF10U \| Lead: 50 mm \| Stroke: 1500 mm \| L1 / mass: 1925 mm / 39.7 kg \| Max speed: 1030 mm/s \| Motor: 1 (mounted by THK)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

THK KSF-U LM Guide Actuator (Open Cover, Motor Inline, KSF4-10)
