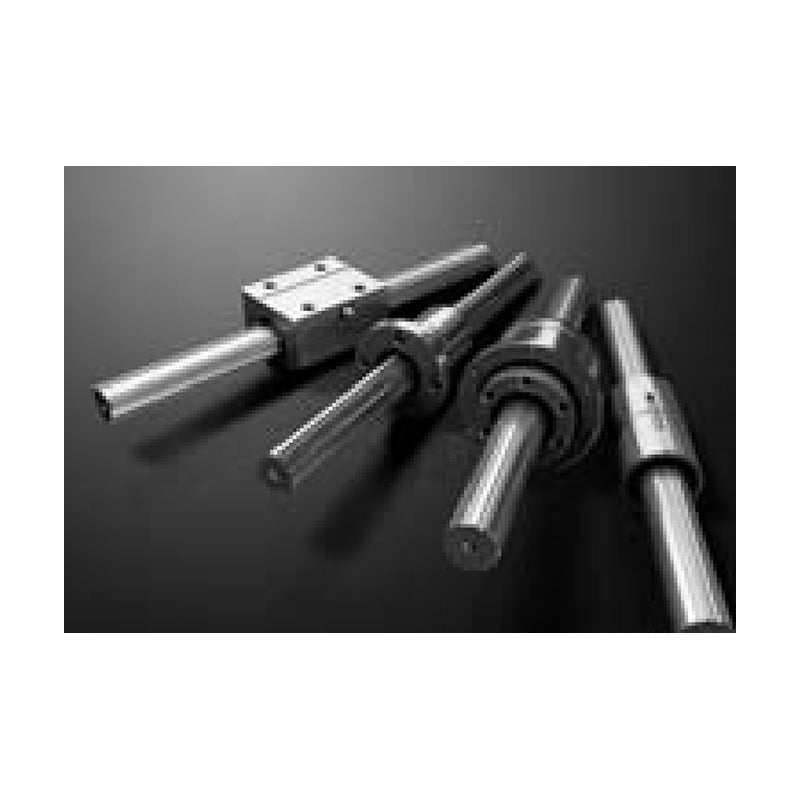

THK LFH-X Compact Ball Spline (2-Flat Flange Nut, Size 5-30)

THK LFH-X Compact Ball Spline (2-Flat Flange Nut, Size 5-30)

Compact ball spline whose LF-X flange is cut flat on two sides, giving a lower center height than a square flange.

Key features

  • New circulation path makes the nut more compact than the conventional LF type; nut OD equals that of a linear bush
  • XL long-nut versions (5XL, 6XL, 8XL) for higher torque, overhung loads and moments
  • Sizes 4X-6X use corrosion-resistant stainless steel
  • Seal-fitted and seal-less nut lengths are printed separately in the dimension table
  • Precision solid or standard hollow K (sizes 6-30) / N (sizes 16-30) spline shaft

Specifications

Brand THK
Product line Ball spline
Nut type 2-flat flange
Clearance Normal / CL; CM sizes 16-30
Seals None / UU / U
Hollow shaft K sizes 6-30; N sizes 16-30
Size value D = nut OD, L = length with seals
Source THK General Catalog Ball Spline (Korean ed. 515-2K), p. A3-80–A3-99
LFH5X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH5X H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X CL Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5X CL H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X CL P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X UU Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5X UU H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X UU P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X UU CL Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5X UU CL H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X UU CL P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X U Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5X U H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X U P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X U CL Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5X U CL H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X U CL P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH5XL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL CL Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL CL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL CL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL UU Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL UU H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL UU P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL UU CL Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL UU CL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL UU CL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL U Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL U H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL U P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL U CL Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL U CL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL U CL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH6X K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X CL Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6X CL K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X CL H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X CL H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X CL P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X CL P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X UU Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6X UU K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X UU H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X UU H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X UU P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X UU P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X UU CL Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6X UU CL K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X UU CL H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X UU CL H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X UU CL P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X UU CL P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X U Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6X U K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X U H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X U H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X U P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X U P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X U CL Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6X U CL K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X U CL H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X U CL H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X U CL P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X U CL P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH6XL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL CL Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL CL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL CL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL CL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL CL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL CL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL UU Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL UU K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL UU H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL UU H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL UU P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL UU P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL UU CL Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL UU CL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL UU CL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL UU CL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL UU CL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL UU CL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL U Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL U K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL U H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL U H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL U P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL U P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL U CL Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL U CL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL U CL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL U CL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL U CL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL U CL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH8X K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X CL Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8X CL K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X CL H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X CL H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X CL P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X CL P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X UU Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8X UU K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X UU H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X UU H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X UU P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X UU P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X UU CL Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8X UU CL K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X UU CL H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X UU CL H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X UU CL P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X UU CL P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X U Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8X U K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X U H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X U H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X U P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X U P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X U CL Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8X U CL K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X U CL H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X U CL H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X U CL P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X U CL P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH8XL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL CL Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL CL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL CL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL CL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL CL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL CL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL UU Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL UU K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL UU H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL UU H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL UU P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL UU P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL UU CL Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL UU CL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL UU CL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL UU CL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL UU CL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL UU CL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL U Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL U K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL U H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL U H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL U P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL U P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL U CL Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL U CL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL U CL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL U CL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL U CL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL U CL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH10X K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X CL Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH10X CL K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X CL H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X CL H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X CL P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X CL P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X UU Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH10X UU K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X UU H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X UU H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X UU P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X UU P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X UU CL Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH10X UU CL K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X UU CL H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X UU CL H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X UU CL P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X UU CL P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X U Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH10X U K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X U H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X U H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X U P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X U P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X U CL Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH10X U CL K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X U CL H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X U CL H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X U CL P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X U CL P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH13X K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X CL Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH13X CL K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X CL H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X CL H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X CL P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X CL P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X UU Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH13X UU K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X UU H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X UU H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X UU P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X UU P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X UU CL Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH13X UU CL K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X UU CL H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X UU CL H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X UU CL P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X UU CL P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X U Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH13X U K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X U H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X U H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X U P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X U P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X U CL Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH13X U CL K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X U CL H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X U CL H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X U CL P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X U CL P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH16X K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X CL Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X CL K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X CL N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X CL H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X CL H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X CL H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X CL P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X CL P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X CL P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X CM Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X CM K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X CM N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X CM H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X CM H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X CM H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X CM P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X CM P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X CM P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X UU Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH16X UU K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X UU N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X UU H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X UU H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X UU H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X UU P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X UU P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X UU P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X UU CL Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X UU CL K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X UU CL N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X UU CL H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X UU CL H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X UU CL H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X UU CL P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X UU CL P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X UU CL P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X UU CM Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X UU CM K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X UU CM N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X UU CM H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X UU CM H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X UU CM H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X UU CM P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X UU CM P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X UU CM P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X U Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH16X U K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X U N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X U H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X U H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X U H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X U P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X U P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X U P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X U CL Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X U CL K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X U CL N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X U CL H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X U CL H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X U CL H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X U CL P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X U CL P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X U CL P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X U CM Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X U CM K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X U CM N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X U CM H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X U CM H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X U CM H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X U CM P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X U CM P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X U CM P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH20X K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X CL Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X CL K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X CL N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X CL H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X CL H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X CL H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X CL P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X CL P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X CL P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X CM Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X CM K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X CM N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X CM H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X CM H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X CM H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X CM P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X CM P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X CM P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X UU Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH20X UU K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X UU N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X UU H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X UU H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X UU H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X UU P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X UU P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X UU P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X UU CL Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X UU CL K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X UU CL N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X UU CL H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X UU CL H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X UU CL H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X UU CL P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X UU CL P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X UU CL P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X UU CM Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X UU CM K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X UU CM N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X UU CM H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X UU CM H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X UU CM H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X UU CM P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X UU CM P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X UU CM P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X U Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH20X U K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X U N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X U H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X U H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X U H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X U P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X U P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X U P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X U CL Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X U CL K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X U CL N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X U CL H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X U CL H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X U CL H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X U CL P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X U CL P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X U CL P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X U CM Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X U CM K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X U CM N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X U CM H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X U CM H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X U CM H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X U CM P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X U CM P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X U CM P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH25X K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X CL Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X CL K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X CL N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X CL H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X CL H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X CL H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X CL P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X CL P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X CL P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X CM Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X CM K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X CM N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X CM H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X CM H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X CM H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X CM P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X CM P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X CM P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X UU Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH25X UU K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X UU N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X UU H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X UU H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X UU H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X UU P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X UU P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X UU P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X UU CL Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X UU CL K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X UU CL N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X UU CL H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X UU CL H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X UU CL H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X UU CL P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X UU CL P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X UU CL P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X UU CM Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X UU CM K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X UU CM N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X UU CM H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X UU CM H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X UU CM H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X UU CM P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X UU CM P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X UU CM P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X U Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH25X U K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X U N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X U H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X U H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X U H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X U P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X U P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X U P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X U CL Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X U CL K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X U CL N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X U CL H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X U CL H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X U CL H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X U CL P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X U CL P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X U CL P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X U CM Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X U CM K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X U CM N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X U CM H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X U CM H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X U CM H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X U CM P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X U CM P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X U CM P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH30X K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X CL Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X CL K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X CL N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X CL H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X CL H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X CL H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X CL P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X CL P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X CL P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X CM Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X CM K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X CM N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X CM H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X CM H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X CM H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X CM P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X CM P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X CM P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X UU Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH30X UU K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X UU N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X UU H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X UU H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X UU H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X UU P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X UU P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X UU P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X UU CL Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X UU CL K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X UU CL N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X UU CL H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X UU CL H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X UU CL H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X UU CL P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X UU CL P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X UU CL P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X UU CM Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X UU CM K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X UU CM N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X UU CM H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X UU CM H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X UU CM H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X UU CM P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X UU CM P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X UU CM P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X U Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH30X U K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X U N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X U H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X U H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X U H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X U P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X U P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X U P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X U CL Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X U CL K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X U CL N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X U CL H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X U CL H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X U CL H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X U CL P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X U CL P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X U CL P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X U CM Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X U CM K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X U CM N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X U CM H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X U CM H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X U CM H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X U CM P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X U CM P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X U CM P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
Ball SplinesTHK
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LFH-X Compact Ball Spline (2-Flat Flange Nut, Size 5-30)

Brand THK·Ball Splines

Available part numbers (576)

LFH5X, LFH5X H, LFH5X P, LFH5X CL, LFH5X CL H, LFH5X CL P, LFH5X UU, LFH5X UU H, LFH5X UU P, LFH5X UU CL + 566 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LFH5XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH5X HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X CLSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5X CL HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X CL PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X UUSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5X UU HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X UU PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X UU CLSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5X UU CL HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X UU CL PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X USize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5X U HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X U PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5X U CLSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5X U CL HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5X U CL PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XLBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH5XL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL CLSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL CL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL CL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL UUSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL UU HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL UU PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL UU CLSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL UU CL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL UU CL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL USize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL U HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL U PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH5XL U CLSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH5XL U CL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH5XL U CL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH6X KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X CLSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6X CL KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X CL HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X CL H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X CL PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X CL P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X UUSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6X UU KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X UU HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X UU H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X UU PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X UU P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X UU CLSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6X UU CL KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X UU CL HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X UU CL H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X UU CL PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X UU CL P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X USize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6X U KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X U HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X U H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X U PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X U P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6X U CLSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6X U CL KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6X U CL HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6X U CL H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6X U CL PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6X U CL P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XLBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH6XL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL CLSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL CL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL CL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL CL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL CL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL CL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL UUSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL UU KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL UU HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL UU H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL UU PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL UU P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL UU CLSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL UU CL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL UU CL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL UU CL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL UU CL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL UU CL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL USize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL U KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL U HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL U H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL U PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL U P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH6XL U CLSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH6XL U CL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH6XL U CL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH6XL U CL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH6XL U CL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH6XL U CL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH8X KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X CLSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8X CL KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X CL HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X CL H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X CL PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X CL P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X UUSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8X UU KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X UU HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X UU H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X UU PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X UU P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X UU CLSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8X UU CL KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X UU CL HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X UU CL H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X UU CL PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X UU CL P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X USize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8X U KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X U HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X U H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X U PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X U P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8X U CLSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8X U CL KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8X U CL HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8X U CL H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8X U CL PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8X U CL P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XLBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH8XL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL CLSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL CL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL CL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL CL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL CL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL CL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL UUSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL UU KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL UU HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL UU H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL UU PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL UU P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL UU CLSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL UU CL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL UU CL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL UU CL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL UU CL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL UU CL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL USize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL U KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL U HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL U H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL U PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL U P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH8XL U CLSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH8XL U CL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH8XL U CL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH8XL U CL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH8XL U CL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH8XL U CL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH10X KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X CLSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH10X CL KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X CL HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X CL H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X CL PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X CL P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X UUSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH10X UU KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X UU HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X UU H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X UU PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X UU P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X UU CLSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH10X UU CL KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X UU CL HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X UU CL H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X UU CL PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X UU CL P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X USize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH10X U KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X U HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X U H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X U PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X U P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH10X U CLSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH10X U CL KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH10X U CL HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH10X U CL H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH10X U CL PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH10X U CL P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH13X KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X CLSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH13X CL KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X CL HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X CL H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X CL PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X CL P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X UUSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH13X UU KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X UU HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X UU H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X UU PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X UU P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X UU CLSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH13X UU CL KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X UU CL HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X UU CL H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X UU CL PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X UU CL P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X USize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH13X U KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X U HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X U H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X U PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X U P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH13X U CLSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH13X U CL KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH13X U CL HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH13X U CL H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH13X U CL PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH13X U CL P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH16X KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X CLSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X CL KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X CL NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X CL HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X CL H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X CL H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X CL PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X CL P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X CL P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X CMSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X CM KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X CM NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X CM HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X CM H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X CM H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X CM PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X CM P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X CM P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X UUSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH16X UU KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X UU NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X UU HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X UU H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X UU H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X UU PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X UU P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X UU P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X UU CLSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X UU CL KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X UU CL NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X UU CL HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X UU CL H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X UU CL H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X UU CL PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X UU CL P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X UU CL P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X UU CMSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X UU CM KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X UU CM NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X UU CM HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X UU CM H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X UU CM H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X UU CM PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X UU CM P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X UU CM P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X USize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH16X U KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X U NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X U HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X U H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X U H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X U PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X U P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X U P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X U CLSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X U CL KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X U CL NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X U CL HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X U CL H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X U CL H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X U CL PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X U CL P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X U CL P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH16X U CMSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH16X U CM KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH16X U CM NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH16X U CM HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH16X U CM H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH16X U CM H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH16X U CM PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH16X U CM P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH16X U CM P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH20X KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X CLSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X CL KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X CL NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X CL HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X CL H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X CL H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X CL PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X CL P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X CL P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X CMSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X CM KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X CM NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X CM HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X CM H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X CM H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X CM PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X CM P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X CM P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X UUSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH20X UU KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X UU NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X UU HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X UU H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X UU H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X UU PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X UU P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X UU P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X UU CLSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X UU CL KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X UU CL NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X UU CL HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X UU CL H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X UU CL H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X UU CL PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X UU CL P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X UU CL P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X UU CMSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X UU CM KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X UU CM NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X UU CM HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X UU CM H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X UU CM H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X UU CM PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X UU CM P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X UU CM P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X USize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH20X U KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X U NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X U HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X U H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X U H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X U PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X U P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X U P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X U CLSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X U CL KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X U CL NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X U CL HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X U CL H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X U CL H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X U CL PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X U CL P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X U CL P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH20X U CMSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH20X U CM KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH20X U CM NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH20X U CM HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH20X U CM H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH20X U CM H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH20X U CM PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH20X U CM P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH20X U CM P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH25X KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X CLSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X CL KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X CL NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X CL HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X CL H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X CL H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X CL PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X CL P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X CL P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X CMSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X CM KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X CM NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X CM HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X CM H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X CM H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X CM PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X CM P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X CM P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X UUSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH25X UU KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X UU NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X UU HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X UU H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X UU H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X UU PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X UU P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X UU P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X UU CLSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X UU CL KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X UU CL NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X UU CL HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X UU CL H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X UU CL H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X UU CL PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X UU CL P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X UU CL P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X UU CMSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X UU CM KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X UU CM NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X UU CM HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X UU CM H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X UU CM H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X UU CM PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X UU CM P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X UU CM P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X USize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH25X U KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X U NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X U HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X U H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X U H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X U PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X U P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X U P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X U CLSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X U CL KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X U CL NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X U CL HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X U CL H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X U CL H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X U CL PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X U CL P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X U CL P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH25X U CMSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH25X U CM KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH25X U CM NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH25X U CM HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH25X U CM H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH25X U CM H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH25X U CM PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH25X U CM P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH25X U CM P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFH30X KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X CLSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X CL KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X CL NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X CL HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X CL H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X CL H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X CL PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X CL P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X CL P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X CMSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X CM KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X CM NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X CM HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X CM H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X CM H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X CM PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X CM P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X CM P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X UUSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH30X UU KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X UU NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X UU HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X UU H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X UU H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X UU PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X UU P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X UU P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X UU CLSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X UU CL KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X UU CL NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X UU CL HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X UU CL H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X UU CL H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X UU CL PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X UU CL P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X UU CL P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X UU CMSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X UU CM KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X UU CM NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X UU CM HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X UU CM H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X UU CM H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X UU CM PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X UU CM P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X UU CM P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X USize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFH30X U KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X U NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X U HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X U H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X U H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X U PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X U P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X U P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X U CLSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X U CL KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X U CL NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X U CL HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X U CL H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X U CL H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X U CL PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X U CL P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X U CL P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFH30X U CMSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFH30X U CM KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFH30X U CM NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFH30X U CM HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFH30X U CM H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFH30X U CM H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFH30X U CM PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFH30X U CM P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFH30X U CM P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
