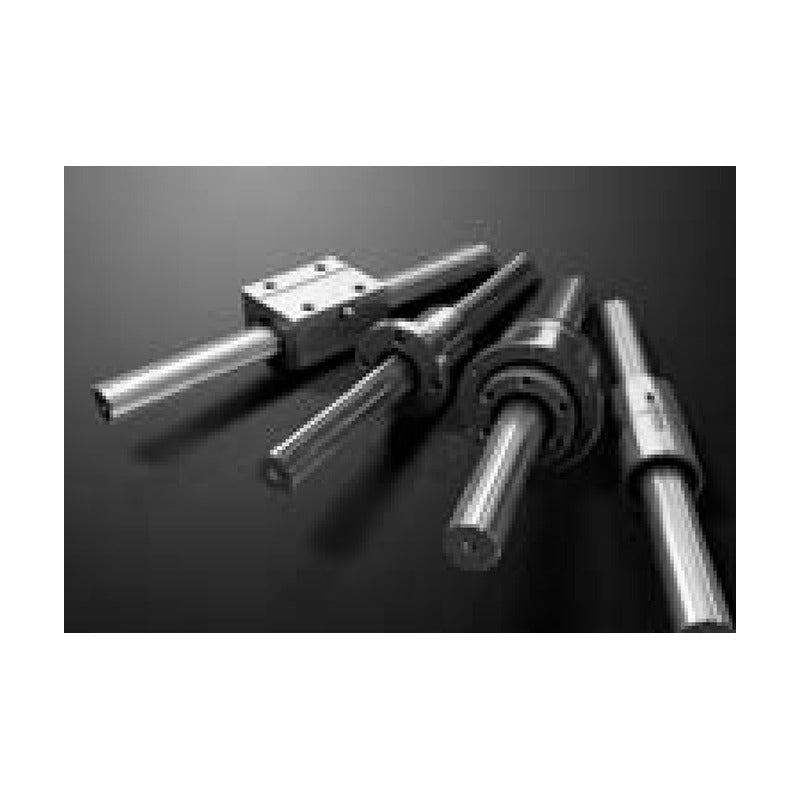

THK LFK-X Compact Ball Spline (Square Flange Nut, Size 5-30)

THK LFK-X Compact Ball Spline (Square Flange Nut, Size 5-30)

Compact ball spline whose LF-X flange is cut flat on four sides, lowering the center height compared with a round flange.

Key features

  • New circulation path makes the nut more compact than the conventional LF type; nut OD equals that of a linear bush
  • XL long-nut versions (5XL, 6XL, 8XL) for higher torque, overhung loads and moments
  • Sizes 4X-6X use corrosion-resistant stainless steel
  • Seal-fitted and seal-less nut lengths are printed separately in the dimension table
  • Precision solid or standard hollow K (sizes 6-30) / N (sizes 16-30) spline shaft

Specifications

Brand THK
Product line Ball spline
Nut type Square flange (4 flats)
Clearance Normal / CL; CM sizes 16-30
Seals None / UU / U
Hollow shaft K sizes 6-30; N sizes 16-30
Size value D = nut OD, L = length with seals
Source THK General Catalog Ball Spline (Korean ed. 515-2K), p. A3-80–A3-99
LFK5X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK5X H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X CL Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5X CL H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X CL P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X UU Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5X UU H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X UU P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X UU CL Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5X UU CL H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X UU CL P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X U Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5X U H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X U P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X U CL Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5X U CL H Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X U CL P Size: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK5XL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL CL Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL CL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL CL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL UU Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL UU H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL UU P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL UU CL Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL UU CL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL UU CL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL U Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL U H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL U P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL U CL Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL U CL H Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL U CL P Size: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK6X K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X CL Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6X CL K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X CL H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X CL H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X CL P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X CL P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X UU Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6X UU K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X UU H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X UU H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X UU P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X UU P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X UU CL Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6X UU CL K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X UU CL H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X UU CL H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X UU CL P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X UU CL P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X U Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6X U K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X U H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X U H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X U P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X U P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X U CL Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6X U CL K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X U CL H Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X U CL H K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X U CL P Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X U CL P K Size: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK6XL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL CL Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL CL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL CL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL CL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL CL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL CL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL UU Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL UU K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL UU H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL UU H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL UU P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL UU P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL UU CL Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL UU CL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL UU CL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL UU CL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL UU CL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL UU CL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL U Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL U K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL U H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL U H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL U P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL U P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL U CL Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL U CL K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL U CL H Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL U CL H K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL U CL P Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL U CL P K Size: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK8X K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X CL Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8X CL K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X CL H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X CL H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X CL P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X CL P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X UU Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8X UU K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X UU H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X UU H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X UU P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X UU P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X UU CL Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8X UU CL K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X UU CL H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X UU CL H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X UU CL P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X UU CL P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X U Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8X U K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X U H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X U H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X U P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X U P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X U CL Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8X U CL K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X U CL H Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X U CL H K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X U CL P Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X U CL P K Size: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK8XL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL CL Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL CL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL CL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL CL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL CL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL CL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL UU Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL UU K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL UU H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL UU H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL UU P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL UU P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL UU CL Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL UU CL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL UU CL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL UU CL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL UU CL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL UU CL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL U Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL U K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL U H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL U H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL U P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL U P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL U CL Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL U CL K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL U CL H Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL U CL H K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL U CL P Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL U CL P K Size: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK10X K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X CL Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK10X CL K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X CL H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X CL H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X CL P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X CL P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X UU Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK10X UU K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X UU H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X UU H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X UU P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X UU P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X UU CL Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK10X UU CL K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X UU CL H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X UU CL H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X UU CL P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X UU CL P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X U Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK10X U K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X U H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X U H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X U P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X U P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X U CL Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK10X U CL K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X U CL H Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X U CL H K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X U CL P Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X U CL P K Size: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK13X K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X CL Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK13X CL K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X CL H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X CL H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X CL P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X CL P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X UU Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK13X UU K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X UU H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X UU H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X UU P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X UU P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X UU CL Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK13X UU CL K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X UU CL H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X UU CL H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X UU CL P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X UU CL P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X U Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK13X U K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X U H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X U H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X U P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X U P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X U CL Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK13X U CL K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X U CL H Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X U CL H K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X U CL P Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X U CL P K Size: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK16X K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X CL Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X CL K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X CL N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X CL H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X CL H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X CL H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X CL P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X CL P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X CL P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X CM Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X CM K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X CM N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X CM H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X CM H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X CM H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X CM P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X CM P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X CM P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X UU Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK16X UU K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X UU N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X UU H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X UU H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X UU H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X UU P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X UU P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X UU P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X UU CL Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X UU CL K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X UU CL N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X UU CL H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X UU CL H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X UU CL H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X UU CL P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X UU CL P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X UU CL P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X UU CM Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X UU CM K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X UU CM N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X UU CM H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X UU CM H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X UU CM H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X UU CM P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X UU CM P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X UU CM P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X U Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK16X U K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X U N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X U H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X U H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X U H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X U P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X U P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X U P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X U CL Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X U CL K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X U CL N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X U CL H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X U CL H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X U CL H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X U CL P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X U CL P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X U CL P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X U CM Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X U CM K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X U CM N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X U CM H Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X U CM H K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X U CM H N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X U CM P Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X U CM P K Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X U CM P N Size: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK20X K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X CL Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X CL K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X CL N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X CL H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X CL H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X CL H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X CL P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X CL P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X CL P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X CM Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X CM K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X CM N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X CM H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X CM H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X CM H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X CM P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X CM P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X CM P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X UU Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK20X UU K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X UU N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X UU H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X UU H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X UU H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X UU P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X UU P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X UU P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X UU CL Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X UU CL K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X UU CL N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X UU CL H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X UU CL H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X UU CL H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X UU CL P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X UU CL P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X UU CL P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X UU CM Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X UU CM K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X UU CM N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X UU CM H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X UU CM H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X UU CM H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X UU CM P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X UU CM P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X UU CM P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X U Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK20X U K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X U N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X U H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X U H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X U H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X U P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X U P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X U P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X U CL Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X U CL K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X U CL N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X U CL H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X U CL H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X U CL H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X U CL P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X U CL P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X U CL P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X U CM Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X U CM K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X U CM N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X U CM H Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X U CM H K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X U CM H N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X U CM P Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X U CM P K Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X U CM P N Size: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK25X K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X CL Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X CL K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X CL N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X CL H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X CL H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X CL H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X CL P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X CL P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X CL P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X CM Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X CM K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X CM N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X CM H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X CM H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X CM H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X CM P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X CM P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X CM P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X UU Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK25X UU K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X UU N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X UU H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X UU H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X UU H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X UU P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X UU P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X UU P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X UU CL Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X UU CL K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X UU CL N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X UU CL H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X UU CL H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X UU CL H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X UU CL P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X UU CL P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X UU CL P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X UU CM Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X UU CM K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X UU CM N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X UU CM H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X UU CM H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X UU CM H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X UU CM P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X UU CM P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X UU CM P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X U Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK25X U K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X U N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X U H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X U H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X U H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X U P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X U P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X U P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X U CL Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X U CL K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X U CL N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X U CL H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X U CL H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X U CL H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X U CL P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X U CL P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X U CL P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X U CM Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X U CM K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X U CM N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X U CM H Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X U CM H K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X U CM H N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X U CM P Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X U CM P K Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X U CM P N Size: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X Base model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK30X K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X CL Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X CL K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X CL N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X CL H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X CL H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X CL H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X CL P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X CL P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X CL P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X CM Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X CM K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X CM N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X CM H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X CM H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X CM H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X CM P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X CM P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X CM P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X UU Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK30X UU K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X UU N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X UU H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X UU H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X UU H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X UU P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X UU P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X UU P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X UU CL Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X UU CL K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X UU CL N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X UU CL H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X UU CL H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X UU CL H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X UU CL P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X UU CL P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X UU CL P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X UU CM Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X UU CM K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X UU CM N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X UU CM H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X UU CM H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X UU CM H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X UU CM P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X UU CM P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X UU CM P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X U Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK30X U K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X U N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X U H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X U H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X U H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X U P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X U P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X U P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X U CL Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X U CL K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X U CL N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X U CL H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X U CL H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X U CL H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X U CL P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X U CL P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X U CL P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X U CM Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X U CM K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X U CM N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X U CM H Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X U CM H K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X U CM H N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X U CM P Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X U CM P K Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X U CM P N Size: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
Ball SplinesTHK
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LFK-X Compact Ball Spline (Square Flange Nut, Size 5-30)

Brand THK·Ball Splines

Available part numbers (576)

LFK5X, LFK5X H, LFK5X P, LFK5X CL, LFK5X CL H, LFK5X CL P, LFK5X UU, LFK5X UU H, LFK5X UU P, LFK5X UU CL + 566 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LFK5XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK5X HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X CLSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5X CL HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X CL PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X UUSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5X UU HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X UU PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X UU CLSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5X UU CL HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X UU CL PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X USize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5X U HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X U PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5X U CLSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5X U CL HSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5X U CL PSize: 5X (D10 L15, C/C0 0.56/0.85 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XLBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK5XL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL CLSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL CL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL CL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL UUSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL UU HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL UU PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL UU CLSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL UU CL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL UU CL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL USize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL U HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL U PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK5XL U CLSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK5XL U CL HSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK5XL U CL PSize: 5XL (D10 L26, C/C0 1.09/2.19 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK6X KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X CLSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6X CL KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X CL HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X CL H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X CL PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X CL P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X UUSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6X UU KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X UU HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X UU H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X UU PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X UU P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X UU CLSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6X UU CL KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X UU CL HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X UU CL H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X UU CL PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X UU CL P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X USize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6X U KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X U HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X U H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X U PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X U P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6X U CLSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6X U CL KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6X U CL HSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6X U CL H KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6X U CL PSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6X U CL P KSize: 6X (D12 L19, C/C0 0.98/1.58 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XLBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK6XL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL CLSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL CL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL CL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL CL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL CL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL CL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL UUSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL UU KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL UU HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL UU H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL UU PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL UU P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL UU CLSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL UU CL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL UU CL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL UU CL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL UU CL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL UU CL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL USize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL U KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL U HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL U H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL U PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL U P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK6XL U CLSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK6XL U CL KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK6XL U CL HSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK6XL U CL H KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK6XL U CL PSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK6XL U CL P KSize: 6XL (D12 L30, C/C0 1.6/3.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK8X KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X CLSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8X CL KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X CL HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X CL H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X CL PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X CL P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X UUSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8X UU KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X UU HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X UU H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X UU PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X UU P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X UU CLSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8X UU CL KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X UU CL HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X UU CL H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X UU CL PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X UU CL P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X USize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8X U KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X U HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X U H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X U PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X U P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8X U CLSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8X U CL KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8X U CL HSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8X U CL H KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8X U CL PSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8X U CL P KSize: 8X (D15 L25, C/C0 1.39/2.15 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XLBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK8XL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL CLSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL CL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL CL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL CL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL CL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL CL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL UUSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL UU KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL UU HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL UU H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL UU PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL UU P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL UU CLSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL UU CL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL UU CL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL UU CL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL UU CL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL UU CL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL USize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL U KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL U HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL U H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL U PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL U P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK8XL U CLSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK8XL U CL KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK8XL U CL HSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK8XL U CL H KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK8XL U CL PSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK8XL U CL P KSize: 8XL (D15 L40, C/C0 2.35/4.53 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK10X KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X CLSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK10X CL KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X CL HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X CL H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X CL PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X CL P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X UUSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK10X UU KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X UU HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X UU H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X UU PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X UU P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X UU CLSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK10X UU CL KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X UU CL HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X UU CL H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X UU CL PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X UU CL P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X USize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK10X U KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X U HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X U H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X U PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X U P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK10X U CLSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK10X U CL KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK10X U CL HSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK10X U CL H KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK10X U CL PSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK10X U CL P KSize: 10X (D19 L33, C/C0 2.94/5.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK13X KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X CLSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK13X CL KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X CL HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X CL H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X CL PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X CL P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X UUSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK13X UU KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X UU HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X UU H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X UU PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X UU P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X UU CLSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK13X UU CL KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X UU CL HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X UU CL H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X UU CL PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X UU CL P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X USize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK13X U KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X U HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X U H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X U PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X U P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK13X U CLSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK13X U CL KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK13X U CL HSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK13X U CL H KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK13X U CL PSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK13X U CL P KSize: 13X (D23 L36, C/C0 4.16/6.96 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK16X KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X CLSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X CL KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X CL NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X CL HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X CL H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X CL H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X CL PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X CL P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X CL P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X CMSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X CM KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X CM NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X CM HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X CM H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X CM H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X CM PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X CM P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X CM P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X UUSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK16X UU KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X UU NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X UU HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X UU H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X UU H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X UU PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X UU P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X UU P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X UU CLSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X UU CL KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X UU CL NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X UU CL HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X UU CL H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X UU CL H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X UU CL PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X UU CL P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X UU CL P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X UU CMSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X UU CM KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X UU CM NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X UU CM HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X UU CM H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X UU CM H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X UU CM PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X UU CM P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X UU CM P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X USize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK16X U KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X U NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X U HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X U H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X U H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X U PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X U P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X U P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X U CLSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X U CL KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X U CL NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X U CL HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X U CL H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X U CL H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X U CL PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X U CL P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X U CL P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK16X U CMSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK16X U CM KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK16X U CM NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK16X U CM HSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK16X U CM H KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK16X U CM H NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK16X U CM PSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK16X U CM P KSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK16X U CM P NSize: 16X (D28 L50, C/C0 8.4/13.4 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK20X KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X CLSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X CL KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X CL NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X CL HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X CL H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X CL H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X CL PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X CL P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X CL P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X CMSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X CM KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X CM NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X CM HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X CM H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X CM H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X CM PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X CM P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X CM P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X UUSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK20X UU KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X UU NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X UU HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X UU H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X UU H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X UU PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X UU P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X UU P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X UU CLSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X UU CL KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X UU CL NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X UU CL HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X UU CL H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X UU CL H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X UU CL PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X UU CL P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X UU CL P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X UU CMSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X UU CM KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X UU CM NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X UU CM HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X UU CM H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X UU CM H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X UU CM PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X UU CM P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X UU CM P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X USize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK20X U KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X U NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X U HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X U H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X U H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X U PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X U P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X U P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X U CLSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X U CL KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X U CL NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X U CL HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X U CL H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X U CL H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X U CL PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X U CL P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X U CL P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK20X U CMSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK20X U CM KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK20X U CM NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK20X U CM HSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK20X U CM H KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK20X U CM H NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK20X U CM PSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK20X U CM P KSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK20X U CM P NSize: 20X (D32 L63, C/C0 10.5/18.6 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK25X KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X CLSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X CL KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X CL NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X CL HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X CL H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X CL H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X CL PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X CL P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X CL P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X CMSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X CM KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X CM NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X CM HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X CM H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X CM H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X CM PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X CM P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X CM P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X UUSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK25X UU KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X UU NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X UU HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X UU H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X UU H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X UU PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X UU P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X UU P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X UU CLSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X UU CL KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X UU CL NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X UU CL HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X UU CL H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X UU CL H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X UU CL PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X UU CL P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X UU CL P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X UU CMSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X UU CM KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X UU CM NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X UU CM HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X UU CM H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X UU CM H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X UU CM PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X UU CM P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X UU CM P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X USize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK25X U KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X U NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X U HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X U H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X U H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X U PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X U P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X U P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X U CLSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X U CL KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X U CL NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X U CL HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X U CL H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X U CL H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X U CL PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X U CL P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X U CL P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK25X U CMSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK25X U CM KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK25X U CM NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK25X U CM HSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK25X U CM H KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK25X U CM H NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK25X U CM PSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK25X U CM P KSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK25X U CM P NSize: 25X (D40 L71, C/C0 15.9/26.2 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30XBase model (specify seal, clearance, accuracy, shaft length, shaft type)
LFK30X KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X CLSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X CL KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X CL NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X CL HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X CL H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X CL H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X CL PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X CL P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X CL P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X CMSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X CM KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X CM NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X CM HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X CM H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X CM H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X CM PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X CM P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X CM P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: None | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X UUSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK30X UU KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X UU NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X UU HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X UU H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X UU H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X UU PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X UU P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X UU P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X UU CLSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X UU CL KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X UU CL NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X UU CL HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X UU CL H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X UU CL H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X UU CL PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X UU CL P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X UU CL P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X UU CMSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X UU CM KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X UU CM NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X UU CM HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X UU CM H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X UU CM H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X UU CM PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X UU CM P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X UU CM P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: UU (rubber, both ends) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X USize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: Solid (standard)
LFK30X U KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X U NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X U HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X U H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X U H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X U PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X U P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X U P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: Normal | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X U CLSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X U CL KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X U CL NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X U CL HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X U CL H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X U CL H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X U CL PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X U CL P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X U CL P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CL (light preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)
LFK30X U CMSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: Solid (standard)
LFK30X U CM KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: K (hollow, thick wall)
LFK30X U CM NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: Normal | Shaft: N (hollow, thin wall)
LFK30X U CM HSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: Solid (standard)
LFK30X U CM H KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: K (hollow, thick wall)
LFK30X U CM H NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: H (high) | Shaft: N (hollow, thin wall)
LFK30X U CM PSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: Solid (standard)
LFK30X U CM P KSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: K (hollow, thick wall)
LFK30X U CM P NSize: 30X (D45 L80, C/C0 20.8/34 kN) | Seal: U (rubber, one end) | Clearance: CM (medium preload) | Accuracy: P (precision) | Shaft: N (hollow, thin wall)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
