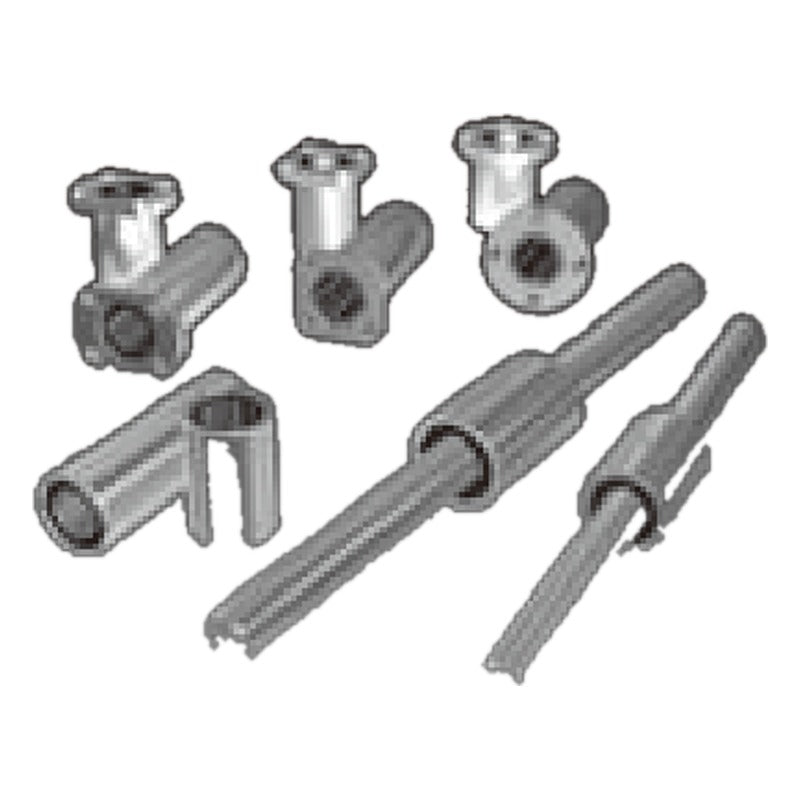

THK LMH-M Linear Bush, Small Plate Flange Stainless (Shaft 6-30)

THK LMH-M Linear Bush, Small Plate Flange Stainless (Shaft 6-30)

THK LMH-M linear bushes are stainless linear bushings with an integral small plate flange for bolting directly to a housing.

Key features

  • Round flange with two flats: lowest center height; ball rows arranged so loads from the flat side act on two rows
  • Same ball-circuit design and inscribed diameter tolerances as the LM standard type
  • Stainless-steel outer cylinder and balls for corrosion resistance
  • Seals on both ends (suffix UU) available; oil hole by adding symbol OH
  • Resin retainer: use below 80 C

Specifications

Brand THK
Series LMH-M
Flange small plate flange
Material Stainless steel
Retainer Resin (use below 80 C)
Variant Stainless
Source THK General Catalog Guide Ball Bush / Linear Bush (Korean ed. 515-2K), p. A4-70 - A4-71, A4-117
LMH6M Shaft dia: 6 mm | Seal: None | D x L: 12 x 19 mm | Flange: dia 28 / 18 mm across flats | C / C0: 206 / 265 N
LMH6MUU Shaft dia: 6 mm | Seal: UU (both ends) | D x L: 12 x 19 mm | Flange: dia 28 / 18 mm across flats | C / C0: 206 / 265 N
LMH8SM Shaft dia: 8 mm | Seal: None | D x L: 15 x 17 mm | Flange: dia 32 / 21 mm across flats | C / C0: 176 / 225 N
LMH8SMUU Shaft dia: 8 mm | Seal: UU (both ends) | D x L: 15 x 17 mm | Flange: dia 32 / 21 mm across flats | C / C0: 176 / 225 N
LMH8M Shaft dia: 8 mm | Seal: None | D x L: 15 x 24 mm | Flange: dia 32 / 21 mm across flats | C / C0: 265 / 402 N
LMH8MUU Shaft dia: 8 mm | Seal: UU (both ends) | D x L: 15 x 24 mm | Flange: dia 32 / 21 mm across flats | C / C0: 265 / 402 N
LMH10M Shaft dia: 10 mm | Seal: None | D x L: 19 x 29 mm | Flange: dia 39 / 25 mm across flats | C / C0: 373 / 549 N
LMH10MUU Shaft dia: 10 mm | Seal: UU (both ends) | D x L: 19 x 29 mm | Flange: dia 39 / 25 mm across flats | C / C0: 373 / 549 N
LMH12M Shaft dia: 12 mm | Seal: None | D x L: 21 x 30 mm | Flange: dia 42 / 27 mm across flats | C / C0: 412 / 598 N
LMH12MUU Shaft dia: 12 mm | Seal: UU (both ends) | D x L: 21 x 30 mm | Flange: dia 42 / 27 mm across flats | C / C0: 412 / 598 N
LMH13M Shaft dia: 13 mm | Seal: None | D x L: 23 x 32 mm | Flange: dia 43 / 29 mm across flats | C / C0: 510 / 775 N
LMH13MUU Shaft dia: 13 mm | Seal: UU (both ends) | D x L: 23 x 32 mm | Flange: dia 43 / 29 mm across flats | C / C0: 510 / 775 N
LMH16M Shaft dia: 16 mm | Seal: None | D x L: 28 x 37 mm | Flange: dia 48 / 34 mm across flats | C / C0: 775 / 1180 N
LMH16MUU Shaft dia: 16 mm | Seal: UU (both ends) | D x L: 28 x 37 mm | Flange: dia 48 / 34 mm across flats | C / C0: 775 / 1180 N
LMH20M Shaft dia: 20 mm | Seal: None | D x L: 32 x 42 mm | Flange: dia 54 / 38 mm across flats | C / C0: 863 / 1370 N
LMH20MUU Shaft dia: 20 mm | Seal: UU (both ends) | D x L: 32 x 42 mm | Flange: dia 54 / 38 mm across flats | C / C0: 863 / 1370 N
LMH25M Shaft dia: 25 mm | Seal: None | D x L: 40 x 59 mm | Flange: dia 62 / 46 mm across flats | C / C0: 980 / 1570 N
LMH25MUU Shaft dia: 25 mm | Seal: UU (both ends) | D x L: 40 x 59 mm | Flange: dia 62 / 46 mm across flats | C / C0: 980 / 1570 N
LMH30M Shaft dia: 30 mm | Seal: None | D x L: 45 x 64 mm | Flange: dia 74 / 51 mm across flats | C / C0: 1570 / 2750 N
LMH30MUU Shaft dia: 30 mm | Seal: UU (both ends) | D x L: 45 x 64 mm | Flange: dia 74 / 51 mm across flats | C / C0: 1570 / 2750 N
