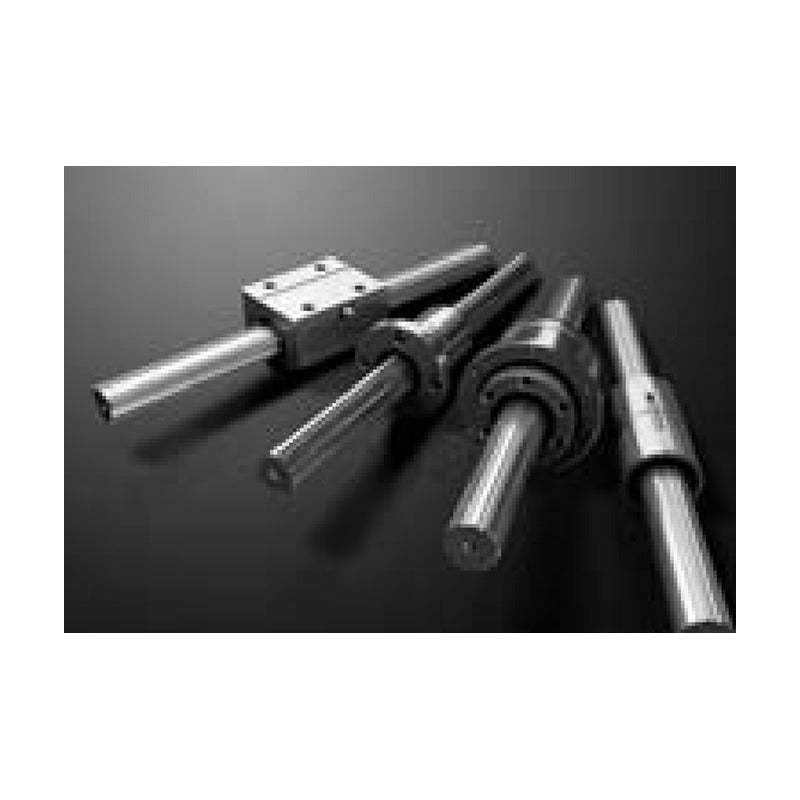

THK LTR-A Compact Rotary Ball Spline (Size 20-25)

Compact version of the LTR rotary ball spline with an integrated support bearing on the nut.

Key features

Support bearing assembled directly onto the spline nut outer cylinder - compact unit
Spline nut and support bearing integrated: drive by pulley or gear for rotation and linear motion on one shaft
20° contact angle medium-torque ball spline with preload options
Flange direction standard or reversed (K); seals on spline nut (UU/U) and support bearing (ZZ/Z)
Precision solid or standard hollow K (thick) / N (thin, sizes 16-50) spline shaft

Specifications

Brand	THK
Product line	Ball spline
Unit type	LTR-A compact (symbol A)
Clearance	Normal / CL; CM except sizes 8-13
Seals	Nut UU/U, support bearing ZZ/Z
Hollow shaft	K all sizes; N sizes 16-50
Shaft length	Specify as +xxxxL (mm)
Source	THK General Catalog Ball Spline (Korean ed. 515-2K), p. A3-112–A3-122

LTR20 A		Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
LTR20 A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 ZZ A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 ZZ A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 ZZ A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 ZZ A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 ZZ A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 ZZ A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 ZZ A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 ZZ A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 ZZ A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 ZZ CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 ZZ CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 ZZ CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 ZZ CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 ZZ CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 ZZ CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 ZZ CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 ZZ CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 ZZ CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 ZZ CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 ZZ CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 ZZ CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 ZZ CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 ZZ CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 ZZ CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 ZZ CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 ZZ CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 ZZ CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 Z A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 Z A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 Z A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 Z A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 Z A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 Z A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 Z A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 Z A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 Z A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 Z CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 Z CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 Z CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 Z CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 Z CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 Z CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 Z CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 Z CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 Z CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 Z CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 Z CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 Z CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 Z CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 Z CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 Z CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 Z CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 Z CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 Z CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU ZZ A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU ZZ A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU ZZ A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU ZZ CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU ZZ CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU ZZ CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU ZZ CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU ZZ CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU ZZ CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU ZZ CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU ZZ CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU Z A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU Z A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU Z A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU Z A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU Z A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU Z A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU Z A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU Z A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU Z A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU Z CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU Z CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU Z CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU Z CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU Z CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU Z CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU Z CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU Z CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU Z CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 UU Z CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 UU Z CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 UU Z CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 UU Z CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 UU Z CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 UU Z CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 UU Z CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 UU Z CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 UU Z CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U ZZ A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U ZZ A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U ZZ A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U ZZ A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U ZZ A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U ZZ A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U ZZ A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U ZZ A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U ZZ A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U ZZ CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U ZZ CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U ZZ CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U ZZ CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U ZZ CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U ZZ CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U ZZ CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U ZZ CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U ZZ CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U ZZ CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U ZZ CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U ZZ CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U ZZ CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U ZZ CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U ZZ CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U ZZ CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U ZZ CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U ZZ CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U Z A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U Z A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U Z A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U Z A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U Z A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U Z A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U Z A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U Z A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U Z A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U Z CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U Z CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U Z CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U Z CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U Z CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U Z CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U Z CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U Z CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U Z CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 U Z CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 U Z CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 U Z CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 U Z CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 U Z CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 U Z CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 U Z CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 U Z CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 U Z CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K ZZ A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K ZZ A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K ZZ A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K ZZ A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K ZZ A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K ZZ A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K ZZ A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K ZZ A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K ZZ A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K ZZ CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K ZZ CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K ZZ CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K ZZ CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K ZZ CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K ZZ CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K ZZ CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K ZZ CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K ZZ CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K ZZ CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K ZZ CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K ZZ CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K ZZ CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K ZZ CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K ZZ CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K ZZ CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K ZZ CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K ZZ CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K Z A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K Z A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K Z A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K Z A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K Z A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K Z A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K Z A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K Z A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K Z A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K Z CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K Z CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K Z CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K Z CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K Z CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K Z CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K Z CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K Z CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K Z CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K Z CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K Z CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K Z CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K Z CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K Z CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K Z CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K Z CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K Z CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K Z CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU ZZ A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU ZZ A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU ZZ A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU ZZ CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU ZZ CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU ZZ CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU ZZ CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU ZZ CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU ZZ CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU ZZ CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU ZZ CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU Z A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU Z A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU Z A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU Z A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU Z A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU Z A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU Z A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU Z A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU Z A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU Z CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU Z CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU Z CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU Z CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU Z CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU Z CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU Z CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU Z CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU Z CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K UU Z CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K UU Z CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K UU Z CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K UU Z CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K UU Z CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K UU Z CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K UU Z CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K UU Z CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K UU Z CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U ZZ A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U ZZ A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U ZZ A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U ZZ CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U ZZ CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U ZZ CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U ZZ CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U ZZ CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U ZZ CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U ZZ CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U ZZ CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U Z A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U Z A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U Z A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U Z A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U Z A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U Z A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U Z A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U Z A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U Z A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U Z CL A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U Z CL A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U Z CL A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U Z CL A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U Z CL A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U Z CL A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U Z CL A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U Z CL A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U Z CL A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR20 K U Z CM A		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR20 K U Z CM A K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR20 K U Z CM A N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR20 K U Z CM A H		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR20 K U Z CM A H K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR20 K U Z CM A H N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR20 K U Z CM A P		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR20 K U Z CM A P K		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR20 K U Z CM A P N		Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 A		Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
LTR25 A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 ZZ A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 ZZ A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 ZZ A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 ZZ A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 ZZ A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 ZZ A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 ZZ A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 ZZ A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 ZZ A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 ZZ CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 ZZ CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 ZZ CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 ZZ CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 ZZ CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 ZZ CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 ZZ CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 ZZ CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 ZZ CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 ZZ CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 ZZ CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 ZZ CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 ZZ CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 ZZ CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 ZZ CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 ZZ CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 ZZ CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 ZZ CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 Z A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 Z A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 Z A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 Z A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 Z A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 Z A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 Z A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 Z A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 Z A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 Z CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 Z CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 Z CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 Z CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 Z CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 Z CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 Z CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 Z CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 Z CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 Z CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 Z CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 Z CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 Z CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 Z CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 Z CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 Z CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 Z CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 Z CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU ZZ A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU ZZ A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU ZZ A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU ZZ CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU ZZ CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU ZZ CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU ZZ CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU ZZ CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU ZZ CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU ZZ CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU ZZ CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU Z A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU Z A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU Z A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU Z A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU Z A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU Z A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU Z A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU Z A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU Z A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU Z CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU Z CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU Z CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU Z CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU Z CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU Z CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU Z CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU Z CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU Z CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 UU Z CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 UU Z CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 UU Z CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 UU Z CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 UU Z CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 UU Z CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 UU Z CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 UU Z CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 UU Z CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U ZZ A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U ZZ A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U ZZ A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U ZZ A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U ZZ A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U ZZ A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U ZZ A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U ZZ A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U ZZ A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U ZZ CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U ZZ CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U ZZ CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U ZZ CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U ZZ CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U ZZ CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U ZZ CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U ZZ CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U ZZ CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U ZZ CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U ZZ CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U ZZ CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U ZZ CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U ZZ CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U ZZ CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U ZZ CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U ZZ CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U ZZ CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U Z A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U Z A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U Z A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U Z A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U Z A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U Z A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U Z A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U Z A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U Z A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U Z CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U Z CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U Z CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U Z CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U Z CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U Z CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U Z CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U Z CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U Z CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 U Z CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 U Z CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 U Z CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 U Z CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 U Z CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 U Z CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 U Z CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 U Z CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 U Z CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K ZZ A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K ZZ A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K ZZ A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K ZZ A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K ZZ A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K ZZ A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K ZZ A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K ZZ A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K ZZ A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K ZZ CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K ZZ CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K ZZ CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K ZZ CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K ZZ CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K ZZ CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K ZZ CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K ZZ CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K ZZ CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K ZZ CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K ZZ CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K ZZ CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K ZZ CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K ZZ CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K ZZ CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K ZZ CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K ZZ CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K ZZ CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K Z A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K Z A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K Z A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K Z A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K Z A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K Z A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K Z A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K Z A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K Z A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K Z CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K Z CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K Z CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K Z CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K Z CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K Z CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K Z CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K Z CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K Z CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K Z CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K Z CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K Z CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K Z CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K Z CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K Z CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K Z CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K Z CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K Z CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU ZZ A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU ZZ A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU ZZ A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU ZZ CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU ZZ CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU ZZ CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU ZZ CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU ZZ CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU ZZ CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU ZZ CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU ZZ CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU Z A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU Z A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU Z A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU Z A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU Z A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU Z A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU Z A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU Z A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU Z A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU Z CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU Z CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU Z CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU Z CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU Z CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU Z CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU Z CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU Z CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU Z CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K UU Z CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K UU Z CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K UU Z CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K UU Z CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K UU Z CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K UU Z CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K UU Z CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K UU Z CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K UU Z CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U ZZ A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U ZZ A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U ZZ A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U ZZ CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U ZZ CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U ZZ CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U ZZ CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U ZZ CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U ZZ CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U ZZ CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U ZZ CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U Z A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U Z A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U Z A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U Z A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U Z A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U Z A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U Z A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U Z A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U Z A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U Z CL A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U Z CL A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U Z CL A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U Z CL A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U Z CL A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U Z CL A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U Z CL A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U Z CL A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U Z CL A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR25 K U Z CM A		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR25 K U Z CM A K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR25 K U Z CM A N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR25 K U Z CM A H		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR25 K U Z CM A H K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR25 K U Z CM A H N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR25 K U Z CM A P		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR25 K U Z CM A P K		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR25 K U Z CM A P N		Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)

Ball SplinesTHK

972 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LTR-A Compact Rotary Ball Spline (Size 20-25)

Brand THK·Ball Splines

Available part numbers (972)

LTR20 A, LTR20 A K, LTR20 A N, LTR20 A H, LTR20 A H K, LTR20 A H N, LTR20 A P, LTR20 A P K, LTR20 A P N, LTR20 CL A + 962 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LTR20 A	Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
	LTR20 A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 ZZ A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 ZZ A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 ZZ A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 ZZ A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 ZZ A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 ZZ A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 ZZ A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 ZZ A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 ZZ A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 ZZ CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 ZZ CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 ZZ CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 ZZ CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 ZZ CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 ZZ CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 ZZ CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 ZZ CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 ZZ CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 ZZ CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 ZZ CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 ZZ CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 ZZ CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 ZZ CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 ZZ CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 ZZ CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 ZZ CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 ZZ CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 Z A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 Z A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 Z A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 Z A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 Z A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 Z A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 Z A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 Z A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 Z A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 Z CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 Z CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 Z CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 Z CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 Z CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 Z CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 Z CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 Z CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 Z CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 Z CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 Z CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 Z CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 Z CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 Z CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 Z CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 Z CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 Z CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 Z CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU ZZ A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU ZZ A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU ZZ A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU ZZ CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU ZZ CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU ZZ CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU ZZ CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU ZZ CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU ZZ CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU ZZ CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU ZZ CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU Z A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU Z A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU Z A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU Z A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU Z A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU Z A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU Z A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU Z A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU Z A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU Z CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU Z CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU Z CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU Z CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU Z CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU Z CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU Z CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU Z CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU Z CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 UU Z CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 UU Z CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 UU Z CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 UU Z CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 UU Z CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 UU Z CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 UU Z CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 UU Z CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 UU Z CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U ZZ A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U ZZ A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U ZZ A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U ZZ CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U ZZ CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U ZZ CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U ZZ CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U ZZ CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U ZZ CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U ZZ CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U ZZ CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U Z A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U Z A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U Z A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U Z A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U Z A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U Z A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U Z A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U Z A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U Z A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U Z CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U Z CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U Z CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U Z CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U Z CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U Z CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U Z CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U Z CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U Z CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 U Z CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 U Z CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 U Z CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 U Z CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 U Z CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 U Z CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 U Z CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 U Z CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 U Z CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K ZZ A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K ZZ A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K ZZ A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K ZZ CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K ZZ CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K ZZ CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K ZZ CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K ZZ CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K ZZ CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K ZZ CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K ZZ CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K Z A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K Z A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K Z A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K Z A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K Z A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K Z A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K Z A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K Z A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K Z A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K Z CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K Z CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K Z CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K Z CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K Z CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K Z CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K Z CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K Z CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K Z CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K Z CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K Z CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K Z CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K Z CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K Z CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K Z CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K Z CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K Z CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K Z CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU ZZ A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU ZZ A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU ZZ A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU ZZ CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU ZZ CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU ZZ CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU ZZ CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU ZZ CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU ZZ CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU ZZ CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU ZZ CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU Z A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU Z A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU Z A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU Z CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU Z CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU Z CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K UU Z CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K UU Z CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K UU Z CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K UU Z CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K UU Z CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U ZZ A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U ZZ A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U ZZ A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U ZZ CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U ZZ CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U ZZ CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U ZZ CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U ZZ CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U ZZ CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U ZZ CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U ZZ CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U Z A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U Z A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U Z A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U Z A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U Z A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U Z A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U Z A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U Z A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U Z A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U Z CL A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U Z CL A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U Z CL A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U Z CL A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U Z CL A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U Z CL A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U Z CL A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U Z CL A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U Z CL A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR20 K U Z CM A	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR20 K U Z CM A K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR20 K U Z CM A N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR20 K U Z CM A H	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR20 K U Z CM A H K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR20 K U Z CM A H N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR20 K U Z CM A P	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR20 K U Z CM A P K	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR20 K U Z CM A P N	Size: 20A (D56 L63, C/C0 10.2/17.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 A	Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
	LTR25 A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 ZZ A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 ZZ A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 ZZ A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 ZZ A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 ZZ A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 ZZ A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 ZZ A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 ZZ A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 ZZ A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 ZZ CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 ZZ CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 ZZ CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 ZZ CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 ZZ CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 ZZ CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 ZZ CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 ZZ CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 ZZ CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 ZZ CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 ZZ CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 ZZ CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 ZZ CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 ZZ CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 ZZ CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 ZZ CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 ZZ CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 ZZ CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 Z A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 Z A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 Z A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 Z A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 Z A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 Z A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 Z A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 Z A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 Z A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 Z CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 Z CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 Z CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 Z CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 Z CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 Z CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 Z CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 Z CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 Z CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 Z CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 Z CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 Z CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 Z CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 Z CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 Z CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 Z CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 Z CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 Z CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU ZZ A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU ZZ A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU ZZ A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU ZZ CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU ZZ CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU ZZ CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU ZZ CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU ZZ CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU ZZ CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU ZZ CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU ZZ CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU Z A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU Z A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU Z A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU Z A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU Z A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU Z A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU Z A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU Z A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU Z A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU Z CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU Z CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU Z CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU Z CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU Z CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU Z CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU Z CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU Z CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU Z CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 UU Z CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 UU Z CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 UU Z CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 UU Z CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 UU Z CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 UU Z CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 UU Z CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 UU Z CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 UU Z CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U ZZ A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U ZZ A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U ZZ A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U ZZ CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U ZZ CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U ZZ CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U ZZ CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U ZZ CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U ZZ CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U ZZ CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U ZZ CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U Z A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U Z A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U Z A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U Z A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U Z A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U Z A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U Z A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U Z A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U Z A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U Z CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U Z CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U Z CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U Z CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U Z CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U Z CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U Z CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U Z CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U Z CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 U Z CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 U Z CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 U Z CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 U Z CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 U Z CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 U Z CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 U Z CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 U Z CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 U Z CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K ZZ A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K ZZ A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K ZZ A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K ZZ CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K ZZ CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K ZZ CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K ZZ CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K ZZ CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K ZZ CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K ZZ CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K ZZ CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K Z A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K Z A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K Z A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K Z A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K Z A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K Z A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K Z A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K Z A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K Z A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K Z CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K Z CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K Z CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K Z CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K Z CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K Z CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K Z CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K Z CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K Z CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K Z CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K Z CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K Z CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K Z CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K Z CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K Z CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K Z CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K Z CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K Z CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU ZZ A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU ZZ A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU ZZ A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU ZZ CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU ZZ CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU ZZ CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU ZZ CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU ZZ CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU ZZ CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU ZZ CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU ZZ CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU Z A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU Z A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU Z A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU Z CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU Z CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU Z CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K UU Z CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K UU Z CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K UU Z CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K UU Z CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K UU Z CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U ZZ A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U ZZ A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U ZZ A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U ZZ CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U ZZ CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U ZZ CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U ZZ CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U ZZ CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U ZZ CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U ZZ CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U ZZ CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U Z A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U Z A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U Z A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U Z A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U Z A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U Z A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U Z A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U Z A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U Z A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U Z CL A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U Z CL A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U Z CL A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U Z CL A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U Z CL A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U Z CL A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U Z CL A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U Z CL A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U Z CL A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR25 K U Z CM A	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR25 K U Z CM A K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR25 K U Z CM A N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR25 K U Z CM A H	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR25 K U Z CM A H K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR25 K U Z CM A H N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR25 K U Z CM A P	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR25 K U Z CM A P K	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR25 K U Z CM A P N	Size: 25A (D66 L71, C/C0 15.2/25.8 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

THK LTR-A Compact Rotary Ball Spline (Size 20-25)
