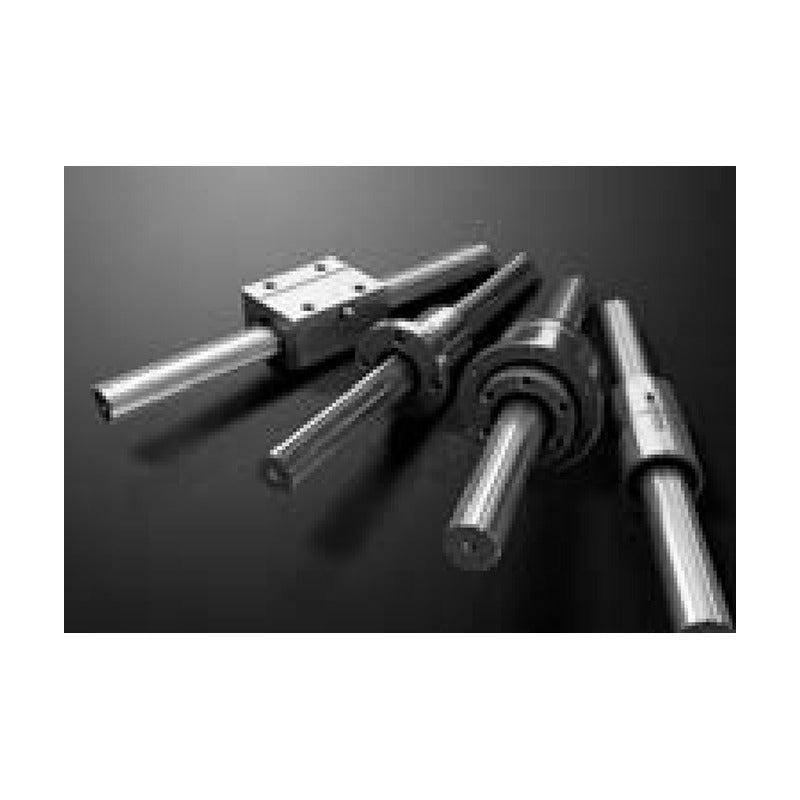

THK LTR-A Compact Rotary Ball Spline (Size 32-40)

Compact version of the LTR rotary ball spline with an integrated support bearing on the nut.

Key features

Support bearing assembled directly onto the spline nut outer cylinder - compact unit
Spline nut and support bearing integrated: drive by pulley or gear for rotation and linear motion on one shaft
20° contact angle medium-torque ball spline with preload options
Flange direction standard or reversed (K); seals on spline nut (UU/U) and support bearing (ZZ/Z)
Precision solid or standard hollow K (thick) / N (thin, sizes 16-50) spline shaft

Specifications

Brand	THK
Product line	Ball spline
Unit type	LTR-A compact (symbol A)
Clearance	Normal / CL; CM except sizes 8-13
Seals	Nut UU/U, support bearing ZZ/Z
Hollow shaft	K all sizes; N sizes 16-50
Shaft length	Specify as +xxxxL (mm)
Source	THK General Catalog Ball Spline (Korean ed. 515-2K), p. A3-112–A3-122

LTR32 A		Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
LTR32 A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 ZZ A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 ZZ A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 ZZ A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 ZZ A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 ZZ A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 ZZ A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 ZZ A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 ZZ A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 ZZ A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 ZZ CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 ZZ CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 ZZ CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 ZZ CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 ZZ CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 ZZ CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 ZZ CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 ZZ CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 ZZ CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 ZZ CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 ZZ CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 ZZ CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 ZZ CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 ZZ CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 ZZ CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 ZZ CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 ZZ CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 ZZ CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 Z A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 Z A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 Z A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 Z A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 Z A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 Z A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 Z A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 Z A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 Z A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 Z CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 Z CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 Z CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 Z CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 Z CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 Z CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 Z CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 Z CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 Z CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 Z CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 Z CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 Z CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 Z CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 Z CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 Z CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 Z CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 Z CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 Z CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU ZZ A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU ZZ A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU ZZ A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU ZZ CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU ZZ CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU ZZ CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU ZZ CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU ZZ CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU ZZ CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU ZZ CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU ZZ CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU Z A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU Z A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU Z A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU Z A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU Z A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU Z A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU Z A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU Z A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU Z A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU Z CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU Z CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU Z CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU Z CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU Z CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU Z CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU Z CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU Z CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU Z CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 UU Z CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 UU Z CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 UU Z CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 UU Z CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 UU Z CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 UU Z CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 UU Z CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 UU Z CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 UU Z CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U ZZ A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U ZZ A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U ZZ A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U ZZ A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U ZZ A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U ZZ A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U ZZ A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U ZZ A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U ZZ A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U ZZ CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U ZZ CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U ZZ CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U ZZ CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U ZZ CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U ZZ CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U ZZ CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U ZZ CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U ZZ CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U ZZ CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U ZZ CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U ZZ CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U ZZ CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U ZZ CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U ZZ CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U ZZ CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U ZZ CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U ZZ CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U Z A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U Z A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U Z A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U Z A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U Z A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U Z A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U Z A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U Z A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U Z A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U Z CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U Z CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U Z CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U Z CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U Z CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U Z CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U Z CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U Z CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U Z CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 U Z CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 U Z CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 U Z CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 U Z CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 U Z CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 U Z CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 U Z CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 U Z CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 U Z CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K ZZ A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K ZZ A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K ZZ A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K ZZ A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K ZZ A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K ZZ A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K ZZ A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K ZZ A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K ZZ A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K ZZ CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K ZZ CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K ZZ CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K ZZ CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K ZZ CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K ZZ CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K ZZ CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K ZZ CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K ZZ CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K ZZ CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K ZZ CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K ZZ CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K ZZ CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K ZZ CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K ZZ CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K ZZ CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K ZZ CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K ZZ CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K Z A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K Z A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K Z A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K Z A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K Z A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K Z A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K Z A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K Z A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K Z A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K Z CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K Z CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K Z CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K Z CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K Z CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K Z CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K Z CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K Z CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K Z CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K Z CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K Z CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K Z CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K Z CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K Z CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K Z CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K Z CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K Z CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K Z CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU ZZ A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU ZZ A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU ZZ A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU ZZ CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU ZZ CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU ZZ CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU ZZ CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU ZZ CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU ZZ CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU ZZ CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU ZZ CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU Z A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU Z A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU Z A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU Z A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU Z A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU Z A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU Z A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU Z A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU Z A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU Z CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU Z CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU Z CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU Z CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU Z CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU Z CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU Z CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU Z CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU Z CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K UU Z CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K UU Z CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K UU Z CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K UU Z CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K UU Z CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K UU Z CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K UU Z CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K UU Z CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K UU Z CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U ZZ A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U ZZ A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U ZZ A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U ZZ CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U ZZ CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U ZZ CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U ZZ CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U ZZ CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U ZZ CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U ZZ CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U ZZ CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U Z A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U Z A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U Z A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U Z A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U Z A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U Z A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U Z A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U Z A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U Z A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U Z CL A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U Z CL A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U Z CL A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U Z CL A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U Z CL A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U Z CL A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U Z CL A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U Z CL A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U Z CL A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR32 K U Z CM A		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR32 K U Z CM A K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR32 K U Z CM A N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR32 K U Z CM A H		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR32 K U Z CM A H K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR32 K U Z CM A H N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR32 K U Z CM A P		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR32 K U Z CM A P K		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR32 K U Z CM A P N		Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 A		Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
LTR40 A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 ZZ A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 ZZ A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 ZZ A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 ZZ A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 ZZ A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 ZZ A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 ZZ A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 ZZ A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 ZZ A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 ZZ CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 ZZ CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 ZZ CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 ZZ CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 ZZ CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 ZZ CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 ZZ CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 ZZ CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 ZZ CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 ZZ CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 ZZ CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 ZZ CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 ZZ CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 ZZ CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 ZZ CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 ZZ CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 ZZ CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 ZZ CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 Z A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 Z A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 Z A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 Z A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 Z A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 Z A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 Z A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 Z A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 Z A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 Z CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 Z CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 Z CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 Z CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 Z CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 Z CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 Z CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 Z CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 Z CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 Z CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 Z CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 Z CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 Z CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 Z CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 Z CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 Z CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 Z CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 Z CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU ZZ A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU ZZ A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU ZZ A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU ZZ CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU ZZ CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU ZZ CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU ZZ CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU ZZ CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU ZZ CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU ZZ CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU ZZ CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU Z A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU Z A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU Z A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU Z A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU Z A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU Z A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU Z A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU Z A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU Z A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU Z CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU Z CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU Z CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU Z CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU Z CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU Z CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU Z CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU Z CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU Z CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 UU Z CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 UU Z CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 UU Z CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 UU Z CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 UU Z CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 UU Z CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 UU Z CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 UU Z CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 UU Z CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U ZZ A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U ZZ A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U ZZ A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U ZZ A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U ZZ A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U ZZ A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U ZZ A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U ZZ A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U ZZ A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U ZZ CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U ZZ CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U ZZ CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U ZZ CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U ZZ CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U ZZ CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U ZZ CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U ZZ CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U ZZ CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U ZZ CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U ZZ CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U ZZ CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U ZZ CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U ZZ CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U ZZ CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U ZZ CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U ZZ CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U ZZ CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U Z A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U Z A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U Z A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U Z A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U Z A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U Z A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U Z A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U Z A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U Z A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U Z CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U Z CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U Z CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U Z CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U Z CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U Z CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U Z CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U Z CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U Z CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 U Z CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 U Z CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 U Z CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 U Z CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 U Z CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 U Z CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 U Z CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 U Z CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 U Z CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K ZZ A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K ZZ A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K ZZ A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K ZZ A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K ZZ A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K ZZ A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K ZZ A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K ZZ A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K ZZ A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K ZZ CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K ZZ CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K ZZ CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K ZZ CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K ZZ CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K ZZ CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K ZZ CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K ZZ CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K ZZ CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K ZZ CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K ZZ CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K ZZ CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K ZZ CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K ZZ CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K ZZ CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K ZZ CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K ZZ CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K ZZ CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K Z A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K Z A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K Z A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K Z A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K Z A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K Z A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K Z A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K Z A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K Z A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K Z CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K Z CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K Z CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K Z CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K Z CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K Z CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K Z CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K Z CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K Z CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K Z CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K Z CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K Z CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K Z CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K Z CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K Z CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K Z CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K Z CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K Z CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU ZZ A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU ZZ A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU ZZ A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU ZZ CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU ZZ CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU ZZ CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU ZZ CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU ZZ CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU ZZ CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU ZZ CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU ZZ CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU Z A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU Z A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU Z A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU Z A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU Z A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU Z A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU Z A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU Z A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU Z A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU Z CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU Z CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU Z CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU Z CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU Z CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU Z CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU Z CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU Z CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU Z CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K UU Z CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K UU Z CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K UU Z CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K UU Z CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K UU Z CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K UU Z CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K UU Z CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K UU Z CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K UU Z CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U ZZ A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U ZZ A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U ZZ A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U ZZ CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U ZZ CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U ZZ CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U ZZ CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U ZZ CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U ZZ CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U ZZ CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U ZZ CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U Z A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U Z A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U Z A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U Z A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U Z A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U Z A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U Z A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U Z A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U Z A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U Z CL A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U Z CL A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U Z CL A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U Z CL A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U Z CL A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U Z CL A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U Z CL A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U Z CL A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U Z CL A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
LTR40 K U Z CM A		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
LTR40 K U Z CM A K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
LTR40 K U Z CM A N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
LTR40 K U Z CM A H		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
LTR40 K U Z CM A H K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
LTR40 K U Z CM A H N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
LTR40 K U Z CM A P		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
LTR40 K U Z CM A P K		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
LTR40 K U Z CM A P N		Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)

Ball SplinesTHK

972 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LTR-A Compact Rotary Ball Spline (Size 32-40)

Brand THK·Ball Splines

Available part numbers (972)

LTR32 A, LTR32 A K, LTR32 A N, LTR32 A H, LTR32 A H K, LTR32 A H N, LTR32 A P, LTR32 A P K, LTR32 A P N, LTR32 CL A + 962 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LTR32 A	Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
	LTR32 A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 ZZ A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 ZZ A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 ZZ A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 ZZ A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 ZZ A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 ZZ A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 ZZ A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 ZZ A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 ZZ A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 ZZ CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 ZZ CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 ZZ CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 ZZ CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 ZZ CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 ZZ CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 ZZ CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 ZZ CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 ZZ CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 ZZ CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 ZZ CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 ZZ CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 ZZ CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 ZZ CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 ZZ CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 ZZ CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 ZZ CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 ZZ CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 Z A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 Z A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 Z A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 Z A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 Z A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 Z A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 Z A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 Z A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 Z A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 Z CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 Z CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 Z CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 Z CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 Z CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 Z CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 Z CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 Z CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 Z CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 Z CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 Z CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 Z CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 Z CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 Z CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 Z CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 Z CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 Z CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 Z CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU ZZ A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU ZZ A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU ZZ A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU ZZ CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU ZZ CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU ZZ CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU ZZ CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU ZZ CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU ZZ CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU ZZ CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU ZZ CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU Z A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU Z A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU Z A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU Z A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU Z A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU Z A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU Z A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU Z A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU Z A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU Z CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU Z CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU Z CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU Z CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU Z CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU Z CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU Z CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU Z CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU Z CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 UU Z CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 UU Z CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 UU Z CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 UU Z CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 UU Z CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 UU Z CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 UU Z CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 UU Z CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 UU Z CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U ZZ A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U ZZ A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U ZZ A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U ZZ CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U ZZ CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U ZZ CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U ZZ CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U ZZ CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U ZZ CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U ZZ CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U ZZ CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U Z A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U Z A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U Z A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U Z A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U Z A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U Z A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U Z A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U Z A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U Z A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U Z CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U Z CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U Z CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U Z CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U Z CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U Z CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U Z CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U Z CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U Z CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 U Z CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 U Z CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 U Z CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 U Z CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 U Z CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 U Z CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 U Z CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 U Z CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 U Z CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K ZZ A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K ZZ A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K ZZ A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K ZZ CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K ZZ CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K ZZ CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K ZZ CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K ZZ CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K ZZ CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K ZZ CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K ZZ CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K Z A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K Z A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K Z A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K Z A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K Z A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K Z A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K Z A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K Z A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K Z A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K Z CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K Z CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K Z CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K Z CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K Z CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K Z CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K Z CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K Z CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K Z CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K Z CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K Z CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K Z CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K Z CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K Z CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K Z CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K Z CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K Z CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K Z CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU ZZ A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU ZZ A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU ZZ A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU ZZ CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU ZZ CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU ZZ CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU ZZ CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU ZZ CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU ZZ CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU ZZ CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU ZZ CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU Z A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU Z A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU Z A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU Z CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU Z CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU Z CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K UU Z CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K UU Z CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K UU Z CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K UU Z CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K UU Z CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U ZZ A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U ZZ A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U ZZ A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U ZZ CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U ZZ CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U ZZ CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U ZZ CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U ZZ CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U ZZ CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U ZZ CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U ZZ CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U Z A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U Z A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U Z A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U Z A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U Z A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U Z A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U Z A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U Z A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U Z A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U Z CL A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U Z CL A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U Z CL A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U Z CL A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U Z CL A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U Z CL A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U Z CL A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U Z CL A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U Z CL A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR32 K U Z CM A	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR32 K U Z CM A K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR32 K U Z CM A N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR32 K U Z CM A H	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR32 K U Z CM A H K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR32 K U Z CM A H N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR32 K U Z CM A P	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR32 K U Z CM A P K	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR32 K U Z CM A P N	Size: 32A (D78 L80, C/C0 20.5/34 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 A	Base model (specify flange, seals, clearance, accuracy, shaft length, shaft type)
	LTR40 A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 ZZ A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 ZZ A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 ZZ A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 ZZ A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 ZZ A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 ZZ A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 ZZ A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 ZZ A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 ZZ A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 ZZ CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 ZZ CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 ZZ CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 ZZ CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 ZZ CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 ZZ CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 ZZ CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 ZZ CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 ZZ CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 ZZ CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 ZZ CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 ZZ CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 ZZ CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 ZZ CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 ZZ CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 ZZ CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 ZZ CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 ZZ CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 Z A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 Z A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 Z A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 Z A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 Z A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 Z A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 Z A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 Z A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 Z A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 Z CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 Z CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 Z CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 Z CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 Z CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 Z CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 Z CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 Z CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 Z CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 Z CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 Z CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 Z CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 Z CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 Z CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 Z CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 Z CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 Z CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 Z CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU ZZ A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU ZZ A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU ZZ A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU ZZ CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU ZZ CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU ZZ CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU ZZ CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU ZZ CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU ZZ CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU ZZ CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU ZZ CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU Z A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU Z A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU Z A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU Z A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU Z A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU Z A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU Z A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU Z A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU Z A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU Z CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU Z CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU Z CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU Z CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU Z CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU Z CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU Z CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU Z CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU Z CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 UU Z CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 UU Z CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 UU Z CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 UU Z CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 UU Z CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 UU Z CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 UU Z CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 UU Z CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 UU Z CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U ZZ A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U ZZ A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U ZZ A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U ZZ CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U ZZ CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U ZZ CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U ZZ CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U ZZ CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U ZZ CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U ZZ CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U ZZ CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U Z A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U Z A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U Z A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U Z A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U Z A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U Z A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U Z A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U Z A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U Z A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U Z CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U Z CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U Z CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U Z CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U Z CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U Z CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U Z CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U Z CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U Z CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 U Z CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 U Z CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 U Z CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 U Z CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 U Z CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 U Z CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 U Z CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 U Z CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 U Z CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: Standard \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K ZZ A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K ZZ A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K ZZ A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K ZZ CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K ZZ CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K ZZ CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K ZZ CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K ZZ CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K ZZ CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K ZZ CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K ZZ CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K Z A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K Z A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K Z A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K Z A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K Z A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K Z A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K Z A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K Z A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K Z A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K Z CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K Z CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K Z CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K Z CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K Z CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K Z CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K Z CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K Z CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K Z CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K Z CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K Z CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K Z CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K Z CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K Z CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K Z CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K Z CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K Z CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K Z CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut none / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU ZZ A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU ZZ A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU ZZ A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU ZZ CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU ZZ CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU ZZ CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU ZZ CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU ZZ CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU ZZ CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU ZZ CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU ZZ CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU Z A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU Z A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU Z A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU Z CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU Z CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU Z CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K UU Z CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K UU Z CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K UU Z CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K UU Z CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K UU Z CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut UU / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing none \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U ZZ A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U ZZ A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U ZZ A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U ZZ CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U ZZ CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U ZZ CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U ZZ CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U ZZ CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U ZZ CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U ZZ CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U ZZ CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing ZZ \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U Z A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U Z A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U Z A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U Z A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U Z A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U Z A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U Z A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U Z A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U Z A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: Normal \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U Z CL A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U Z CL A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U Z CL A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U Z CL A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U Z CL A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U Z CL A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U Z CL A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U Z CL A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U Z CL A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CL (light preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)
	LTR40 K U Z CM A	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: Solid (standard)
	LTR40 K U Z CM A K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: K (hollow, thick wall)
	LTR40 K U Z CM A N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: Normal \| Shaft: N (hollow, thin wall)
	LTR40 K U Z CM A H	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: Solid (standard)
	LTR40 K U Z CM A H K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: K (hollow, thick wall)
	LTR40 K U Z CM A H N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: H (high) \| Shaft: N (hollow, thin wall)
	LTR40 K U Z CM A P	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: Solid (standard)
	LTR40 K U Z CM A P K	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: K (hollow, thick wall)
	LTR40 K U Z CM A P N	Size: 40A (D100 L100, C/C0 37.8/60.5 kN) \| Flange: K (reversed flange) \| Seals: Nut U / Bearing Z \| Clearance: CM (medium preload) \| Accuracy: P (precision) \| Shaft: N (hollow, thin wall)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

THK LTR-A Compact Rotary Ball Spline (Size 32-40)
