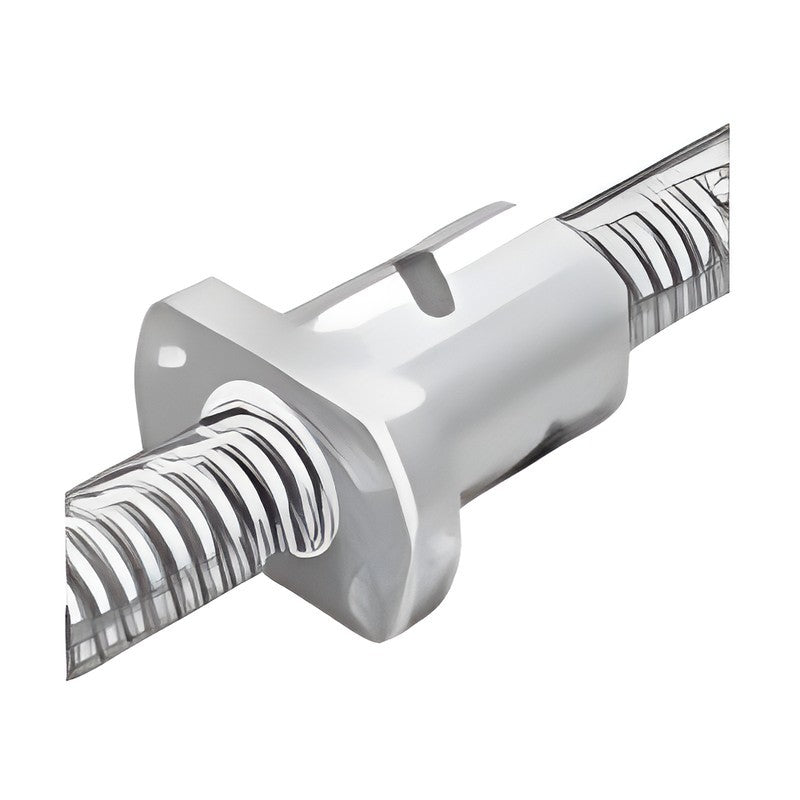

THK MDK Miniature Precision Ball Screw (Shaft 4-14, Lead 1-5)

THK MDK Miniature Precision Ball Screw (Shaft 4-14, Lead 1-5)

Miniature precision ball screw with a compact simple-type nut, shaft 4-14 mm and lead 1-5 mm.

Key features

  • Miniature compact simple-type nut, shaft 4-14 mm, lead 1-5 mm
  • Four-hole flange mounting
  • Axial clearance selectable per A15-19
  • Labyrinth seal RR standard (MDK0401/0601/0801: no seal standard)
  • Ground screw shaft, accuracy grades C0 to C7 per JIS B 1192 (ISO 3408)

Specifications

Series MDK (no preload type)
Category Precision ball screw (ground shaft)
Preload None (axial clearance G0/GT/G1/G2/G3)
DN value 70,000
Accuracy grades C0, C1, C2, C3, C5, C7 (specify; A15-12)
Shaft length Specify overall length "+xxxL" (mm)
Lubricator QZ Optional (code "QZ" before seal symbol)
Code format Model + seal + clearance, e.g. MDK1002-3RRG1
Source THK General Catalog Ball Screw (Korean ed. 515-2K), p. 198-247
MDK0401-3G0 Shaft x lead: 4 x 1 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 0.29 / 0.42 kN | Nut D x L1: 9 x 13
MDK0401-3GT Shaft x lead: 4 x 1 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 0.29 / 0.42 kN | Nut D x L1: 9 x 13
MDK0401-3G1 Shaft x lead: 4 x 1 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 0.29 / 0.42 kN | Nut D x L1: 9 x 13
MDK0401-3G2 Shaft x lead: 4 x 1 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 0.29 / 0.42 kN | Nut D x L1: 9 x 13
MDK0401-3G3 Shaft x lead: 4 x 1 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 0.29 / 0.42 kN | Nut D x L1: 9 x 13
MDK0601-3G0 Shaft x lead: 6 x 1 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 0.54 / 0.94 kN | Nut D x L1: 11 x 14.5
MDK0601-3GT Shaft x lead: 6 x 1 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 0.54 / 0.94 kN | Nut D x L1: 11 x 14.5
MDK0601-3G1 Shaft x lead: 6 x 1 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 0.54 / 0.94 kN | Nut D x L1: 11 x 14.5
MDK0601-3G2 Shaft x lead: 6 x 1 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 0.54 / 0.94 kN | Nut D x L1: 11 x 14.5
MDK0601-3G3 Shaft x lead: 6 x 1 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 0.54 / 0.94 kN | Nut D x L1: 11 x 14.5
MDK0801-3G0 Shaft x lead: 8 x 1 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 0.64 / 1.4 kN | Nut D x L1: 13 x 15
MDK0801-3GT Shaft x lead: 8 x 1 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 0.64 / 1.4 kN | Nut D x L1: 13 x 15
MDK0801-3G1 Shaft x lead: 8 x 1 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 0.64 / 1.4 kN | Nut D x L1: 13 x 15
MDK0801-3G2 Shaft x lead: 8 x 1 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 0.64 / 1.4 kN | Nut D x L1: 13 x 15
MDK0801-3G3 Shaft x lead: 8 x 1 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 0.64 / 1.4 kN | Nut D x L1: 13 x 15
MDK0802-3G0 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3GT Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3G1 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3G2 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3G3 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3RRG0 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3RRGT Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3RRG1 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3RRG2 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK0802-3RRG3 Shaft x lead: 8 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.4 / 2.3 kN | Nut D x L1: 15 x 22
MDK1002-3G0 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3GT Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3G1 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3G2 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3G3 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3RRG0 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3RRGT Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3RRG1 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3RRG2 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1002-3RRG3 Shaft x lead: 10 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.5 / 2.9 kN | Nut D x L1: 17 x 22
MDK1202-3G0 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3GT Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3G1 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3G2 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3G3 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3RRG0 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3RRGT Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3RRG1 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3RRG2 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1202-3RRG3 Shaft x lead: 12 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.7 / 3.6 kN | Nut D x L1: 19 x 22
MDK1402-3G0 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3GT Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3G1 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3G2 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3G3 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3RRG0 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3RRGT Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3RRG1 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3RRG2 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1402-3RRG3 Shaft x lead: 14 x 2 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 1.8 / 4.3 kN | Nut D x L1: 21 x 23
MDK1404-3G0 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3GT Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3G1 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3G2 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3G3 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3RRG0 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3RRGT Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3RRG1 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3RRG2 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1404-3RRG3 Shaft x lead: 14 x 4 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 4.2 / 7.6 kN | Nut D x L1: 26 x 33
MDK1405-3G0 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: None | Clearance: G0 (0 or less, preload) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3GT Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: None | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3G1 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: None | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3G2 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: None | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3G3 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: None | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3RRG0 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G0 (0 or less, preload) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3RRGT Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: GT (0 to 0.005 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3RRG1 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G1 (0 to 0.01 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3RRG2 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G2 (0 to 0.02 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
MDK1405-3RRG3 Shaft x lead: 14 x 5 | Circuits: 3×1 | Seal: RR (labyrinth seal) | Clearance: G3 (0 to 0.05 mm) | Ca / C0a: 7 / 11.6 kN | Nut D x L1: 26 x 42
Ball ScrewsTHK
75 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK MDK Miniature Precision Ball Screw (Shaft 4-14, Lead 1-5)

Brand THK·Ball Screws

Available part numbers (75)

MDK0401-3G0, MDK0401-3GT, MDK0401-3G1, MDK0401-3G2, MDK0401-3G3, MDK0601-3G0, MDK0601-3GT, MDK0601-3G1, MDK0601-3G2, MDK0601-3G3 + 65 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
