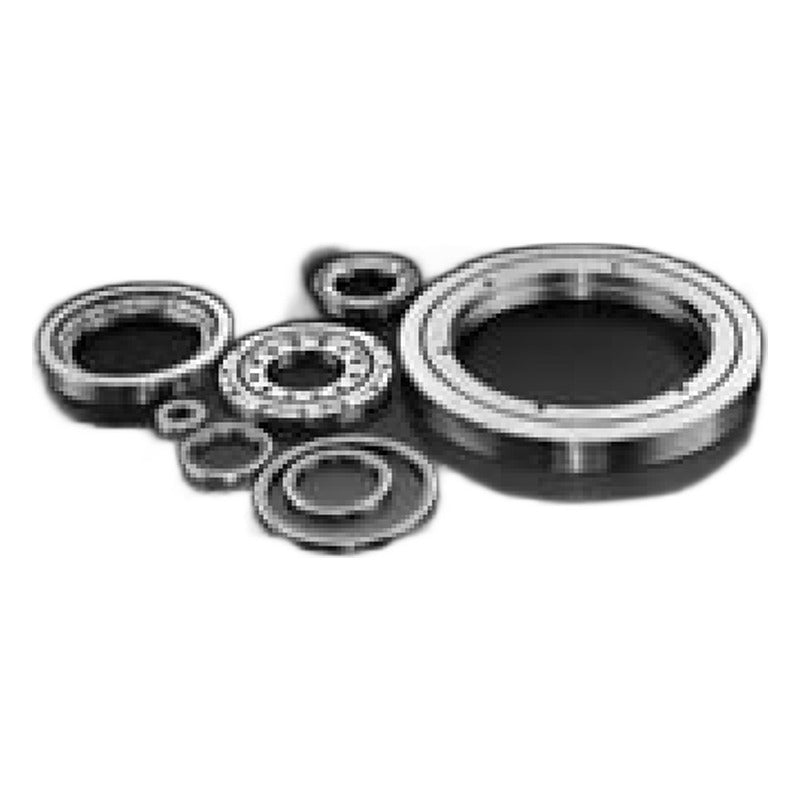

THK RB Cross Roller Ring (Split Outer Ring, Bore 350-1250 mm)

THK RB Cross Roller Ring (Split Outer Ring, Bore 350-1250 mm)

THK RB cross roller rings (split outer ring type) carry radial, axial and moment loads with a single bearing; this listing covers bore 350 to 1250 mm.

Key features

  • Crossed cylindrical rollers between 90-degree V-grooves support loads in all directions
  • Spacer retainers prevent roller skew and friction, giving low and stable rotational torque
  • Split Outer Ring; the inner ring is one-piece, so use the inner ring for rotation when accuracy matters
  • Compact width saves space compared with combined angular contact bearings
  • Seal options UU (both sides) and U (one side); radial clearance CC0, C0, C1
  • Accuracy classes 0, P6-P2 and PE6-PE2 (rotation + dimensional); grades marked special in the catalog are on request

Specifications

Brand THK
Series RB cross roller ring
Structure Split Outer Ring
Rolling elements Crossed cylindrical rollers with spacer retainer
Size format Bore d x OD D x width B
Code format RB20030 UU CC0 P5 (model, seal, clearance, accuracy)
Source THK General Catalog Cross Roller Ring (Korean ed. 515-2K), p. A18-13-A18-40
RB35020 Base model (specify seal, clearance, accuracy) | Size: 350x400x20 mm | C/C0: 54.1/143 kN
RB35020 CC0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB35020 CC0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB35020 CC0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB35020 CC0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB35020 CC0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 CC0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 CC0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 C0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB35020 C0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB35020 C0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB35020 C0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB35020 C0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 C0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 C0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 C1 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB35020 C1 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB35020 C1 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB35020 C1 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB35020 C1 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 C1 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 C1 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 UU CC0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB35020 UU CC0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB35020 UU CC0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB35020 UU CC0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB35020 UU CC0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 UU CC0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 UU CC0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 UU C0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB35020 UU C0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB35020 UU C0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB35020 UU C0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB35020 UU C0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 UU C0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 UU C0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 UU C1 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB35020 UU C1 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB35020 UU C1 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB35020 UU C1 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB35020 UU C1 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 UU C1 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 UU C1 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 U CC0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB35020 U CC0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB35020 U CC0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB35020 U CC0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB35020 U CC0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 U CC0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 U CC0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 U C0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB35020 U C0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB35020 U C0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB35020 U C0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB35020 U C0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 U C0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 U C0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 U C1 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB35020 U C1 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB35020 U C1 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB35020 U C1 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB35020 U C1 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 U C1 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 U C1 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 Base model (specify seal, clearance, accuracy) | Size: 400x480x35 mm | C/C0: 156/370 kN
RB40035 CC0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40035 CC0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40035 CC0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40035 CC0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40035 CC0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 CC0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 CC0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 C0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40035 C0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40035 C0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40035 C0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40035 C0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 C0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 C0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 C1 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40035 C1 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40035 C1 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40035 C1 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40035 C1 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 C1 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 C1 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 UU CC0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40035 UU CC0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40035 UU CC0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40035 UU CC0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40035 UU CC0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 UU CC0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 UU CC0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 UU C0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40035 UU C0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40035 UU C0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40035 UU C0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40035 UU C0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 UU C0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 UU C0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 UU C1 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40035 UU C1 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40035 UU C1 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40035 UU C1 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40035 UU C1 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 UU C1 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 UU C1 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 U CC0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40035 U CC0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40035 U CC0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40035 U CC0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40035 U CC0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 U CC0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 U CC0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 U C0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40035 U C0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40035 U C0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40035 U C0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40035 U C0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 U C0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 U C0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 U C1 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40035 U C1 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40035 U C1 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40035 U C1 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40035 U C1 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 U C1 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 U C1 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 Base model (specify seal, clearance, accuracy) | Size: 400x510x40 mm | C/C0: 241/531 kN
RB40040 CC0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40040 CC0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40040 CC0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40040 CC0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40040 CC0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 CC0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 CC0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 C0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40040 C0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40040 C0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40040 C0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40040 C0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 C0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 C0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 C1 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40040 C1 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40040 C1 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40040 C1 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40040 C1 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 C1 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 C1 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 UU CC0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40040 UU CC0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40040 UU CC0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40040 UU CC0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40040 UU CC0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 UU CC0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 UU CC0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 UU C0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40040 UU C0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40040 UU C0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40040 UU C0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40040 UU C0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 UU C0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 UU C0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 UU C1 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40040 UU C1 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40040 UU C1 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40040 UU C1 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40040 UU C1 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 UU C1 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 UU C1 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 U CC0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40040 U CC0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40040 U CC0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40040 U CC0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40040 U CC0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 U CC0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 U CC0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 U C0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40040 U C0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40040 U C0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40040 U C0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40040 U C0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 U C0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 U C0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 U C1 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40040 U C1 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40040 U C1 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40040 U C1 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40040 U C1 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 U C1 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 U C1 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 Base model (specify seal, clearance, accuracy) | Size: 450x500x25 mm | C/C0: 61.7/182 kN
RB45025 CC0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB45025 CC0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB45025 CC0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB45025 CC0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB45025 CC0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 CC0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 CC0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 C0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB45025 C0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB45025 C0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB45025 C0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB45025 C0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 C0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 C0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 C1 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB45025 C1 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB45025 C1 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB45025 C1 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB45025 C1 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 C1 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 C1 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 UU CC0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB45025 UU CC0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB45025 UU CC0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB45025 UU CC0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB45025 UU CC0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 UU CC0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 UU CC0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 UU C0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB45025 UU C0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB45025 UU C0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB45025 UU C0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB45025 UU C0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 UU C0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 UU C0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 UU C1 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB45025 UU C1 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB45025 UU C1 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB45025 UU C1 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB45025 UU C1 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 UU C1 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 UU C1 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 U CC0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB45025 U CC0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB45025 U CC0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB45025 U CC0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB45025 U CC0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 U CC0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 U CC0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 U C0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB45025 U C0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB45025 U C0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB45025 U C0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB45025 U C0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 U C0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 U C0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 U C1 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB45025 U C1 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB45025 U C1 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB45025 U C1 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB45025 U C1 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 U C1 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 U C1 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 Base model (specify seal, clearance, accuracy) | Size: 500x550x25 mm | C/C0: 65.5/201 kN
RB50025 CC0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50025 CC0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50025 CC0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50025 CC0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50025 CC0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 CC0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 CC0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 C0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50025 C0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50025 C0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50025 C0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50025 C0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 C0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 C0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 C1 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50025 C1 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50025 C1 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50025 C1 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50025 C1 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 C1 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 C1 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 UU CC0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50025 UU CC0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50025 UU CC0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50025 UU CC0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50025 UU CC0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 UU CC0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 UU CC0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 UU C0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50025 UU C0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50025 UU C0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50025 UU C0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50025 UU C0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 UU C0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 UU C0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 UU C1 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50025 UU C1 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50025 UU C1 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50025 UU C1 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50025 UU C1 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 UU C1 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 UU C1 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 U CC0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50025 U CC0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50025 U CC0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50025 U CC0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50025 U CC0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 U CC0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 U CC0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 U C0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50025 U C0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50025 U C0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50025 U C0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50025 U C0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 U C0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 U C0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 U C1 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50025 U C1 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50025 U C1 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50025 U C1 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50025 U C1 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 U C1 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 U C1 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 Base model (specify seal, clearance, accuracy) | Size: 500x600x40 mm | C/C0: 239/607 kN
RB50040 CC0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50040 CC0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50040 CC0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50040 CC0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50040 CC0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 CC0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 CC0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 C0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50040 C0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50040 C0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50040 C0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50040 C0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 C0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 C0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 C1 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50040 C1 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50040 C1 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50040 C1 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50040 C1 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 C1 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 C1 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 UU CC0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50040 UU CC0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50040 UU CC0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50040 UU CC0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50040 UU CC0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 UU CC0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 UU CC0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 UU C0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50040 UU C0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50040 UU C0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50040 UU C0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50040 UU C0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 UU C0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 UU C0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 UU C1 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50040 UU C1 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50040 UU C1 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50040 UU C1 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50040 UU C1 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 UU C1 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 UU C1 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 U CC0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50040 U CC0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50040 U CC0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50040 U CC0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50040 U CC0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 U CC0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 U CC0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 U C0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50040 U C0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50040 U C0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50040 U C0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50040 U C0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 U C0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 U C0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 U C1 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50040 U C1 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50040 U C1 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50040 U C1 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50040 U C1 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 U C1 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 U C1 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 Base model (specify seal, clearance, accuracy) | Size: 500x625x50 mm | C/C0: 267/653 kN
RB50050 CC0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50050 CC0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50050 CC0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50050 CC0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50050 CC0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 CC0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 CC0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 C0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50050 C0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50050 C0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50050 C0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50050 C0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 C0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 C0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 C1 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50050 C1 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50050 C1 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50050 C1 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50050 C1 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 C1 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 C1 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 UU CC0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50050 UU CC0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50050 UU CC0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50050 UU CC0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50050 UU CC0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 UU CC0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 UU CC0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 UU C0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50050 UU C0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50050 UU C0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50050 UU C0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50050 UU C0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 UU C0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 UU C0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 UU C1 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50050 UU C1 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50050 UU C1 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50050 UU C1 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50050 UU C1 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 UU C1 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 UU C1 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 U CC0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50050 U CC0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50050 U CC0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50050 U CC0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50050 U CC0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 U CC0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 U CC0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 U C0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50050 U C0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50050 U C0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50050 U C0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50050 U C0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 U C0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 U C0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 U C1 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50050 U C1 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50050 U C1 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50050 U C1 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50050 U C1 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 U C1 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 U C1 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 Base model (specify seal, clearance, accuracy) | Size: 600x700x40 mm | C/C0: 264/721 kN
RB60040 CC0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB60040 CC0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB60040 CC0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB60040 CC0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB60040 CC0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 CC0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 CC0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 C0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB60040 C0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB60040 C0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB60040 C0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB60040 C0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 C0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 C0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 C1 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB60040 C1 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB60040 C1 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB60040 C1 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB60040 C1 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 C1 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 C1 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 UU CC0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB60040 UU CC0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB60040 UU CC0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB60040 UU CC0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB60040 UU CC0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 UU CC0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 UU CC0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 UU C0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB60040 UU C0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB60040 UU C0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB60040 UU C0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB60040 UU C0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 UU C0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 UU C0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 UU C1 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB60040 UU C1 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB60040 UU C1 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB60040 UU C1 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB60040 UU C1 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 UU C1 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 UU C1 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 U CC0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB60040 U CC0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB60040 U CC0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB60040 U CC0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB60040 U CC0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 U CC0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 U CC0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 U C0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB60040 U C0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB60040 U C0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB60040 U C0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB60040 U C0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 U C0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 U C0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 U C1 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB60040 U C1 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB60040 U C1 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB60040 U C1 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB60040 U C1 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 U C1 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 U C1 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB70045 Base model (specify seal, clearance, accuracy) | Size: 700x815x45 mm | C/C0: 281/836 kN
RB70045 CC0 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB70045 C0 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB70045 C1 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB70045 UU CC0 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB70045 UU C0 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB70045 UU C1 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB70045 U CC0 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB70045 U C0 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB70045 U C1 Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB80070 Base model (specify seal, clearance, accuracy) | Size: 800x950x70 mm | C/C0: 468/1330 kN
RB80070 CC0 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB80070 C0 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB80070 C1 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB80070 UU CC0 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB80070 UU C0 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB80070 UU C1 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB80070 U CC0 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB80070 U C0 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB80070 U C1 Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB90070 Base model (specify seal, clearance, accuracy) | Size: 900x1050x70 mm | C/C0: 494/1490 kN
RB90070 CC0 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB90070 C0 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB90070 C1 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB90070 UU CC0 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB90070 UU C0 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB90070 UU C1 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB90070 U CC0 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB90070 U C0 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB90070 U C1 Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1000110 Base model (specify seal, clearance, accuracy) | Size: 1000x1250x110 mm | C/C0: 1220/3220 kN
RB1000110 CC0 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1000110 C0 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1000110 C1 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1000110 UU CC0 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1000110 UU C0 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1000110 UU C1 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1000110 U CC0 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1000110 U C0 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1000110 U C1 Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1250110 Base model (specify seal, clearance, accuracy) | Size: 1250x1500x110 mm | C/C0: 1350/3970 kN
RB1250110 CC0 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1250110 C0 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1250110 C1 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1250110 UU CC0 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1250110 UU C0 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1250110 UU C1 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1250110 U CC0 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1250110 U C0 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1250110 U C1 Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
Cross Roller RingsTHK
562 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK RB Cross Roller Ring (Split Outer Ring, Bore 350-1250 mm)

Brand THK·Cross Roller Rings

Available part numbers (562)

RB35020, RB35020 CC0, RB35020 CC0 P6, RB35020 CC0 P5, RB35020 CC0 P4, RB35020 CC0 PE6, RB35020 CC0 PE5, RB35020 CC0 PE4, RB35020 C0, RB35020 C0 P6 + 552 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RB35020Base model (specify seal, clearance, accuracy) | Size: 350x400x20 mm | C/C0: 54.1/143 kN
RB35020 CC0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB35020 CC0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB35020 CC0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB35020 CC0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB35020 CC0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 CC0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 CC0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 C0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB35020 C0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB35020 C0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB35020 C0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB35020 C0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 C0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 C0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 C1Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB35020 C1 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB35020 C1 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB35020 C1 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB35020 C1 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 C1 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 C1 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 UU CC0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB35020 UU CC0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB35020 UU CC0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB35020 UU CC0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB35020 UU CC0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 UU CC0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 UU CC0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 UU C0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB35020 UU C0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB35020 UU C0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB35020 UU C0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB35020 UU C0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 UU C0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 UU C0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 UU C1Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB35020 UU C1 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB35020 UU C1 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB35020 UU C1 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB35020 UU C1 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 UU C1 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 UU C1 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 U CC0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB35020 U CC0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB35020 U CC0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB35020 U CC0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB35020 U CC0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 U CC0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 U CC0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 U C0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB35020 U C0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB35020 U C0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB35020 U C0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB35020 U C0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 U C0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 U C0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB35020 U C1Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB35020 U C1 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB35020 U C1 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB35020 U C1 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB35020 U C1 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB35020 U C1 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB35020 U C1 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035Base model (specify seal, clearance, accuracy) | Size: 400x480x35 mm | C/C0: 156/370 kN
RB40035 CC0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40035 CC0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40035 CC0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40035 CC0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40035 CC0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 CC0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 CC0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 C0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40035 C0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40035 C0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40035 C0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40035 C0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 C0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 C0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 C1Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40035 C1 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40035 C1 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40035 C1 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40035 C1 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 C1 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 C1 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 UU CC0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40035 UU CC0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40035 UU CC0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40035 UU CC0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40035 UU CC0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 UU CC0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 UU CC0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 UU C0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40035 UU C0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40035 UU C0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40035 UU C0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40035 UU C0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 UU C0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 UU C0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 UU C1Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40035 UU C1 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40035 UU C1 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40035 UU C1 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40035 UU C1 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 UU C1 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 UU C1 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 U CC0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40035 U CC0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40035 U CC0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40035 U CC0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40035 U CC0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 U CC0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 U CC0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 U C0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40035 U C0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40035 U C0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40035 U C0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40035 U C0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 U C0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 U C0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40035 U C1Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40035 U C1 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40035 U C1 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40035 U C1 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40035 U C1 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40035 U C1 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40035 U C1 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040Base model (specify seal, clearance, accuracy) | Size: 400x510x40 mm | C/C0: 241/531 kN
RB40040 CC0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40040 CC0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40040 CC0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40040 CC0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40040 CC0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 CC0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 CC0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 C0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40040 C0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40040 C0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40040 C0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40040 C0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 C0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 C0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 C1Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40040 C1 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40040 C1 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40040 C1 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40040 C1 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 C1 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 C1 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 UU CC0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40040 UU CC0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40040 UU CC0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40040 UU CC0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40040 UU CC0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 UU CC0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 UU CC0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 UU C0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40040 UU C0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40040 UU C0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40040 UU C0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40040 UU C0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 UU C0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 UU C0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 UU C1Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40040 UU C1 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40040 UU C1 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40040 UU C1 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40040 UU C1 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 UU C1 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 UU C1 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 U CC0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB40040 U CC0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB40040 U CC0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB40040 U CC0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB40040 U CC0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 U CC0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 U CC0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 U C0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB40040 U C0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB40040 U C0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB40040 U C0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB40040 U C0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 U C0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 U C0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB40040 U C1Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB40040 U C1 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB40040 U C1 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB40040 U C1 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB40040 U C1 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB40040 U C1 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB40040 U C1 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025Base model (specify seal, clearance, accuracy) | Size: 450x500x25 mm | C/C0: 61.7/182 kN
RB45025 CC0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB45025 CC0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB45025 CC0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB45025 CC0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB45025 CC0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 CC0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 CC0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 C0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB45025 C0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB45025 C0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB45025 C0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB45025 C0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 C0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 C0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 C1Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB45025 C1 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB45025 C1 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB45025 C1 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB45025 C1 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 C1 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 C1 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 UU CC0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB45025 UU CC0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB45025 UU CC0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB45025 UU CC0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB45025 UU CC0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 UU CC0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 UU CC0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 UU C0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB45025 UU C0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB45025 UU C0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB45025 UU C0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB45025 UU C0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 UU C0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 UU C0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 UU C1Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB45025 UU C1 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB45025 UU C1 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB45025 UU C1 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB45025 UU C1 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 UU C1 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 UU C1 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 U CC0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB45025 U CC0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB45025 U CC0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB45025 U CC0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB45025 U CC0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 U CC0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 U CC0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 U C0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB45025 U C0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB45025 U C0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB45025 U C0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB45025 U C0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 U C0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 U C0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB45025 U C1Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB45025 U C1 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB45025 U C1 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB45025 U C1 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB45025 U C1 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB45025 U C1 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB45025 U C1 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025Base model (specify seal, clearance, accuracy) | Size: 500x550x25 mm | C/C0: 65.5/201 kN
RB50025 CC0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50025 CC0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50025 CC0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50025 CC0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50025 CC0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 CC0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 CC0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 C0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50025 C0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50025 C0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50025 C0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50025 C0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 C0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 C0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 C1Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50025 C1 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50025 C1 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50025 C1 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50025 C1 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 C1 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 C1 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 UU CC0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50025 UU CC0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50025 UU CC0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50025 UU CC0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50025 UU CC0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 UU CC0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 UU CC0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 UU C0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50025 UU C0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50025 UU C0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50025 UU C0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50025 UU C0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 UU C0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 UU C0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 UU C1Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50025 UU C1 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50025 UU C1 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50025 UU C1 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50025 UU C1 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 UU C1 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 UU C1 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 U CC0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50025 U CC0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50025 U CC0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50025 U CC0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50025 U CC0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 U CC0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 U CC0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 U C0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50025 U C0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50025 U C0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50025 U C0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50025 U C0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 U C0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 U C0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50025 U C1Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50025 U C1 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50025 U C1 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50025 U C1 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50025 U C1 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50025 U C1 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50025 U C1 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040Base model (specify seal, clearance, accuracy) | Size: 500x600x40 mm | C/C0: 239/607 kN
RB50040 CC0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50040 CC0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50040 CC0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50040 CC0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50040 CC0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 CC0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 CC0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 C0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50040 C0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50040 C0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50040 C0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50040 C0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 C0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 C0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 C1Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50040 C1 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50040 C1 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50040 C1 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50040 C1 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 C1 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 C1 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 UU CC0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50040 UU CC0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50040 UU CC0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50040 UU CC0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50040 UU CC0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 UU CC0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 UU CC0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 UU C0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50040 UU C0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50040 UU C0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50040 UU C0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50040 UU C0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 UU C0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 UU C0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 UU C1Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50040 UU C1 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50040 UU C1 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50040 UU C1 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50040 UU C1 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 UU C1 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 UU C1 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 U CC0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50040 U CC0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50040 U CC0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50040 U CC0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50040 U CC0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 U CC0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 U CC0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 U C0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50040 U C0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50040 U C0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50040 U C0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50040 U C0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 U C0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 U C0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50040 U C1Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50040 U C1 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50040 U C1 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50040 U C1 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50040 U C1 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50040 U C1 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50040 U C1 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050Base model (specify seal, clearance, accuracy) | Size: 500x625x50 mm | C/C0: 267/653 kN
RB50050 CC0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50050 CC0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50050 CC0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50050 CC0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50050 CC0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 CC0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 CC0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 C0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50050 C0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50050 C0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50050 C0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50050 C0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 C0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 C0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 C1Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50050 C1 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50050 C1 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50050 C1 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50050 C1 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 C1 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 C1 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 UU CC0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50050 UU CC0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50050 UU CC0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50050 UU CC0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50050 UU CC0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 UU CC0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 UU CC0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 UU C0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50050 UU C0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50050 UU C0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50050 UU C0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50050 UU C0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 UU C0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 UU C0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 UU C1Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50050 UU C1 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50050 UU C1 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50050 UU C1 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50050 UU C1 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 UU C1 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 UU C1 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 U CC0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB50050 U CC0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB50050 U CC0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB50050 U CC0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB50050 U CC0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 U CC0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 U CC0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 U C0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB50050 U C0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB50050 U C0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB50050 U C0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB50050 U C0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 U C0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 U C0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB50050 U C1Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB50050 U C1 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB50050 U C1 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB50050 U C1 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB50050 U C1 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB50050 U C1 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB50050 U C1 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040Base model (specify seal, clearance, accuracy) | Size: 600x700x40 mm | C/C0: 264/721 kN
RB60040 CC0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB60040 CC0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB60040 CC0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB60040 CC0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB60040 CC0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 CC0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 CC0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 C0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB60040 C0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB60040 C0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB60040 C0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB60040 C0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 C0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 C0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 C1Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB60040 C1 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB60040 C1 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB60040 C1 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB60040 C1 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 C1 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 C1 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 UU CC0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB60040 UU CC0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB60040 UU CC0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB60040 UU CC0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB60040 UU CC0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 UU CC0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 UU CC0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 UU C0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB60040 UU C0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB60040 UU C0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB60040 UU C0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB60040 UU C0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 UU C0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 UU C0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 UU C1Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB60040 UU C1 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB60040 UU C1 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB60040 UU C1 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB60040 UU C1 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 UU C1 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 UU C1 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 U CC0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB60040 U CC0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB60040 U CC0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB60040 U CC0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB60040 U CC0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 U CC0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 U CC0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 U C0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB60040 U C0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB60040 U C0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB60040 U C0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB60040 U C0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 U C0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 U C0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB60040 U C1Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB60040 U C1 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB60040 U C1 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB60040 U C1 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB60040 U C1 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB60040 U C1 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB60040 U C1 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB70045Base model (specify seal, clearance, accuracy) | Size: 700x815x45 mm | C/C0: 281/836 kN
RB70045 CC0Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB70045 C0Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB70045 C1Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB70045 UU CC0Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB70045 UU C0Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB70045 UU C1Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB70045 U CC0Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB70045 U C0Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB70045 U C1Size: 700x815x45 mm | C/C0: 281/836 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB80070Base model (specify seal, clearance, accuracy) | Size: 800x950x70 mm | C/C0: 468/1330 kN
RB80070 CC0Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB80070 C0Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB80070 C1Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB80070 UU CC0Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB80070 UU C0Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB80070 UU C1Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB80070 U CC0Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB80070 U C0Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB80070 U C1Size: 800x950x70 mm | C/C0: 468/1330 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB90070Base model (specify seal, clearance, accuracy) | Size: 900x1050x70 mm | C/C0: 494/1490 kN
RB90070 CC0Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB90070 C0Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB90070 C1Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB90070 UU CC0Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB90070 UU C0Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB90070 UU C1Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB90070 U CC0Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB90070 U C0Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB90070 U C1Size: 900x1050x70 mm | C/C0: 494/1490 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1000110Base model (specify seal, clearance, accuracy) | Size: 1000x1250x110 mm | C/C0: 1220/3220 kN
RB1000110 CC0Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1000110 C0Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1000110 C1Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1000110 UU CC0Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1000110 UU C0Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1000110 UU C1Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1000110 U CC0Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1000110 U C0Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1000110 U C1Size: 1000x1250x110 mm | C/C0: 1220/3220 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1250110Base model (specify seal, clearance, accuracy) | Size: 1250x1500x110 mm | C/C0: 1350/3970 kN
RB1250110 CC0Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1250110 C0Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1250110 C1Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1250110 UU CC0Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1250110 UU C0Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1250110 UU C1Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB1250110 U CC0Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB1250110 U C0Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB1250110 U C1Size: 1250x1500x110 mm | C/C0: 1350/3970 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
