THK MTF Miniature Rolled Ball Screw (Non-Preloaded, φ6-14)

THK MTF Miniature Rolled Ball Screw (Non-Preloaded, φ6-14)

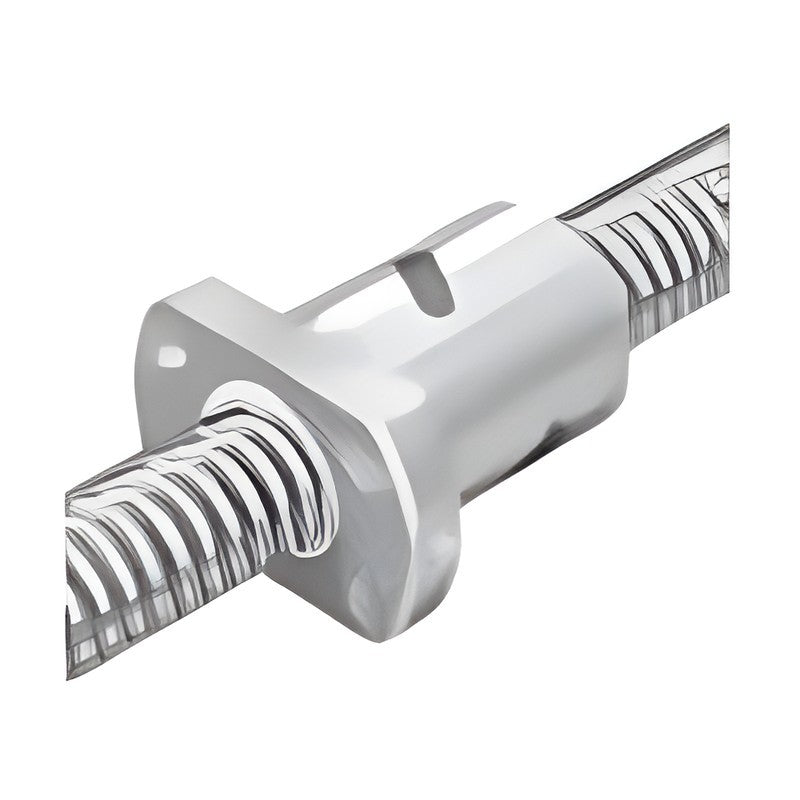

The THK MTF is a miniature non-preloaded rolled ball screw for shaft diameters 6-14 mm with leads of 1-5 mm.

Key features

  • Miniature rolled ball screw, shaft diameter 6-14 mm, lead 1-5 mm
  • Two nut flange types: type I (2 holes) and type II (4 holes)
  • Axial clearance 0.05 mm or less; DN value 50,000
  • Sold only as a set (nut + screw shaft); no seal as standard
  • Marked sizes have AP-C surface treatment on the nut as standard

Specifications

Brand THK
Series MTF (miniature, rolled)
Axial clearance 0.05 mm max
Lead accuracy C7 / C8 / C10 (C10 = no symbol)
DN value 50,000
Seal None (standard)
Ordering e.g. MTF0802-3.7+250LC7T
Note Set sale only (nut + screw shaft)
Source THK General Catalog Ball Screw (Korean ed. 515-2K), p. A15-310–A15-311
MTF0601-3.7 Size: 6 x 1 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 0.7/1.2 kN | Nut OD: 13 mm | Std shaft L: 150, 250
MTF0801-3.7 Size: 8 x 1 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 0.78/1.65 kN | Nut OD: 16 mm | Std shaft L: Not standard (made to order)
MTF0802-3.7 Size: 8 x 2 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 2.1/3.8 kN | Nut OD: 20 mm | Std shaft L: 150, 250
MTF0805-2.7 Size: 8 x 5 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 1.85/3 kN | Nut OD: 18 mm | Std shaft L: Not standard (made to order)
MTF1002-3.7 Size: 10 x 2 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 2.3/4.8 kN | Nut OD: 23 mm | Std shaft L: 200, 300
MTF1004-2.7 Size: 10 x 4 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 3/5.2 kN | Nut OD: 24 mm | Std shaft L: Not standard (made to order)
MTF1202-3.7 Size: 12 x 2 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 2.5/5.8 kN | Nut OD: 25 mm | Std shaft L: 200, 300
MTF1402-3.7 Size: 14 x 2 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 3.2/7.5 kN | Nut OD: 26 mm | Std shaft L: Not standard (made to order)
Ball ScrewsTHK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK MTF Miniature Rolled Ball Screw (Non-Preloaded, φ6-14)

Brand THK·Ball Screws

Available part numbers (8)

MTF0601-3.7, MTF0801-3.7, MTF0802-3.7, MTF0805-2.7, MTF1002-3.7, MTF1004-2.7, MTF1202-3.7, MTF1402-3.7

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTF0601-3.7Size: 6 x 1 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 0.7/1.2 kN | Nut OD: 13 mm | Std shaft L: 150, 250
MTF0801-3.7Size: 8 x 1 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 0.78/1.65 kN | Nut OD: 16 mm | Std shaft L: Not standard (made to order)
MTF0802-3.7Size: 8 x 2 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 2.1/3.8 kN | Nut OD: 20 mm | Std shaft L: 150, 250
MTF0805-2.7Size: 8 x 5 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 1.85/3 kN | Nut OD: 18 mm | Std shaft L: Not standard (made to order)
MTF1002-3.7Size: 10 x 2 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 2.3/4.8 kN | Nut OD: 23 mm | Std shaft L: 200, 300
MTF1004-2.7Size: 10 x 4 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 3/5.2 kN | Nut OD: 24 mm | Std shaft L: Not standard (made to order)
MTF1202-3.7Size: 12 x 2 mm lead | Nut type: I (2 mounting holes) | Ca/C0a: 2.5/5.8 kN | Nut OD: 25 mm | Std shaft L: 200, 300
MTF1402-3.7Size: 14 x 2 mm lead | Nut type: II (4 mounting holes) | Ca/C0a: 3.2/7.5 kN | Nut OD: 26 mm | Std shaft L: Not standard (made to order)
