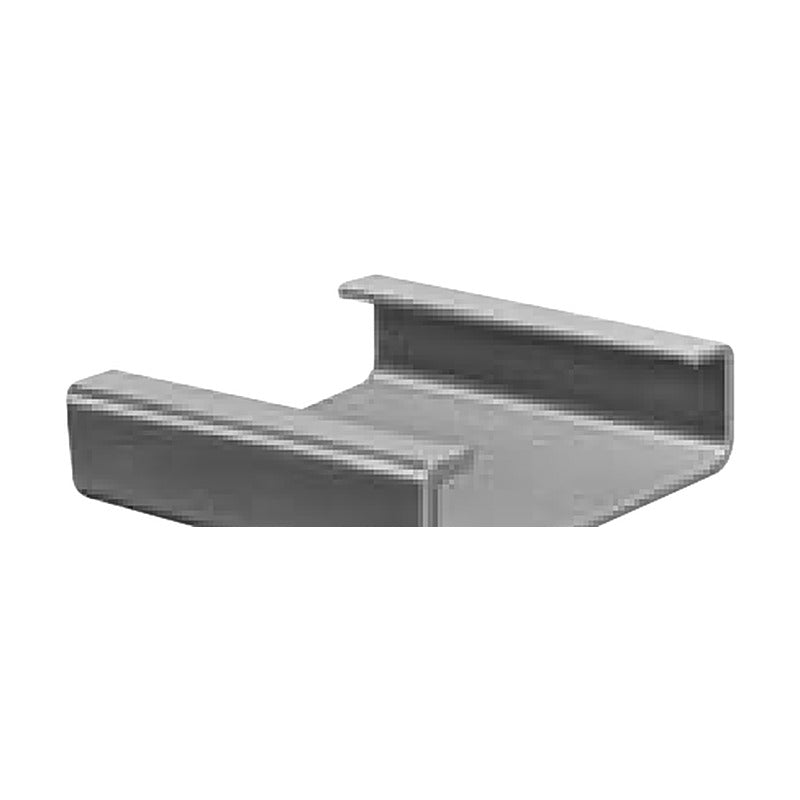

Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| PA15 | For LM roller: LRA1547Z | Max allowable load: 1.02 kN | Spring constant: 5.4 kN/mm | ||
| PA20 | For LM roller: LRA2055Z | Max allowable load: 2.74 kN | Spring constant: 7.5 kN/mm | ||
| PA25 | For LM roller: LRA2565Z | Max allowable load: 4.11 kN | Spring constant: 9.1 kN/mm | ||
| PA32 | For LM roller: LRA3275Z | Max allowable load: 4.11 kN | Spring constant: 11.2 kN/mm | ||
| PA40 | For LM roller: LRA4095 | Max allowable load: 4.8 kN | Spring constant: 15.3 kN/mm | ||
| PA50 | For LM roller: LRA50130 | Max allowable load: 6.86 kN | Spring constant: 15.5 kN/mm |
Need a different model, or a part not listed here? Send us your parts list →
