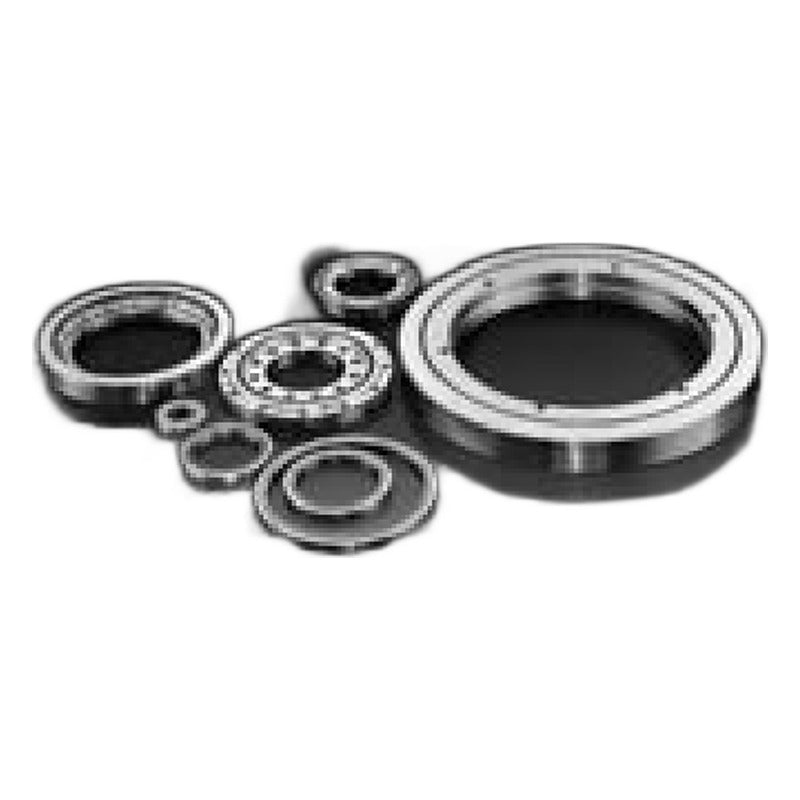

THK RB Cross Roller Ring (Split Outer Ring, Bore 140-300 mm)

THK RB Cross Roller Ring (Split Outer Ring, Bore 140-300 mm)

THK RB cross roller rings (split outer ring type) carry radial, axial and moment loads with a single bearing; this listing covers bore 140 to 300 mm.

Key features

  • Crossed cylindrical rollers between 90-degree V-grooves support loads in all directions
  • Spacer retainers prevent roller skew and friction, giving low and stable rotational torque
  • Split Outer Ring; the inner ring is one-piece, so use the inner ring for rotation when accuracy matters
  • Compact width saves space compared with combined angular contact bearings
  • Seal options UU (both sides) and U (one side); radial clearance CC0, C0, C1
  • Accuracy classes 0, P6-P2 and PE6-PE2 (rotation + dimensional); grades marked special in the catalog are on request

Specifications

Brand THK
Series RB cross roller ring
Structure Split Outer Ring
Rolling elements Crossed cylindrical rollers with spacer retainer
Size format Bore d x OD D x width B
Code format RB20030 UU CC0 P5 (model, seal, clearance, accuracy)
Source THK General Catalog Cross Roller Ring (Korean ed. 515-2K), p. A18-13-A18-40
RB14016 Base model (specify seal, clearance, accuracy) | Size: 140x175x16 mm | C/C0: 25.9/50.1 kN
RB14016 CC0 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14016 CC0 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14016 CC0 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14016 CC0 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14016 CC0 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14016 CC0 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 CC0 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 CC0 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 CC0 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 C0 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14016 C0 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14016 C0 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14016 C0 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14016 C0 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14016 C0 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 C0 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 C0 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 C0 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 C1 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14016 C1 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14016 C1 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14016 C1 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14016 C1 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14016 C1 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 C1 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 C1 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 C1 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 UU CC0 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14016 UU CC0 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14016 UU CC0 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14016 UU CC0 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14016 UU CC0 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14016 UU CC0 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 UU CC0 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 UU CC0 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 UU CC0 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 UU C0 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14016 UU C0 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14016 UU C0 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14016 UU C0 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14016 UU C0 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14016 UU C0 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 UU C0 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 UU C0 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 UU C0 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 UU C1 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14016 UU C1 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14016 UU C1 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14016 UU C1 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14016 UU C1 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14016 UU C1 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 UU C1 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 UU C1 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 UU C1 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 U CC0 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14016 U CC0 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14016 U CC0 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14016 U CC0 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14016 U CC0 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14016 U CC0 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 U CC0 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 U CC0 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 U CC0 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 U C0 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14016 U C0 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14016 U C0 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14016 U C0 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14016 U C0 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14016 U C0 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 U C0 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 U C0 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 U C0 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 U C1 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14016 U C1 P6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14016 U C1 P5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14016 U C1 P4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14016 U C1 P2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14016 U C1 PE6 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 U C1 PE5 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 U C1 PE4 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 U C1 PE2 Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 Base model (specify seal, clearance, accuracy) | Size: 140x200x25 mm | C/C0: 74.8/121 kN
RB14025 CC0 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14025 CC0 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14025 CC0 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14025 CC0 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14025 CC0 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14025 CC0 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 CC0 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 CC0 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 CC0 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 C0 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14025 C0 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14025 C0 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14025 C0 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14025 C0 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14025 C0 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 C0 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 C0 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 C0 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 C1 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14025 C1 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14025 C1 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14025 C1 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14025 C1 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14025 C1 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 C1 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 C1 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 C1 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 UU CC0 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14025 UU CC0 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14025 UU CC0 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14025 UU CC0 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14025 UU CC0 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14025 UU CC0 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 UU CC0 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 UU CC0 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 UU CC0 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 UU C0 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14025 UU C0 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14025 UU C0 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14025 UU C0 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14025 UU C0 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14025 UU C0 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 UU C0 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 UU C0 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 UU C0 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 UU C1 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14025 UU C1 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14025 UU C1 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14025 UU C1 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14025 UU C1 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14025 UU C1 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 UU C1 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 UU C1 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 UU C1 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 U CC0 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14025 U CC0 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14025 U CC0 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14025 U CC0 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14025 U CC0 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14025 U CC0 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 U CC0 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 U CC0 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 U CC0 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 U C0 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14025 U C0 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14025 U C0 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14025 U C0 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14025 U C0 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14025 U C0 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 U C0 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 U C0 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 U C0 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 U C1 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14025 U C1 P6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14025 U C1 P5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14025 U C1 P4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14025 U C1 P2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14025 U C1 PE6 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 U C1 PE5 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 U C1 PE4 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 U C1 PE2 Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 Base model (specify seal, clearance, accuracy) | Size: 150x180x13 mm | C/C0: 27/53.5 kN
RB15013 CC0 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15013 CC0 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15013 CC0 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15013 CC0 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15013 CC0 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15013 CC0 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 CC0 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 CC0 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 CC0 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 C0 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15013 C0 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15013 C0 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15013 C0 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15013 C0 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15013 C0 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 C0 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 C0 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 C0 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 C1 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15013 C1 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15013 C1 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15013 C1 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15013 C1 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15013 C1 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 C1 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 C1 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 C1 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 UU CC0 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15013 UU CC0 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15013 UU CC0 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15013 UU CC0 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15013 UU CC0 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15013 UU CC0 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 UU CC0 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 UU CC0 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 UU CC0 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 UU C0 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15013 UU C0 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15013 UU C0 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15013 UU C0 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15013 UU C0 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15013 UU C0 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 UU C0 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 UU C0 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 UU C0 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 UU C1 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15013 UU C1 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15013 UU C1 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15013 UU C1 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15013 UU C1 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15013 UU C1 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 UU C1 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 UU C1 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 UU C1 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 U CC0 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15013 U CC0 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15013 U CC0 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15013 U CC0 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15013 U CC0 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15013 U CC0 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 U CC0 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 U CC0 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 U CC0 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 U C0 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15013 U C0 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15013 U C0 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15013 U C0 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15013 U C0 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15013 U C0 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 U C0 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 U C0 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 U C0 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 U C1 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15013 U C1 P6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15013 U C1 P5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15013 U C1 P4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15013 U C1 P2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15013 U C1 PE6 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 U C1 PE5 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 U C1 PE4 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 U C1 PE2 Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 Base model (specify seal, clearance, accuracy) | Size: 150x210x25 mm | C/C0: 76.8/128 kN
RB15025 CC0 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15025 CC0 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15025 CC0 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15025 CC0 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15025 CC0 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15025 CC0 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 CC0 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 CC0 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 CC0 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 C0 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15025 C0 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15025 C0 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15025 C0 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15025 C0 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15025 C0 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 C0 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 C0 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 C0 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 C1 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15025 C1 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15025 C1 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15025 C1 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15025 C1 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15025 C1 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 C1 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 C1 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 C1 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 UU CC0 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15025 UU CC0 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15025 UU CC0 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15025 UU CC0 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15025 UU CC0 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15025 UU CC0 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 UU CC0 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 UU CC0 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 UU CC0 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 UU C0 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15025 UU C0 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15025 UU C0 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15025 UU C0 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15025 UU C0 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15025 UU C0 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 UU C0 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 UU C0 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 UU C0 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 UU C1 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15025 UU C1 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15025 UU C1 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15025 UU C1 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15025 UU C1 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15025 UU C1 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 UU C1 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 UU C1 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 UU C1 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 U CC0 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15025 U CC0 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15025 U CC0 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15025 U CC0 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15025 U CC0 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15025 U CC0 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 U CC0 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 U CC0 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 U CC0 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 U C0 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15025 U C0 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15025 U C0 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15025 U C0 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15025 U C0 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15025 U C0 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 U C0 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 U C0 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 U C0 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 U C1 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15025 U C1 P6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15025 U C1 P5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15025 U C1 P4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15025 U C1 P2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15025 U C1 PE6 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 U C1 PE5 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 U C1 PE4 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 U C1 PE2 Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 Base model (specify seal, clearance, accuracy) | Size: 150x230x30 mm | C/C0: 100/156 kN
RB15030 CC0 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15030 CC0 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15030 CC0 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15030 CC0 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15030 CC0 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15030 CC0 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 CC0 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 CC0 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 CC0 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 C0 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15030 C0 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15030 C0 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15030 C0 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15030 C0 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15030 C0 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 C0 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 C0 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 C0 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 C1 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15030 C1 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15030 C1 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15030 C1 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15030 C1 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15030 C1 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 C1 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 C1 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 C1 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 UU CC0 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15030 UU CC0 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15030 UU CC0 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15030 UU CC0 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15030 UU CC0 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15030 UU CC0 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 UU CC0 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 UU CC0 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 UU CC0 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 UU C0 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15030 UU C0 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15030 UU C0 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15030 UU C0 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15030 UU C0 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15030 UU C0 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 UU C0 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 UU C0 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 UU C0 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 UU C1 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15030 UU C1 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15030 UU C1 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15030 UU C1 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15030 UU C1 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15030 UU C1 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 UU C1 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 UU C1 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 UU C1 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 U CC0 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15030 U CC0 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15030 U CC0 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15030 U CC0 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15030 U CC0 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15030 U CC0 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 U CC0 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 U CC0 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 U CC0 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 U C0 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15030 U C0 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15030 U C0 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15030 U C0 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15030 U C0 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15030 U C0 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 U C0 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 U C0 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 U C0 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 U C1 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15030 U C1 P6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15030 U C1 P5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15030 U C1 P4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15030 U C1 P2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15030 U C1 PE6 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 U C1 PE5 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 U C1 PE4 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 U C1 PE2 Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 Base model (specify seal, clearance, accuracy) | Size: 160x220x25 mm | C/C0: 81.7/135 kN
RB16025 CC0 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB16025 CC0 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB16025 CC0 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB16025 CC0 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB16025 CC0 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB16025 CC0 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 CC0 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 CC0 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 CC0 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 C0 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB16025 C0 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB16025 C0 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB16025 C0 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB16025 C0 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB16025 C0 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 C0 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 C0 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 C0 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 C1 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB16025 C1 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB16025 C1 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB16025 C1 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB16025 C1 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB16025 C1 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 C1 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 C1 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 C1 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 UU CC0 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB16025 UU CC0 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB16025 UU CC0 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB16025 UU CC0 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB16025 UU CC0 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB16025 UU CC0 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 UU CC0 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 UU CC0 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 UU CC0 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 UU C0 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB16025 UU C0 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB16025 UU C0 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB16025 UU C0 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB16025 UU C0 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB16025 UU C0 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 UU C0 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 UU C0 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 UU C0 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 UU C1 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB16025 UU C1 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB16025 UU C1 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB16025 UU C1 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB16025 UU C1 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB16025 UU C1 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 UU C1 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 UU C1 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 UU C1 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 U CC0 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB16025 U CC0 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB16025 U CC0 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB16025 U CC0 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB16025 U CC0 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB16025 U CC0 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 U CC0 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 U CC0 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 U CC0 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 U C0 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB16025 U C0 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB16025 U C0 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB16025 U C0 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB16025 U C0 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB16025 U C0 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 U C0 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 U C0 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 U C0 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 U C1 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB16025 U C1 P6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB16025 U C1 P5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB16025 U C1 P4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB16025 U C1 P2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB16025 U C1 PE6 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 U C1 PE5 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 U C1 PE4 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 U C1 PE2 Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 Base model (specify seal, clearance, accuracy) | Size: 170x220x20 mm | C/C0: 29/62.1 kN
RB17020 CC0 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB17020 CC0 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB17020 CC0 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB17020 CC0 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB17020 CC0 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB17020 CC0 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 CC0 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 CC0 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 CC0 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 C0 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB17020 C0 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB17020 C0 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB17020 C0 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB17020 C0 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB17020 C0 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 C0 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 C0 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 C0 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 C1 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB17020 C1 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB17020 C1 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB17020 C1 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB17020 C1 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB17020 C1 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 C1 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 C1 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 C1 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 UU CC0 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB17020 UU CC0 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB17020 UU CC0 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB17020 UU CC0 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB17020 UU CC0 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB17020 UU CC0 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 UU CC0 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 UU CC0 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 UU CC0 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 UU C0 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB17020 UU C0 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB17020 UU C0 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB17020 UU C0 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB17020 UU C0 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB17020 UU C0 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 UU C0 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 UU C0 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 UU C0 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 UU C1 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB17020 UU C1 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB17020 UU C1 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB17020 UU C1 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB17020 UU C1 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB17020 UU C1 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 UU C1 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 UU C1 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 UU C1 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 U CC0 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB17020 U CC0 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB17020 U CC0 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB17020 U CC0 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB17020 U CC0 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB17020 U CC0 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 U CC0 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 U CC0 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 U CC0 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 U C0 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB17020 U C0 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB17020 U C0 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB17020 U C0 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB17020 U C0 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB17020 U C0 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 U C0 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 U C0 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 U C0 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 U C1 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB17020 U C1 P6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB17020 U C1 P5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB17020 U C1 P4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB17020 U C1 P2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB17020 U C1 PE6 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 U C1 PE5 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 U C1 PE4 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 U C1 PE2 Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 Base model (specify seal, clearance, accuracy) | Size: 180x240x25 mm | C/C0: 84/143 kN
RB18025 CC0 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB18025 CC0 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB18025 CC0 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB18025 CC0 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB18025 CC0 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB18025 CC0 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 CC0 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 CC0 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 CC0 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 C0 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB18025 C0 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB18025 C0 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB18025 C0 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB18025 C0 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB18025 C0 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 C0 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 C0 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 C0 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 C1 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB18025 C1 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB18025 C1 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB18025 C1 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB18025 C1 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB18025 C1 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 C1 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 C1 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 C1 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 UU CC0 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB18025 UU CC0 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB18025 UU CC0 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB18025 UU CC0 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB18025 UU CC0 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB18025 UU CC0 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 UU CC0 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 UU CC0 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 UU CC0 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 UU C0 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB18025 UU C0 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB18025 UU C0 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB18025 UU C0 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB18025 UU C0 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB18025 UU C0 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 UU C0 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 UU C0 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 UU C0 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 UU C1 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB18025 UU C1 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB18025 UU C1 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB18025 UU C1 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB18025 UU C1 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB18025 UU C1 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 UU C1 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 UU C1 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 UU C1 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 U CC0 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB18025 U CC0 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB18025 U CC0 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB18025 U CC0 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB18025 U CC0 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB18025 U CC0 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 U CC0 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 U CC0 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 U CC0 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 U C0 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB18025 U C0 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB18025 U C0 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB18025 U C0 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB18025 U C0 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB18025 U C0 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 U C0 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 U C0 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 U C0 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 U C1 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB18025 U C1 P6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB18025 U C1 P5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB18025 U C1 P4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB18025 U C1 P2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB18025 U C1 PE6 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 U C1 PE5 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 U C1 PE4 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 U C1 PE2 Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 Base model (specify seal, clearance, accuracy) | Size: 190x240x25 mm | C/C0: 41.7/82.9 kN
RB19025 CC0 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB19025 CC0 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB19025 CC0 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB19025 CC0 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB19025 CC0 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB19025 CC0 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 CC0 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 CC0 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 CC0 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 C0 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB19025 C0 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB19025 C0 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB19025 C0 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB19025 C0 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB19025 C0 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 C0 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 C0 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 C0 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 C1 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB19025 C1 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB19025 C1 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB19025 C1 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB19025 C1 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB19025 C1 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 C1 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 C1 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 C1 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 UU CC0 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB19025 UU CC0 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB19025 UU CC0 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB19025 UU CC0 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB19025 UU CC0 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB19025 UU CC0 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 UU CC0 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 UU CC0 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 UU CC0 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 UU C0 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB19025 UU C0 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB19025 UU C0 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB19025 UU C0 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB19025 UU C0 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB19025 UU C0 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 UU C0 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 UU C0 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 UU C0 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 UU C1 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB19025 UU C1 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB19025 UU C1 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB19025 UU C1 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB19025 UU C1 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB19025 UU C1 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 UU C1 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 UU C1 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 UU C1 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 U CC0 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB19025 U CC0 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB19025 U CC0 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB19025 U CC0 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB19025 U CC0 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB19025 U CC0 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 U CC0 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 U CC0 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 U CC0 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 U C0 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB19025 U C0 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB19025 U C0 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB19025 U C0 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB19025 U C0 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB19025 U C0 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 U C0 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 U C0 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 U C0 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 U C1 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB19025 U C1 P6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB19025 U C1 P5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB19025 U C1 P4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB19025 U C1 P2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB19025 U C1 PE6 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 U C1 PE5 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 U C1 PE4 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 U C1 PE2 Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 Base model (specify seal, clearance, accuracy) | Size: 200x260x25 mm | C/C0: 84.2/157 kN
RB20025 CC0 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20025 CC0 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20025 CC0 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20025 CC0 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20025 CC0 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20025 CC0 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 CC0 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 CC0 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 CC0 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 C0 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20025 C0 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20025 C0 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20025 C0 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20025 C0 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20025 C0 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 C0 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 C0 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 C0 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 C1 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20025 C1 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20025 C1 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20025 C1 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20025 C1 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20025 C1 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 C1 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 C1 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 C1 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 UU CC0 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20025 UU CC0 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20025 UU CC0 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20025 UU CC0 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20025 UU CC0 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20025 UU CC0 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 UU CC0 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 UU CC0 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 UU CC0 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 UU C0 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20025 UU C0 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20025 UU C0 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20025 UU C0 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20025 UU C0 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20025 UU C0 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 UU C0 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 UU C0 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 UU C0 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 UU C1 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20025 UU C1 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20025 UU C1 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20025 UU C1 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20025 UU C1 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20025 UU C1 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 UU C1 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 UU C1 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 UU C1 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
Cross Roller RingsTHK
793 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK RB Cross Roller Ring (Split Outer Ring, Bore 140-300 mm)

Brand THK·Cross Roller Rings

Available part numbers (793)

RB14016, RB14016 CC0, RB14016 CC0 P6, RB14016 CC0 P5, RB14016 CC0 P4, RB14016 CC0 P2, RB14016 CC0 PE6, RB14016 CC0 PE5, RB14016 CC0 PE4, RB14016 CC0 PE2 + 783 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RB14016Base model (specify seal, clearance, accuracy) | Size: 140x175x16 mm | C/C0: 25.9/50.1 kN
RB14016 CC0Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14016 CC0 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14016 CC0 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14016 CC0 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14016 CC0 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14016 CC0 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 CC0 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 CC0 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 CC0 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 C0Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14016 C0 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14016 C0 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14016 C0 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14016 C0 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14016 C0 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 C0 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 C0 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 C0 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 C1Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14016 C1 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14016 C1 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14016 C1 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14016 C1 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14016 C1 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 C1 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 C1 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 C1 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 UU CC0Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14016 UU CC0 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14016 UU CC0 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14016 UU CC0 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14016 UU CC0 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14016 UU CC0 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 UU CC0 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 UU CC0 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 UU CC0 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 UU C0Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14016 UU C0 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14016 UU C0 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14016 UU C0 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14016 UU C0 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14016 UU C0 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 UU C0 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 UU C0 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 UU C0 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 UU C1Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14016 UU C1 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14016 UU C1 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14016 UU C1 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14016 UU C1 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14016 UU C1 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 UU C1 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 UU C1 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 UU C1 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 U CC0Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14016 U CC0 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14016 U CC0 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14016 U CC0 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14016 U CC0 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14016 U CC0 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 U CC0 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 U CC0 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 U CC0 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 U C0Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14016 U C0 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14016 U C0 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14016 U C0 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14016 U C0 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14016 U C0 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 U C0 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 U C0 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 U C0 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14016 U C1Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14016 U C1 P6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14016 U C1 P5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14016 U C1 P4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14016 U C1 P2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14016 U C1 PE6Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14016 U C1 PE5Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14016 U C1 PE4Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14016 U C1 PE2Size: 140x175x16 mm | C/C0: 25.9/50.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025Base model (specify seal, clearance, accuracy) | Size: 140x200x25 mm | C/C0: 74.8/121 kN
RB14025 CC0Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14025 CC0 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14025 CC0 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14025 CC0 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14025 CC0 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14025 CC0 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 CC0 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 CC0 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 CC0 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 C0Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14025 C0 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14025 C0 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14025 C0 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14025 C0 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14025 C0 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 C0 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 C0 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 C0 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 C1Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14025 C1 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14025 C1 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14025 C1 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14025 C1 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14025 C1 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 C1 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 C1 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 C1 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 UU CC0Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14025 UU CC0 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14025 UU CC0 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14025 UU CC0 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14025 UU CC0 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14025 UU CC0 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 UU CC0 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 UU CC0 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 UU CC0 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 UU C0Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14025 UU C0 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14025 UU C0 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14025 UU C0 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14025 UU C0 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14025 UU C0 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 UU C0 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 UU C0 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 UU C0 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 UU C1Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14025 UU C1 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14025 UU C1 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14025 UU C1 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14025 UU C1 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14025 UU C1 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 UU C1 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 UU C1 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 UU C1 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 U CC0Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB14025 U CC0 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB14025 U CC0 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB14025 U CC0 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB14025 U CC0 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB14025 U CC0 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 U CC0 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 U CC0 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 U CC0 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 U C0Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB14025 U C0 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB14025 U C0 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB14025 U C0 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB14025 U C0 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB14025 U C0 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 U C0 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 U C0 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 U C0 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB14025 U C1Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB14025 U C1 P6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB14025 U C1 P5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB14025 U C1 P4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB14025 U C1 P2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB14025 U C1 PE6Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB14025 U C1 PE5Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB14025 U C1 PE4Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB14025 U C1 PE2Size: 140x200x25 mm | C/C0: 74.8/121 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013Base model (specify seal, clearance, accuracy) | Size: 150x180x13 mm | C/C0: 27/53.5 kN
RB15013 CC0Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15013 CC0 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15013 CC0 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15013 CC0 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15013 CC0 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15013 CC0 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 CC0 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 CC0 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 CC0 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 C0Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15013 C0 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15013 C0 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15013 C0 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15013 C0 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15013 C0 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 C0 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 C0 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 C0 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 C1Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15013 C1 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15013 C1 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15013 C1 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15013 C1 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15013 C1 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 C1 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 C1 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 C1 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 UU CC0Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15013 UU CC0 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15013 UU CC0 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15013 UU CC0 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15013 UU CC0 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15013 UU CC0 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 UU CC0 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 UU CC0 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 UU CC0 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 UU C0Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15013 UU C0 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15013 UU C0 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15013 UU C0 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15013 UU C0 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15013 UU C0 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 UU C0 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 UU C0 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 UU C0 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 UU C1Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15013 UU C1 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15013 UU C1 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15013 UU C1 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15013 UU C1 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15013 UU C1 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 UU C1 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 UU C1 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 UU C1 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 U CC0Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15013 U CC0 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15013 U CC0 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15013 U CC0 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15013 U CC0 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15013 U CC0 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 U CC0 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 U CC0 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 U CC0 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 U C0Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15013 U C0 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15013 U C0 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15013 U C0 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15013 U C0 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15013 U C0 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 U C0 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 U C0 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 U C0 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15013 U C1Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15013 U C1 P6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15013 U C1 P5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15013 U C1 P4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15013 U C1 P2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15013 U C1 PE6Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15013 U C1 PE5Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15013 U C1 PE4Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15013 U C1 PE2Size: 150x180x13 mm | C/C0: 27/53.5 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025Base model (specify seal, clearance, accuracy) | Size: 150x210x25 mm | C/C0: 76.8/128 kN
RB15025 CC0Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15025 CC0 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15025 CC0 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15025 CC0 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15025 CC0 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15025 CC0 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 CC0 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 CC0 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 CC0 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 C0Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15025 C0 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15025 C0 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15025 C0 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15025 C0 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15025 C0 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 C0 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 C0 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 C0 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 C1Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15025 C1 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15025 C1 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15025 C1 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15025 C1 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15025 C1 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 C1 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 C1 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 C1 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 UU CC0Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15025 UU CC0 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15025 UU CC0 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15025 UU CC0 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15025 UU CC0 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15025 UU CC0 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 UU CC0 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 UU CC0 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 UU CC0 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 UU C0Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15025 UU C0 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15025 UU C0 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15025 UU C0 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15025 UU C0 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15025 UU C0 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 UU C0 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 UU C0 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 UU C0 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 UU C1Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15025 UU C1 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15025 UU C1 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15025 UU C1 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15025 UU C1 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15025 UU C1 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 UU C1 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 UU C1 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 UU C1 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 U CC0Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15025 U CC0 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15025 U CC0 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15025 U CC0 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15025 U CC0 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15025 U CC0 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 U CC0 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 U CC0 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 U CC0 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 U C0Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15025 U C0 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15025 U C0 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15025 U C0 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15025 U C0 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15025 U C0 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 U C0 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 U C0 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 U C0 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15025 U C1Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15025 U C1 P6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15025 U C1 P5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15025 U C1 P4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15025 U C1 P2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15025 U C1 PE6Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15025 U C1 PE5Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15025 U C1 PE4Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15025 U C1 PE2Size: 150x210x25 mm | C/C0: 76.8/128 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030Base model (specify seal, clearance, accuracy) | Size: 150x230x30 mm | C/C0: 100/156 kN
RB15030 CC0Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15030 CC0 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15030 CC0 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15030 CC0 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15030 CC0 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15030 CC0 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 CC0 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 CC0 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 CC0 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 C0Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15030 C0 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15030 C0 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15030 C0 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15030 C0 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15030 C0 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 C0 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 C0 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 C0 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 C1Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15030 C1 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15030 C1 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15030 C1 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15030 C1 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15030 C1 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 C1 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 C1 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 C1 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 UU CC0Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15030 UU CC0 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15030 UU CC0 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15030 UU CC0 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15030 UU CC0 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15030 UU CC0 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 UU CC0 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 UU CC0 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 UU CC0 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 UU C0Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15030 UU C0 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15030 UU C0 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15030 UU C0 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15030 UU C0 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15030 UU C0 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 UU C0 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 UU C0 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 UU C0 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 UU C1Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15030 UU C1 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15030 UU C1 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15030 UU C1 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15030 UU C1 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15030 UU C1 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 UU C1 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 UU C1 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 UU C1 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 U CC0Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB15030 U CC0 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB15030 U CC0 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB15030 U CC0 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB15030 U CC0 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB15030 U CC0 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 U CC0 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 U CC0 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 U CC0 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 U C0Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB15030 U C0 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB15030 U C0 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB15030 U C0 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB15030 U C0 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB15030 U C0 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 U C0 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 U C0 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 U C0 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB15030 U C1Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB15030 U C1 P6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB15030 U C1 P5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB15030 U C1 P4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB15030 U C1 P2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB15030 U C1 PE6Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB15030 U C1 PE5Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB15030 U C1 PE4Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB15030 U C1 PE2Size: 150x230x30 mm | C/C0: 100/156 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025Base model (specify seal, clearance, accuracy) | Size: 160x220x25 mm | C/C0: 81.7/135 kN
RB16025 CC0Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB16025 CC0 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB16025 CC0 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB16025 CC0 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB16025 CC0 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB16025 CC0 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 CC0 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 CC0 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 CC0 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 C0Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB16025 C0 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB16025 C0 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB16025 C0 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB16025 C0 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB16025 C0 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 C0 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 C0 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 C0 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 C1Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB16025 C1 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB16025 C1 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB16025 C1 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB16025 C1 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB16025 C1 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 C1 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 C1 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 C1 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 UU CC0Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB16025 UU CC0 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB16025 UU CC0 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB16025 UU CC0 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB16025 UU CC0 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB16025 UU CC0 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 UU CC0 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 UU CC0 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 UU CC0 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 UU C0Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB16025 UU C0 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB16025 UU C0 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB16025 UU C0 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB16025 UU C0 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB16025 UU C0 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 UU C0 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 UU C0 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 UU C0 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 UU C1Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB16025 UU C1 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB16025 UU C1 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB16025 UU C1 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB16025 UU C1 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB16025 UU C1 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 UU C1 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 UU C1 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 UU C1 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 U CC0Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB16025 U CC0 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB16025 U CC0 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB16025 U CC0 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB16025 U CC0 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB16025 U CC0 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 U CC0 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 U CC0 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 U CC0 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 U C0Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB16025 U C0 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB16025 U C0 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB16025 U C0 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB16025 U C0 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB16025 U C0 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 U C0 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 U C0 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 U C0 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB16025 U C1Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB16025 U C1 P6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB16025 U C1 P5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB16025 U C1 P4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB16025 U C1 P2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB16025 U C1 PE6Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB16025 U C1 PE5Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB16025 U C1 PE4Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB16025 U C1 PE2Size: 160x220x25 mm | C/C0: 81.7/135 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020Base model (specify seal, clearance, accuracy) | Size: 170x220x20 mm | C/C0: 29/62.1 kN
RB17020 CC0Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB17020 CC0 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB17020 CC0 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB17020 CC0 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB17020 CC0 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB17020 CC0 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 CC0 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 CC0 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 CC0 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 C0Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB17020 C0 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB17020 C0 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB17020 C0 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB17020 C0 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB17020 C0 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 C0 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 C0 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 C0 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 C1Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB17020 C1 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB17020 C1 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB17020 C1 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB17020 C1 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB17020 C1 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 C1 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 C1 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 C1 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 UU CC0Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB17020 UU CC0 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB17020 UU CC0 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB17020 UU CC0 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB17020 UU CC0 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB17020 UU CC0 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 UU CC0 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 UU CC0 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 UU CC0 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 UU C0Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB17020 UU C0 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB17020 UU C0 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB17020 UU C0 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB17020 UU C0 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB17020 UU C0 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 UU C0 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 UU C0 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 UU C0 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 UU C1Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB17020 UU C1 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB17020 UU C1 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB17020 UU C1 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB17020 UU C1 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB17020 UU C1 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 UU C1 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 UU C1 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 UU C1 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 U CC0Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB17020 U CC0 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB17020 U CC0 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB17020 U CC0 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB17020 U CC0 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB17020 U CC0 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 U CC0 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 U CC0 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 U CC0 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 U C0Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB17020 U C0 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB17020 U C0 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB17020 U C0 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB17020 U C0 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB17020 U C0 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 U C0 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 U C0 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 U C0 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB17020 U C1Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB17020 U C1 P6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB17020 U C1 P5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB17020 U C1 P4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB17020 U C1 P2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB17020 U C1 PE6Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB17020 U C1 PE5Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB17020 U C1 PE4Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB17020 U C1 PE2Size: 170x220x20 mm | C/C0: 29/62.1 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025Base model (specify seal, clearance, accuracy) | Size: 180x240x25 mm | C/C0: 84/143 kN
RB18025 CC0Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB18025 CC0 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB18025 CC0 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB18025 CC0 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB18025 CC0 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB18025 CC0 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 CC0 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 CC0 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 CC0 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 C0Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB18025 C0 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB18025 C0 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB18025 C0 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB18025 C0 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB18025 C0 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 C0 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 C0 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 C0 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 C1Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB18025 C1 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB18025 C1 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB18025 C1 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB18025 C1 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB18025 C1 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 C1 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 C1 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 C1 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 UU CC0Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB18025 UU CC0 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB18025 UU CC0 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB18025 UU CC0 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB18025 UU CC0 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB18025 UU CC0 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 UU CC0 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 UU CC0 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 UU CC0 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 UU C0Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB18025 UU C0 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB18025 UU C0 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB18025 UU C0 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB18025 UU C0 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB18025 UU C0 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 UU C0 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 UU C0 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 UU C0 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 UU C1Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB18025 UU C1 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB18025 UU C1 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB18025 UU C1 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB18025 UU C1 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB18025 UU C1 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 UU C1 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 UU C1 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 UU C1 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 U CC0Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB18025 U CC0 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB18025 U CC0 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB18025 U CC0 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB18025 U CC0 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB18025 U CC0 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 U CC0 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 U CC0 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 U CC0 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 U C0Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB18025 U C0 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB18025 U C0 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB18025 U C0 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB18025 U C0 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB18025 U C0 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 U C0 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 U C0 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 U C0 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB18025 U C1Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB18025 U C1 P6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB18025 U C1 P5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB18025 U C1 P4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB18025 U C1 P2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB18025 U C1 PE6Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB18025 U C1 PE5Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB18025 U C1 PE4Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB18025 U C1 PE2Size: 180x240x25 mm | C/C0: 84/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025Base model (specify seal, clearance, accuracy) | Size: 190x240x25 mm | C/C0: 41.7/82.9 kN
RB19025 CC0Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB19025 CC0 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB19025 CC0 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB19025 CC0 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB19025 CC0 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB19025 CC0 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 CC0 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 CC0 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 CC0 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 C0Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB19025 C0 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB19025 C0 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB19025 C0 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB19025 C0 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB19025 C0 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 C0 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 C0 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 C0 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 C1Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB19025 C1 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB19025 C1 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB19025 C1 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB19025 C1 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB19025 C1 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 C1 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 C1 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 C1 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 UU CC0Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB19025 UU CC0 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB19025 UU CC0 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB19025 UU CC0 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB19025 UU CC0 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB19025 UU CC0 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 UU CC0 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 UU CC0 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 UU CC0 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 UU C0Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB19025 UU C0 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB19025 UU C0 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB19025 UU C0 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB19025 UU C0 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB19025 UU C0 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 UU C0 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 UU C0 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 UU C0 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 UU C1Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB19025 UU C1 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB19025 UU C1 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB19025 UU C1 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB19025 UU C1 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB19025 UU C1 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 UU C1 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 UU C1 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 UU C1 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 U CC0Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB19025 U CC0 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB19025 U CC0 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB19025 U CC0 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB19025 U CC0 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB19025 U CC0 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 U CC0 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 U CC0 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 U CC0 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 U C0Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB19025 U C0 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB19025 U C0 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB19025 U C0 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB19025 U C0 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB19025 U C0 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 U C0 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 U C0 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 U C0 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB19025 U C1Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB19025 U C1 P6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB19025 U C1 P5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB19025 U C1 P4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB19025 U C1 P2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB19025 U C1 PE6Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB19025 U C1 PE5Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB19025 U C1 PE4Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB19025 U C1 PE2Size: 190x240x25 mm | C/C0: 41.7/82.9 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025Base model (specify seal, clearance, accuracy) | Size: 200x260x25 mm | C/C0: 84.2/157 kN
RB20025 CC0Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20025 CC0 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20025 CC0 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20025 CC0 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20025 CC0 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20025 CC0 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 CC0 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 CC0 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 CC0 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 C0Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20025 C0 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20025 C0 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20025 C0 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20025 C0 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20025 C0 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 C0 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 C0 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 C0 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 C1Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20025 C1 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20025 C1 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20025 C1 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20025 C1 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20025 C1 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 C1 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 C1 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 C1 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 UU CC0Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20025 UU CC0 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20025 UU CC0 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20025 UU CC0 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20025 UU CC0 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20025 UU CC0 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 UU CC0 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 UU CC0 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 UU CC0 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 UU C0Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20025 UU C0 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20025 UU C0 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20025 UU C0 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20025 UU C0 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20025 UU C0 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 UU C0 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 UU C0 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 UU C0 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 UU C1Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20025 UU C1 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20025 UU C1 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20025 UU C1 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20025 UU C1 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20025 UU C1 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 UU C1 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 UU C1 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 UU C1 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
