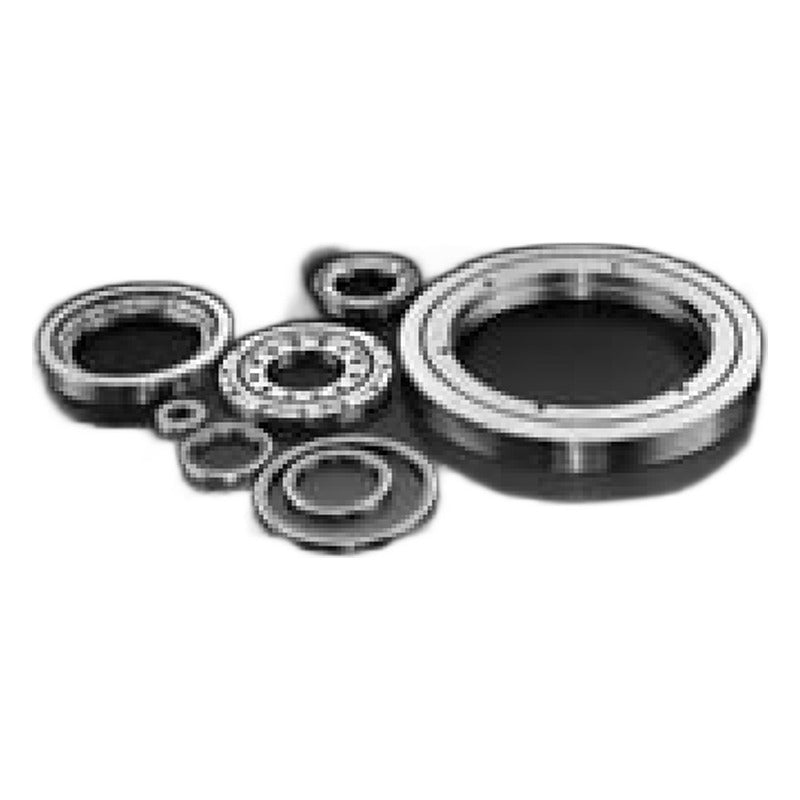

THK RB Cross Roller Ring (Split Outer Ring, Bore 140-300 mm) - Part 2

THK RB Cross Roller Ring (Split Outer Ring, Bore 140-300 mm) - Part 2

THK RB cross roller rings (split outer ring type) carry radial, axial and moment loads with a single bearing; this listing covers bore 140 to 300 mm.

Key features

  • Crossed cylindrical rollers between 90-degree V-grooves support loads in all directions
  • Spacer retainers prevent roller skew and friction, giving low and stable rotational torque
  • Split Outer Ring; the inner ring is one-piece, so use the inner ring for rotation when accuracy matters
  • Compact width saves space compared with combined angular contact bearings
  • Seal options UU (both sides) and U (one side); radial clearance CC0, C0, C1
  • Accuracy classes 0, P6-P2 and PE6-PE2 (rotation + dimensional); grades marked special in the catalog are on request

Specifications

Brand THK
Series RB cross roller ring
Structure Split Outer Ring
Rolling elements Crossed cylindrical rollers with spacer retainer
Size format Bore d x OD D x width B
Code format RB20030 UU CC0 P5 (model, seal, clearance, accuracy)
Source THK General Catalog Cross Roller Ring (Korean ed. 515-2K), p. A18-13-A18-40
RB20025 U CC0 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20025 U CC0 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20025 U CC0 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20025 U CC0 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20025 U CC0 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20025 U CC0 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 U CC0 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 U CC0 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 U CC0 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 U C0 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20025 U C0 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20025 U C0 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20025 U C0 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20025 U C0 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20025 U C0 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 U C0 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 U C0 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 U C0 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 U C1 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20025 U C1 P6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20025 U C1 P5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20025 U C1 P4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20025 U C1 P2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20025 U C1 PE6 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 U C1 PE5 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 U C1 PE4 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 U C1 PE2 Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 Base model (specify seal, clearance, accuracy) | Size: 200x280x30 mm | C/C0: 114/200 kN
RB20030 CC0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20030 CC0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20030 CC0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20030 CC0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20030 CC0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20030 CC0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 CC0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 CC0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 CC0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 C0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20030 C0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20030 C0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20030 C0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20030 C0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20030 C0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 C0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 C0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 C0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 C1 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20030 C1 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20030 C1 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20030 C1 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20030 C1 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20030 C1 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 C1 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 C1 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 C1 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 UU CC0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20030 UU CC0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20030 UU CC0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20030 UU CC0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20030 UU CC0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20030 UU CC0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 UU CC0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 UU CC0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 UU CC0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 UU C0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20030 UU C0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20030 UU C0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20030 UU C0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20030 UU C0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20030 UU C0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 UU C0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 UU C0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 UU C0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 UU C1 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20030 UU C1 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20030 UU C1 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20030 UU C1 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20030 UU C1 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20030 UU C1 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 UU C1 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 UU C1 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 UU C1 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 U CC0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20030 U CC0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20030 U CC0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20030 U CC0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20030 U CC0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20030 U CC0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 U CC0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 U CC0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 U CC0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 U C0 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20030 U C0 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20030 U C0 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20030 U C0 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20030 U C0 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20030 U C0 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 U C0 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 U C0 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 U C0 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 U C1 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20030 U C1 P6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20030 U C1 P5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20030 U C1 P4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20030 U C1 P2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20030 U C1 PE6 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 U C1 PE5 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 U C1 PE4 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 U C1 PE2 Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 Base model (specify seal, clearance, accuracy) | Size: 200x295x35 mm | C/C0: 151/252 kN
RB20035 CC0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20035 CC0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20035 CC0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20035 CC0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20035 CC0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20035 CC0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 CC0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 CC0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 CC0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 C0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20035 C0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20035 C0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20035 C0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20035 C0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20035 C0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 C0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 C0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 C0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 C1 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20035 C1 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20035 C1 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20035 C1 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20035 C1 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20035 C1 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 C1 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 C1 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 C1 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 UU CC0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20035 UU CC0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20035 UU CC0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20035 UU CC0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20035 UU CC0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20035 UU CC0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 UU CC0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 UU CC0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 UU CC0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 UU C0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20035 UU C0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20035 UU C0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20035 UU C0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20035 UU C0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20035 UU C0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 UU C0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 UU C0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 UU C0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 UU C1 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20035 UU C1 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20035 UU C1 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20035 UU C1 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20035 UU C1 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20035 UU C1 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 UU C1 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 UU C1 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 UU C1 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 U CC0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20035 U CC0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20035 U CC0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20035 U CC0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20035 U CC0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20035 U CC0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 U CC0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 U CC0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 U CC0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 U C0 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20035 U C0 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20035 U C0 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20035 U C0 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20035 U C0 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20035 U C0 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 U C0 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 U C0 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 U C0 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 U C1 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20035 U C1 P6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20035 U C1 P5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20035 U C1 P4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20035 U C1 P2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20035 U C1 PE6 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 U C1 PE5 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 U C1 PE4 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 U C1 PE2 Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 Base model (specify seal, clearance, accuracy) | Size: 220x280x25 mm | C/C0: 92.3/171 kN
RB22025 CC0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB22025 CC0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB22025 CC0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB22025 CC0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB22025 CC0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB22025 CC0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 CC0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 CC0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 CC0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 C0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB22025 C0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB22025 C0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB22025 C0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB22025 C0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB22025 C0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 C0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 C0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 C0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 C1 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB22025 C1 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB22025 C1 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB22025 C1 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB22025 C1 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB22025 C1 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 C1 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 C1 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 C1 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 UU CC0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB22025 UU CC0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB22025 UU CC0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB22025 UU CC0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB22025 UU CC0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB22025 UU CC0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 UU CC0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 UU CC0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 UU CC0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 UU C0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB22025 UU C0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB22025 UU C0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB22025 UU C0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB22025 UU C0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB22025 UU C0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 UU C0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 UU C0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 UU C0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 UU C1 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB22025 UU C1 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB22025 UU C1 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB22025 UU C1 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB22025 UU C1 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB22025 UU C1 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 UU C1 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 UU C1 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 UU C1 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 U CC0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB22025 U CC0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB22025 U CC0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB22025 U CC0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB22025 U CC0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB22025 U CC0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 U CC0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 U CC0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 U CC0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 U C0 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB22025 U C0 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB22025 U C0 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB22025 U C0 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB22025 U C0 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB22025 U C0 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 U C0 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 U C0 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 U C0 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 U C1 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB22025 U C1 P6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB22025 U C1 P5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB22025 U C1 P4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB22025 U C1 P2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB22025 U C1 PE6 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 U C1 PE5 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 U C1 PE4 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 U C1 PE2 Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 Base model (specify seal, clearance, accuracy) | Size: 240x300x25 mm | C/C0: 68.3/145 kN
RB24025 CC0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB24025 CC0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB24025 CC0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB24025 CC0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB24025 CC0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB24025 CC0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 CC0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 CC0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 CC0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 C0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB24025 C0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB24025 C0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB24025 C0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB24025 C0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB24025 C0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 C0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 C0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 C0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 C1 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB24025 C1 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB24025 C1 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB24025 C1 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB24025 C1 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB24025 C1 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 C1 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 C1 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 C1 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 UU CC0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB24025 UU CC0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB24025 UU CC0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB24025 UU CC0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB24025 UU CC0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB24025 UU CC0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 UU CC0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 UU CC0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 UU CC0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 UU C0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB24025 UU C0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB24025 UU C0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB24025 UU C0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB24025 UU C0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB24025 UU C0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 UU C0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 UU C0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 UU C0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 UU C1 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB24025 UU C1 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB24025 UU C1 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB24025 UU C1 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB24025 UU C1 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB24025 UU C1 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 UU C1 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 UU C1 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 UU C1 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 U CC0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB24025 U CC0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB24025 U CC0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB24025 U CC0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB24025 U CC0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB24025 U CC0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 U CC0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 U CC0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 U CC0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 U C0 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB24025 U C0 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB24025 U C0 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB24025 U C0 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB24025 U C0 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB24025 U C0 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 U C0 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 U C0 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 U C0 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 U C1 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB24025 U C1 P6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB24025 U C1 P5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB24025 U C1 P4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB24025 U C1 P2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB24025 U C1 PE6 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 U C1 PE5 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 U C1 PE4 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 U C1 PE2 Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 Base model (specify seal, clearance, accuracy) | Size: 250x310x25 mm | C/C0: 69.3/150 kN
RB25025 CC0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25025 CC0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25025 CC0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25025 CC0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25025 CC0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25025 CC0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 CC0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 CC0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 CC0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 C0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25025 C0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25025 C0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25025 C0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25025 C0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25025 C0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 C0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 C0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 C0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 C1 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25025 C1 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25025 C1 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25025 C1 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25025 C1 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25025 C1 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 C1 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 C1 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 C1 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 UU CC0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25025 UU CC0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25025 UU CC0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25025 UU CC0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25025 UU CC0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25025 UU CC0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 UU CC0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 UU CC0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 UU CC0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 UU C0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25025 UU C0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25025 UU C0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25025 UU C0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25025 UU C0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25025 UU C0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 UU C0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 UU C0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 UU C0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 UU C1 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25025 UU C1 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25025 UU C1 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25025 UU C1 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25025 UU C1 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25025 UU C1 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 UU C1 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 UU C1 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 UU C1 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 U CC0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25025 U CC0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25025 U CC0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25025 U CC0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25025 U CC0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25025 U CC0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 U CC0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 U CC0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 U CC0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 U C0 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25025 U C0 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25025 U C0 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25025 U C0 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25025 U C0 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25025 U C0 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 U C0 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 U C0 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 U C0 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 U C1 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25025 U C1 P6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25025 U C1 P5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25025 U C1 P4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25025 U C1 P2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25025 U C1 PE6 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 U C1 PE5 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 U C1 PE4 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 U C1 PE2 Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 Base model (specify seal, clearance, accuracy) | Size: 250x330x30 mm | C/C0: 126/244 kN
RB25030 CC0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25030 CC0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25030 CC0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25030 CC0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25030 CC0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25030 CC0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 CC0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 CC0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 CC0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 C0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25030 C0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25030 C0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25030 C0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25030 C0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25030 C0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 C0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 C0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 C0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 C1 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25030 C1 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25030 C1 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25030 C1 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25030 C1 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25030 C1 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 C1 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 C1 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 C1 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 UU CC0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25030 UU CC0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25030 UU CC0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25030 UU CC0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25030 UU CC0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25030 UU CC0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 UU CC0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 UU CC0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 UU CC0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 UU C0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25030 UU C0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25030 UU C0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25030 UU C0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25030 UU C0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25030 UU C0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 UU C0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 UU C0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 UU C0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 UU C1 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25030 UU C1 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25030 UU C1 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25030 UU C1 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25030 UU C1 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25030 UU C1 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 UU C1 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 UU C1 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 UU C1 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 U CC0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25030 U CC0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25030 U CC0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25030 U CC0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25030 U CC0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25030 U CC0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 U CC0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 U CC0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 U CC0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 U C0 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25030 U C0 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25030 U C0 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25030 U C0 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25030 U C0 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25030 U C0 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 U C0 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 U C0 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 U C0 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 U C1 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25030 U C1 P6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25030 U C1 P5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25030 U C1 P4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25030 U C1 P2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25030 U C1 PE6 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 U C1 PE5 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 U C1 PE4 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 U C1 PE2 Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 Base model (specify seal, clearance, accuracy) | Size: 250x355x40 mm | C/C0: 195/348 kN
RB25040 CC0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25040 CC0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25040 CC0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25040 CC0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25040 CC0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25040 CC0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 CC0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 CC0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 CC0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 C0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25040 C0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25040 C0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25040 C0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25040 C0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25040 C0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 C0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 C0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 C0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 C1 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25040 C1 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25040 C1 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25040 C1 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25040 C1 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25040 C1 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 C1 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 C1 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 C1 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 UU CC0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25040 UU CC0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25040 UU CC0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25040 UU CC0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25040 UU CC0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25040 UU CC0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 UU CC0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 UU CC0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 UU CC0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 UU C0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25040 UU C0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25040 UU C0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25040 UU C0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25040 UU C0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25040 UU C0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 UU C0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 UU C0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 UU C0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 UU C1 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25040 UU C1 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25040 UU C1 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25040 UU C1 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25040 UU C1 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25040 UU C1 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 UU C1 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 UU C1 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 UU C1 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 U CC0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25040 U CC0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25040 U CC0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25040 U CC0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25040 U CC0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25040 U CC0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 U CC0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 U CC0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 U CC0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 U C0 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25040 U C0 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25040 U C0 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25040 U C0 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25040 U C0 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25040 U C0 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 U C0 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 U C0 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 U C0 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 U C1 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25040 U C1 P6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25040 U C1 P5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25040 U C1 P4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25040 U C1 P2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25040 U C1 PE6 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 U C1 PE5 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 U C1 PE4 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 U C1 PE2 Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB30025 Base model (specify seal, clearance, accuracy) | Size: 300x360x25 mm | C/C0: 76.3/178 kN
RB30025 CC0 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30025 CC0 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30025 CC0 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30025 CC0 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30025 CC0 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 CC0 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 CC0 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 C0 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30025 C0 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30025 C0 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30025 C0 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30025 C0 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 C0 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 C0 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 C1 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30025 C1 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30025 C1 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30025 C1 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30025 C1 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 C1 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 C1 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 UU CC0 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30025 UU CC0 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30025 UU CC0 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30025 UU CC0 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30025 UU CC0 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 UU CC0 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 UU CC0 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 UU C0 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30025 UU C0 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30025 UU C0 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30025 UU C0 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30025 UU C0 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 UU C0 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 UU C0 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 UU C1 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30025 UU C1 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30025 UU C1 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30025 UU C1 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30025 UU C1 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 UU C1 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 UU C1 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 U CC0 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30025 U CC0 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30025 U CC0 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30025 U CC0 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30025 U CC0 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 U CC0 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 U CC0 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 U C0 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30025 U C0 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30025 U C0 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30025 U C0 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30025 U C0 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 U C0 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 U C0 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 U C1 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30025 U C1 P6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30025 U C1 P5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30025 U C1 P4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30025 U C1 PE6 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 U C1 PE5 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 U C1 PE4 Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 Base model (specify seal, clearance, accuracy) | Size: 300x395x35 mm | C/C0: 183/367 kN
RB30035 CC0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30035 CC0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30035 CC0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30035 CC0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30035 CC0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 CC0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 CC0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 C0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30035 C0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30035 C0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30035 C0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30035 C0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 C0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 C0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 C1 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30035 C1 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30035 C1 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30035 C1 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30035 C1 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 C1 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 C1 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 UU CC0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30035 UU CC0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30035 UU CC0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30035 UU CC0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30035 UU CC0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 UU CC0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 UU CC0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 UU C0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30035 UU C0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30035 UU C0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30035 UU C0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30035 UU C0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 UU C0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 UU C0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 UU C1 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30035 UU C1 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30035 UU C1 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30035 UU C1 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30035 UU C1 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 UU C1 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 UU C1 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 U CC0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30035 U CC0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30035 U CC0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30035 U CC0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30035 U CC0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 U CC0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 U CC0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 U C0 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30035 U C0 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30035 U C0 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30035 U C0 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30035 U C0 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 U C0 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 U C0 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 U C1 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30035 U C1 P6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30035 U C1 P5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30035 U C1 P4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30035 U C1 PE6 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 U C1 PE5 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 U C1 PE4 Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 Base model (specify seal, clearance, accuracy) | Size: 300x405x40 mm | C/C0: 212/409 kN
RB30040 CC0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30040 CC0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30040 CC0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30040 CC0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30040 CC0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 CC0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 CC0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 C0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30040 C0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30040 C0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30040 C0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30040 C0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 C0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 C0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 C1 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30040 C1 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30040 C1 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30040 C1 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30040 C1 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 C1 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 C1 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 UU CC0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30040 UU CC0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30040 UU CC0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30040 UU CC0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30040 UU CC0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 UU CC0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 UU CC0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 UU C0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30040 UU C0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30040 UU C0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30040 UU C0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30040 UU C0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 UU C0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 UU C0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 UU C1 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30040 UU C1 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30040 UU C1 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30040 UU C1 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30040 UU C1 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 UU C1 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 UU C1 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 U CC0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30040 U CC0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30040 U CC0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30040 U CC0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30040 U CC0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 U CC0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 U CC0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 U C0 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30040 U C0 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30040 U C0 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30040 U C0 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30040 U C0 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 U C0 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 U C0 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 U C1 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30040 U C1 P6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30040 U C1 P5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30040 U C1 P4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30040 U C1 PE6 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 U C1 PE5 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 U C1 PE4 Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
Cross Roller RingsTHK
793 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK RB Cross Roller Ring (Split Outer Ring, Bore 140-300 mm) - Part 2

Brand THK·Cross Roller Rings

Available part numbers (793)

RB20025 U CC0, RB20025 U CC0 P6, RB20025 U CC0 P5, RB20025 U CC0 P4, RB20025 U CC0 P2, RB20025 U CC0 PE6, RB20025 U CC0 PE5, RB20025 U CC0 PE4, RB20025 U CC0 PE2, RB20025 U C0 + 783 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RB20025 U CC0Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20025 U CC0 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20025 U CC0 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20025 U CC0 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20025 U CC0 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20025 U CC0 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 U CC0 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 U CC0 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 U CC0 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 U C0Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20025 U C0 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20025 U C0 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20025 U C0 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20025 U C0 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20025 U C0 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 U C0 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 U C0 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 U C0 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20025 U C1Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20025 U C1 P6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20025 U C1 P5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20025 U C1 P4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20025 U C1 P2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20025 U C1 PE6Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20025 U C1 PE5Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20025 U C1 PE4Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20025 U C1 PE2Size: 200x260x25 mm | C/C0: 84.2/157 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030Base model (specify seal, clearance, accuracy) | Size: 200x280x30 mm | C/C0: 114/200 kN
RB20030 CC0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20030 CC0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20030 CC0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20030 CC0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20030 CC0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20030 CC0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 CC0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 CC0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 CC0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 C0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20030 C0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20030 C0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20030 C0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20030 C0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20030 C0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 C0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 C0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 C0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 C1Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20030 C1 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20030 C1 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20030 C1 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20030 C1 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20030 C1 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 C1 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 C1 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 C1 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 UU CC0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20030 UU CC0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20030 UU CC0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20030 UU CC0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20030 UU CC0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20030 UU CC0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 UU CC0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 UU CC0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 UU CC0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 UU C0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20030 UU C0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20030 UU C0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20030 UU C0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20030 UU C0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20030 UU C0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 UU C0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 UU C0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 UU C0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 UU C1Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20030 UU C1 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20030 UU C1 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20030 UU C1 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20030 UU C1 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20030 UU C1 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 UU C1 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 UU C1 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 UU C1 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 U CC0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20030 U CC0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20030 U CC0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20030 U CC0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20030 U CC0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20030 U CC0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 U CC0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 U CC0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 U CC0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 U C0Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20030 U C0 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20030 U C0 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20030 U C0 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20030 U C0 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20030 U C0 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 U C0 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 U C0 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 U C0 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20030 U C1Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20030 U C1 P6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20030 U C1 P5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20030 U C1 P4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20030 U C1 P2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20030 U C1 PE6Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20030 U C1 PE5Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20030 U C1 PE4Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20030 U C1 PE2Size: 200x280x30 mm | C/C0: 114/200 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035Base model (specify seal, clearance, accuracy) | Size: 200x295x35 mm | C/C0: 151/252 kN
RB20035 CC0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20035 CC0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20035 CC0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20035 CC0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20035 CC0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20035 CC0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 CC0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 CC0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 CC0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 C0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20035 C0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20035 C0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20035 C0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20035 C0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20035 C0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 C0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 C0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 C0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 C1Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20035 C1 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20035 C1 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20035 C1 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20035 C1 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20035 C1 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 C1 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 C1 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 C1 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 UU CC0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20035 UU CC0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20035 UU CC0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20035 UU CC0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20035 UU CC0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20035 UU CC0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 UU CC0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 UU CC0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 UU CC0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 UU C0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20035 UU C0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20035 UU C0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20035 UU C0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20035 UU C0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20035 UU C0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 UU C0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 UU C0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 UU C0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 UU C1Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20035 UU C1 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20035 UU C1 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20035 UU C1 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20035 UU C1 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20035 UU C1 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 UU C1 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 UU C1 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 UU C1 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 U CC0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB20035 U CC0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB20035 U CC0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB20035 U CC0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB20035 U CC0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB20035 U CC0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 U CC0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 U CC0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 U CC0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 U C0Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB20035 U C0 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB20035 U C0 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB20035 U C0 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB20035 U C0 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB20035 U C0 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 U C0 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 U C0 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 U C0 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB20035 U C1Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB20035 U C1 P6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB20035 U C1 P5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB20035 U C1 P4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB20035 U C1 P2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB20035 U C1 PE6Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB20035 U C1 PE5Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB20035 U C1 PE4Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB20035 U C1 PE2Size: 200x295x35 mm | C/C0: 151/252 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025Base model (specify seal, clearance, accuracy) | Size: 220x280x25 mm | C/C0: 92.3/171 kN
RB22025 CC0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB22025 CC0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB22025 CC0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB22025 CC0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB22025 CC0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB22025 CC0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 CC0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 CC0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 CC0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 C0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB22025 C0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB22025 C0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB22025 C0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB22025 C0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB22025 C0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 C0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 C0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 C0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 C1Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB22025 C1 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB22025 C1 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB22025 C1 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB22025 C1 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB22025 C1 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 C1 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 C1 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 C1 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 UU CC0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB22025 UU CC0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB22025 UU CC0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB22025 UU CC0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB22025 UU CC0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB22025 UU CC0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 UU CC0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 UU CC0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 UU CC0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 UU C0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB22025 UU C0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB22025 UU C0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB22025 UU C0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB22025 UU C0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB22025 UU C0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 UU C0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 UU C0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 UU C0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 UU C1Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB22025 UU C1 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB22025 UU C1 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB22025 UU C1 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB22025 UU C1 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB22025 UU C1 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 UU C1 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 UU C1 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 UU C1 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 U CC0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB22025 U CC0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB22025 U CC0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB22025 U CC0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB22025 U CC0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB22025 U CC0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 U CC0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 U CC0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 U CC0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 U C0Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB22025 U C0 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB22025 U C0 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB22025 U C0 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB22025 U C0 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB22025 U C0 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 U C0 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 U C0 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 U C0 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB22025 U C1Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB22025 U C1 P6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB22025 U C1 P5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB22025 U C1 P4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB22025 U C1 P2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB22025 U C1 PE6Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB22025 U C1 PE5Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB22025 U C1 PE4Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB22025 U C1 PE2Size: 220x280x25 mm | C/C0: 92.3/171 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025Base model (specify seal, clearance, accuracy) | Size: 240x300x25 mm | C/C0: 68.3/145 kN
RB24025 CC0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB24025 CC0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB24025 CC0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB24025 CC0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB24025 CC0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB24025 CC0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 CC0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 CC0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 CC0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 C0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB24025 C0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB24025 C0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB24025 C0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB24025 C0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB24025 C0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 C0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 C0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 C0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 C1Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB24025 C1 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB24025 C1 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB24025 C1 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB24025 C1 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB24025 C1 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 C1 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 C1 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 C1 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 UU CC0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB24025 UU CC0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB24025 UU CC0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB24025 UU CC0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB24025 UU CC0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB24025 UU CC0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 UU CC0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 UU CC0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 UU CC0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 UU C0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB24025 UU C0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB24025 UU C0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB24025 UU C0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB24025 UU C0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB24025 UU C0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 UU C0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 UU C0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 UU C0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 UU C1Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB24025 UU C1 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB24025 UU C1 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB24025 UU C1 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB24025 UU C1 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB24025 UU C1 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 UU C1 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 UU C1 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 UU C1 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 U CC0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB24025 U CC0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB24025 U CC0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB24025 U CC0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB24025 U CC0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB24025 U CC0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 U CC0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 U CC0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 U CC0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 U C0Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB24025 U C0 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB24025 U C0 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB24025 U C0 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB24025 U C0 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB24025 U C0 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 U C0 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 U C0 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 U C0 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB24025 U C1Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB24025 U C1 P6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB24025 U C1 P5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB24025 U C1 P4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB24025 U C1 P2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB24025 U C1 PE6Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB24025 U C1 PE5Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB24025 U C1 PE4Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB24025 U C1 PE2Size: 240x300x25 mm | C/C0: 68.3/145 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025Base model (specify seal, clearance, accuracy) | Size: 250x310x25 mm | C/C0: 69.3/150 kN
RB25025 CC0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25025 CC0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25025 CC0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25025 CC0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25025 CC0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25025 CC0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 CC0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 CC0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 CC0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 C0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25025 C0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25025 C0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25025 C0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25025 C0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25025 C0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 C0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 C0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 C0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 C1Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25025 C1 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25025 C1 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25025 C1 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25025 C1 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25025 C1 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 C1 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 C1 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 C1 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 UU CC0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25025 UU CC0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25025 UU CC0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25025 UU CC0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25025 UU CC0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25025 UU CC0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 UU CC0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 UU CC0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 UU CC0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 UU C0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25025 UU C0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25025 UU C0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25025 UU C0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25025 UU C0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25025 UU C0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 UU C0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 UU C0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 UU C0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 UU C1Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25025 UU C1 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25025 UU C1 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25025 UU C1 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25025 UU C1 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25025 UU C1 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 UU C1 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 UU C1 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 UU C1 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 U CC0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25025 U CC0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25025 U CC0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25025 U CC0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25025 U CC0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25025 U CC0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 U CC0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 U CC0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 U CC0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 U C0Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25025 U C0 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25025 U C0 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25025 U C0 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25025 U C0 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25025 U C0 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 U C0 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 U C0 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 U C0 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25025 U C1Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25025 U C1 P6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25025 U C1 P5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25025 U C1 P4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25025 U C1 P2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25025 U C1 PE6Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25025 U C1 PE5Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25025 U C1 PE4Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25025 U C1 PE2Size: 250x310x25 mm | C/C0: 69.3/150 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030Base model (specify seal, clearance, accuracy) | Size: 250x330x30 mm | C/C0: 126/244 kN
RB25030 CC0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25030 CC0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25030 CC0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25030 CC0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25030 CC0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25030 CC0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 CC0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 CC0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 CC0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 C0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25030 C0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25030 C0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25030 C0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25030 C0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25030 C0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 C0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 C0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 C0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 C1Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25030 C1 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25030 C1 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25030 C1 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25030 C1 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25030 C1 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 C1 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 C1 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 C1 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 UU CC0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25030 UU CC0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25030 UU CC0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25030 UU CC0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25030 UU CC0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25030 UU CC0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 UU CC0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 UU CC0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 UU CC0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 UU C0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25030 UU C0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25030 UU C0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25030 UU C0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25030 UU C0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25030 UU C0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 UU C0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 UU C0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 UU C0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 UU C1Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25030 UU C1 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25030 UU C1 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25030 UU C1 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25030 UU C1 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25030 UU C1 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 UU C1 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 UU C1 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 UU C1 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 U CC0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25030 U CC0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25030 U CC0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25030 U CC0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25030 U CC0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25030 U CC0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 U CC0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 U CC0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 U CC0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 U C0Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25030 U C0 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25030 U C0 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25030 U C0 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25030 U C0 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25030 U C0 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 U C0 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 U C0 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 U C0 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25030 U C1Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25030 U C1 P6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25030 U C1 P5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25030 U C1 P4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25030 U C1 P2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25030 U C1 PE6Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25030 U C1 PE5Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25030 U C1 PE4Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25030 U C1 PE2Size: 250x330x30 mm | C/C0: 126/244 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040Base model (specify seal, clearance, accuracy) | Size: 250x355x40 mm | C/C0: 195/348 kN
RB25040 CC0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25040 CC0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25040 CC0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25040 CC0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25040 CC0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25040 CC0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 CC0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 CC0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 CC0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 C0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25040 C0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25040 C0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25040 C0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25040 C0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25040 C0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 C0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 C0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 C0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 C1Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25040 C1 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25040 C1 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25040 C1 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25040 C1 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25040 C1 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 C1 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 C1 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 C1 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 UU CC0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25040 UU CC0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25040 UU CC0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25040 UU CC0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25040 UU CC0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25040 UU CC0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 UU CC0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 UU CC0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 UU CC0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 UU C0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25040 UU C0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25040 UU C0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25040 UU C0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25040 UU C0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25040 UU C0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 UU C0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 UU C0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 UU C0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 UU C1Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25040 UU C1 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25040 UU C1 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25040 UU C1 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25040 UU C1 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25040 UU C1 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 UU C1 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 UU C1 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 UU C1 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 U CC0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB25040 U CC0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB25040 U CC0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB25040 U CC0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB25040 U CC0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RB25040 U CC0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 U CC0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 U CC0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 U CC0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 U C0Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB25040 U C0 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB25040 U C0 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB25040 U C0 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB25040 U C0 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RB25040 U C0 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 U C0 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 U C0 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 U C0 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RB25040 U C1Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB25040 U C1 P6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB25040 U C1 P5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB25040 U C1 P4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB25040 U C1 P2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RB25040 U C1 PE6Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB25040 U C1 PE5Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB25040 U C1 PE4Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB25040 U C1 PE2Size: 250x355x40 mm | C/C0: 195/348 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RB30025Base model (specify seal, clearance, accuracy) | Size: 300x360x25 mm | C/C0: 76.3/178 kN
RB30025 CC0Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30025 CC0 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30025 CC0 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30025 CC0 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30025 CC0 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 CC0 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 CC0 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 C0Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30025 C0 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30025 C0 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30025 C0 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30025 C0 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 C0 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 C0 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 C1Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30025 C1 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30025 C1 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30025 C1 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30025 C1 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 C1 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 C1 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 UU CC0Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30025 UU CC0 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30025 UU CC0 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30025 UU CC0 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30025 UU CC0 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 UU CC0 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 UU CC0 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 UU C0Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30025 UU C0 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30025 UU C0 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30025 UU C0 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30025 UU C0 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 UU C0 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 UU C0 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 UU C1Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30025 UU C1 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30025 UU C1 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30025 UU C1 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30025 UU C1 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 UU C1 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 UU C1 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 U CC0Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30025 U CC0 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30025 U CC0 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30025 U CC0 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30025 U CC0 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 U CC0 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 U CC0 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 U C0Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30025 U C0 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30025 U C0 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30025 U C0 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30025 U C0 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 U C0 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 U C0 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30025 U C1Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30025 U C1 P6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30025 U C1 P5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30025 U C1 P4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30025 U C1 PE6Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30025 U C1 PE5Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30025 U C1 PE4Size: 300x360x25 mm | C/C0: 76.3/178 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035Base model (specify seal, clearance, accuracy) | Size: 300x395x35 mm | C/C0: 183/367 kN
RB30035 CC0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30035 CC0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30035 CC0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30035 CC0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30035 CC0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 CC0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 CC0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 C0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30035 C0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30035 C0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30035 C0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30035 C0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 C0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 C0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 C1Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30035 C1 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30035 C1 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30035 C1 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30035 C1 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 C1 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 C1 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 UU CC0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30035 UU CC0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30035 UU CC0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30035 UU CC0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30035 UU CC0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 UU CC0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 UU CC0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 UU C0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30035 UU C0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30035 UU C0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30035 UU C0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30035 UU C0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 UU C0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 UU C0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 UU C1Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30035 UU C1 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30035 UU C1 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30035 UU C1 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30035 UU C1 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 UU C1 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 UU C1 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 U CC0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30035 U CC0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30035 U CC0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30035 U CC0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30035 U CC0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 U CC0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 U CC0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 U C0Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30035 U C0 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30035 U C0 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30035 U C0 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30035 U C0 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 U C0 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 U C0 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30035 U C1Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30035 U C1 P6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30035 U C1 P5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30035 U C1 P4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30035 U C1 PE6Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30035 U C1 PE5Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30035 U C1 PE4Size: 300x395x35 mm | C/C0: 183/367 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040Base model (specify seal, clearance, accuracy) | Size: 300x405x40 mm | C/C0: 212/409 kN
RB30040 CC0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30040 CC0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30040 CC0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30040 CC0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30040 CC0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 CC0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 CC0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 C0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30040 C0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30040 C0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30040 C0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30040 C0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 C0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 C0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 C1Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30040 C1 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30040 C1 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30040 C1 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30040 C1 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 C1 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 C1 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 UU CC0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30040 UU CC0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30040 UU CC0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30040 UU CC0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30040 UU CC0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 UU CC0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 UU CC0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 UU C0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30040 UU C0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30040 UU C0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30040 UU C0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30040 UU C0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 UU C0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 UU C0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 UU C1Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30040 UU C1 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30040 UU C1 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30040 UU C1 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30040 UU C1 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 UU C1 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 UU C1 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 U CC0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RB30040 U CC0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RB30040 U CC0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RB30040 U CC0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RB30040 U CC0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 U CC0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 U CC0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 U C0Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RB30040 U C0 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RB30040 U C0 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RB30040 U C0 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RB30040 U C0 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 U C0 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 U C0 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RB30040 U C1Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RB30040 U C1 P6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RB30040 U C1 P5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RB30040 U C1 P4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RB30040 U C1 PE6Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RB30040 U C1 PE5Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RB30040 U C1 PE4Size: 300x405x40 mm | C/C0: 212/409 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
