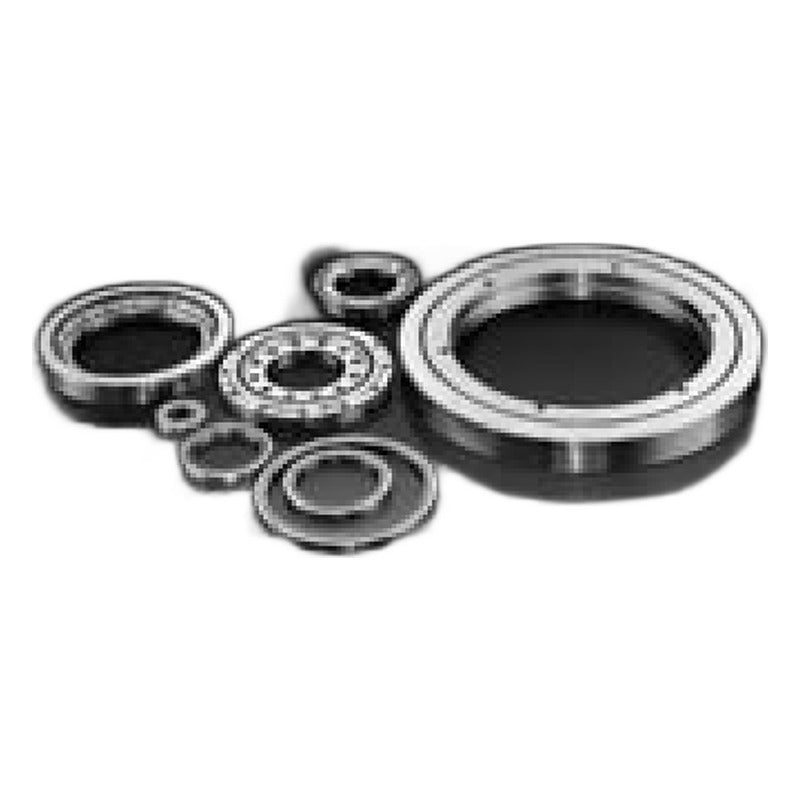

THK RE Cross Roller Ring (Split Inner Ring, Bore 350-600 mm)

THK RE Cross Roller Ring (Split Inner Ring, Bore 350-600 mm)

THK RE cross roller rings (split inner ring type) carry radial, axial and moment loads with a single bearing; this listing covers bore 350 to 600 mm.

Key features

  • Crossed cylindrical rollers between 90-degree V-grooves support loads in all directions
  • Spacer retainers prevent roller skew and friction, giving low and stable rotational torque
  • Split Inner Ring; the outer ring is one-piece, so use the outer ring for rotation when accuracy matters
  • Compact width saves space compared with combined angular contact bearings
  • Seal options UU (both sides) and U (one side); radial clearance CC0, C0, C1
  • Accuracy classes 0, P6-P2 and PE6-PE2 (rotation + dimensional); grades marked special in the catalog are on request

Specifications

Brand THK
Series RE cross roller ring
Structure Split Inner Ring
Rolling elements Crossed cylindrical rollers with spacer retainer
Size format Bore d x OD D x width B
Code format RE20030 UU CC0 P5 (model, seal, clearance, accuracy)
Source THK General Catalog Cross Roller Ring (Korean ed. 515-2K), p. A18-13-A18-40
RE35020 Base model (specify seal, clearance, accuracy) | Size: 350x400x20 mm | C/C0: 54.1/143 kN
RE35020 CC0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE35020 CC0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE35020 CC0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE35020 CC0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE35020 CC0 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE35020 CC0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 CC0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 CC0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 CC0 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 C0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE35020 C0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE35020 C0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE35020 C0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE35020 C0 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE35020 C0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 C0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 C0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 C0 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 C1 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE35020 C1 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE35020 C1 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE35020 C1 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE35020 C1 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE35020 C1 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 C1 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 C1 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 C1 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 UU CC0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE35020 UU CC0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE35020 UU CC0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE35020 UU CC0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE35020 UU CC0 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE35020 UU CC0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 UU CC0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 UU CC0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 UU CC0 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 UU C0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE35020 UU C0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE35020 UU C0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE35020 UU C0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE35020 UU C0 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE35020 UU C0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 UU C0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 UU C0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 UU C0 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 UU C1 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE35020 UU C1 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE35020 UU C1 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE35020 UU C1 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE35020 UU C1 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE35020 UU C1 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 UU C1 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 UU C1 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 UU C1 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 U CC0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE35020 U CC0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE35020 U CC0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE35020 U CC0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE35020 U CC0 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE35020 U CC0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 U CC0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 U CC0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 U CC0 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 U C0 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE35020 U C0 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE35020 U C0 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE35020 U C0 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE35020 U C0 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE35020 U C0 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 U C0 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 U C0 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 U C0 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 U C1 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE35020 U C1 P6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE35020 U C1 P5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE35020 U C1 P4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE35020 U C1 P2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE35020 U C1 PE6 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 U C1 PE5 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 U C1 PE4 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 U C1 PE2 Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE40035 Base model (specify seal, clearance, accuracy) | Size: 400x480x35 mm | C/C0: 156/370 kN
RE40035 CC0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40035 CC0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40035 CC0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40035 CC0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40035 CC0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 CC0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 CC0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 C0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40035 C0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40035 C0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40035 C0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40035 C0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 C0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 C0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 C1 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40035 C1 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40035 C1 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40035 C1 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40035 C1 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 C1 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 C1 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 UU CC0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40035 UU CC0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40035 UU CC0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40035 UU CC0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40035 UU CC0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 UU CC0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 UU CC0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 UU C0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40035 UU C0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40035 UU C0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40035 UU C0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40035 UU C0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 UU C0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 UU C0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 UU C1 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40035 UU C1 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40035 UU C1 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40035 UU C1 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40035 UU C1 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 UU C1 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 UU C1 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 U CC0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40035 U CC0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40035 U CC0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40035 U CC0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40035 U CC0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 U CC0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 U CC0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 U C0 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40035 U C0 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40035 U C0 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40035 U C0 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40035 U C0 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 U C0 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 U C0 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 U C1 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40035 U C1 P6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40035 U C1 P5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40035 U C1 P4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40035 U C1 PE6 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 U C1 PE5 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 U C1 PE4 Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 Base model (specify seal, clearance, accuracy) | Size: 400x510x40 mm | C/C0: 241/531 kN
RE40040 CC0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40040 CC0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40040 CC0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40040 CC0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40040 CC0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 CC0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 CC0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 C0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40040 C0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40040 C0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40040 C0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40040 C0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 C0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 C0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 C1 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40040 C1 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40040 C1 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40040 C1 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40040 C1 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 C1 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 C1 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 UU CC0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40040 UU CC0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40040 UU CC0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40040 UU CC0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40040 UU CC0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 UU CC0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 UU CC0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 UU C0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40040 UU C0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40040 UU C0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40040 UU C0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40040 UU C0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 UU C0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 UU C0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 UU C1 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40040 UU C1 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40040 UU C1 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40040 UU C1 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40040 UU C1 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 UU C1 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 UU C1 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 U CC0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40040 U CC0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40040 U CC0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40040 U CC0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40040 U CC0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 U CC0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 U CC0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 U C0 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40040 U C0 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40040 U C0 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40040 U C0 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40040 U C0 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 U C0 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 U C0 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 U C1 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40040 U C1 P6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40040 U C1 P5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40040 U C1 P4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40040 U C1 PE6 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 U C1 PE5 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 U C1 PE4 Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 Base model (specify seal, clearance, accuracy) | Size: 450x500x25 mm | C/C0: 61.7/182 kN
RE45025 CC0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE45025 CC0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE45025 CC0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE45025 CC0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE45025 CC0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 CC0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 CC0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 C0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE45025 C0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE45025 C0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE45025 C0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE45025 C0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 C0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 C0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 C1 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE45025 C1 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE45025 C1 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE45025 C1 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE45025 C1 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 C1 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 C1 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 UU CC0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE45025 UU CC0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE45025 UU CC0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE45025 UU CC0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE45025 UU CC0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 UU CC0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 UU CC0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 UU C0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE45025 UU C0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE45025 UU C0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE45025 UU C0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE45025 UU C0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 UU C0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 UU C0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 UU C1 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE45025 UU C1 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE45025 UU C1 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE45025 UU C1 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE45025 UU C1 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 UU C1 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 UU C1 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 U CC0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE45025 U CC0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE45025 U CC0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE45025 U CC0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE45025 U CC0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 U CC0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 U CC0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 U C0 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE45025 U C0 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE45025 U C0 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE45025 U C0 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE45025 U C0 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 U C0 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 U C0 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 U C1 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE45025 U C1 P6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE45025 U C1 P5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE45025 U C1 P4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE45025 U C1 PE6 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 U C1 PE5 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 U C1 PE4 Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 Base model (specify seal, clearance, accuracy) | Size: 500x550x25 mm | C/C0: 65.5/201 kN
RE50025 CC0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50025 CC0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50025 CC0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50025 CC0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50025 CC0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 CC0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 CC0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 C0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50025 C0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50025 C0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50025 C0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50025 C0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 C0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 C0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 C1 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50025 C1 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50025 C1 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50025 C1 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50025 C1 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 C1 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 C1 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 UU CC0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50025 UU CC0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50025 UU CC0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50025 UU CC0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50025 UU CC0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 UU CC0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 UU CC0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 UU C0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50025 UU C0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50025 UU C0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50025 UU C0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50025 UU C0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 UU C0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 UU C0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 UU C1 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50025 UU C1 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50025 UU C1 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50025 UU C1 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50025 UU C1 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 UU C1 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 UU C1 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 U CC0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50025 U CC0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50025 U CC0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50025 U CC0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50025 U CC0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 U CC0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 U CC0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 U C0 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50025 U C0 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50025 U C0 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50025 U C0 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50025 U C0 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 U C0 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 U C0 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 U C1 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50025 U C1 P6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50025 U C1 P5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50025 U C1 P4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50025 U C1 PE6 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 U C1 PE5 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 U C1 PE4 Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 Base model (specify seal, clearance, accuracy) | Size: 500x600x40 mm | C/C0: 239/607 kN
RE50040 CC0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50040 CC0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50040 CC0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50040 CC0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50040 CC0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 CC0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 CC0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 C0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50040 C0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50040 C0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50040 C0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50040 C0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 C0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 C0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 C1 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50040 C1 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50040 C1 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50040 C1 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50040 C1 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 C1 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 C1 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 UU CC0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50040 UU CC0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50040 UU CC0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50040 UU CC0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50040 UU CC0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 UU CC0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 UU CC0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 UU C0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50040 UU C0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50040 UU C0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50040 UU C0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50040 UU C0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 UU C0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 UU C0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 UU C1 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50040 UU C1 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50040 UU C1 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50040 UU C1 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50040 UU C1 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 UU C1 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 UU C1 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 U CC0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50040 U CC0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50040 U CC0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50040 U CC0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50040 U CC0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 U CC0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 U CC0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 U C0 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50040 U C0 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50040 U C0 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50040 U C0 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50040 U C0 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 U C0 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 U C0 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 U C1 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50040 U C1 P6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50040 U C1 P5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50040 U C1 P4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50040 U C1 PE6 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 U C1 PE5 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 U C1 PE4 Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 Base model (specify seal, clearance, accuracy) | Size: 500x625x50 mm | C/C0: 267/653 kN
RE50050 CC0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50050 CC0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50050 CC0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50050 CC0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50050 CC0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 CC0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 CC0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 C0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50050 C0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50050 C0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50050 C0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50050 C0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 C0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 C0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 C1 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50050 C1 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50050 C1 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50050 C1 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50050 C1 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 C1 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 C1 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 UU CC0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50050 UU CC0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50050 UU CC0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50050 UU CC0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50050 UU CC0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 UU CC0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 UU CC0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 UU C0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50050 UU C0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50050 UU C0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50050 UU C0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50050 UU C0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 UU C0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 UU C0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 UU C1 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50050 UU C1 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50050 UU C1 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50050 UU C1 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50050 UU C1 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 UU C1 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 UU C1 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 U CC0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50050 U CC0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50050 U CC0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50050 U CC0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50050 U CC0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 U CC0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 U CC0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 U C0 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50050 U C0 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50050 U C0 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50050 U C0 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50050 U C0 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 U C0 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 U C0 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 U C1 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50050 U C1 P6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50050 U C1 P5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50050 U C1 P4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50050 U C1 PE6 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 U C1 PE5 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 U C1 PE4 Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 Base model (specify seal, clearance, accuracy) | Size: 600x700x40 mm | C/C0: 264/721 kN
RE60040 CC0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE60040 CC0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE60040 CC0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE60040 CC0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE60040 CC0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 CC0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 CC0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 C0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE60040 C0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE60040 C0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE60040 C0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE60040 C0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 C0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 C0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 C1 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE60040 C1 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE60040 C1 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE60040 C1 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE60040 C1 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 C1 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 C1 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 UU CC0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE60040 UU CC0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE60040 UU CC0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE60040 UU CC0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE60040 UU CC0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 UU CC0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 UU CC0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 UU C0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE60040 UU C0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE60040 UU C0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE60040 UU C0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE60040 UU C0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 UU C0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 UU C0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 UU C1 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE60040 UU C1 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE60040 UU C1 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE60040 UU C1 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE60040 UU C1 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 UU C1 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 UU C1 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 U CC0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE60040 U CC0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE60040 U CC0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE60040 U CC0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE60040 U CC0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 U CC0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 U CC0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 U C0 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE60040 U C0 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE60040 U C0 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE60040 U C0 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE60040 U C0 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 U C0 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 U C0 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 U C1 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE60040 U C1 P6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE60040 U C1 P5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE60040 U C1 P4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE60040 U C1 PE6 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 U C1 PE5 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 U C1 PE4 Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
Cross Roller RingsTHK
530 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK RE Cross Roller Ring (Split Inner Ring, Bore 350-600 mm)

Brand THK·Cross Roller Rings

Available part numbers (530)

RE35020, RE35020 CC0, RE35020 CC0 P6, RE35020 CC0 P5, RE35020 CC0 P4, RE35020 CC0 P2, RE35020 CC0 PE6, RE35020 CC0 PE5, RE35020 CC0 PE4, RE35020 CC0 PE2 + 520 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RE35020Base model (specify seal, clearance, accuracy) | Size: 350x400x20 mm | C/C0: 54.1/143 kN
RE35020 CC0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE35020 CC0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE35020 CC0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE35020 CC0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE35020 CC0 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE35020 CC0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 CC0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 CC0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 CC0 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 C0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE35020 C0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE35020 C0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE35020 C0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE35020 C0 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE35020 C0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 C0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 C0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 C0 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 C1Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE35020 C1 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE35020 C1 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE35020 C1 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE35020 C1 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE35020 C1 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 C1 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 C1 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 C1 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 UU CC0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE35020 UU CC0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE35020 UU CC0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE35020 UU CC0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE35020 UU CC0 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE35020 UU CC0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 UU CC0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 UU CC0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 UU CC0 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 UU C0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE35020 UU C0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE35020 UU C0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE35020 UU C0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE35020 UU C0 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE35020 UU C0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 UU C0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 UU C0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 UU C0 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 UU C1Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE35020 UU C1 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE35020 UU C1 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE35020 UU C1 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE35020 UU C1 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE35020 UU C1 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 UU C1 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 UU C1 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 UU C1 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 U CC0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE35020 U CC0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE35020 U CC0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE35020 U CC0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE35020 U CC0 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P2 (class 2)
RE35020 U CC0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 U CC0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 U CC0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 U CC0 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 U C0Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE35020 U C0 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE35020 U C0 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE35020 U C0 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE35020 U C0 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P2 (class 2)
RE35020 U C0 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 U C0 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 U C0 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 U C0 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE2 (rot. 2 + dim. 4)
RE35020 U C1Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE35020 U C1 P6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE35020 U C1 P5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE35020 U C1 P4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE35020 U C1 P2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P2 (class 2)
RE35020 U C1 PE6Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE35020 U C1 PE5Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE35020 U C1 PE4Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE35020 U C1 PE2Size: 350x400x20 mm | C/C0: 54.1/143 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE2 (rot. 2 + dim. 4)
RE40035Base model (specify seal, clearance, accuracy) | Size: 400x480x35 mm | C/C0: 156/370 kN
RE40035 CC0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40035 CC0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40035 CC0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40035 CC0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40035 CC0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 CC0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 CC0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 C0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40035 C0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40035 C0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40035 C0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40035 C0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 C0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 C0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 C1Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40035 C1 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40035 C1 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40035 C1 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40035 C1 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 C1 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 C1 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 UU CC0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40035 UU CC0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40035 UU CC0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40035 UU CC0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40035 UU CC0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 UU CC0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 UU CC0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 UU C0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40035 UU C0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40035 UU C0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40035 UU C0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40035 UU C0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 UU C0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 UU C0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 UU C1Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40035 UU C1 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40035 UU C1 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40035 UU C1 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40035 UU C1 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 UU C1 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 UU C1 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 U CC0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40035 U CC0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40035 U CC0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40035 U CC0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40035 U CC0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 U CC0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 U CC0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 U C0Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40035 U C0 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40035 U C0 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40035 U C0 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40035 U C0 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 U C0 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 U C0 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40035 U C1Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40035 U C1 P6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40035 U C1 P5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40035 U C1 P4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40035 U C1 PE6Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40035 U C1 PE5Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40035 U C1 PE4Size: 400x480x35 mm | C/C0: 156/370 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040Base model (specify seal, clearance, accuracy) | Size: 400x510x40 mm | C/C0: 241/531 kN
RE40040 CC0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40040 CC0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40040 CC0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40040 CC0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40040 CC0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 CC0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 CC0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 C0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40040 C0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40040 C0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40040 C0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40040 C0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 C0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 C0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 C1Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40040 C1 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40040 C1 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40040 C1 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40040 C1 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 C1 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 C1 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 UU CC0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40040 UU CC0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40040 UU CC0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40040 UU CC0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40040 UU CC0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 UU CC0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 UU CC0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 UU C0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40040 UU C0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40040 UU C0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40040 UU C0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40040 UU C0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 UU C0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 UU C0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 UU C1Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40040 UU C1 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40040 UU C1 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40040 UU C1 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40040 UU C1 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 UU C1 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 UU C1 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 U CC0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE40040 U CC0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE40040 U CC0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE40040 U CC0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE40040 U CC0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 U CC0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 U CC0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 U C0Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE40040 U C0 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE40040 U C0 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE40040 U C0 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE40040 U C0 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 U C0 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 U C0 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE40040 U C1Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE40040 U C1 P6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE40040 U C1 P5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE40040 U C1 P4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE40040 U C1 PE6Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE40040 U C1 PE5Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE40040 U C1 PE4Size: 400x510x40 mm | C/C0: 241/531 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025Base model (specify seal, clearance, accuracy) | Size: 450x500x25 mm | C/C0: 61.7/182 kN
RE45025 CC0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE45025 CC0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE45025 CC0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE45025 CC0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE45025 CC0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 CC0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 CC0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 C0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE45025 C0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE45025 C0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE45025 C0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE45025 C0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 C0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 C0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 C1Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE45025 C1 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE45025 C1 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE45025 C1 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE45025 C1 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 C1 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 C1 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 UU CC0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE45025 UU CC0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE45025 UU CC0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE45025 UU CC0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE45025 UU CC0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 UU CC0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 UU CC0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 UU C0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE45025 UU C0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE45025 UU C0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE45025 UU C0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE45025 UU C0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 UU C0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 UU C0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 UU C1Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE45025 UU C1 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE45025 UU C1 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE45025 UU C1 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE45025 UU C1 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 UU C1 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 UU C1 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 U CC0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE45025 U CC0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE45025 U CC0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE45025 U CC0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE45025 U CC0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 U CC0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 U CC0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 U C0Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE45025 U C0 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE45025 U C0 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE45025 U C0 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE45025 U C0 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 U C0 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 U C0 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE45025 U C1Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE45025 U C1 P6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE45025 U C1 P5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE45025 U C1 P4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE45025 U C1 PE6Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE45025 U C1 PE5Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE45025 U C1 PE4Size: 450x500x25 mm | C/C0: 61.7/182 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025Base model (specify seal, clearance, accuracy) | Size: 500x550x25 mm | C/C0: 65.5/201 kN
RE50025 CC0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50025 CC0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50025 CC0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50025 CC0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50025 CC0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 CC0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 CC0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 C0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50025 C0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50025 C0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50025 C0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50025 C0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 C0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 C0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 C1Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50025 C1 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50025 C1 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50025 C1 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50025 C1 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 C1 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 C1 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 UU CC0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50025 UU CC0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50025 UU CC0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50025 UU CC0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50025 UU CC0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 UU CC0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 UU CC0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 UU C0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50025 UU C0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50025 UU C0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50025 UU C0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50025 UU C0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 UU C0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 UU C0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 UU C1Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50025 UU C1 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50025 UU C1 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50025 UU C1 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50025 UU C1 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 UU C1 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 UU C1 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 U CC0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50025 U CC0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50025 U CC0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50025 U CC0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50025 U CC0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 U CC0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 U CC0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 U C0Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50025 U C0 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50025 U C0 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50025 U C0 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50025 U C0 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 U C0 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 U C0 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50025 U C1Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50025 U C1 P6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50025 U C1 P5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50025 U C1 P4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50025 U C1 PE6Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50025 U C1 PE5Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50025 U C1 PE4Size: 500x550x25 mm | C/C0: 65.5/201 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040Base model (specify seal, clearance, accuracy) | Size: 500x600x40 mm | C/C0: 239/607 kN
RE50040 CC0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50040 CC0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50040 CC0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50040 CC0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50040 CC0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 CC0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 CC0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 C0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50040 C0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50040 C0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50040 C0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50040 C0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 C0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 C0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 C1Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50040 C1 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50040 C1 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50040 C1 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50040 C1 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 C1 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 C1 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 UU CC0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50040 UU CC0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50040 UU CC0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50040 UU CC0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50040 UU CC0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 UU CC0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 UU CC0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 UU C0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50040 UU C0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50040 UU C0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50040 UU C0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50040 UU C0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 UU C0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 UU C0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 UU C1Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50040 UU C1 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50040 UU C1 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50040 UU C1 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50040 UU C1 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 UU C1 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 UU C1 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 U CC0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50040 U CC0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50040 U CC0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50040 U CC0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50040 U CC0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 U CC0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 U CC0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 U C0Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50040 U C0 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50040 U C0 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50040 U C0 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50040 U C0 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 U C0 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 U C0 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50040 U C1Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50040 U C1 P6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50040 U C1 P5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50040 U C1 P4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50040 U C1 PE6Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50040 U C1 PE5Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50040 U C1 PE4Size: 500x600x40 mm | C/C0: 239/607 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050Base model (specify seal, clearance, accuracy) | Size: 500x625x50 mm | C/C0: 267/653 kN
RE50050 CC0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50050 CC0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50050 CC0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50050 CC0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50050 CC0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 CC0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 CC0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 C0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50050 C0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50050 C0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50050 C0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50050 C0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 C0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 C0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 C1Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50050 C1 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50050 C1 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50050 C1 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50050 C1 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 C1 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 C1 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 UU CC0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50050 UU CC0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50050 UU CC0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50050 UU CC0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50050 UU CC0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 UU CC0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 UU CC0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 UU C0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50050 UU C0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50050 UU C0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50050 UU C0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50050 UU C0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 UU C0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 UU C0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 UU C1Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50050 UU C1 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50050 UU C1 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50050 UU C1 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50050 UU C1 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 UU C1 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 UU C1 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 U CC0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE50050 U CC0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE50050 U CC0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE50050 U CC0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE50050 U CC0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 U CC0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 U CC0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 U C0Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE50050 U C0 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE50050 U C0 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE50050 U C0 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE50050 U C0 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 U C0 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 U C0 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE50050 U C1Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE50050 U C1 P6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE50050 U C1 P5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE50050 U C1 P4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE50050 U C1 PE6Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE50050 U C1 PE5Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE50050 U C1 PE4Size: 500x625x50 mm | C/C0: 267/653 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040Base model (specify seal, clearance, accuracy) | Size: 600x700x40 mm | C/C0: 264/721 kN
RE60040 CC0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE60040 CC0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE60040 CC0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE60040 CC0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE60040 CC0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 CC0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 CC0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 C0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE60040 C0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE60040 C0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE60040 C0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE60040 C0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 C0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 C0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 C1Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE60040 C1 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE60040 C1 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE60040 C1 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE60040 C1 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 C1 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 C1 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: None | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 UU CC0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE60040 UU CC0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE60040 UU CC0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE60040 UU CC0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE60040 UU CC0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 UU CC0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 UU CC0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 UU C0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE60040 UU C0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE60040 UU C0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE60040 UU C0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE60040 UU C0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 UU C0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 UU C0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 UU C1Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE60040 UU C1 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE60040 UU C1 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE60040 UU C1 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE60040 UU C1 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 UU C1 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 UU C1 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: UU (both sides) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 U CC0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: Class 0 (normal)
RE60040 U CC0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P6 (class 6)
RE60040 U CC0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P5 (class 5)
RE60040 U CC0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: P4 (class 4)
RE60040 U CC0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 U CC0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 U CC0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: CC0 (preload) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 U C0Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: Class 0 (normal)
RE60040 U C0 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P6 (class 6)
RE60040 U C0 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P5 (class 5)
RE60040 U C0 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: P4 (class 4)
RE60040 U C0 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 U C0 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 U C0 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C0 (normal) | Accuracy: PE4 (rot. 4 + dim. 4)
RE60040 U C1Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: Class 0 (normal)
RE60040 U C1 P6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P6 (class 6)
RE60040 U C1 P5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P5 (class 5)
RE60040 U C1 P4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: P4 (class 4)
RE60040 U C1 PE6Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE6 (rot. 6 + dim. 6)
RE60040 U C1 PE5Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE5 (rot. 5 + dim. 5)
RE60040 U C1 PE4Size: 600x700x40 mm | C/C0: 264/721 kN | Seal: U (one side) | Clearance: C1 (larger than C0) | Accuracy: PE4 (rot. 4 + dim. 4)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
