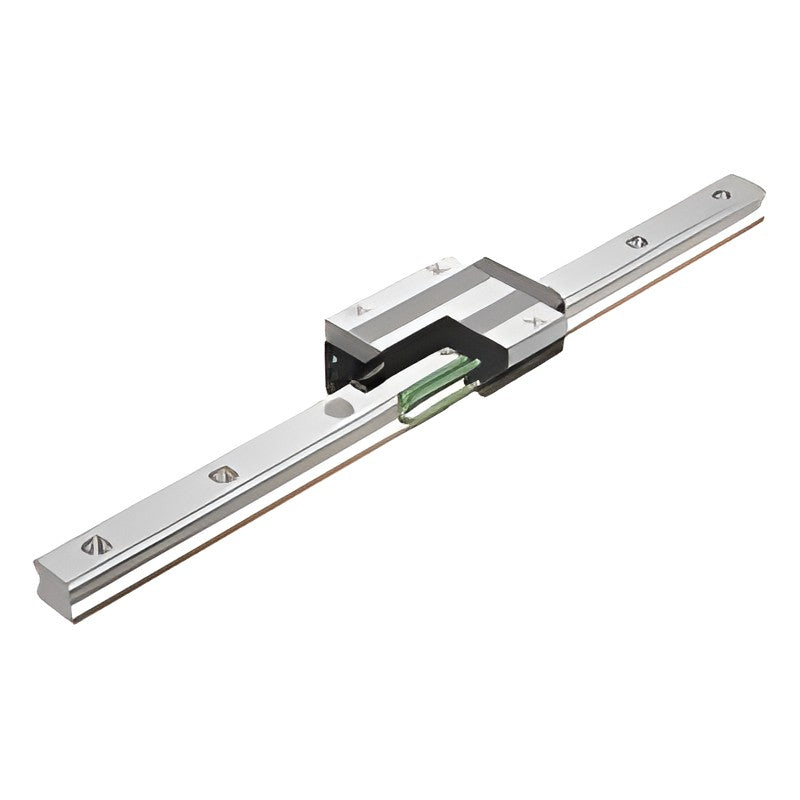

THK SHS-R/LR Caged Ball LM Guide (Square Block, Size 35-55)

THK SHS-R/LR Caged Ball LM Guide (Square Block, Size 35-55)

THK SHS-R/LR caged-ball LM guide with a narrow, tall tapped block matching the height of the full-ball HSR-R type.

Key features

  • Ball retainer (cage) eliminates ball-to-ball friction: low noise, long life, long-term maintenance-free operation.
  • Four raceways at 45 deg contact angle give equal load ratings in radial, reverse-radial and lateral directions.
  • Circular-arc groove DF combination self-aligns to absorb mounting errors even under preload.
  • Mounting dimensions designed to the world-standard full-ball HSR type.
  • Stainless steel block, rail and balls available for sizes 15-25 (M symbol).

Specifications

Series SHS (caged ball, world-standard size)
Rolling element Steel balls with ball retainer (cage)
Load directions 4-way equal load, 45 deg contact angle
Raceway 4 rows, circular-arc grooves, DF set
Stainless option M: stainless block/rail/balls, sizes 15-25
Rail standard length Per p. 104; max 3000 mm (3090 for 45)
Add-on options (not coded) QZ lube, caps, rail tap type K/W, AP coat
Source THK General Catalog LM Guide (Korean ed. 515-2K), p. 102-103
SHS35R Base model (specify seal, preload, accuracy, blocks, rail length)
SHS35R UU Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R UU H Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R UU P Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU SP Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU UP Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 H Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 P Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 SP Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 UP Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 H Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 P Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 SP Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 UP Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SS H Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SS P Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS SP Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS UP Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 H Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 P Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 SP Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 UP Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 H Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 P Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 SP Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 UP Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DD H Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DD P Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD SP Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD UP Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 H Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 P Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 SP Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 UP Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 H Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 P Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 SP Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 UP Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ H Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ P Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ SP Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ UP Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 H Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 P Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 SP Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 UP Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 H Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 P Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 SP Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 UP Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KK H Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KK P Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK SP Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK UP Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 H Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 P Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 SP Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 UP Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 H Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 P Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 SP Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 UP Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH H Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH P Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH SP Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH UP Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 H Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 P Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 SP Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 UP Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 H Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 P Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 SP Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 UP Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH H Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH P Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH SP Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH UP Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 H Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 P Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 SP Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 UP Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 H Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 P Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 SP Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 UP Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH H Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH P Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH SP Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH UP Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 H Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 P Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 SP Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 UP Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 H Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 P Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 SP Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 UP Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH H Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH P Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH SP Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH UP Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 H Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 P Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 SP Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 UP Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 H Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 P Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 SP Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 UP Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R GG H Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R GG P Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG SP Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG UP Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 H Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 P Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 SP Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 UP Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 H Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 P Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 SP Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 UP Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R PP H Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R PP P Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP SP Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP UP Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 H Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 P Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 SP Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 UP Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 H Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 P Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 SP Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 UP Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35LR Base model (specify seal, preload, accuracy, blocks, rail length)
SHS35LR UU Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR UU H Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR UU P Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU SP Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU UP Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SS H Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SS P Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS SP Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS UP Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DD H Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DD P Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD SP Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD UP Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ H Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ P Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ SP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ UP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KK H Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KK P Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK SP Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK UP Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH H Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH P Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH SP Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH UP Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH H Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH P Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH SP Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH UP Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH H Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH P Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH SP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH UP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH H Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH P Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH SP Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH UP Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR GG H Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR GG P Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG SP Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG UP Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR PP H Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR PP P Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP SP Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP UP Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 H Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 P Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 SP Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 UP Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 H Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 P Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 SP Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 UP Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS45R Base model (specify seal, preload, accuracy, blocks, rail length)
SHS45R UU Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R UU H Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R UU P Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R UU SP Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R UU UP Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 H Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 P Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 SP Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 UP Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 H Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 P Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 SP Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 UP Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SS Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SS H Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SS P Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SS SP Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SS UP Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 H Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 P Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 SP Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 UP Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 H Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 P Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 SP Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 UP Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DD Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DD H Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DD P Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DD SP Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DD UP Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 H Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 P Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 SP Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 UP Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 H Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 P Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 SP Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 UP Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZ H Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZ P Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ SP Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ UP Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 H Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 P Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 SP Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 UP Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 H Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 P Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 SP Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 UP Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KK Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KK H Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KK P Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KK SP Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KK UP Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 H Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 P Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 SP Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 UP Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 H Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 P Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 SP Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 UP Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SSHH H Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SSHH P Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH SP Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH UP Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 H Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 P Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 SP Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 UP Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 H Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 P Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 SP Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 UP Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DDHH H Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DDHH P Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH SP Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH UP Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 H Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 P Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 SP Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 UP Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 H Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 P Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 SP Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 UP Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH H Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH P Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH SP Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH UP Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 H Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 P Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 SP Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 UP Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 H Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 P Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 SP Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 UP Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KKHH H Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KKHH P Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH SP Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH UP Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 H Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 P Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 SP Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 UP Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 H Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 P Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 SP Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 UP Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R GG Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R GG H Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R GG P Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R GG SP Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R GG UP Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 H Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 P Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 SP Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 UP Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 H Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 P Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 SP Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 UP Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R PP Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R PP H Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R PP P Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R PP SP Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R PP UP Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 H Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 P Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 SP Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 UP Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 H Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 P Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 SP Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 UP Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45LR Base model (specify seal, preload, accuracy, blocks, rail length)
SHS45LR UU Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR UU H Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR UU P Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR UU SP Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR UU UP Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR UU C1 Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR UU C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR UU C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR UU C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR UU C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR UU C0 Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR UU C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR UU C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR UU C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR UU C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SS Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SS H Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SS P Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SS SP Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SS UP Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SS C1 Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SS C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SS C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SS C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SS C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SS C0 Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SS C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SS C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SS C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SS C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DD Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DD H Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DD P Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DD SP Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DD UP Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DD C1 Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DD C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DD C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DD C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DD C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DD C0 Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DD C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DD C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DD C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DD C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZ H Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZ P Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ SP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ UP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KK Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KK H Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KK P Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KK SP Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KK UP Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KK C1 Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KK C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KK C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KK C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KK C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KK C0 Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KK C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KK C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KK C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KK C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SSHH H Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SSHH P Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH SP Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH UP Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DDHH H Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DDHH P Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH SP Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH UP Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZHH H Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZHH P Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH SP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH UP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KKHH H Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KKHH P Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH SP Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH UP Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR GG Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR GG H Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR GG P Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR GG SP Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR GG UP Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR GG C1 Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR GG C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR GG C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR GG C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR GG C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR GG C0 Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR GG C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR GG C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR GG C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR GG C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR PP Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR PP H Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR PP P Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR PP SP Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR PP UP Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR PP C1 Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR PP C1 H Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR PP C1 P Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR PP C1 SP Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR PP C1 UP Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR PP C0 Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR PP C0 H Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR PP C0 P Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR PP C0 SP Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR PP C0 UP Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS55R Base model (specify seal, preload, accuracy, blocks, rail length)
SHS55R UU Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R UU H Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R UU P Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R UU SP Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R UU UP Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R UU C1 Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R UU C1 H Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R UU C1 P Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R UU C1 SP Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R UU C1 UP Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R UU C0 Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R UU C0 H Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R UU C0 P Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R UU C0 SP Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R UU C0 UP Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SS Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SS H Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SS P Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SS SP Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SS UP Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SS C1 Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SS C1 H Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SS C1 P Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SS C1 SP Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SS C1 UP Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SS C0 Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SS C0 H Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SS C0 P Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SS C0 SP Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SS C0 UP Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DD Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DD H Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DD P Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DD SP Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DD UP Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DD C1 Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DD C1 H Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DD C1 P Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DD C1 SP Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DD C1 UP Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DD C0 Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DD C0 H Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DD C0 P Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DD C0 SP Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DD C0 UP Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZ Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZ H Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZ P Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZ SP Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZ UP Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 H Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 P Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 SP Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 UP Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 H Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 P Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 SP Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 UP Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KK Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KK H Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KK P Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KK SP Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KK UP Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KK C1 Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KK C1 H Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KK C1 P Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KK C1 SP Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KK C1 UP Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KK C0 Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KK C0 H Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KK C0 P Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KK C0 SP Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KK C0 UP Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SSHH Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SSHH H Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SSHH P Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SSHH SP Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SSHH UP Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 H Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 P Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 SP Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 UP Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 H Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 P Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 SP Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 UP Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DDHH Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DDHH H Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DDHH P Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DDHH SP Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DDHH UP Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 H Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 P Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 SP Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 UP Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 H Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 P Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 SP Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 UP Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZHH H Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZHH P Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH SP Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH UP Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 H Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 P Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 SP Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 UP Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 H Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 P Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 SP Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 UP Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KKHH Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KKHH H Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KKHH P Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KKHH SP Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KKHH UP Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 H Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 P Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 SP Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 UP Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 H Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 P Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 SP Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 UP Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R GG Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R GG H Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R GG P Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R GG SP Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R GG UP Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R GG C1 Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R GG C1 H Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R GG C1 P Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R GG C1 SP Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R GG C1 UP Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R GG C0 Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R GG C0 H Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R GG C0 P Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R GG C0 SP Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R GG C0 UP Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R PP Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R PP H Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R PP P Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R PP SP Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R PP UP Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R PP C1 Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R PP C1 H Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R PP C1 P Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R PP C1 SP Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R PP C1 UP Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R PP C0 Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R PP C0 H Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R PP C0 P Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R PP C0 SP Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R PP C0 UP Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55LR Base model (specify seal, preload, accuracy, blocks, rail length)
SHS55LR UU Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR UU H Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR UU P Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR UU SP Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR UU UP Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR UU C1 Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR UU C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR UU C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR UU C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR UU C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR UU C0 Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR UU C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR UU C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR UU C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR UU C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SS Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SS H Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SS P Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SS SP Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SS UP Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SS C1 Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SS C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SS C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SS C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SS C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SS C0 Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SS C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SS C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SS C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SS C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DD Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DD H Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DD P Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DD SP Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DD UP Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DD C1 Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DD C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DD C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DD C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DD C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DD C0 Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DD C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DD C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DD C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DD C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZ H Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZ P Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ SP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ UP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KK Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KK H Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KK P Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KK SP Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KK UP Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KK C1 Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KK C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KK C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KK C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KK C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KK C0 Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KK C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KK C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KK C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KK C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SSHH H Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SSHH P Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH SP Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH UP Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DDHH H Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DDHH P Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH SP Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH UP Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZHH H Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZHH P Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH SP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH UP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KKHH H Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KKHH P Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH SP Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH UP Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR GG Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR GG H Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR GG P Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR GG SP Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR GG UP Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR GG C1 Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR GG C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR GG C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR GG C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR GG C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR GG C0 Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR GG C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR GG C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR GG C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR GG C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR PP Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR PP H Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR PP P Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR PP SP Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR PP UP Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR PP C1 Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR PP C1 H Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR PP C1 P Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR PP C1 SP Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR PP C1 UP Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR PP C0 Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR PP C0 H Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR PP C0 P Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR PP C0 SP Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR PP C0 UP Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
LM GuidesTHK
996 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SHS-R/LR Caged Ball LM Guide (Square Block, Size 35-55)

Brand THK·LM Guides

Available part numbers (996)

SHS35R, SHS35R UU, SHS35R UU H, SHS35R UU P, SHS35R UU SP, SHS35R UU UP, SHS35R UU C1, SHS35R UU C1 H, SHS35R UU C1 P, SHS35R UU C1 SP + 986 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHS35RBase model (specify seal, preload, accuracy, blocks, rail length)
SHS35R UUSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R UU HSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R UU PSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU SPSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU UPSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 HSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 PSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 SPSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C1 UPSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0Size: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 HSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 PSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 SPSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R UU C0 UPSize: 35 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SS HSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SS PSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS SPSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS UPSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 HSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 PSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 SPSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C1 UPSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0Size: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 HSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 PSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 SPSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SS C0 UPSize: 35 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DD HSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DD PSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD SPSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD UPSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 HSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 PSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 SPSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C1 UPSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0Size: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 HSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 PSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 SPSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DD C0 UPSize: 35 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ HSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ PSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ SPSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ UPSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 HSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 PSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 SPSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C1 UPSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0Size: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 HSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 PSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 SPSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZ C0 UPSize: 35 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KK HSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KK PSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK SPSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK UPSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 HSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 PSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 SPSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C1 UPSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0Size: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 HSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 PSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 SPSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KK C0 UPSize: 35 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHHSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH HSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH PSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH SPSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH UPSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 HSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 PSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 SPSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C1 UPSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0Size: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 HSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 PSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 SPSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R SSHH C0 UPSize: 35 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHHSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH HSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH PSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH SPSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH UPSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 HSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 PSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 SPSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C1 UPSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0Size: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 HSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 PSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 SPSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R DDHH C0 UPSize: 35 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHHSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH HSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH PSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH SPSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH UPSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 HSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 PSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 SPSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C1 UPSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0Size: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 HSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 PSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 SPSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R ZZHH C0 UPSize: 35 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHHSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH HSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH PSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH SPSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH UPSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 HSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 PSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 SPSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C1 UPSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0Size: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 HSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 PSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 SPSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R KKHH C0 UPSize: 35 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GGSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R GG HSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R GG PSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG SPSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG UPSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 HSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 PSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 SPSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C1 UPSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0Size: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 HSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 PSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 SPSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R GG C0 UPSize: 35 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PPSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R PP HSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R PP PSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP SPSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP UPSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 HSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 PSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 SPSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C1 UPSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0Size: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 HSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 PSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 SPSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 62.3 / 96.6
SHS35R PP C0 UPSize: 35 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 62.3 / 96.6
SHS35LRBase model (specify seal, preload, accuracy, blocks, rail length)
SHS35LR UUSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR UU HSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR UU PSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU SPSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU UPSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0Size: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR UU C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SS HSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SS PSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS SPSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS UPSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0Size: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SS C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DD HSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DD PSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD SPSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD UPSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0Size: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DD C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ HSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ PSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ SPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ UPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0Size: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZ C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KK HSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KK PSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK SPSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK UPSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0Size: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KK C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHHSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH HSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH PSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH SPSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH UPSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0Size: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR SSHH C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHHSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH HSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH PSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH SPSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH UPSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0Size: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR DDHH C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHHSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH HSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH PSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH SPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH UPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0Size: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR ZZHH C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHHSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH HSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH PSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH SPSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH UPSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0Size: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR KKHH C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR GGSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR GG HSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR GG PSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG SPSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG UPSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0Size: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR GG C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR PPSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR PP HSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR PP PSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP SPSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP UPSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 HSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 PSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 SPSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C1 UPSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0Size: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 HSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 PSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 SPSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 72.9 / 127
SHS35LR PP C0 UPSize: 35 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 72.9 / 127
SHS45RBase model (specify seal, preload, accuracy, blocks, rail length)
SHS45R UUSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R UU HSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R UU PSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R UU SPSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R UU UPSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C1Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 HSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 PSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 SPSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C1 UPSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C0Size: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 HSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 PSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 SPSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R UU C0 UPSize: 45 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SSSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SS HSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SS PSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SS SPSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SS UPSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C1Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 HSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 PSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 SPSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C1 UPSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C0Size: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 HSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 PSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 SPSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SS C0 UPSize: 45 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DDSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DD HSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DD PSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DD SPSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DD UPSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C1Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 HSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 PSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 SPSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C1 UPSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C0Size: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 HSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 PSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 SPSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DD C0 UPSize: 45 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZ HSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZ PSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ SPSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ UPSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 HSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 PSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 SPSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C1 UPSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0Size: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 HSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 PSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 SPSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZ C0 UPSize: 45 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KKSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KK HSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KK PSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KK SPSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KK UPSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C1Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 HSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 PSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 SPSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C1 UPSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C0Size: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 HSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 PSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 SPSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KK C0 UPSize: 45 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHHSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SSHH HSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SSHH PSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH SPSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH UPSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 HSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 PSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 SPSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C1 UPSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0Size: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 HSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 PSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 SPSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R SSHH C0 UPSize: 45 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHHSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DDHH HSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DDHH PSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH SPSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH UPSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 HSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 PSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 SPSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C1 UPSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0Size: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 HSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 PSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 SPSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R DDHH C0 UPSize: 45 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHHSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH HSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH PSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH SPSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH UPSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 HSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 PSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 SPSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C1 UPSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0Size: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 HSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 PSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 SPSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R ZZHH C0 UPSize: 45 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHHSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KKHH HSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KKHH PSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH SPSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH UPSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 HSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 PSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 SPSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C1 UPSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0Size: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 HSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 PSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 SPSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R KKHH C0 UPSize: 45 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R GGSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R GG HSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R GG PSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R GG SPSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R GG UPSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C1Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 HSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 PSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 SPSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C1 UPSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C0Size: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 HSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 PSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 SPSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R GG C0 UPSize: 45 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R PPSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R PP HSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R PP PSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R PP SPSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R PP UPSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C1Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 HSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 PSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 SPSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C1 UPSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C0Size: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 HSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 PSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 SPSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 82.8 / 126
SHS45R PP C0 UPSize: 45 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 82.8 / 126
SHS45LRBase model (specify seal, preload, accuracy, blocks, rail length)
SHS45LR UUSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR UU HSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR UU PSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR UU SPSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR UU UPSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR UU C1Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR UU C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR UU C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR UU C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR UU C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR UU C0Size: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR UU C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR UU C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR UU C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR UU C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SSSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SS HSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SS PSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SS SPSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SS UPSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SS C1Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SS C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SS C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SS C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SS C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SS C0Size: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SS C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SS C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SS C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SS C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DDSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DD HSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DD PSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DD SPSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DD UPSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DD C1Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DD C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DD C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DD C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DD C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DD C0Size: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DD C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DD C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DD C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DD C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZ HSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZ PSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ SPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ UPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0Size: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZ C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KKSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KK HSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KK PSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KK SPSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KK UPSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KK C1Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KK C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KK C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KK C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KK C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KK C0Size: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KK C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KK C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KK C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KK C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SSHHSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SSHH HSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SSHH PSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH SPSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH UPSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0Size: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR SSHH C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DDHHSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DDHH HSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DDHH PSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH SPSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH UPSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0Size: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR DDHH C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHHSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZHH HSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZHH PSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH SPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH UPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0Size: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR ZZHH C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KKHHSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KKHH HSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KKHH PSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH SPSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH UPSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0Size: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR KKHH C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR GGSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR GG HSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR GG PSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR GG SPSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR GG UPSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR GG C1Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR GG C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR GG C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR GG C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR GG C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR GG C0Size: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR GG C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR GG C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR GG C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR GG C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR PPSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR PP HSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR PP PSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR PP SPSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR PP UPSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR PP C1Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR PP C1 HSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR PP C1 PSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR PP C1 SPSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR PP C1 UPSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS45LR PP C0Size: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 100 / 166
SHS45LR PP C0 HSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 100 / 166
SHS45LR PP C0 PSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 100 / 166
SHS45LR PP C0 SPSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 100 / 166
SHS45LR PP C0 UPSize: 45 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 100 / 166
SHS55RBase model (specify seal, preload, accuracy, blocks, rail length)
SHS55R UUSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R UU HSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R UU PSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R UU SPSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R UU UPSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R UU C1Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R UU C1 HSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R UU C1 PSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R UU C1 SPSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R UU C1 UPSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R UU C0Size: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R UU C0 HSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R UU C0 PSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R UU C0 SPSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R UU C0 UPSize: 55 | Block: R (square, tapped) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SSSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SS HSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SS PSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SS SPSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SS UPSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SS C1Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SS C1 HSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SS C1 PSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SS C1 SPSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SS C1 UPSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SS C0Size: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SS C0 HSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SS C0 PSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SS C0 SPSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SS C0 UPSize: 55 | Block: R (square, tapped) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DDSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DD HSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DD PSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DD SPSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DD UPSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DD C1Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DD C1 HSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DD C1 PSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DD C1 SPSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DD C1 UPSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DD C0Size: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DD C0 HSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DD C0 PSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DD C0 SPSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DD C0 UPSize: 55 | Block: R (square, tapped) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZ HSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZ PSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZ SPSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZ UPSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C1Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 HSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 PSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 SPSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C1 UPSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C0Size: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 HSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 PSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 SPSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZ C0 UPSize: 55 | Block: R (square, tapped) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KKSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KK HSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KK PSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KK SPSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KK UPSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KK C1Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KK C1 HSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KK C1 PSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KK C1 SPSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KK C1 UPSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KK C0Size: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KK C0 HSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KK C0 PSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KK C0 SPSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KK C0 UPSize: 55 | Block: R (square, tapped) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SSHHSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SSHH HSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SSHH PSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SSHH SPSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SSHH UPSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C1Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 HSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 PSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 SPSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C1 UPSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C0Size: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 HSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 PSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 SPSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R SSHH C0 UPSize: 55 | Block: R (square, tapped) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DDHHSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DDHH HSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DDHH PSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DDHH SPSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DDHH UPSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C1Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 HSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 PSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 SPSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C1 UPSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C0Size: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 HSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 PSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 SPSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R DDHH C0 UPSize: 55 | Block: R (square, tapped) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZHHSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZHH HSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZHH PSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH SPSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH UPSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 HSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 PSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 SPSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C1 UPSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0Size: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 HSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 PSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 SPSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R ZZHH C0 UPSize: 55 | Block: R (square, tapped) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KKHHSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KKHH HSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KKHH PSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KKHH SPSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KKHH UPSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C1Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 HSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 PSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 SPSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C1 UPSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C0Size: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 HSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 PSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 SPSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R KKHH C0 UPSize: 55 | Block: R (square, tapped) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R GGSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R GG HSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R GG PSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R GG SPSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R GG UPSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R GG C1Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R GG C1 HSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R GG C1 PSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R GG C1 SPSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R GG C1 UPSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R GG C0Size: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R GG C0 HSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R GG C0 PSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R GG C0 SPSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R GG C0 UPSize: 55 | Block: R (square, tapped) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R PPSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R PP HSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R PP PSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R PP SPSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R PP UPSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R PP C1Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R PP C1 HSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R PP C1 PSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R PP C1 SPSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R PP C1 UPSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55R PP C0Size: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 128 / 197
SHS55R PP C0 HSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 128 / 197
SHS55R PP C0 PSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 128 / 197
SHS55R PP C0 SPSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 128 / 197
SHS55R PP C0 UPSize: 55 | Block: R (square, tapped) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 128 / 197
SHS55LRBase model (specify seal, preload, accuracy, blocks, rail length)
SHS55LR UUSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR UU HSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR UU PSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR UU SPSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR UU UPSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR UU C1Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR UU C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR UU C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR UU C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR UU C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR UU C0Size: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR UU C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR UU C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR UU C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR UU C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: UU (end seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SSSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SS HSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SS PSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SS SPSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SS UPSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SS C1Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SS C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SS C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SS C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SS C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SS C0Size: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SS C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SS C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SS C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SS C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: SS (end + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DDSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DD HSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DD PSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DD SPSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DD UPSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DD C1Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DD C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DD C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DD C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DD C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DD C0Size: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DD C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DD C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DD C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DD C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: DD (double + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZ HSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZ PSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ SPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ UPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0Size: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZ C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZ (SS + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KKSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KK HSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KK PSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KK SPSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KK UPSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KK C1Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KK C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KK C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KK C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KK C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KK C0Size: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KK C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KK C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KK C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KK C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: KK (DD + metal scraper) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SSHHSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SSHH HSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SSHH PSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH SPSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH UPSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0Size: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR SSHH C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: SSHH (SS + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DDHHSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DDHH HSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DDHH PSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH SPSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH UPSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0Size: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR DDHH C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: DDHH (DD + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHHSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZHH HSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZHH PSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH SPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH UPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0Size: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR ZZHH C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: ZZHH (ZZ + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KKHHSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KKHH HSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KKHH PSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH SPSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH UPSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0Size: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR KKHH C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: KKHH (KK + LaCS) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR GGSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR GG HSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR GG PSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR GG SPSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR GG UPSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR GG C1Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR GG C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR GG C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR GG C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR GG C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR GG C0Size: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR GG C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR GG C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR GG C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR GG C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: GG (LiCS low-friction seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR PPSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR PP HSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR PP PSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR PP SPSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR PP UPSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: Normal (no symbol) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR PP C1Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR PP C1 HSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR PP C1 PSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR PP C1 SPSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR PP C1 UPSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C1 (light preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259
SHS55LR PP C0Size: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: Normal (no symbol) | C / C0 (kN): 161 / 259
SHS55LR PP C0 HSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: H (high) | C / C0 (kN): 161 / 259
SHS55LR PP C0 PSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: P (precision) | C / C0 (kN): 161 / 259
SHS55LR PP C0 SPSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: SP (super precision) | C / C0 (kN): 161 / 259
SHS55LR PP C0 UPSize: 55 | Block: LR (square, tapped, long) | Seal: PP (LiCS + side + inner seal) | Preload: C0 (medium preload) | Accuracy: UP (ultra precision) | C / C0 (kN): 161 / 259

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
