THK SM/SMB/SE/SEB Mounting Fixture for LM Roller (Size 15-50)

THK SM/SMB/SE/SEB Mounting Fixture for LM Roller (Size 15-50)

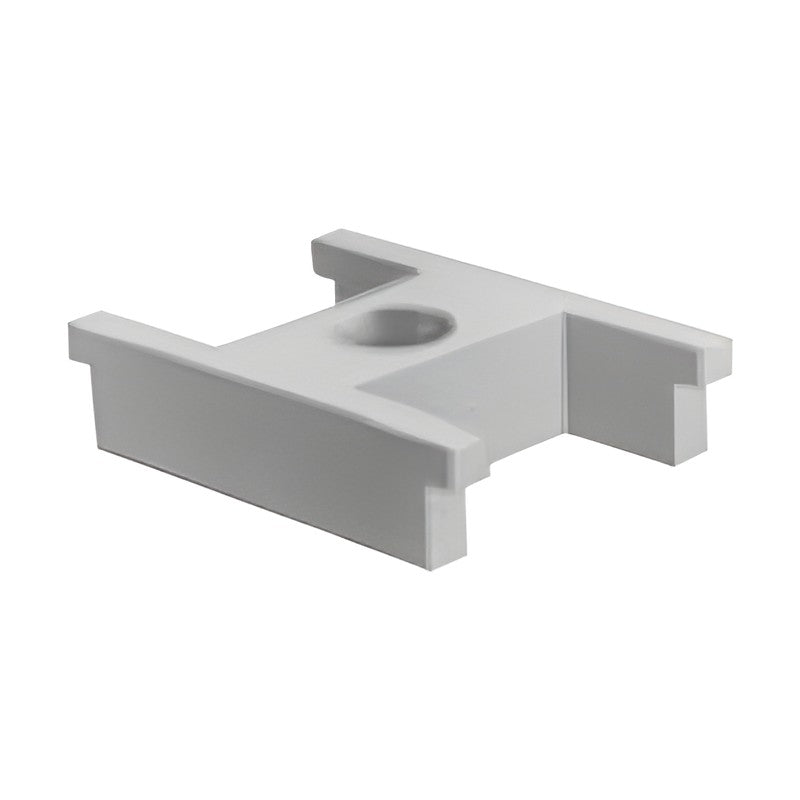

THK SM, SMB, SE and SEB mounting fixtures clamp LRA/LRB LM rollers firmly without machining shallow tapped holes in the roller seat.

Key features

  • SM/SE for LRA (groove mounting); SMB/SEB for LRB (no groove)
  • SE and SEB include a double-lip special rubber wiper for high dust protection
  • Eliminate thin tapped holes for roller mounting
  • Sizes 15, 20, 25, 32, 40, 50 matching LM roller sizes

Specifications

Series Mounting fixtures SM, SMB, SE, SEB
Applicable LRA/LRA-Z, LRB/LRB-Z
Wiper SE, SEB: double-lip rubber wiper
Sizes 15, 20, 25, 32, 40, 50
Code composition Type + size, e.g. SE25
Source THK General Catalog LM Roller (Korean ed. 515-2K), p. A10-22-A10-25
SM15 Type: SM: clamp for LRA | Roller size: 15 | Width B: 22.2 mm
SMB15 Type: SMB: clamp for LRB | Roller size: 15 | Width B: 22.2 mm
SE15 Type: SE: clamp + wiper for LRA | Roller size: 15 | Width B: 22.2 mm
SEB15 Type: SEB: clamp + wiper for LRB | Roller size: 15 | Width B: 22.2 mm
SM20 Type: SM: clamp for LRA | Roller size: 20 | Width B: 30 mm
SMB20 Type: SMB: clamp for LRB | Roller size: 20 | Width B: 30 mm
SE20 Type: SE: clamp + wiper for LRA | Roller size: 20 | Width B: 30 mm
SEB20 Type: SEB: clamp + wiper for LRB | Roller size: 20 | Width B: 30 mm
SM25 Type: SM: clamp for LRA | Roller size: 25 | Width B: 38.1 mm
SMB25 Type: SMB: clamp for LRB | Roller size: 25 | Width B: 38.1 mm
SE25 Type: SE: clamp + wiper for LRA | Roller size: 25 | Width B: 38.1 mm
SEB25 Type: SEB: clamp + wiper for LRB | Roller size: 25 | Width B: 38.1 mm
SM32 Type: SM: clamp for LRA | Roller size: 32 | Width B: 45 mm
SMB32 Type: SMB: clamp for LRB | Roller size: 32 | Width B: 45 mm
SE32 Type: SE: clamp + wiper for LRA | Roller size: 32 | Width B: 45 mm
SEB32 Type: SEB: clamp + wiper for LRB | Roller size: 32 | Width B: 45 mm
SM40 Type: SM: clamp for LRA | Roller size: 40 | Width B: 55 mm
SMB40 Type: SMB: clamp for LRB | Roller size: 40 | Width B: 55 mm
SE40 Type: SE: clamp + wiper for LRA | Roller size: 40 | Width B: 55 mm
SEB40 Type: SEB: clamp + wiper for LRB | Roller size: 40 | Width B: 55 mm
SM50 Type: SM: clamp for LRA | Roller size: 50 | Width B: 76.2 mm
SMB50 Type: SMB: clamp for LRB | Roller size: 50 | Width B: 76.2 mm
SE50 Type: SE: clamp + wiper for LRA | Roller size: 50 | Width B: 76.2 mm
SEB50 Type: SEB: clamp + wiper for LRB | Roller size: 50 | Width B: 76.2 mm
